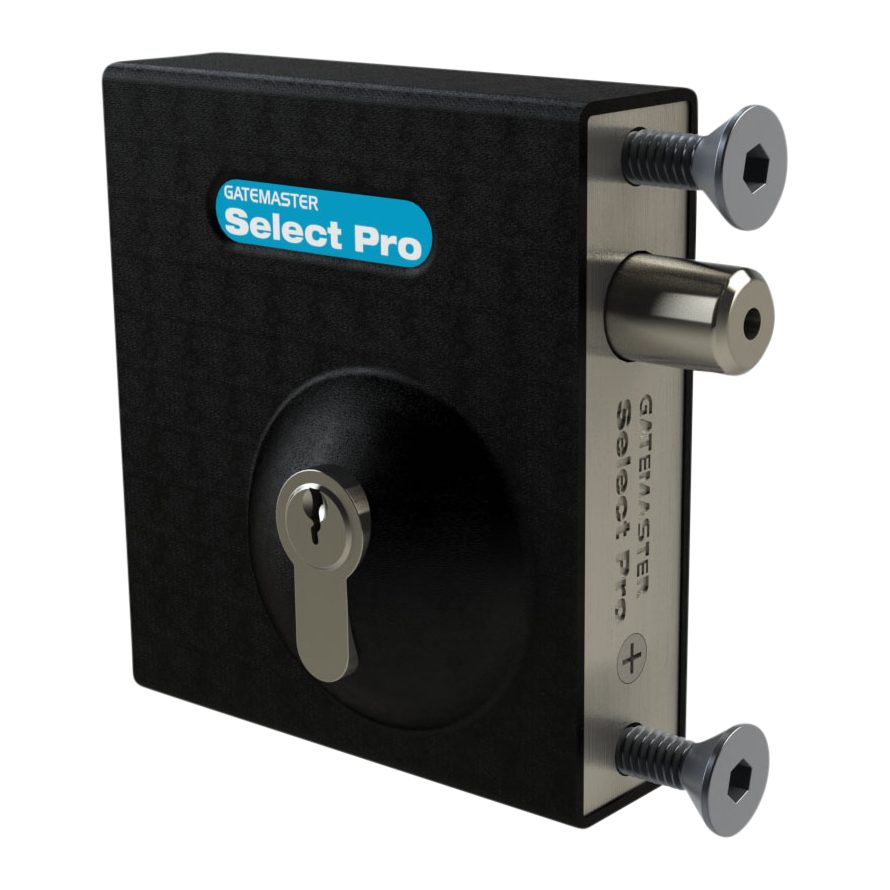

GATEMASTER SBD Bolt On Deadlock

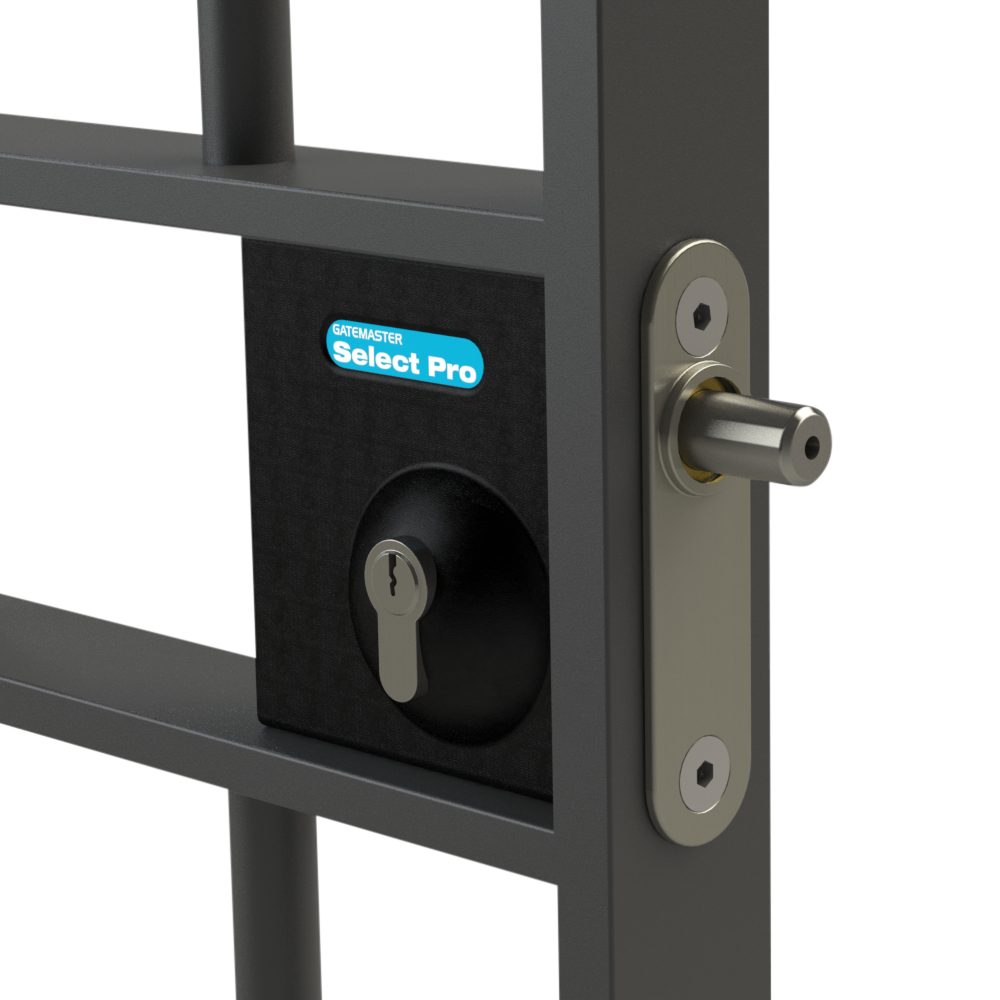

The Gatemaster SBD Bolt On Deadlock is a highly durable and secure locking solution designed specifically for metal gates. Combining a solid stainless steel deadbolt with a 5-pin euro cylinder, this lock offers robust security and smooth operation. Engineered to withstand harsh outdoor environments, it features marine-grade weather resistance, making it ideal for external gates.

This versatile deadlock is non-handed, allowing it to be fitted to both left and right-handed gates. It is designed to be bolted securely in place, requiring only three holes to be drilled into the gate frame for a straightforward installation. The lock is supplied complete with three keys, fixing bolts, and a bolt support plate with a brass bearing to reduce friction and extend the lifespan of the lock.

To accommodate different gate profiles, this product is available in multiple sizes to suit gate frame thicknesses ranging from 10mm up to 60mm. Please select your required gate frame size and manufacturer reference from the options below to ensure a perfect fit.

Technical Specifications

• Brand: Gatemaster
• Finish: Black
• Deadbolt Throw: 30mm
• Cylinder Type: 5-pin euro cylinder (keyed both sides)
• Gate Frame Thickness: Options available to suit 10mm to 30mm or 40mm to 60mm gate frames (please choose from the options below)
• Manufacturer Reference: SBD1601 or SBD1602 (please choose from the options below)
• Handing: Non-handed (suitable for left or right-handed gates)
• Keys Supplied: 3

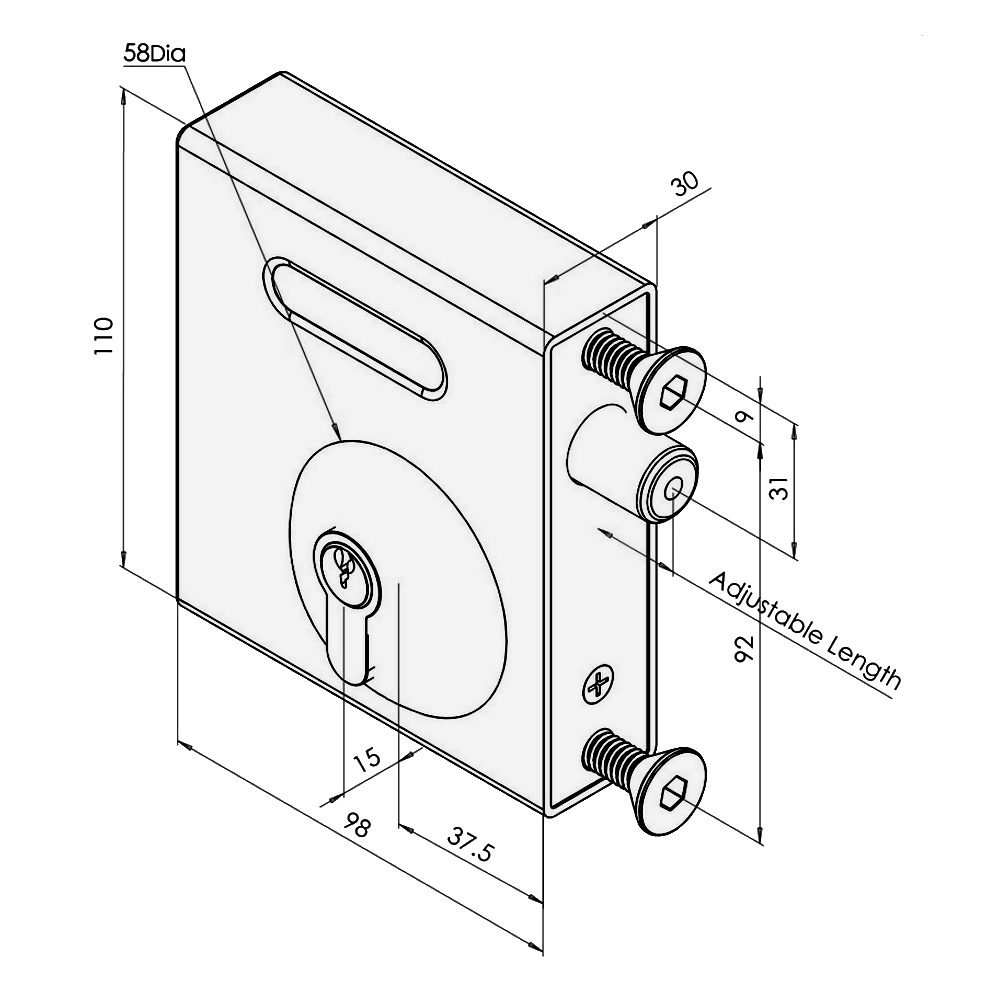

• Case Width: 98mm
• Case Depth: 30mm
• Weight: 1.254kg

Key Features

• Marine-Grade Durability: Weather-resistant design engineered to withstand harsh outdoor environments.
• Robust Stainless Steel Deadbolt: Provides a secure 30mm throw with a single turn of the key.
• Double-Sided Key Access: Conveniently operated by key from both the inside and outside of the gate.
• Easy Bolt-On Installation: Simple to install by drilling just three holes in the gate frame, with all fixing bolts included.
• Reduced Wear and Friction: Supplied with a bolt support plate featuring a brass bearing to ensure a smooth action and extended product life.
• Multiple Sizes Available: Choose the correct model below to suit your specific gate frame thickness.
