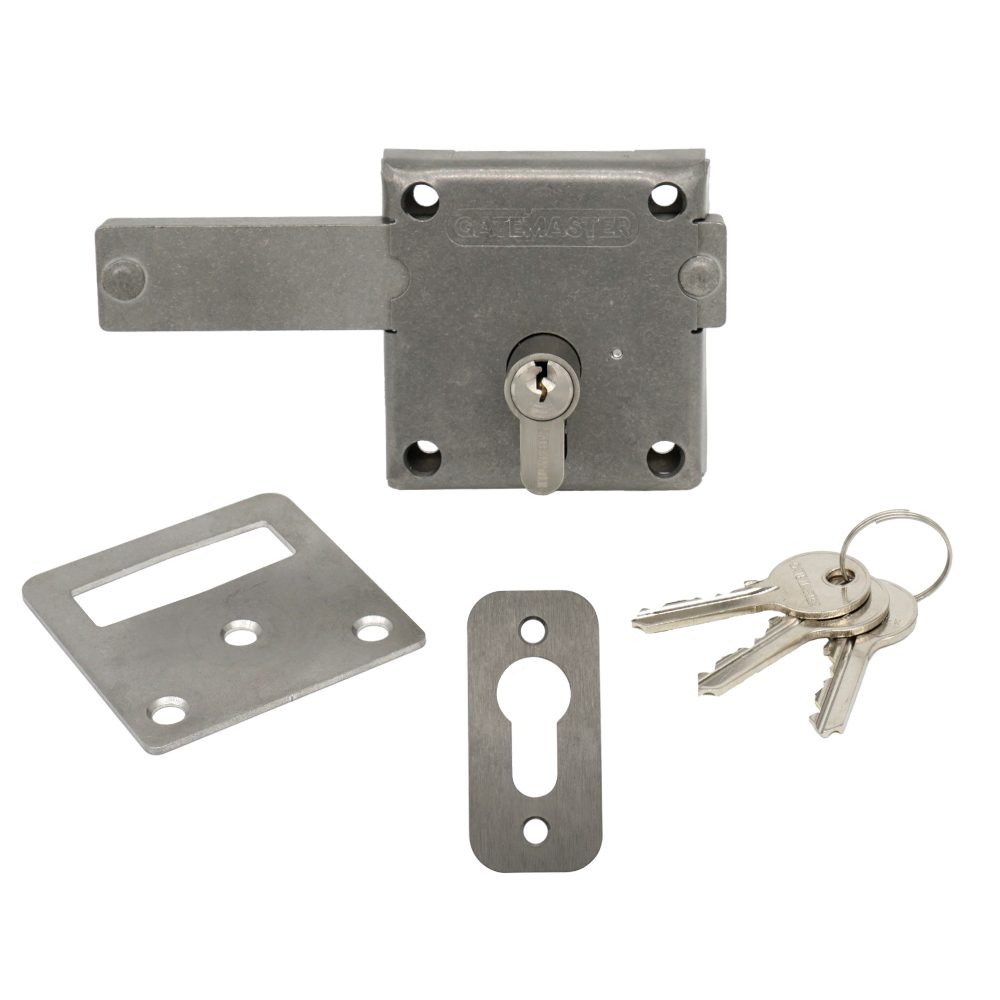

GATEMASTER Long Throw Gate Locking Bolt With Cylinder

Gatemaster More Gatemaster Gate Locks

From

£59.96

Select size, finish, and quantity from the variant table.

View options

The Gatemaster Long Throw Gate Locking Bolt is a highly durable, surface-mounted security solution designed for both wooden and metal gates. Manufactured from high-grade stainless steel, this lock is built to withstand harsh outdoor weather conditions. It features a robust deadbolt with a long 53mm throw that operates with a single turn of the key, making it an excellent choice for wooden gates that naturally expand and contract over time.

This lock is non-handed, meaning it can be easily installed on both left-handed and right-handed gates. It provides secure key access from both sides of the gate and comes complete with a 5-pin cog mechanism euro cylinder and three keys.

To accommodate different gate depths, this locking bolt is available in multiple configurations:

GLB: Suitable for gate thicknesses up to 24mm (featuring a 30/30 overall cylinder size and weighing 675g).
GLB02: Suitable for gate thicknesses up to 60mm (featuring a 65/35 overall cylinder size and weighing 935g).

Please select your required door thickness, cylinder size, and manufacturer reference from the options below to ensure the perfect fit for your gate.

Technical Specifications

Brand: Gatemaster
Material: Stainless Steel

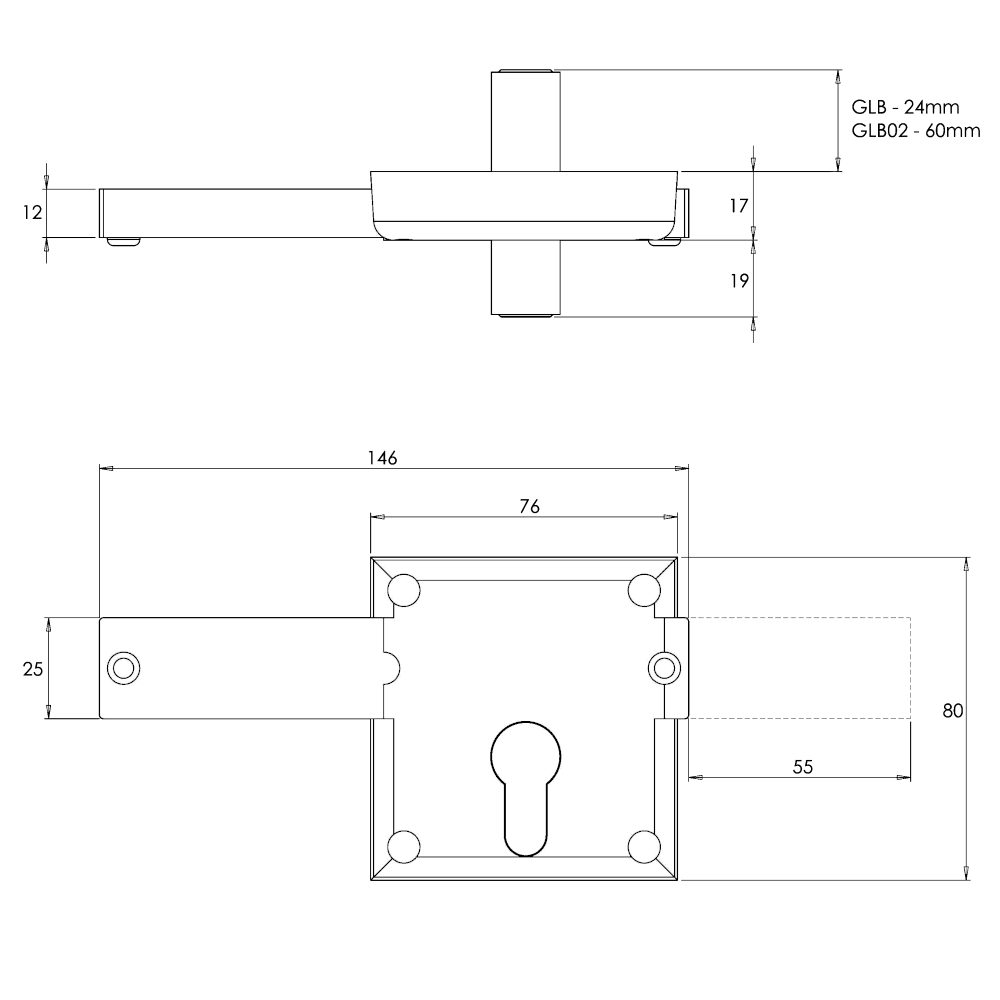

Dimensions: 80mm (Length) x 76mm (Width) x 17mm (Depth)
Hole Centres: 57mm horizontal and 63mm vertical
Cylinder Size Overall: 30/30 or 65/35 (please choose from the options below)
Door Thickness: Up to 24mm or Up to 60mm (please choose from the options below)
Manufacturer Reference: GLB or GLB02 (please choose from the options below)
Weight: 675g or 935g (please choose from the options below)
Pack Quantity: 1
Packaging: Boxed

Key Features

Double-Sided Key Access: Provides secure locking and unlocking from both the inside and outside of the gate.
Long 53mm Throw: The strong deadbolt moves 53mm with a single turn of the key, accommodating gate movement and weathering.
Weather Resistant: Manufactured from durable stainless steel to ensure long-lasting performance in all outdoor conditions.

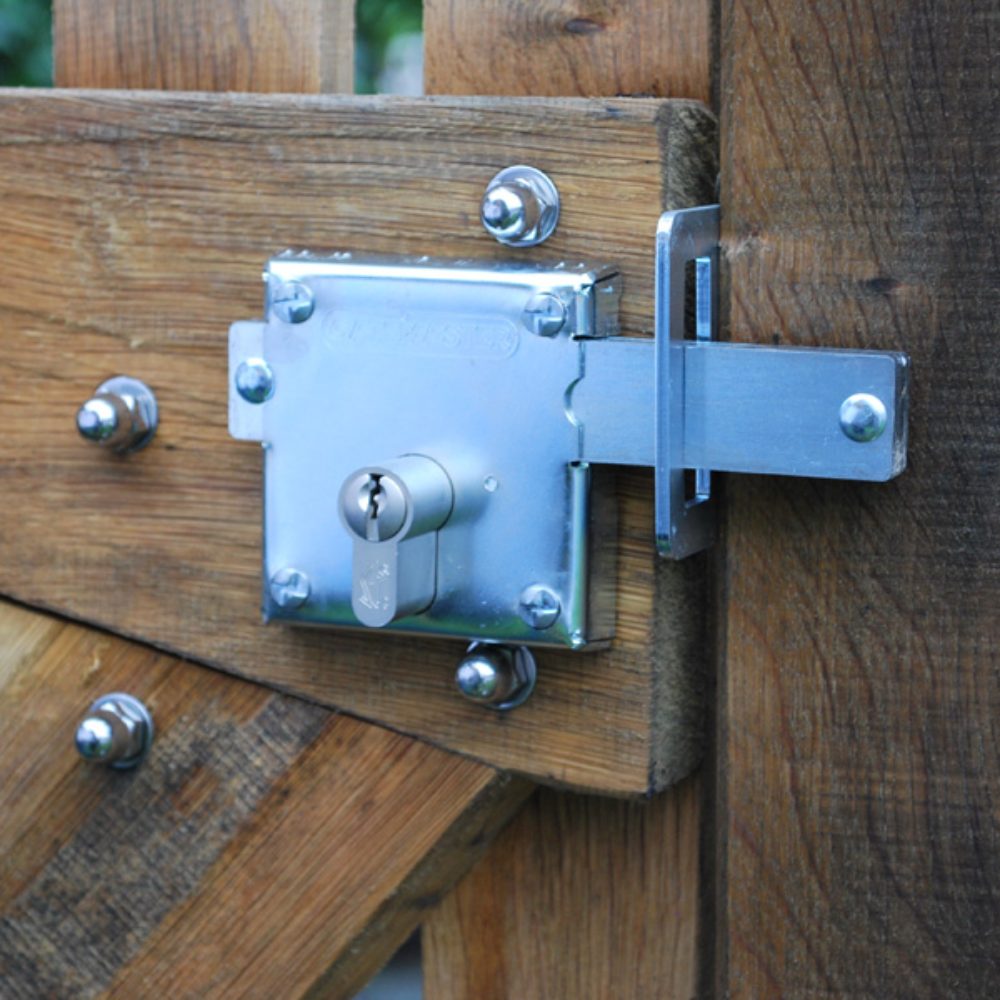

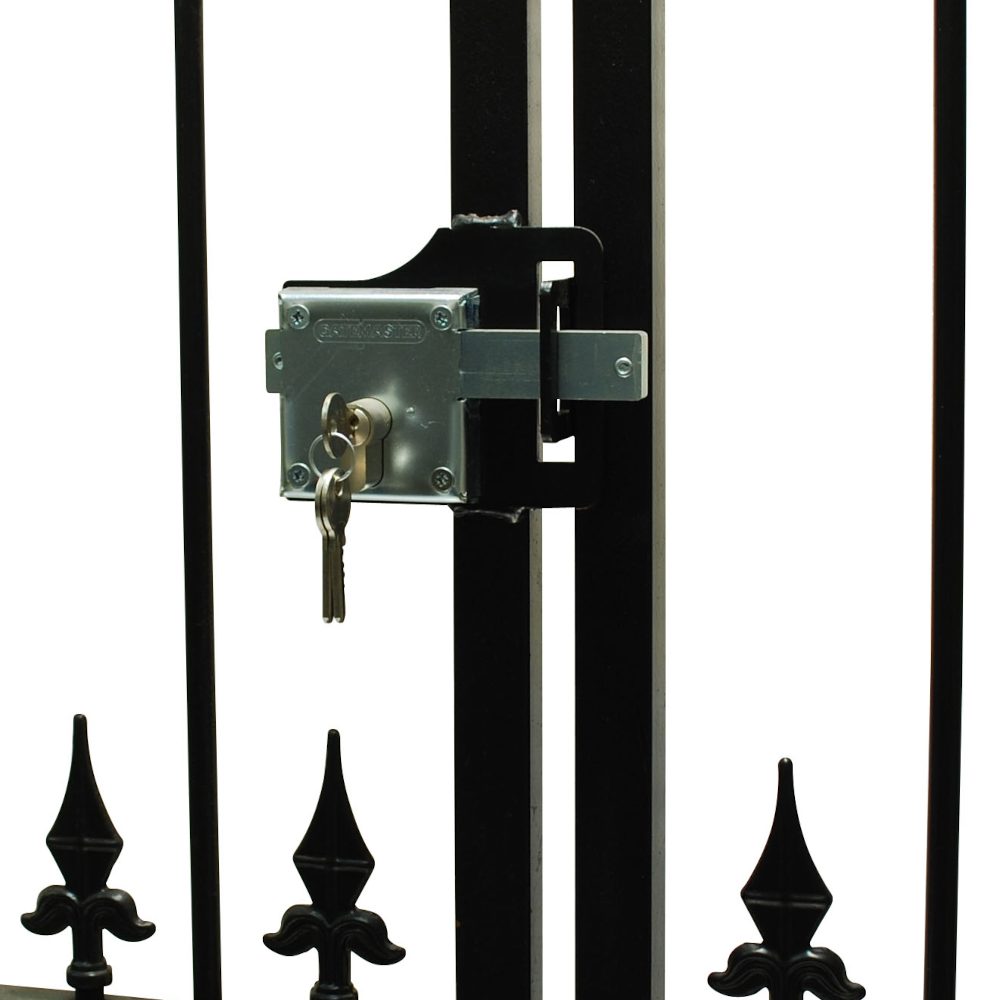

Versatile Fitting: Suitable for use on both wooden and metal gates.
Non-Handed Design: Reversible configuration makes it suitable for both left and right-handed gates.

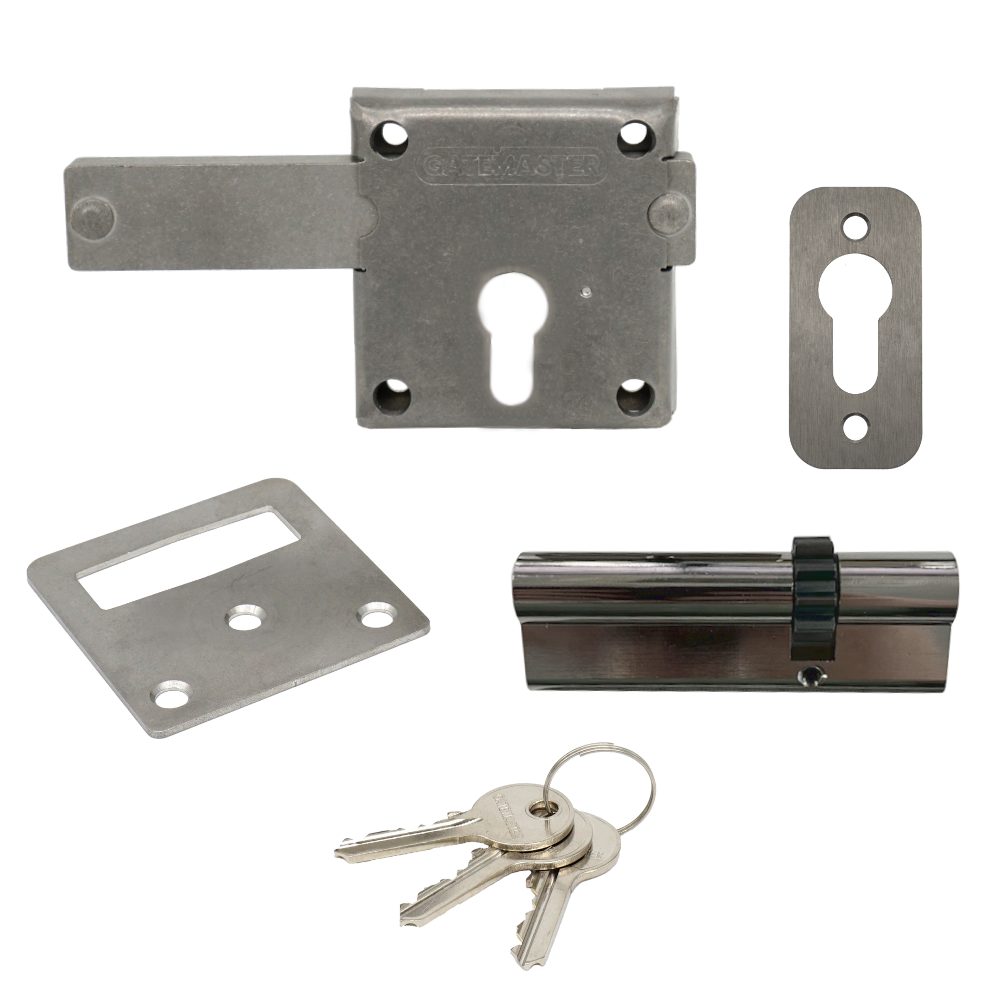

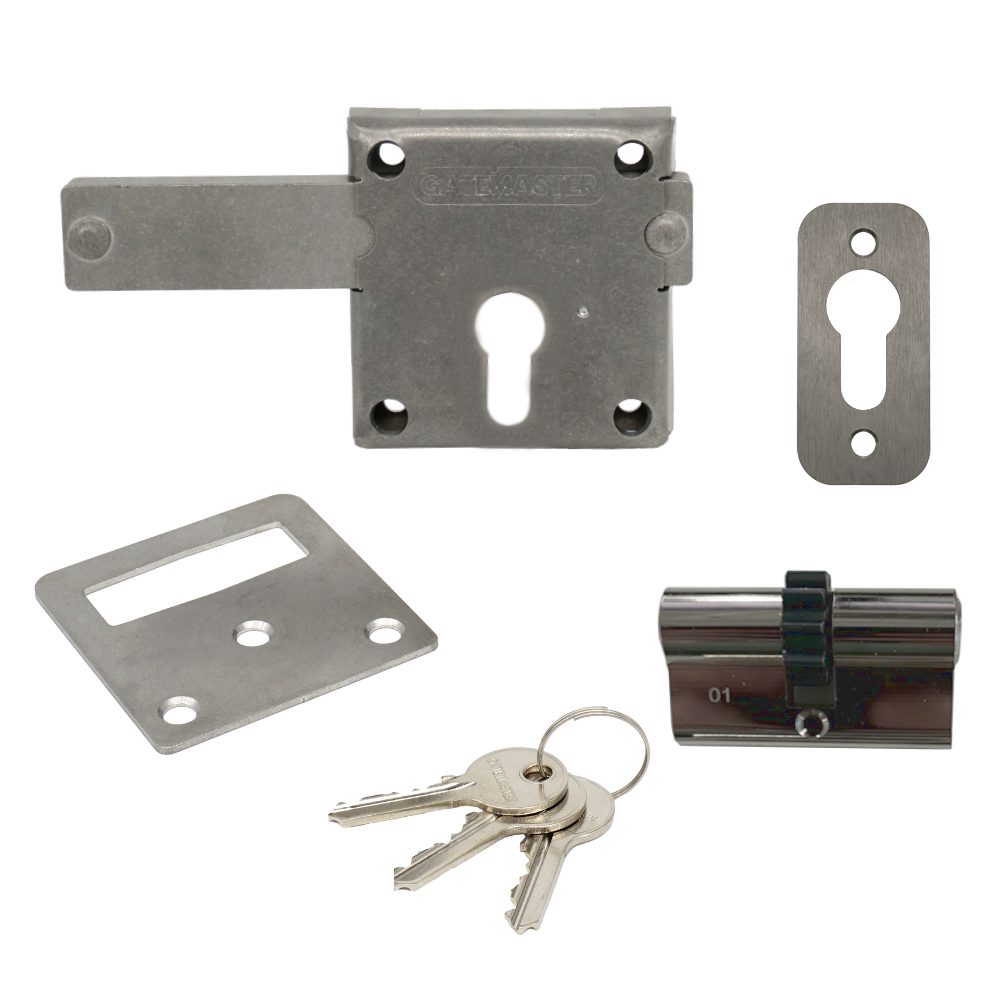

Complete Kit: Supplied with a high-quality 5-pin euro cylinder and 3 keys.
