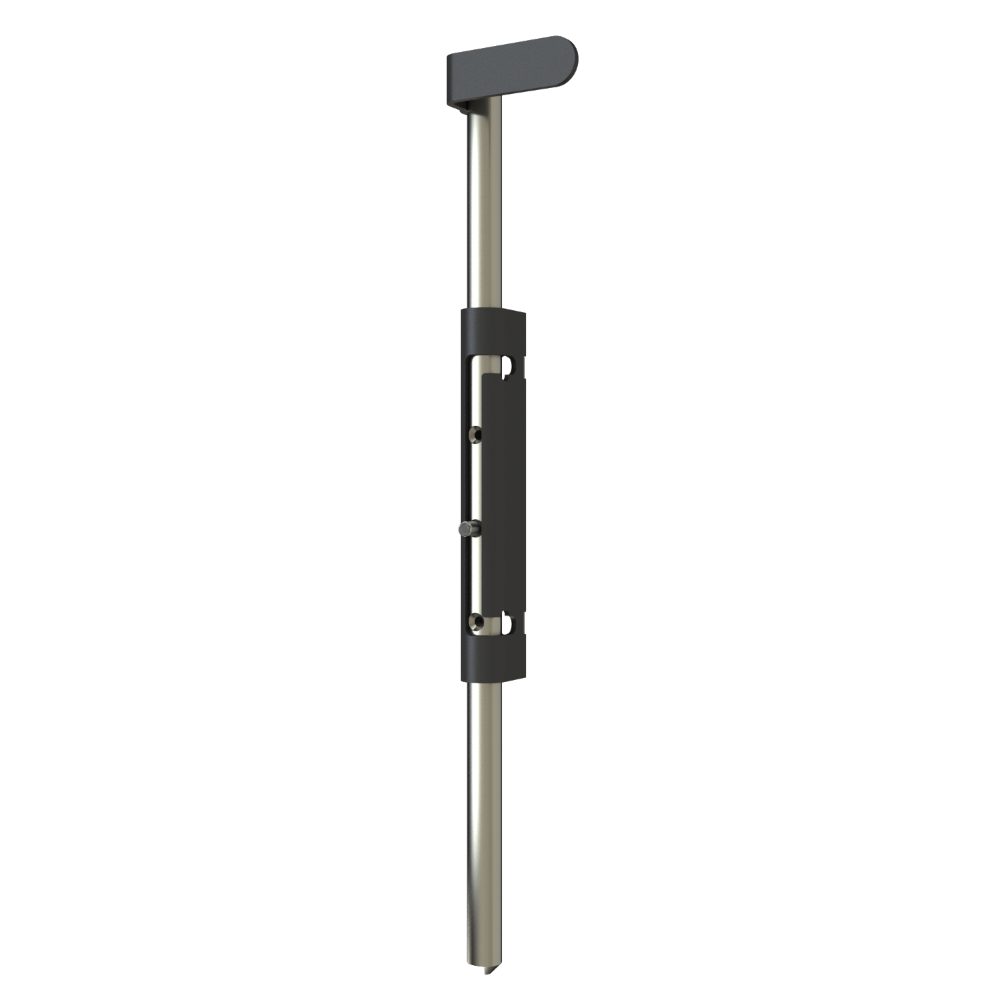

GATEMASTER Locking Drop Bolt

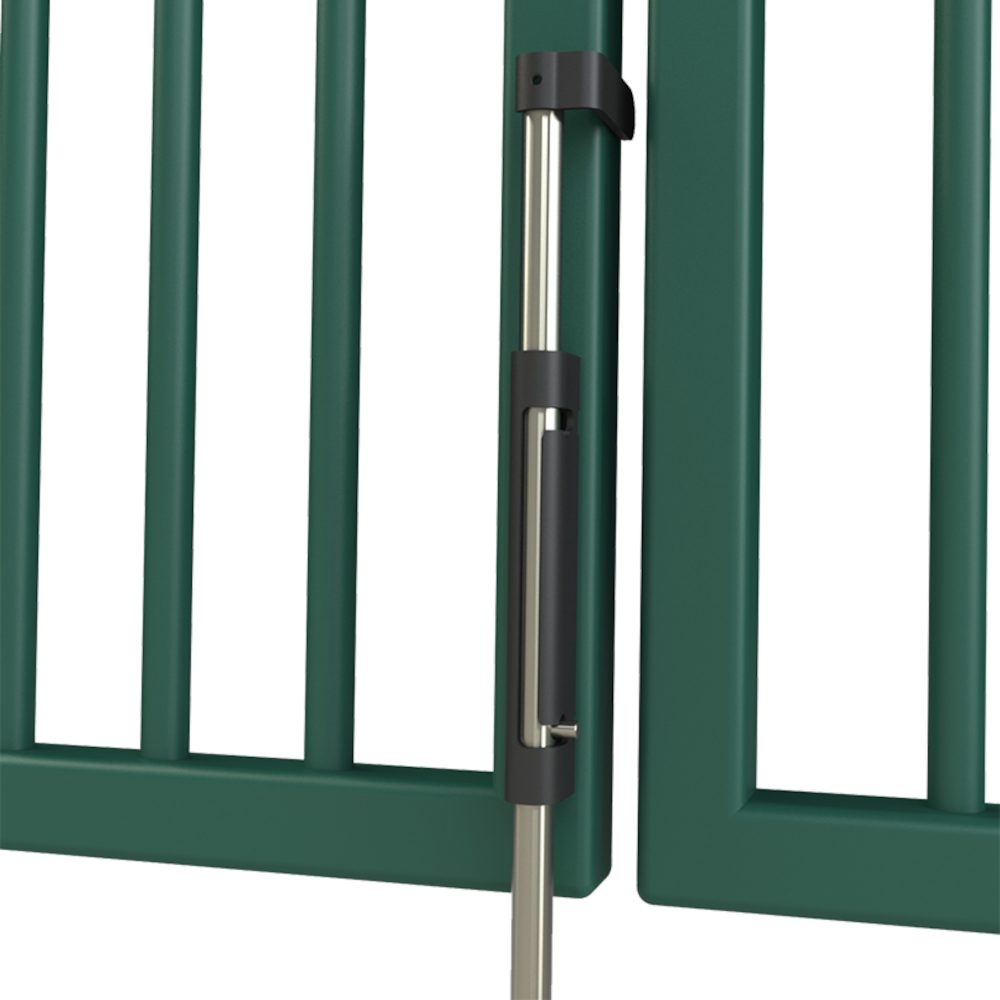

The Gatemaster Locking Drop Bolt is a secure, innovative, and easy-to-fit solution designed specifically for double swing gates. Its clever design provides reliable security: once the 19mm drop bolt is lowered into the ground, the locking plate is rotated around the edge of the gate. When the second gate is closed, it blocks the plate from rotating back, ensuring the drop bolt cannot be lifted or unlocked.

This surface-fixed drop bolt is highly adaptable, fitting both left and right-hand gates. Installation is straightforward, requiring just two 15mm holes to be drilled into the gate, and it is secured firmly using the expanding fasteners provided.

The Gatemaster Locking Drop Bolt is available in multiple material options, including lightweight aluminium or heavy-duty stainless steel, with weights ranging from 990g to 1.6kg. Please select your preferred material and specification from the options below.

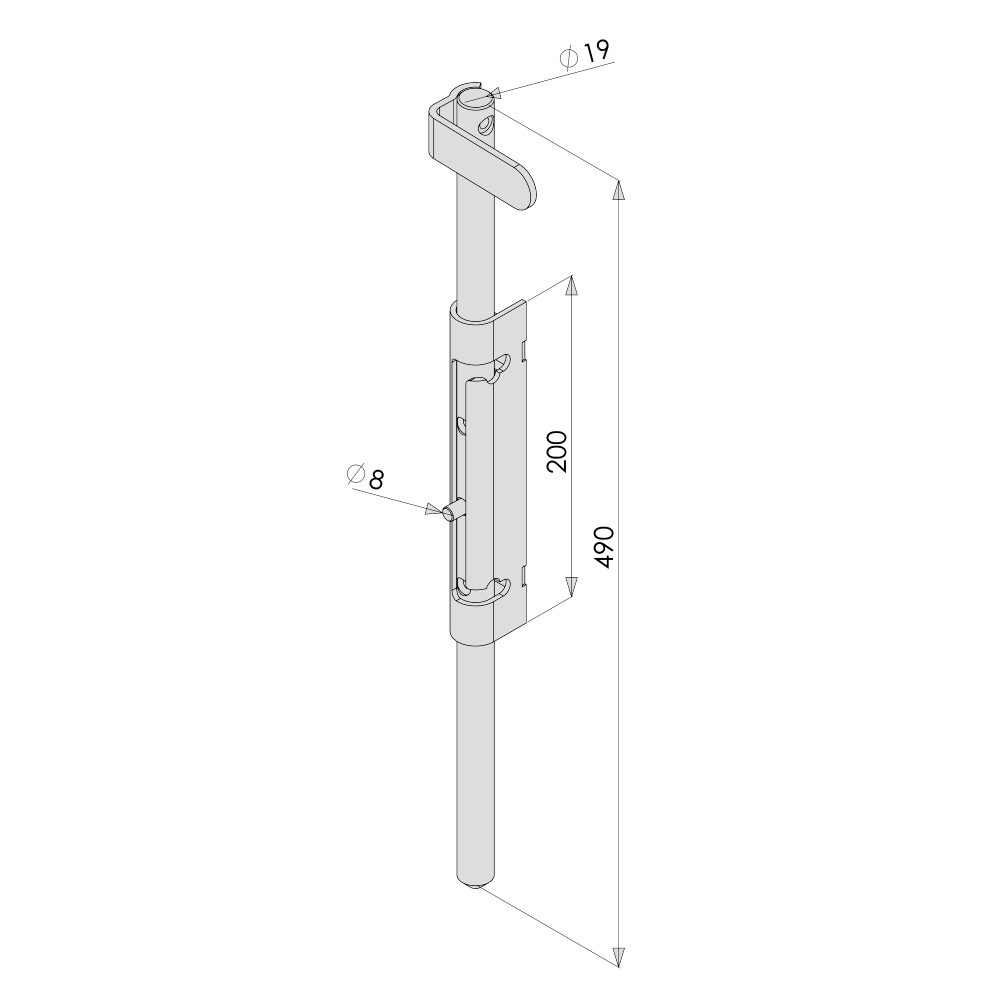

Technical Specifications

• Brand: Gatemaster
• Manufacturer Reference: LDB or LDBSS (please choose from the options below)
• Body Length: 200mm
• Bolt Diameter: 19mm
• Bolt Movement: 140mm
• Overall Length: 49cm
• Screw Centres: 140mm
• Finish: Black
• Material: Aluminium or Stainless Steel (please choose from the options below)
• Weight: 990g or 1.6kg (please choose from the options below)
• Weather Resistant: Yes
• Pack Quantity: 1

Key Features

• Innovative Locking Design: Once the bolt is lowered and rotated, closing the second gate prevents the drop bolt from being lifted or unlocked.
• Easy Installation: Requires only two 15mm holes and is secured with the provided expanding fasteners.
• Universal Handing: Suitable for both left and right-hand gates.
• Durable Construction: Built with a powder-coated body and a robust 19mm bolt.
• Designed for Double Gates: Provides a secure and reliable method to lock double swing gates to the ground.
