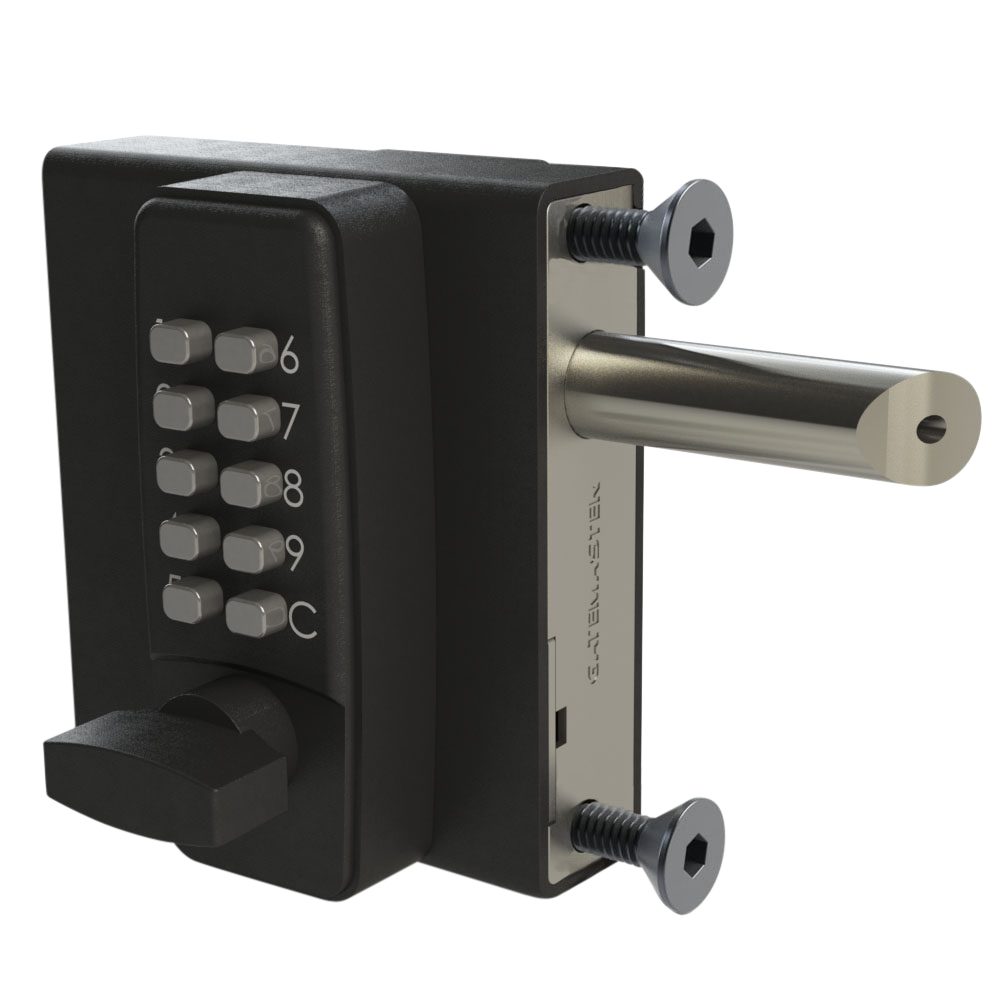

GATEMASTER DGLS Single Sided Handed Digital Gate Lock

The Gatemaster DGLS Single Sided Handed Digital Gate Lock is a robust, highly durable security solution designed specifically for outdoor gates. Built to withstand the elements, this lock is weather-resistant and salt spray tested to marine grade, ensuring long-lasting performance in harsh outdoor environments.

Operating entirely mechanically, it requires no keys, power, or batteries. The lock features a secure 10-button keypad on the outside for code-controlled entry, and a free-exit thumbturn on the inside for convenient egress. It also features an auto-latching mechanism that automatically secures the gate when closed, alongside a deadlocking function. A brass bearing plate is supplied to support the latchbolt, reducing wear and extending the lifespan of the lock.

This digital gate lock is available in multiple configurations to suit your specific installation needs. It is offered in both Left Hand and Right Hand orientations, and in two sizes to accommodate different gate frame thicknesses: 10mm to 30mm (DGLS01) or 40mm to 60mm (DGLS02). Please choose your required handing and gate frame size from the options below to ensure the correct fit.

Technical Specifications

• Brand: Gatemaster
• Mechanism: Mechanical Digital
• Code Length: 3 to 5 digits
• Combinations: 500+
• Keypad Buttons: 10
• Bolt Throw: 20mm
• Case Width: 30mm
• Lock Width: 98mm
• Finish: Black
• Gate Frame Thickness: Options to suit 10mm to 30mm, or 40mm to 60mm (please select below)

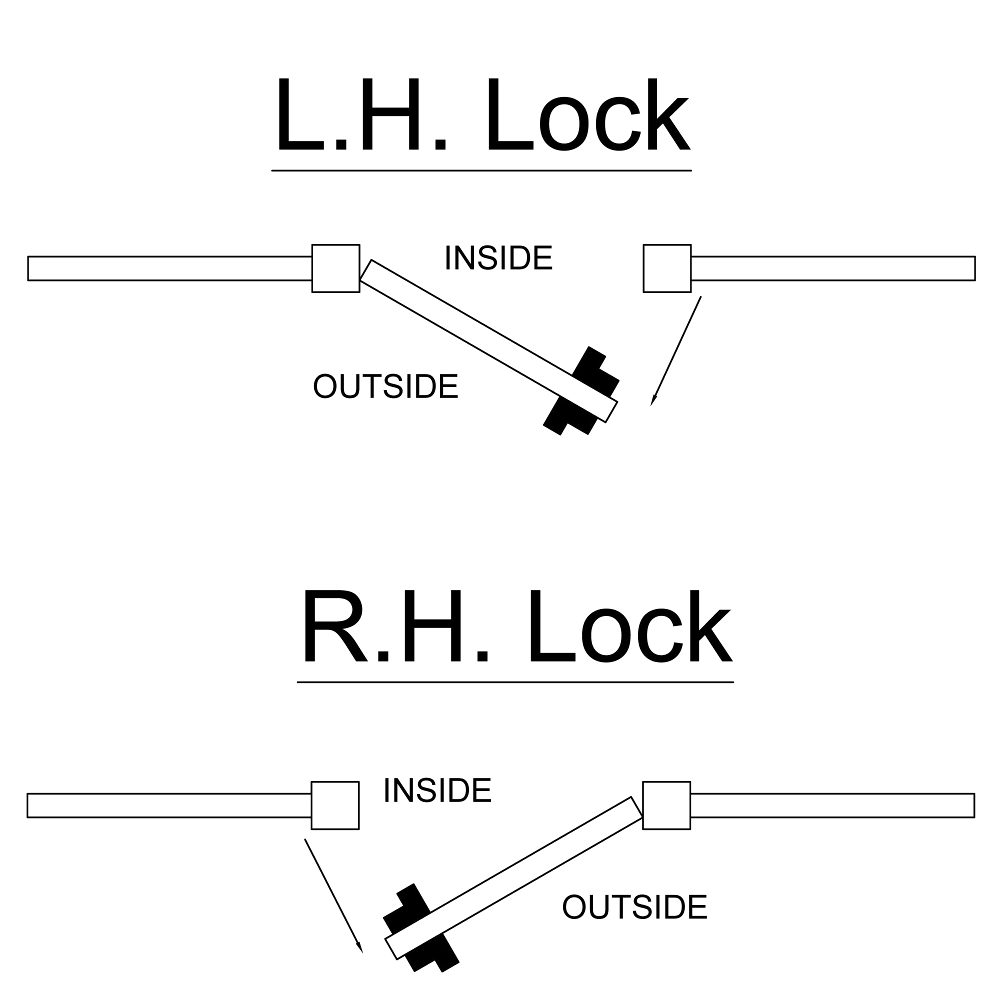

• Handing: Left Hand or Right Hand options available (please select below)
• Operation Outside: Thumbturn on entry of correct code

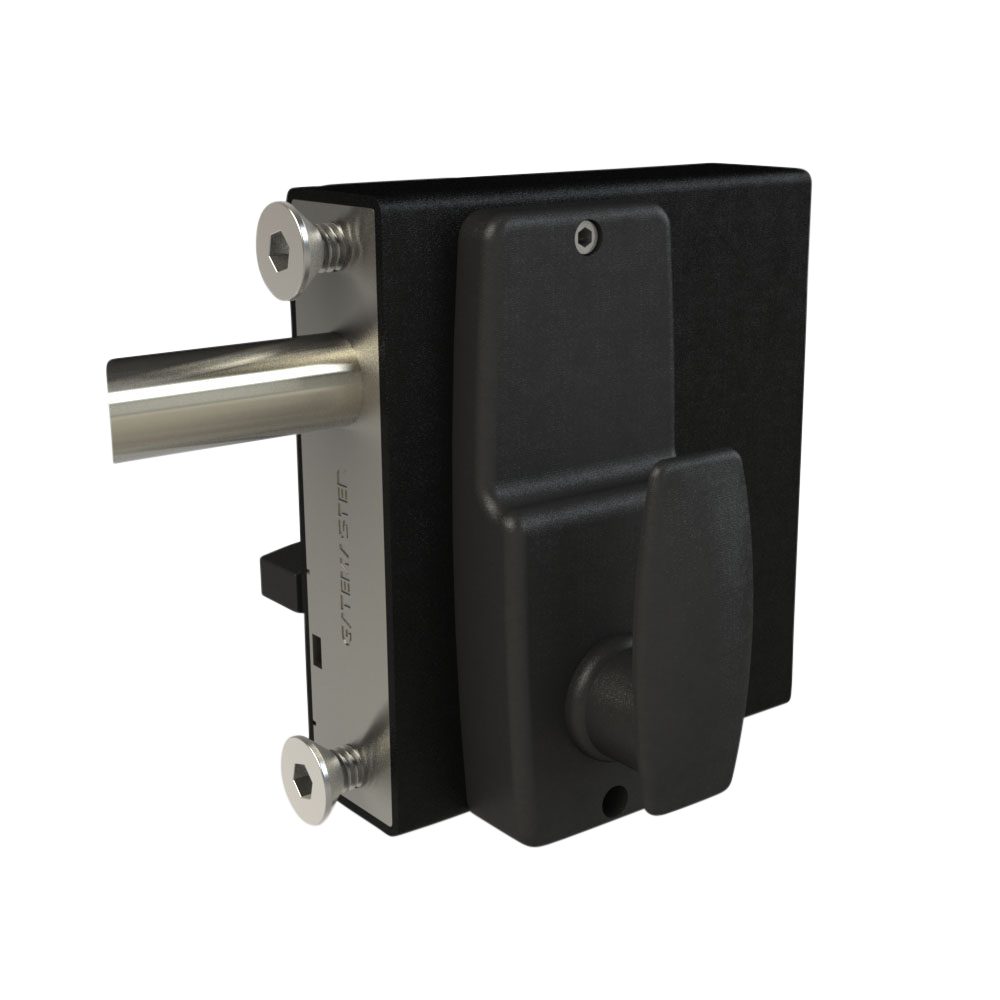

• Operation Inside: Thumbturn free exit
• Pack Quantity: 1
• Weight: 1.82kg

Key Features

• Marine Grade Durability: Weather-resistant and salt spray tested to marine grade for reliable outdoor use.
• Keyless Convenience: Secure mechanical digital keypad entry with no keys or power supply required.
• Auto-Latching & Deadlocking: Automatically latches when the gate is closed, with an integrated deadlocking function for enhanced security.
• Brass Bearing Plate: Supplied with a brass bearing plate designed to support the latchbolt and reduce wear.
• Easy Installation: Designed to be bolted securely in place on metal gate frames.
• Versatile Options: Available in left or right-handed configurations to suit different gate frame thicknesses (please select below).
