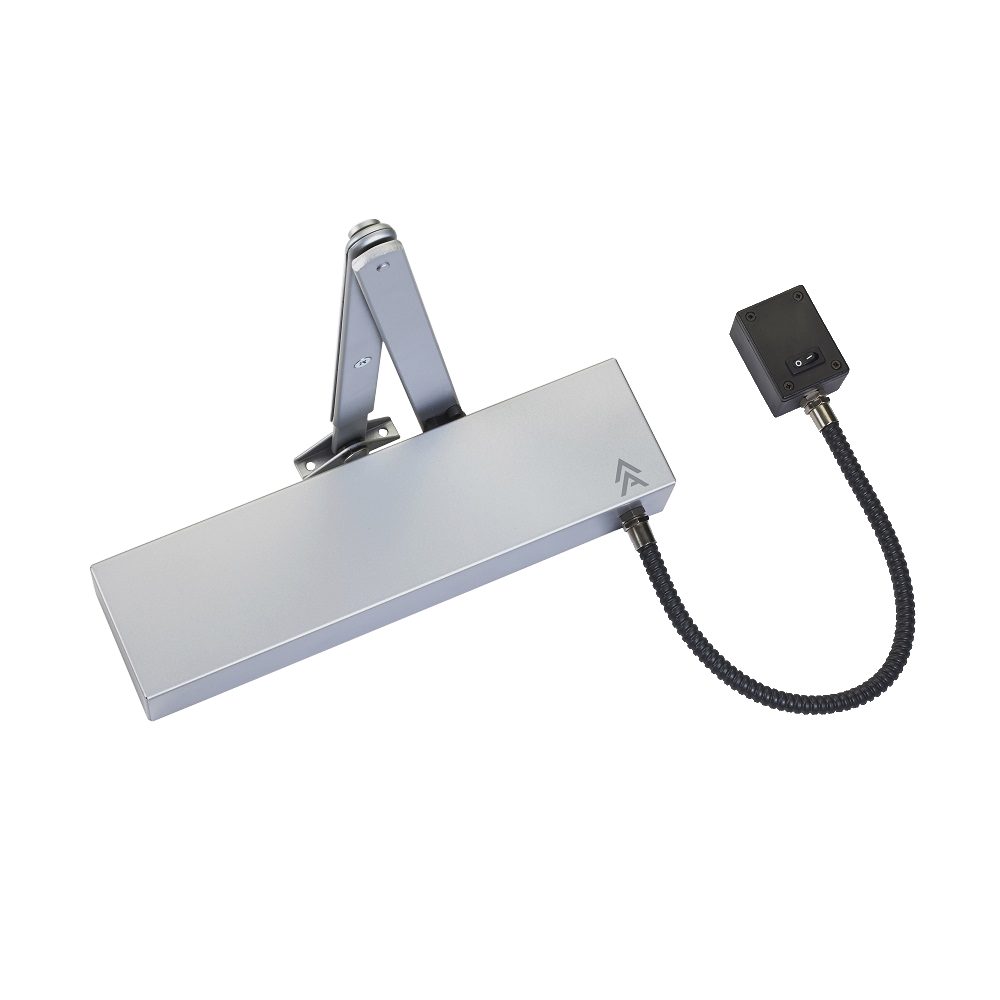

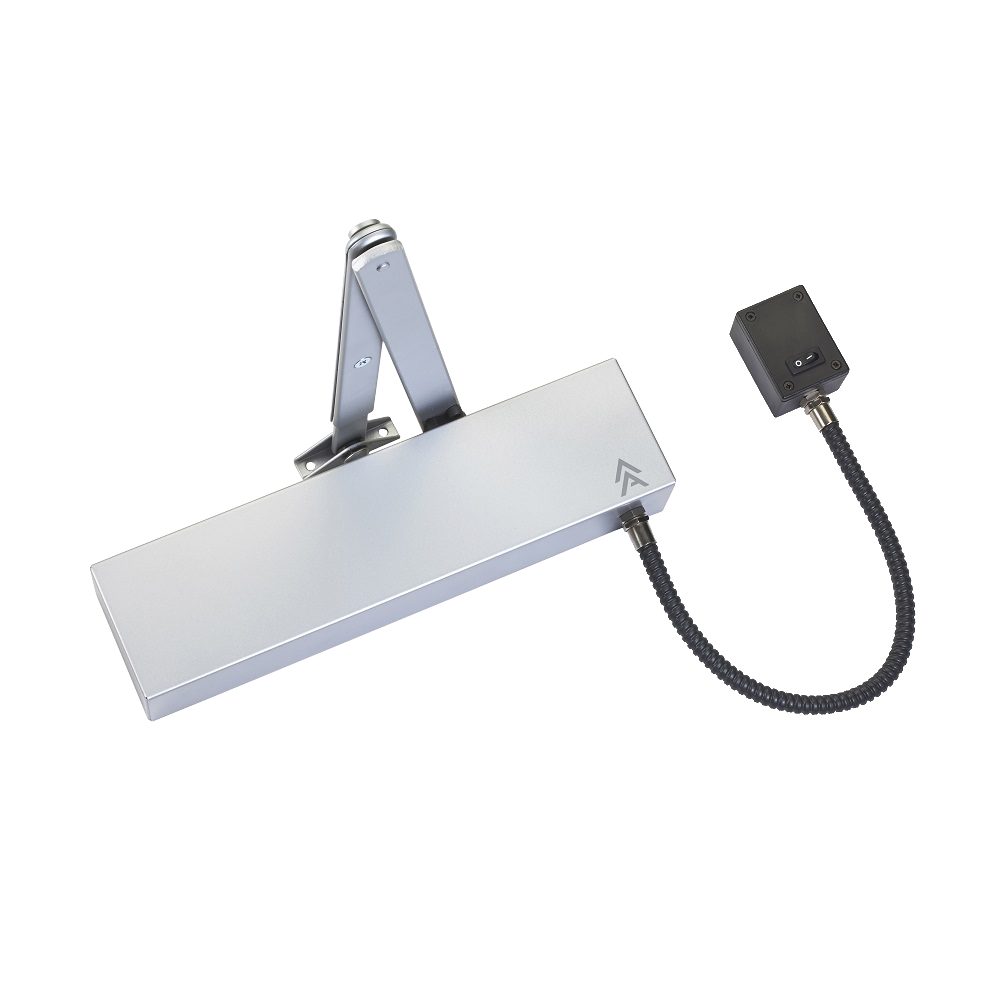

FREEMAN & PARDOE ARROW Series 600 Size 3 Hold Open Door Closer

Designed and manufactured in the UK, the Freeman & Pardoe Arrow Series 600 (Model 623) Size 3 Electromagnetic Door Closer represents a premium solution for fire door safety and barrier-free access. This versatile unit is ideal for environments like schools, hospitals, theatres, and care homes where ease of movement is essential.

The closer can be configured on-site to operate in either 'hold open' or 'free swing' mode. In Hold Open mode, it holds the door open to assist traffic flow, while in Swing Free mode, it allows the door to operate with virtually no resistance. When connected to the building's fire detection system, the closer automatically releases and closes the door securely upon fire detection. It features adjustable closing speed and latching action, allowing for a slower, safer closing motion.

This door closer is available in multiple finishes, including Satin Stainless Steel and Silver Enamelled. Please select your preferred finish and manufacturer reference from the options below.

Technical Specifications

• Brand: Freeman & Pardoe
• Series: Arrow 600 (Model 623)
• Power Size: Size 3
• Max Door Weight: 60kg
• Max Door Width: 950mm
• Dimensions: 27.8cm (Length) x 46mm (Depth)
• Handing: Reversible (non-handed)
• Application: Fig 1, Fig 6, and Fig 61
• Standards & Certifications: CE Marked, Certifire approved, BS EN 1154, BS EN 1155, BS EN 1634-1, BS EN 1634, BS EN 8300
• Fire Rating: Tested up to 120 minutes on timber doors

Key Features

• UK Manufactured: Designed and manufactured in the UK for reliable quality.
• Dual Functionality: On-site choice of 'hold open' or 'free swing' functions to suit building requirements.
• Automatic Fire Closing: Automatically closes the door upon fire detection when connected to the building's fire alarm system.
• Adjustable Controls: Fully adjustable closing speed and latching action.
• Multiple Finishes: Available in Satin Stainless Steel or Silver Enamelled finishes (please select below).
• Ease of Access: Helps buildings comply with accessibility guidelines and BS 8300 recommendations.
