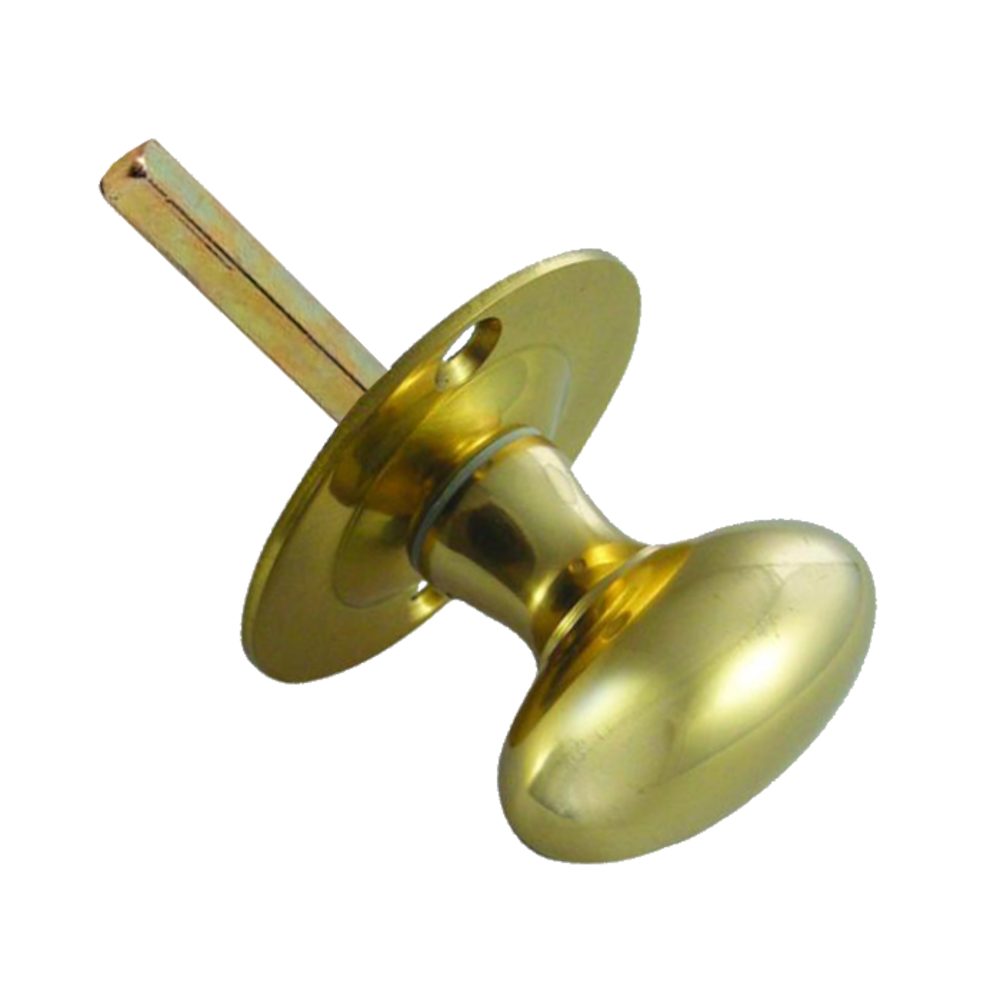

FRANK ALLART 0533 Thumbturn
The Frank Allart 0533 Thumbturn is a premium-quality piece of architectural door furniture, designed and manufactured to the highest standards. Crafted from solid brass, this thumbturn features a stunning Polished Brass finish, making it a classic and elegant addition to any interior door.
This thumbturn is supplied with a 4.8mm x 65mm square spindle, which is suitable for doors up to 51mm thick. For maximum installation flexibility, the spindle can be fitted in either a square or diamond orientation to match your existing lock or latch. It comes complete with finish-matched No. 4 x 13mm wood screws, ensuring a seamless and professional installation.
Technical Specifications
- Brand: Frank Allart
- Manufacturer Reference: 533+M4546
- Finish: Polished Brass
- Spindle Size: 4.8mm x 65mm (5mm)
- Maximum Door Thickness: 51mm

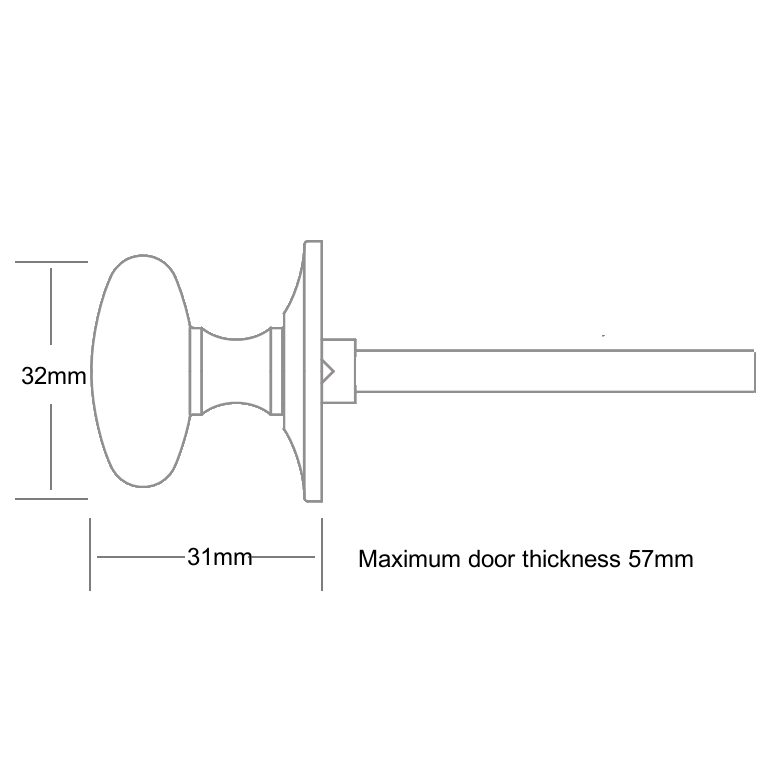

- Plate Dimensions: 42mm x 21mm
- Knob Dimensions: 38mm x 19mm
- Fixings: Supplied with finish-matched No. 4 x 13mm wood screws
- Weight: 83g
- Pack Quantity: 1
- Packaging: Boxed
Key Features
- Versatile Spindle Orientation: The square spindle can be installed in either a square or diamond orientation to suit your lock mechanism.
- Premium Finish: High-quality polished brass finish provides an elegant, classic look.
- Complete Installation Kit: Supplied with matching wood screws for a clean, professional finish.
- Durable Construction: Built by Frank Allart, renowned for high-quality British architectural hardware.
