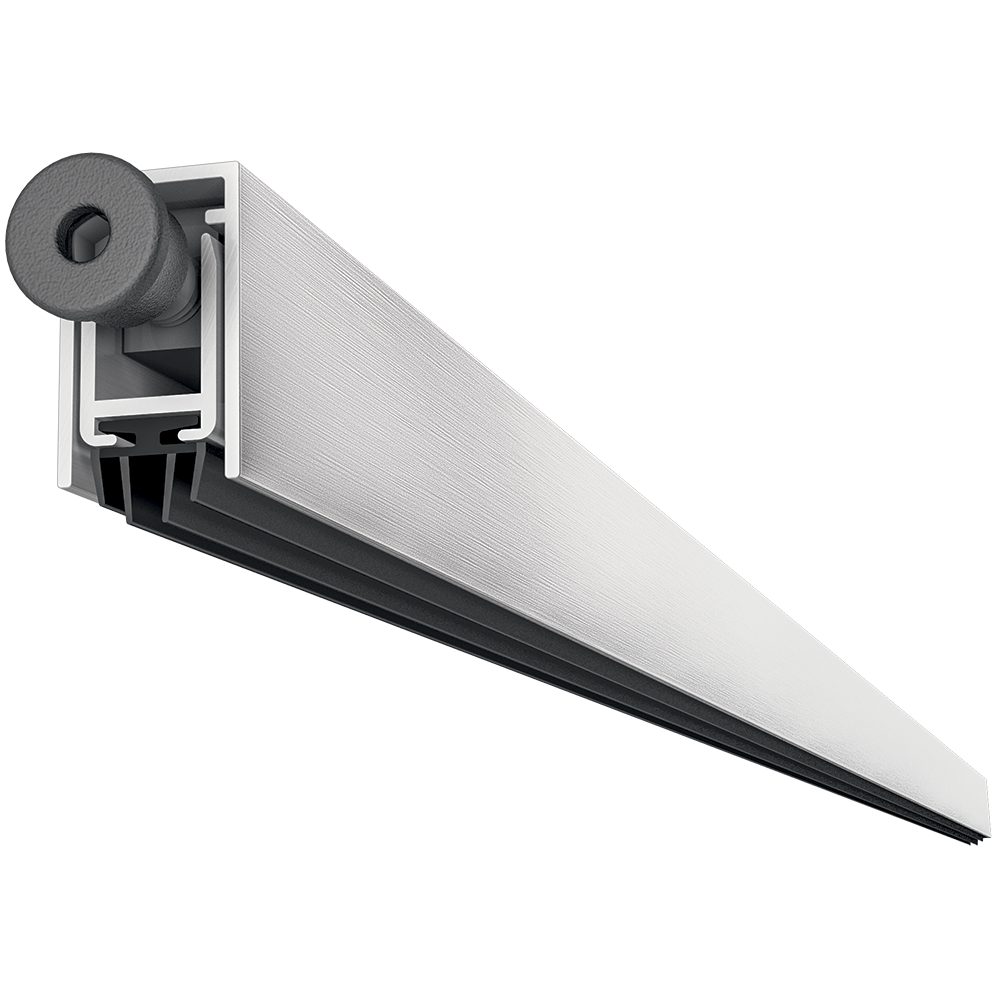

FIRESTOP Trend Drop Down Seal

The FIRESTOP Trend Drop Down Seal is a highly effective, rebated door seal designed to provide a discreet barrier against fire, smoke, noise, light, and insects. Recessed into the bottom of timber doors, this seal remains hidden until activated by the closing action of the door, ensuring a seamless and clean aesthetic.

This durable seal features an aluminium body with a self-directing reinforced plunger and a high-quality, self-extinguishing co-extruded seal. It has been endurance-tested to 200,000 cycles and offers a maximum drop of 14mm. For a precise fit, the seal can be trimmed down by up to 200mm.

It is fully tested to meet rigorous safety standards, achieving up to 60 minutes of fire resistance (BS EN 1634-1 & BS476: Part 22), smoke protection (BS EN 1634-3: 2004), and acoustic reduction of up to 39dB Rw (BS EN ISO 10140-1 & BS EN ISO 10140-2).

This product is available in multiple lengths ranging from 72.6cm to 1.026m, with weights ranging from 380g to 540g. Please select your required length and specification from the options below.

Technical Specifications

• Brand: Firestop
• Material: Aluminium body with a self-extinguishing co-extruded seal
• Finish: Silver

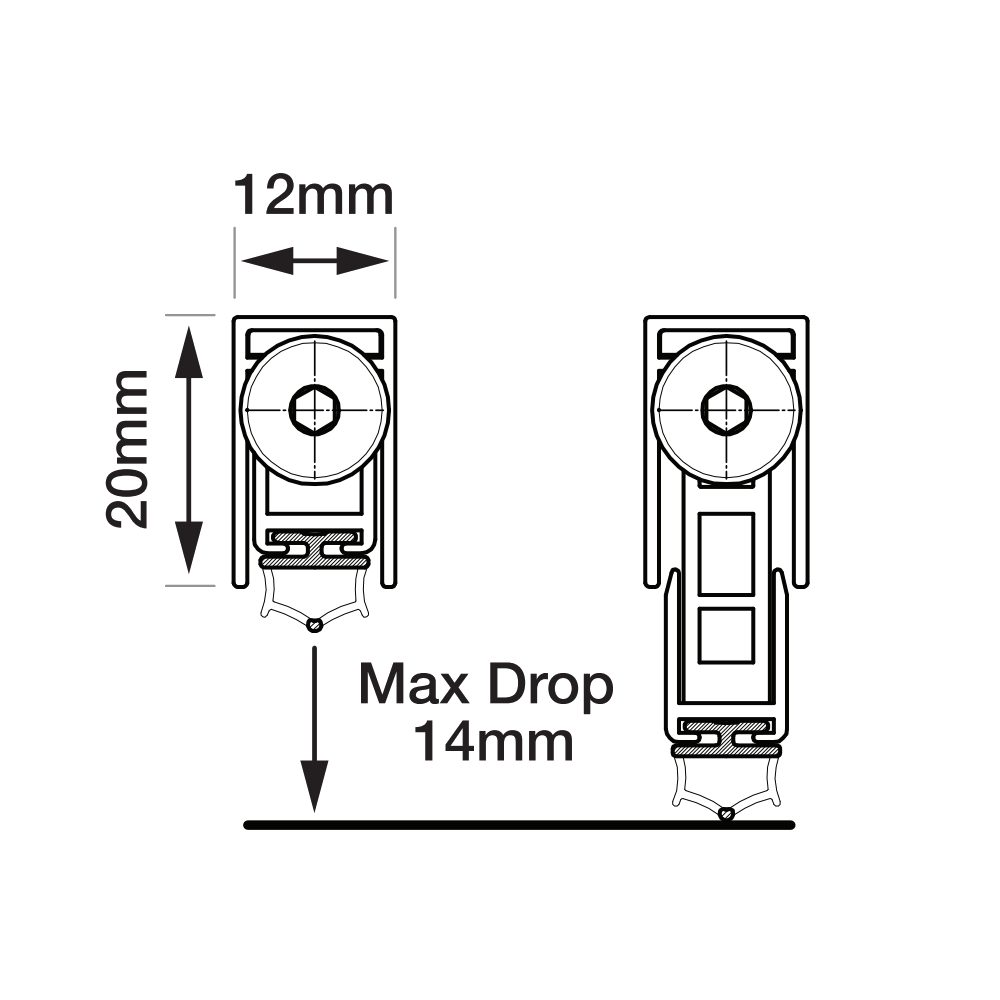

• Depth: 12mm
• Lengths Available: 72.6cm to 1.026m (please select from the options below)
• Maximum Trimming Length: 200mm
• Maximum Drop: 14mm
• Acoustic Rating: Up to 39dB Rw (tested to BS EN ISO 10140-1 & BS EN ISO 10140-2)
• Fire Rating: Up to 60 minutes (tested to BS EN 1634-1 & BS476: Part 22)
• Smoke Testing: Tested to BS EN 1634-3: 2004
• Endurance: Tested to 200,000 cycles
• Weight: 380g to 540g (depending on length; please select from the options below)
• Manufacturer References: FS1319 to FS1322 (please select from the options below)

Key Features

• Discreet Installation: Recesses into the bottom of timber doors for a clean, concealed finish
• Automatic Activation: Activated by the closing action of the door, dropping the seal only when closed
• Multi-Barrier Protection: Forms an effective barrier against noise, light, fire, smoke, and insects
• Trimmable Design: Can be cut down by up to 200mm to achieve a perfect fit
• Durable Construction: Features a robust aluminium body and a self-directing reinforced plunger
• Extensively Tested: Certified for fire, smoke, and acoustic performance to meet UK building regulations
