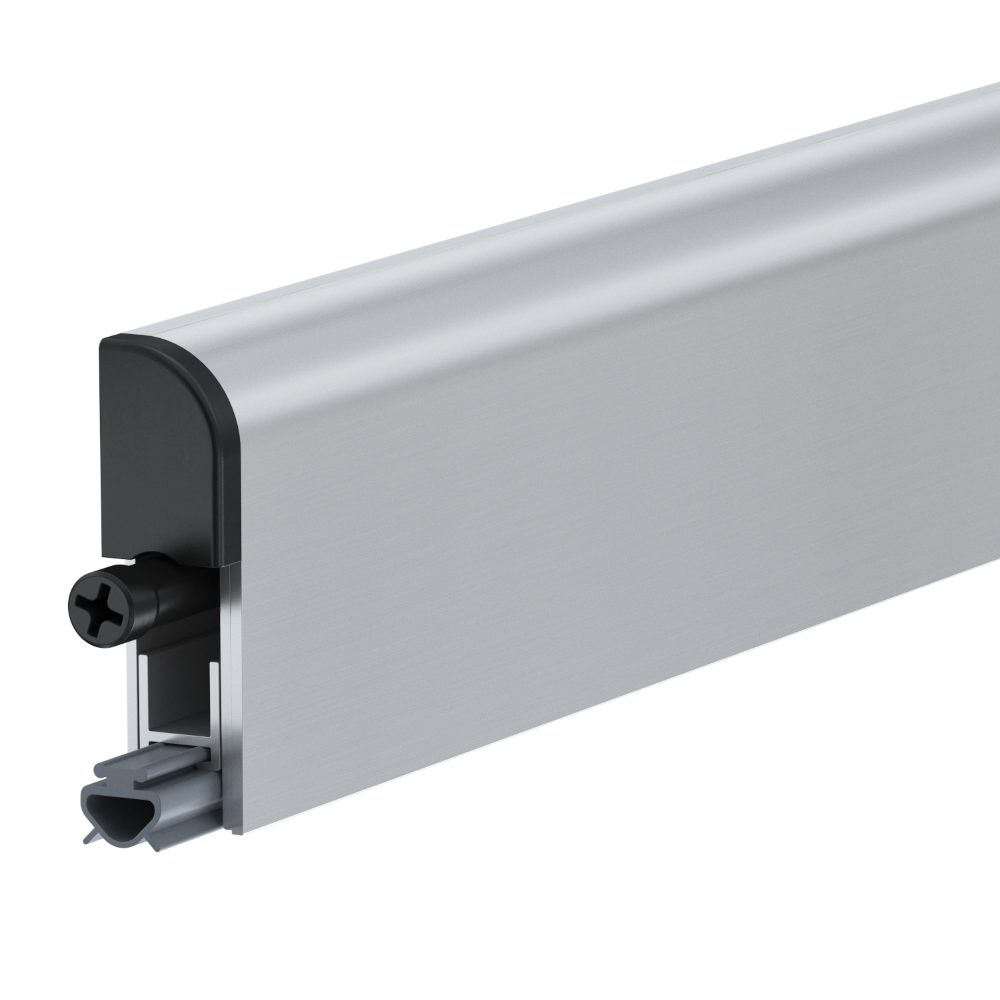

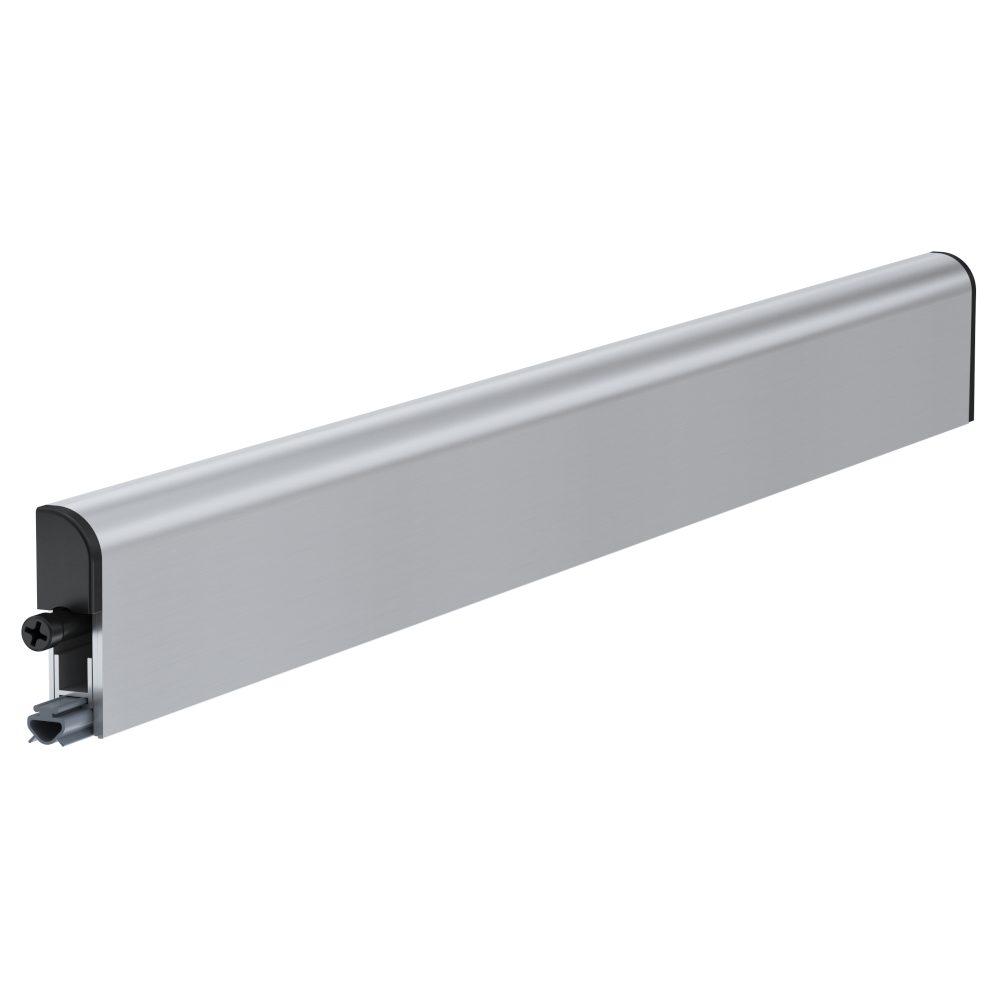

FIRESTOP Applic 38dB Automatic Drop Down Seal Face Fixed

The FIRESTOP Applic 38dB Automatic Drop Down Seal is a high-performance, face-fixed draught and acoustic seal designed to create an effective barrier against sound, light, smoke, fire, and insects. It features an automatic mechanism that drops the seal only when the door is closed, preventing floor drag and ensuring smooth door operation.

This surface-mounted seal is suitable for hinged timber, metal, and UPVC doors, and can be easily fitted to either the inside or outside of the door leaf. It is supplied complete with fixing screws for a quick and straightforward installation.

These seals are available in a range of lengths from 63cm to 1.03m, and each can be cut down by up to 125mm to achieve a precise fit. Please select your required length, weight (ranging from 360g to 450g), barcode, and corresponding manufacturer reference (FS788 to FS792) from the options below.

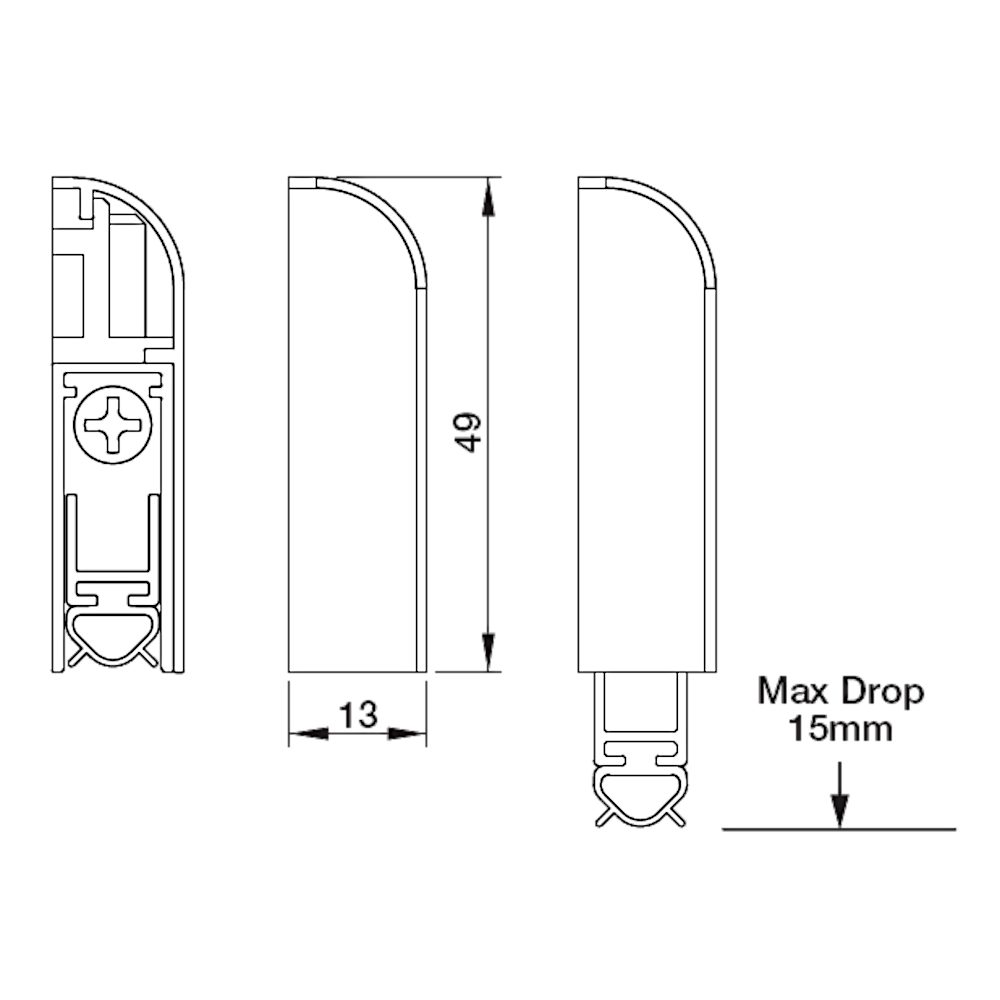

Technical Specifications

• Finish: Satin Anodised Aluminium
• Height: 49mm
• Depth: 13mm
• Maximum Drop: 15mm
• Lengths Available: 63cm, 73cm, 83cm, 93cm, and 1.03m (please choose from the options below)
• Acoustic Rating: Up to 38dB Rw (tested in accordance with DIN EN ISO 10140-2)
• Fire Tested: Yes, to BS EN 1634-1
• Smoke Tested: Yes, to BS EN 1634-3: 2004
• Suitable Door Types: Hinged timber, metal, and UPVC doors
• Weights: 360g to 450g (please choose from the options below)
• Manufacturer References: FS788 to FS792 (please choose from the options below)

Key Features

• Automatic Activation: Seal drops down only when the door is closed to prevent floor wear and dragging
• Face-Fixed Design: Surface-mounted for quick and easy installation on either the inside or outside of the door
• Trimmable: Can be cut down in length by up to 125mm for a custom fit
• Multi-Barrier Protection: Forms an effective barrier against noise, draughts, light, fire, smoke, and insects
• Complete Kit: Supplied with fixing screws for immediate installation
