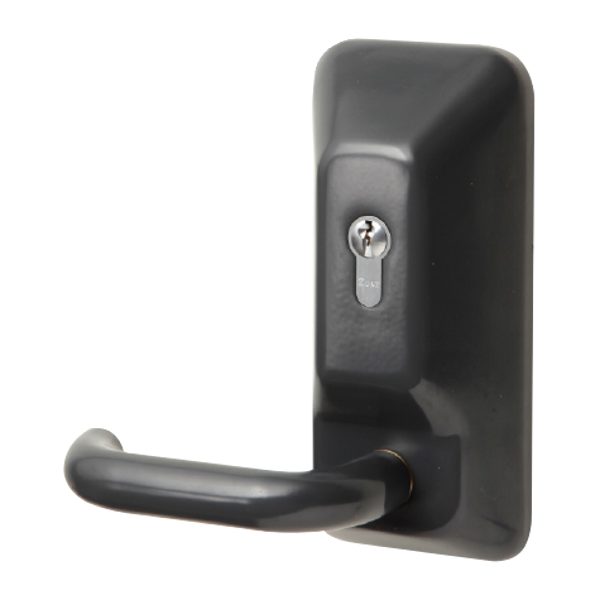

EXIDOR 710EC Lever Operated Outside Access Device

The Exidor 710EC Lever Operated Outside Access Device is a high-security, UK-manufactured external access solution designed for use with the Exidor 700 and 7000 series of panic and emergency exit hardware. Supplied complete with a Euro cylinder and three keys, this robust unit offers a secure way to gain entry from the outside of an escape door without compromising emergency egress.

Constructed from high-grade stainless steel, the 710EC is engineered to resist physical force and drill attacks, making it ideal for high-security applications. The lever mechanism is designed to operate smoothly; when unlocked, the lever engages to retract the internal bolts, and when locked, the lever disengages to rotate freely, preventing damage from forced entry attempts.

This non-handed, fully reversible unit complies with the dimensional requirements of BS 8300 and Approved Document "M" (Equality Act) to support barrier-free access. It features a stylish RAL 7016 Anthracite Grey epoxy powder-coated finish and is surface-mounted with concealed machine screws for a clean, secure installation.

Technical Specifications

• Brand: Exidor
• Manufacturer Reference: 710EC
• Mechanism: Euro Cylinder
• Keys Supplied: 3
• Finish: Anthracite Grey (RAL 7016)
• Handing: Reversible (non-handed)

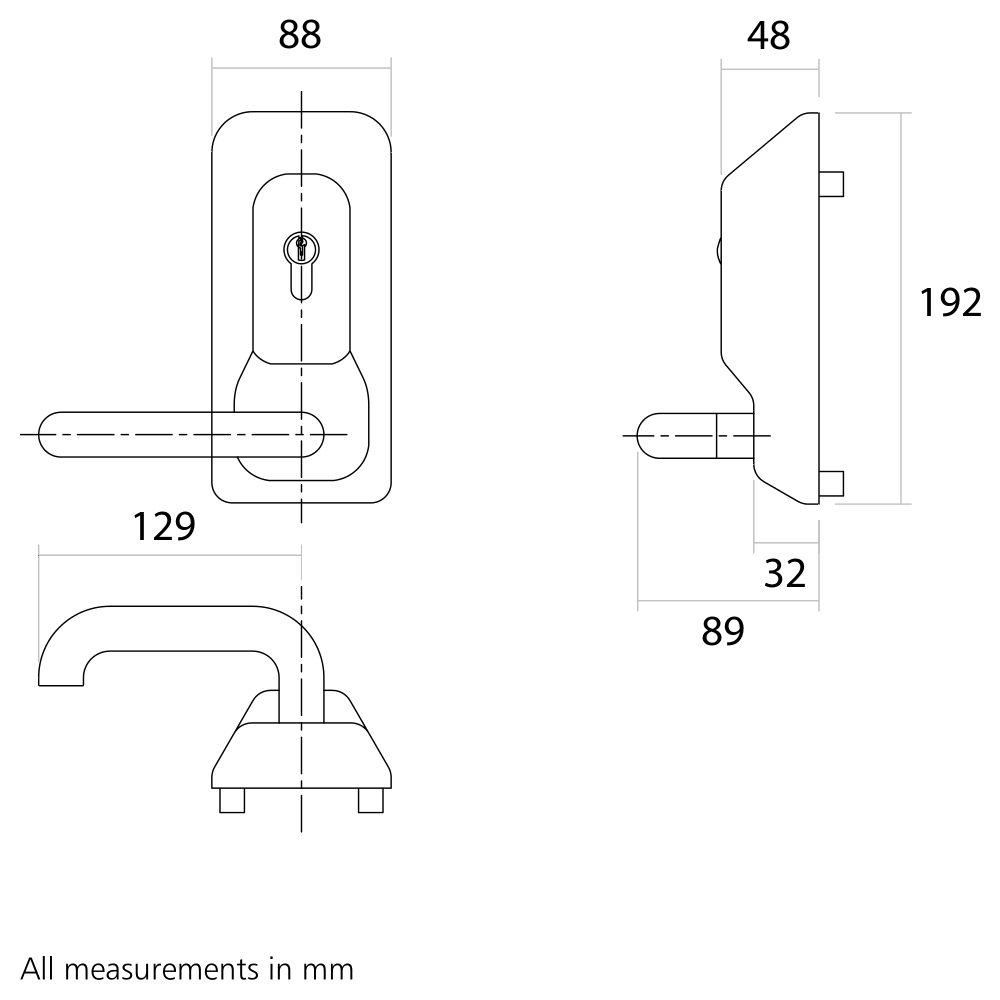

• Door Thickness: 45mm
• Width: 88mm
• Depth: 89mm
• Handle Length: 129mm
• Handle Projection: 57mm
• Weight: 2.4kg
• Standards: Complies with BS 8300 and Approved Document "M" (Equality Act)
• Compatibility: Certified for use with Exidor 700 and 7000 series panic and emergency exit hardware

Key Features

• Supplied with Cylinder: Comes complete with a Euro cylinder and 3 keys for immediate installation
• Clutch Mechanism: Free-spinning lever when locked prevents damage from forced entry or vandalism
• High Security: Heavy-duty stainless steel construction helps resist force and drill attacks
• Reversible Design: Non-handed unit is suitable for both left and right-handed doors
• Concealed Fixings: Surface mounted with concealed machine screws for clean aesthetics and added security
• Quality Finish: Manufactured in the UK with a durable RAL 7016 Anthracite Grey epoxy powder coating
