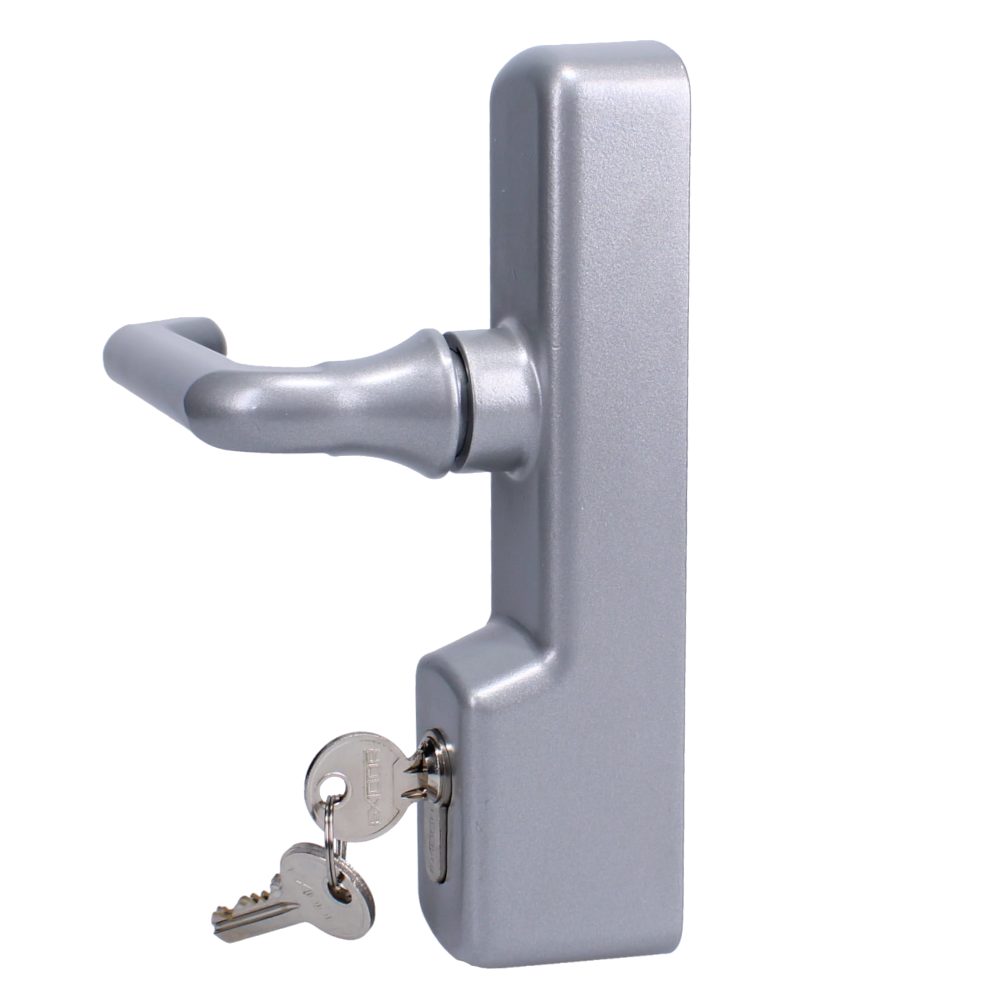

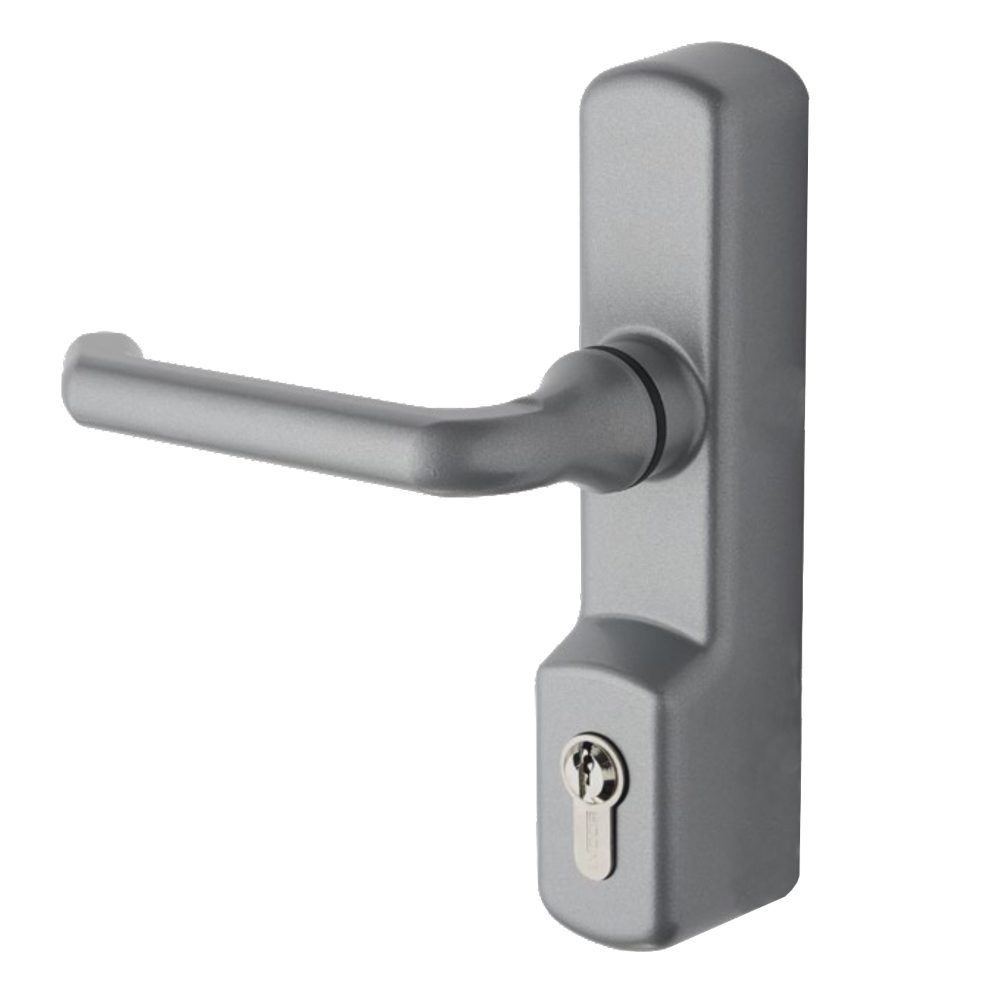

EXIDOR 425 EC Lever Operated Outside Access Device

The Exidor 425 EC is an elegant, lever-operated outside access device (OAD) designed to provide secure, keyed entry for doors fitted with Exidor 400 Series Touch-Bar panic hardware. This robust unit ensures that emergency egress remains completely unaffected; immediate exit is always possible from the inside, regardless of whether the outside device is locked or unlocked.

Engineered for high-traffic environments, the Exidor 425 EC features a smart lever design that meets the dimensional requirements of BS 8300 and the Equality Act 2010, making it ideal for barrier-free access. When locked, the lever disengages from the mechanism and rotates freely. This clutch-like action prevents forced entry and protects the internal components from vandalism or accidental damage. Supplied with a Euro profile cylinder and three keys, this non-handed device is finished in a durable silver enamelled powder coating and is suitable for timber, steel, aluminium, or uPVC doors up to 57mm thick.

Technical Specifications

• Brand: Exidor
• Model Reference: 425EC
• Compatibility: Exidor 400 Series Touch-Bar Panic equipment
• Cylinder Type: Single Euro profile cylinder (included)
• Keys Supplied: 3
• Handing: Reversible (non-handed)
• Finish: Silver Enamelled
• Maximum Door Height: 2440mm
• Maximum Door Width: 1220mm
• Door Thickness: Suitable for doors up to 57mm thick

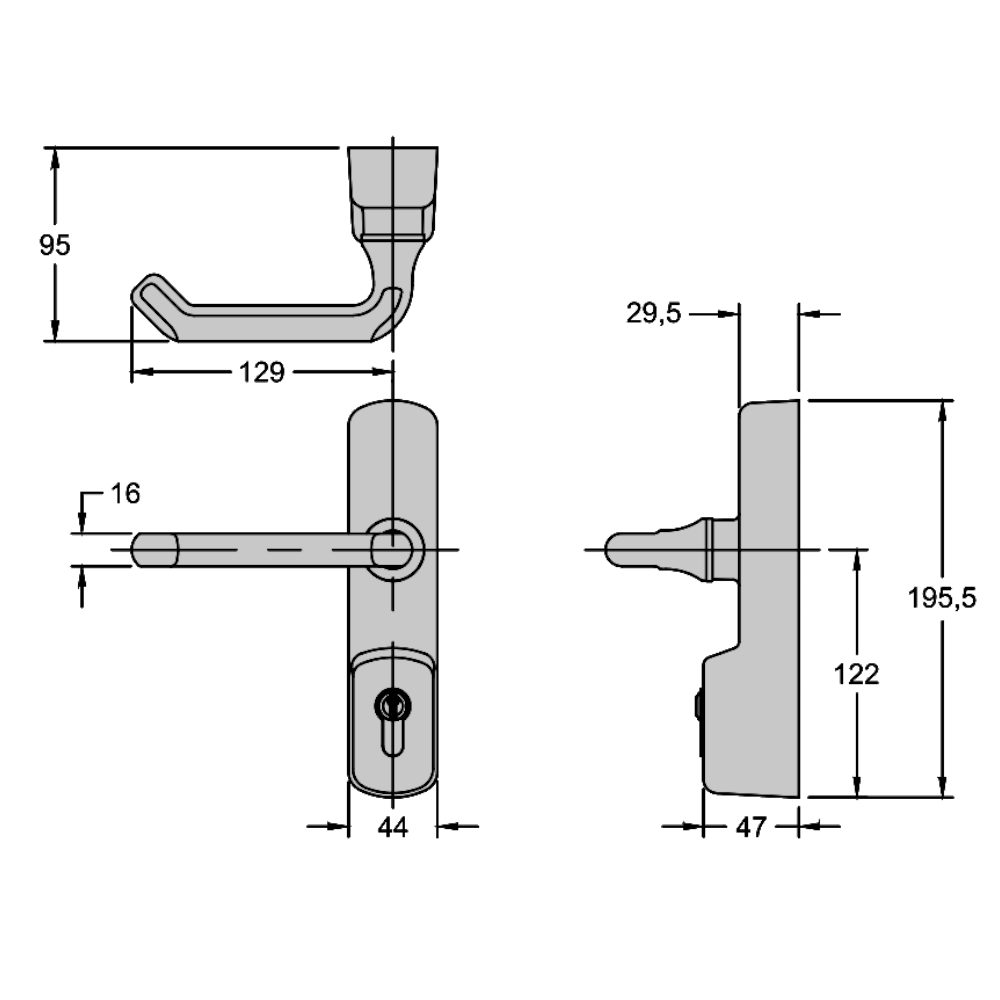

• Dimensions: 44mm (W) x 47mm (D)
• Standards & Certifications: CE marked; certified as an approved accessory under EN 1125 and EN 179

Key Features

• Unrestricted Egress: Always allows immediate exit from the inside, whether the outside unit is locked or unlocked.
• Vandal Resistant: When locked, the lever rotates freely without engaging the mechanism, preventing forced entry and protecting the unit from damage.
• Inclusive Design: Meets the dimensional requirements of BS 8300 and the Equality Act 2010 for barrier-free access.
• Durable Finish: Powder-coated silver enamelled finish provides excellent durability in high-traffic areas.
• Universal Handing: Fully reversible design suitable for both left and right-hand opening doors.
• Complete Kit: Supplied boxed with a Euro cylinder, three keys, and all necessary fixings.
