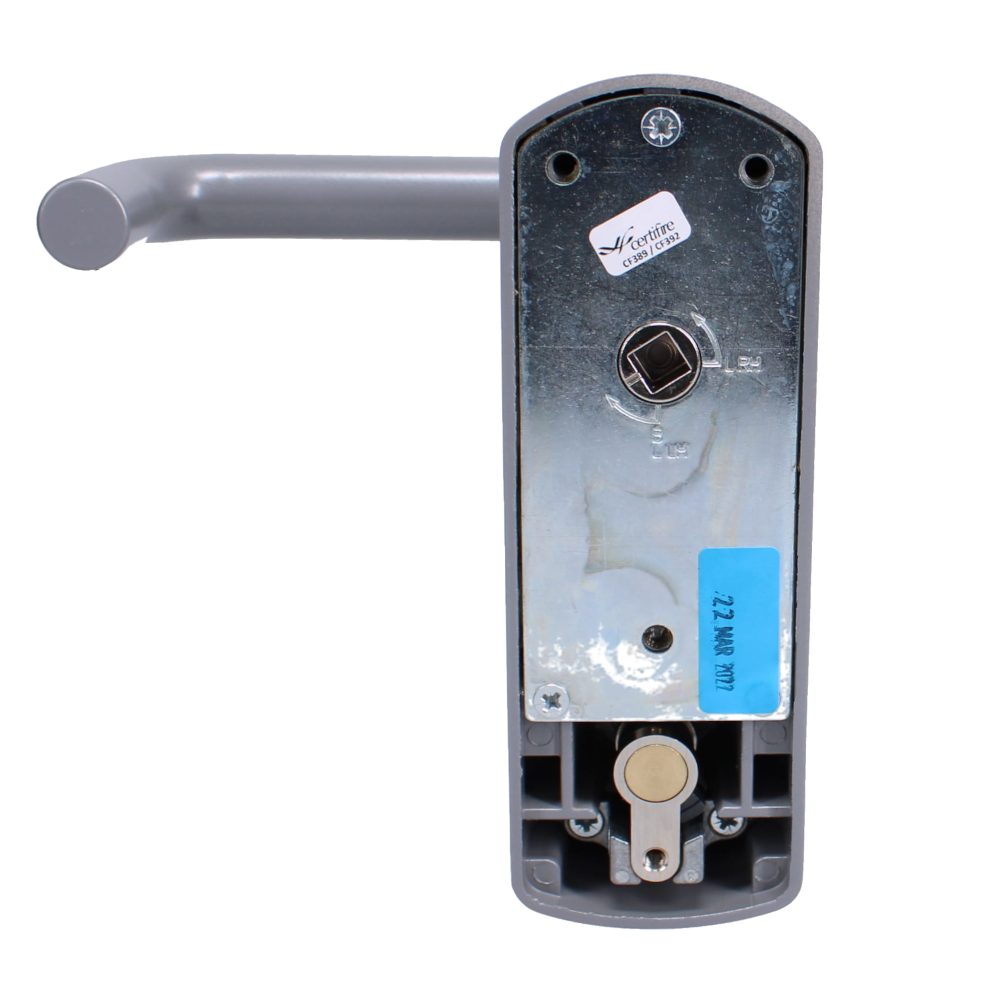

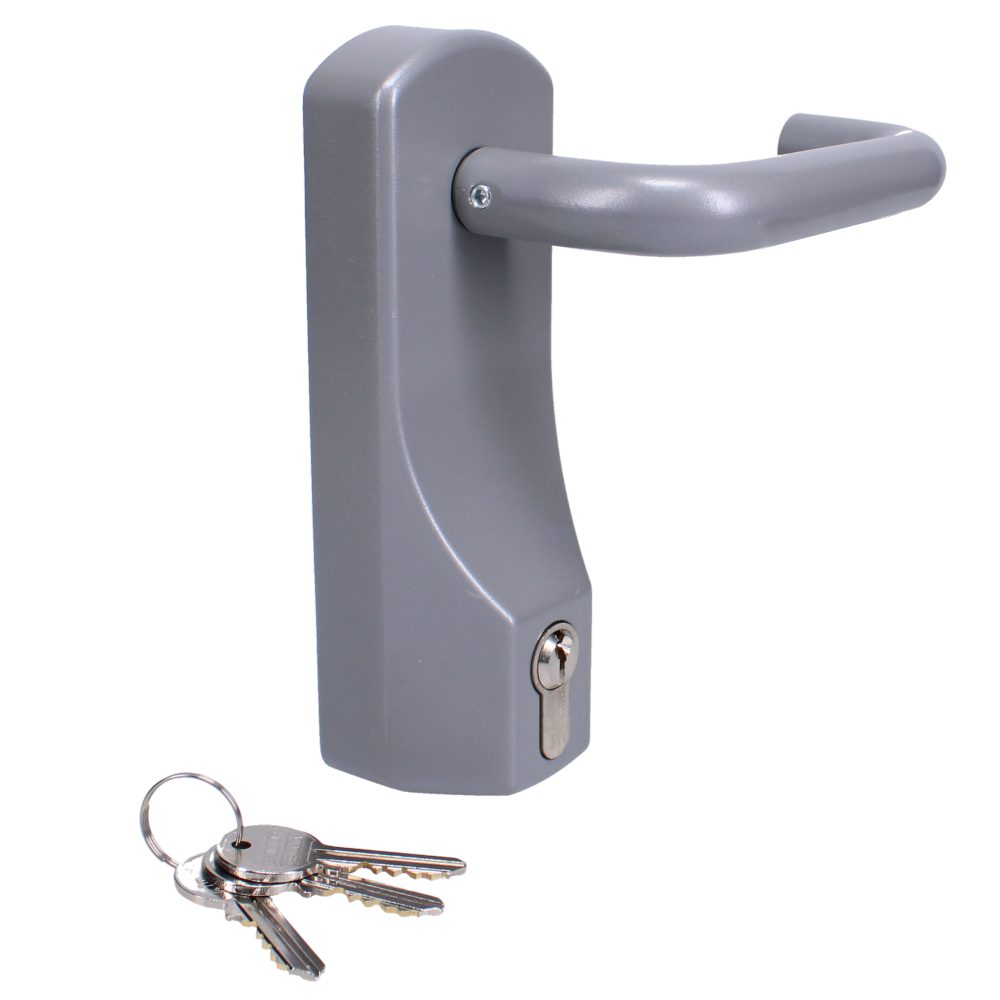

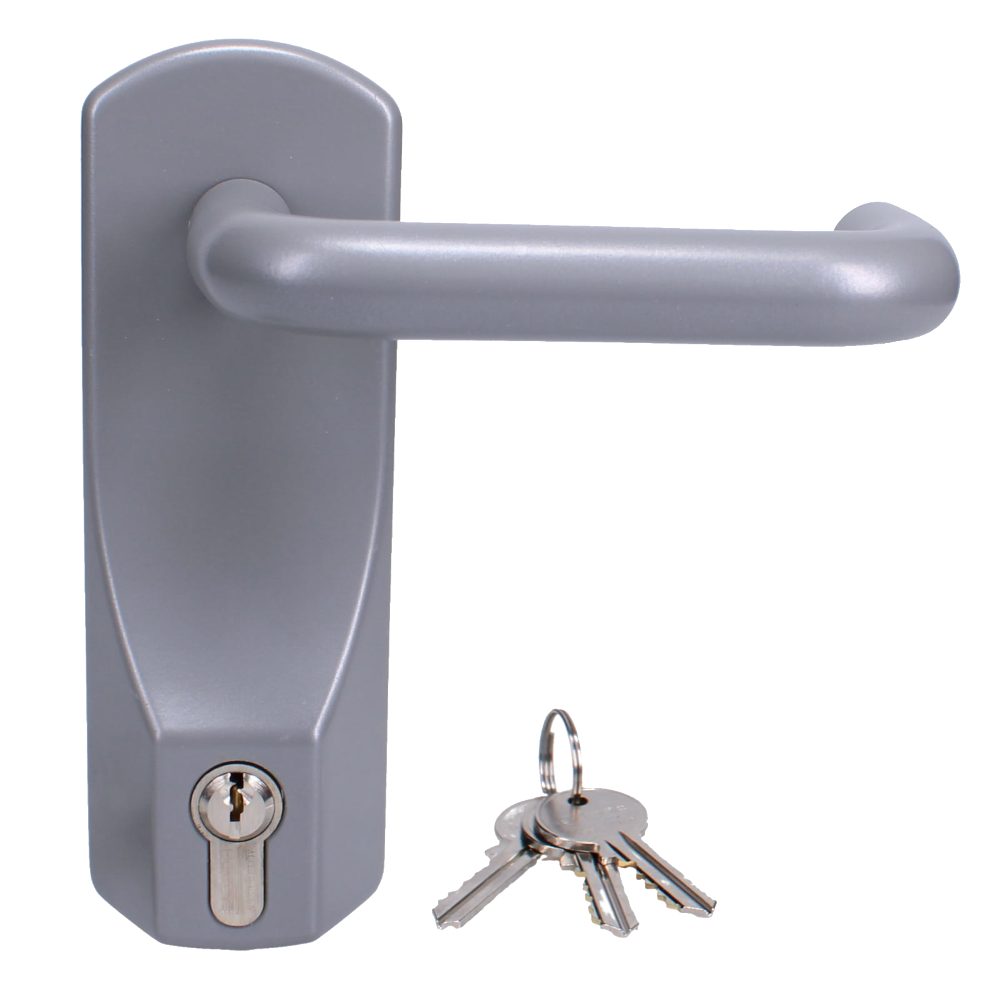

EXIDOR 322SE Euro Outside Access Device

The Exidor 322SE (also known as the 322EC) is a robust, lever-operated outside access device (OAD) designed to provide secure, keyed entry from the outside of an emergency exit door. Fully compatible with the Exidor 200 and 300 series panic and emergency exit hardware, this unit is ideal for commercial and public buildings.

To ensure compliance with accessibility guidelines, the lever design meets the dimensional requirements of BS8300 and Approved Document "M" (DDA). Security is enhanced by a built-in shear screw, which is engineered to break under excessive force to prevent unauthorised entry, without compromising the internal escape mechanism.

The unit is non-handed (fully reversible) and is supplied as standard with a 45mm Euro profile cylinder and three keys. It features the same fixing points as the Exidor 302 OAD, making it an excellent choice for quick and easy retrofitting.

Technical Specifications

• Brand: Exidor
• Manufacturer Reference: 332SE / 322SE (also known as 322EC)
• Finish: Silver Enamelled
• Cylinder Type: 45mm Euro profile cylinder (included)
• Keys Supplied: 3
• Handing: Reversible (non-handed)
• Door Thickness: Suitable for doors up to 55mm thick as standard

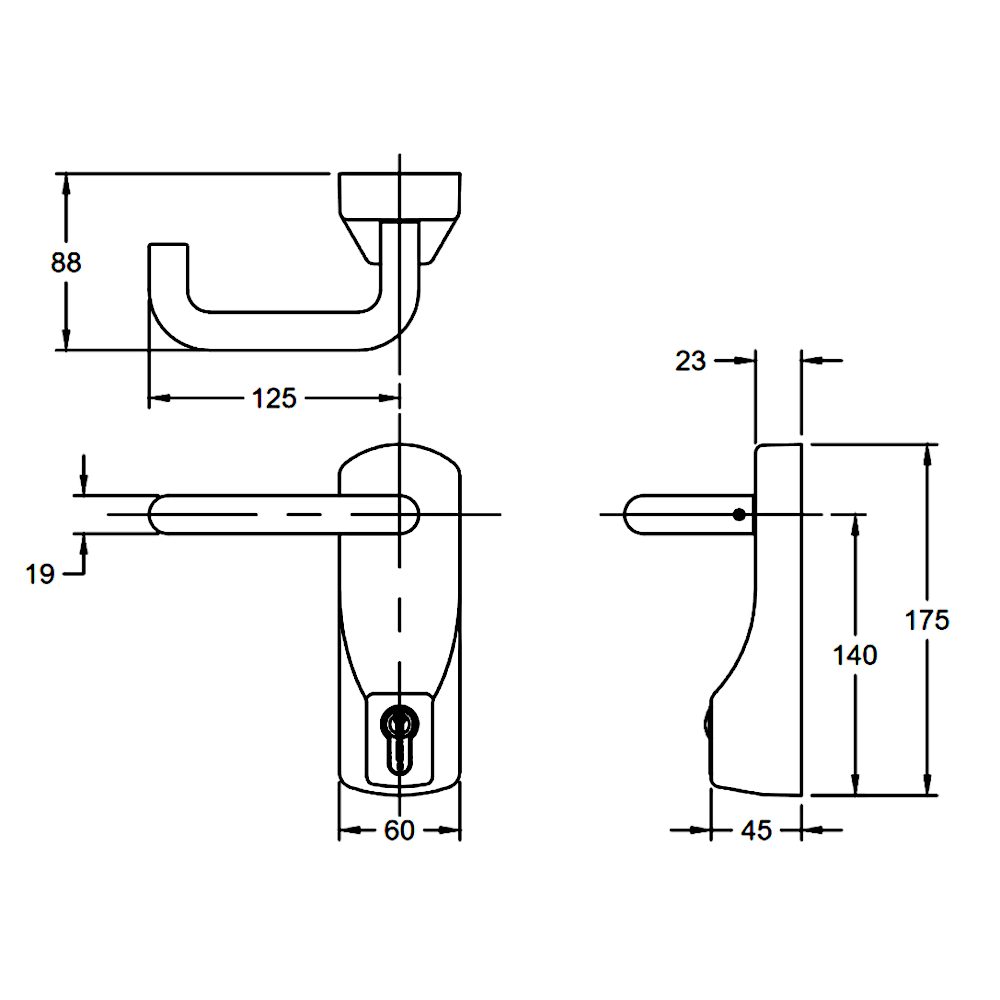

• Width: 60mm
• Depth: 88mm
• Fixing: Surface mounted with 3 concealed machine screws

Key Features

• DDA Compliant: Meets the dimensional requirements of BS8300 and Approved Document "M" for inclusive design.
• Compatibility: Suitable for use with Exidor 200 and 300 series panic and emergency exit hardware.
• Security Shear Screw: Lever is fitted with a shear screw designed to break under excessive force to prevent forced entry.
• Easy Retrofit: Shares the same fixing points as the Exidor 302 OAD for straightforward replacement.
• Concealed Fixings: Surface mounted on the outside of the door using three concealed machine screws for added security.
