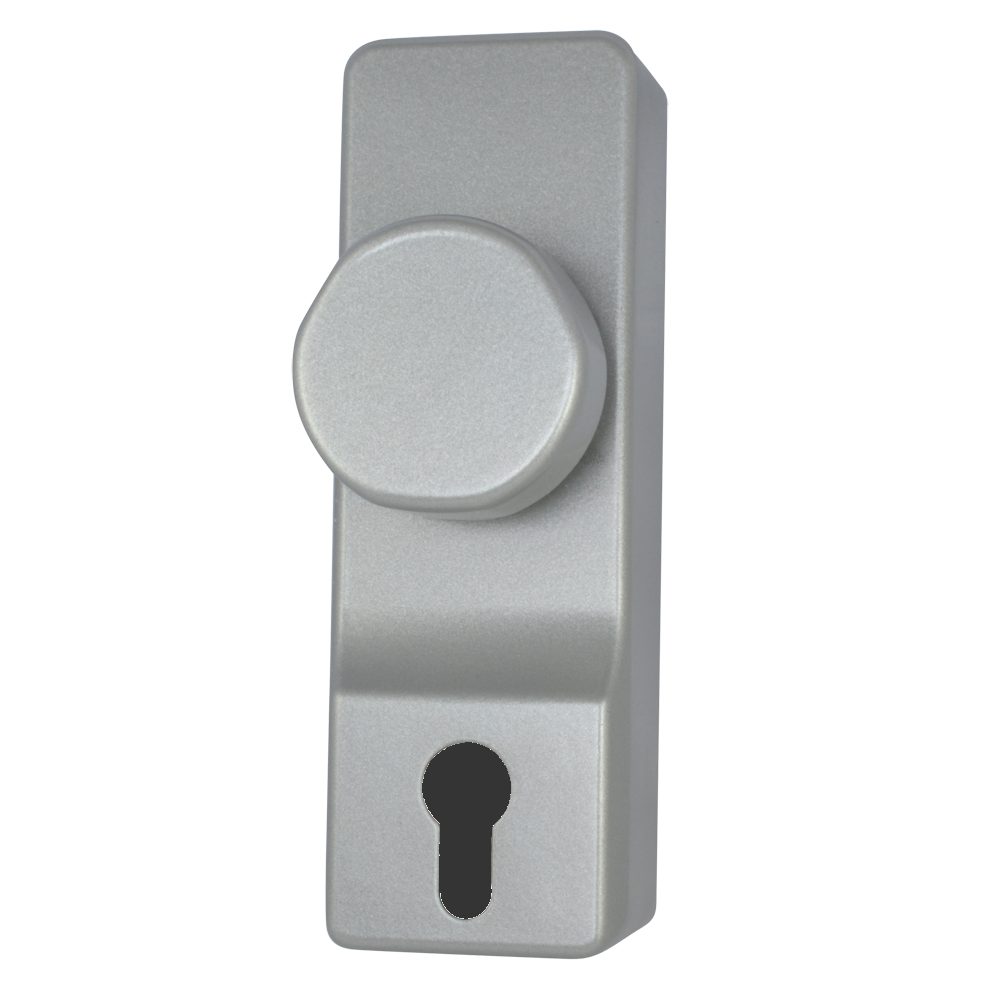

EXIDOR 302EA Knob Operated Outside Access Device Without Cylinder

The Exidor 302EA is a high-quality, knob-operated outside access device (OAD) designed to provide secure external entry for doors fitted with Exidor 200 and 300 series panic bolts and latches. This unit is supplied without a cylinder, featuring a dedicated aperture designed to accommodate a standard 40mm Euro profile cylinder, allowing you to easily integrate it into existing master key systems.

Constructed for durability and security, the Exidor 302EA features a smart silver enamelled finish. When the device is locked, the internal mechanism disengages, allowing the knob to rotate freely. This free-spinning design prevents forced entry by resisting pulling, prying, and wrenching attacks.

The device is fully reversible (non-handed) and suitable for both timber and steel doors up to 45mm thick. It is surface-mounted from the outside using concealed machine screws for a clean, tamper-resistant installation. Additionally, it is CE marked, Certifire approved, and fire-rated, making it an ideal choice for commercial and public buildings.

Technical Specifications

• Brand: Exidor
• Manufacturer Reference: 302EA
• Aperture Type: Euro profile (designed for 40mm Euro cylinder, not supplied)
• Finish: Silver Enamelled
• Door Thickness: Up to 45mm
• Handing: Reversible (non-handed)
• Width: 60mm
• Body Depth: 43mm
• Total Depth: 70mm
• Knob Projection: 27mm
• Standards: CE Marked, Certifire approved

Key Features

• Cylinder-Free Design: Supplied without a cylinder, featuring an aperture designed to take a 40mm Euro profile cylinder (ideal for master key systems)
• Free-Spinning Knob: When locked, the mechanism disengages to allow the knob to rotate freely, resisting pulling and prying attacks
• Universal Handing: Fully reversible design suitable for both left and right-handed doors
• Fire Rated: Approved for use on timber and steel fire doors
• Concealed Fixings: Surface mounted using concealed machine screws for a secure, tamper-resistant installation
• Compatibility: Suitable for use with Exidor 200 and 300 series panic bolts and latches
