EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3*

EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3*

Evva logo Evva More Evva Double Euro
From
£120.78
Select size, finish, and quantity from the variant table.
View options

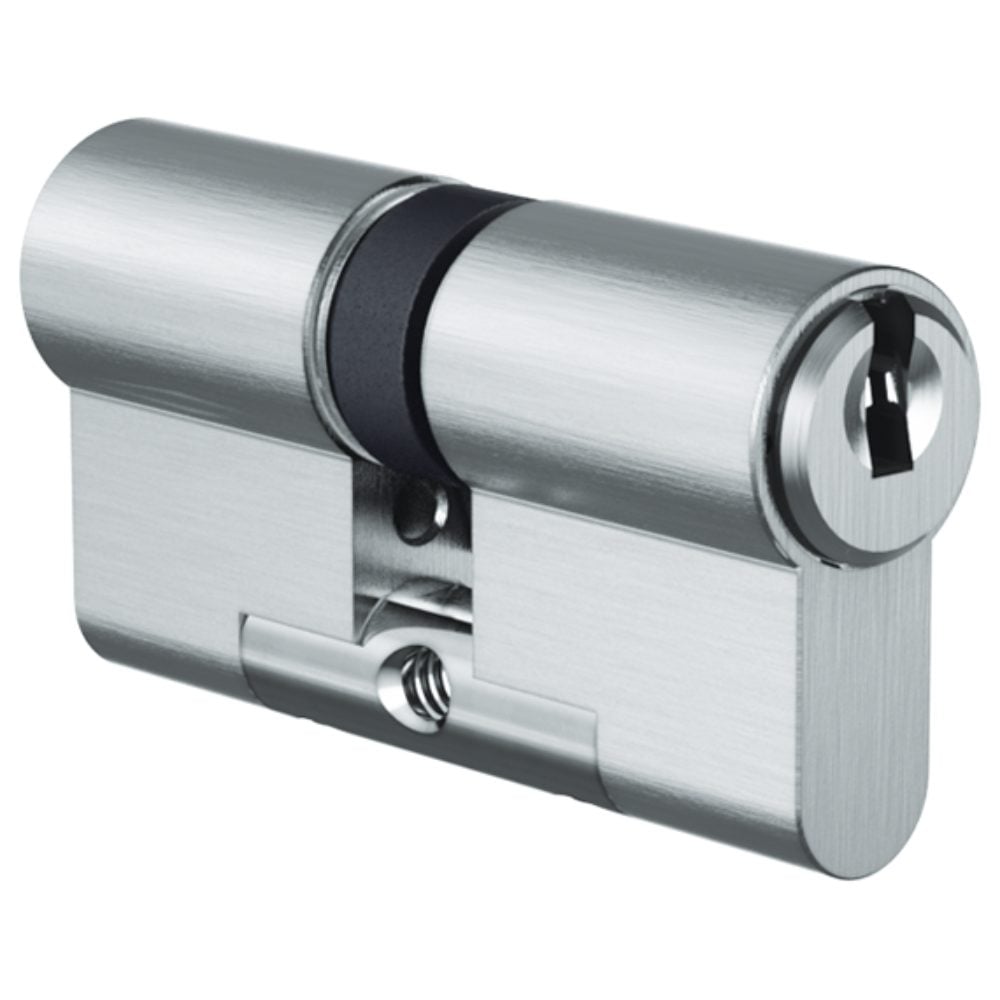

The EVVA ICS DZ Euro Double Cylinder is a high-security, TS007 3-star rated locking solution designed to offer maximum protection against common attack methods. Supplied keyed to differ on our secure in-house section, this standard euro profile cylinder is ideal for both residential and commercial applications, including complex master key systems.

Featuring EVVA's patented and durable ICS (Internal Code System) reversible key technology, it provides exceptional legal and technical key protection to prevent unauthorised key copying. The robust 10-pin mechanism ensures high-level picking and manipulation resistance.

This cylinder is available in multiple overall sizes ranging from 36/36 to 51/51, with overall body lengths from 72mm to 102mm. Please select your required A Side and B Side dimensions from the options below to ensure the perfect fit for your door.

Technical Specifications

  • Brand: Evva
  • Cylinder Profile: Euro
  • Cylinder Type: Double Cylinder
  • Security Rating: TS007 3-Star (BSI Kitemarked)
  • Standards: BS EN 1303:2005, BS EN 1634 (Fire Tested Grade B)
  • Mechanism: 10-Pin
  • Keying: Keyed to Differ
  • Keys Supplied: 3
  • Finish: Nickel Plated

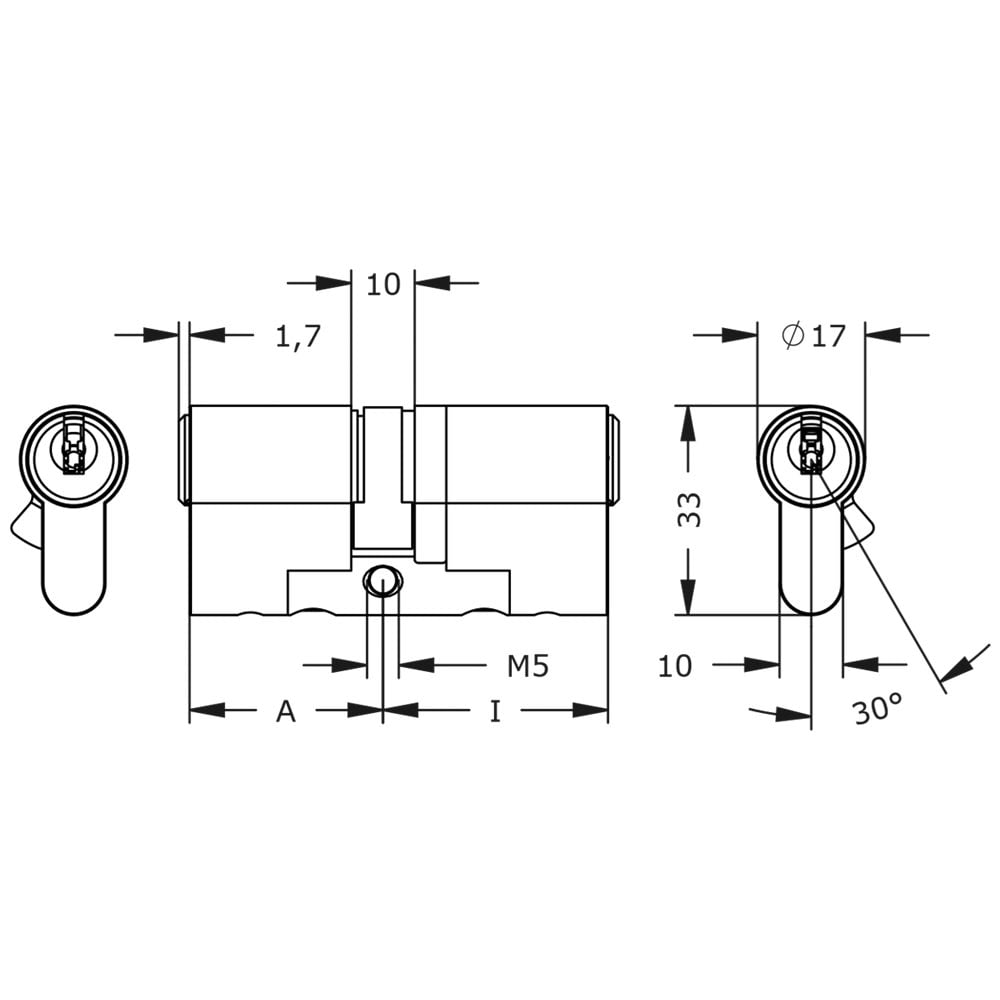

  • Body Length: 72mm to 102mm (choose from options below)
  • A Side / B Side Sizes: 36mm to 51mm (choose from options below)
  • Weight: 268g to 362g (depending on size)

Key Features

  • TS007 3-Star Security: BSI Kitemarked to provide maximum resistance against snapping, bumping, picking, and physical attacks.

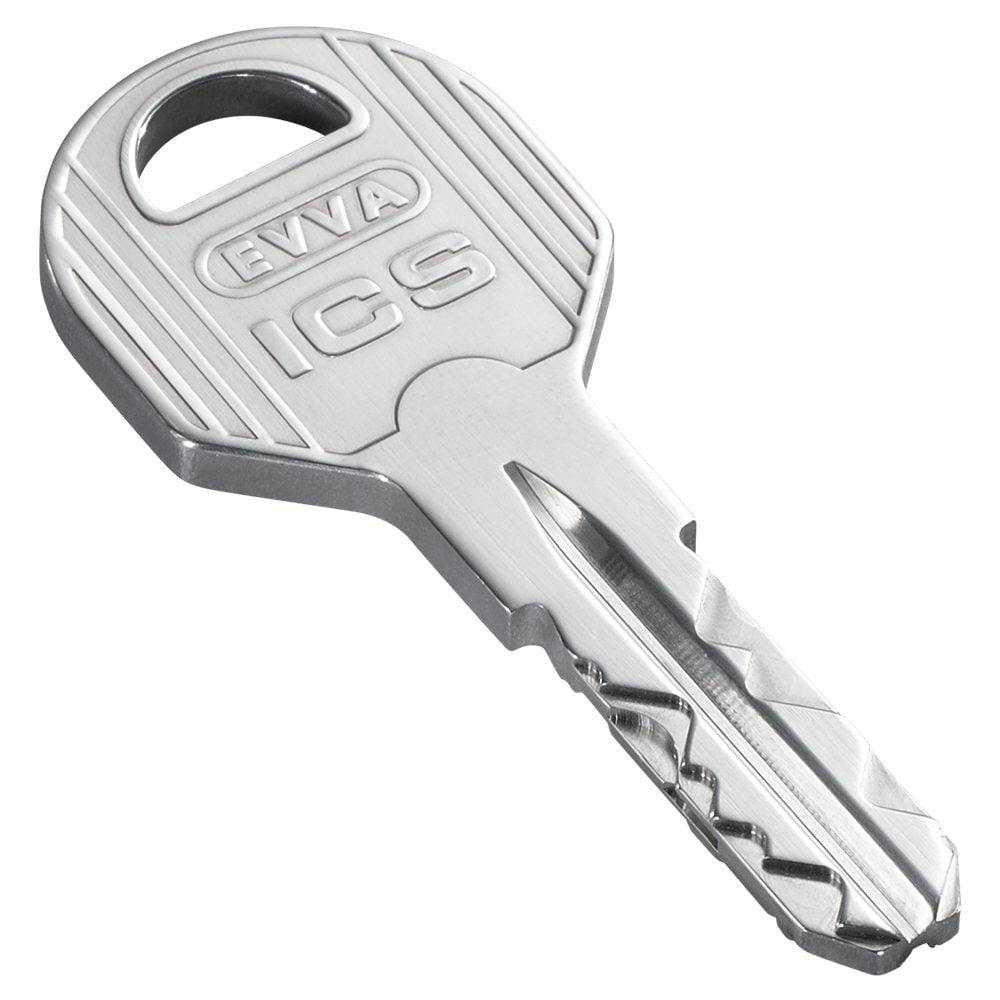

  • Patented ICS Technology: Reversible key system with legal and technical protection against unauthorised key copying.
  • Supplied with 3 Keys: Includes three high-security keys cut on our secure in-house section.
  • Fire Tested: Grade B fire-tested to BS EN 1634 standards.
  • Ideal for Master Keying: High keying potential allows for complex master key systems that can be planned and extended.
  • Flexible Sizing: Available in a range of sizes and offsets to suit different door thicknesses.
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
Trustpilot
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35954M - 36/36 - Nickel Plated - 3* 72MM ICS DZ 36AS-36 NP 003EI KD 3K
L35954M Ref: 3* 72MM ICS DZ 36AS-36 NP 003EI KD 3K
Cylinder Size Overall: 36/36 (More)
£ 120.78
EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35956M - 41/41 - Nickel Plated - 3* 82MM ICS DZ 41AS-41 NP 003EI KD 3K
L35956M Ref: 3* 82MM ICS DZ 41AS-41 NP 003EI KD 3K
Cylinder Size Overall: 41/41 (More)
£ 123.04
EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35958M - 46/46 - Nickel Plated - 3* 92MM ICS DZ 46AS-46 NP 003EI KD 3K
L35958M Ref: 3* 92MM ICS DZ 46AS-46 NP 003EI KD 3K
Cylinder Size Overall: 46/46 (More)
£ 125.28
EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35960M - 51/51 - Nickel Plated - 3* 102MM ICS DZ 51AS-51 NP 003EI KD 3K
L35960M Ref: 3* 102MM ICS DZ 51AS-51 NP 003EI KD 3K
Cylinder Size Overall: 51/51 (More)
£ 127.54
EVVA ICS DZ Euro Double Cylinder Keyed To Differ 3 Keys TS007 3* - L35962M - 41/51 - Nickel Plated - 3* 92MM ICS DZ 41AS-51 NP 003EI KD 3K
L35962M Ref: 3* 92MM ICS DZ 41AS-51 NP 003EI KD 3K
Cylinder Size Overall: 41/51 (More)
£ 125.28
