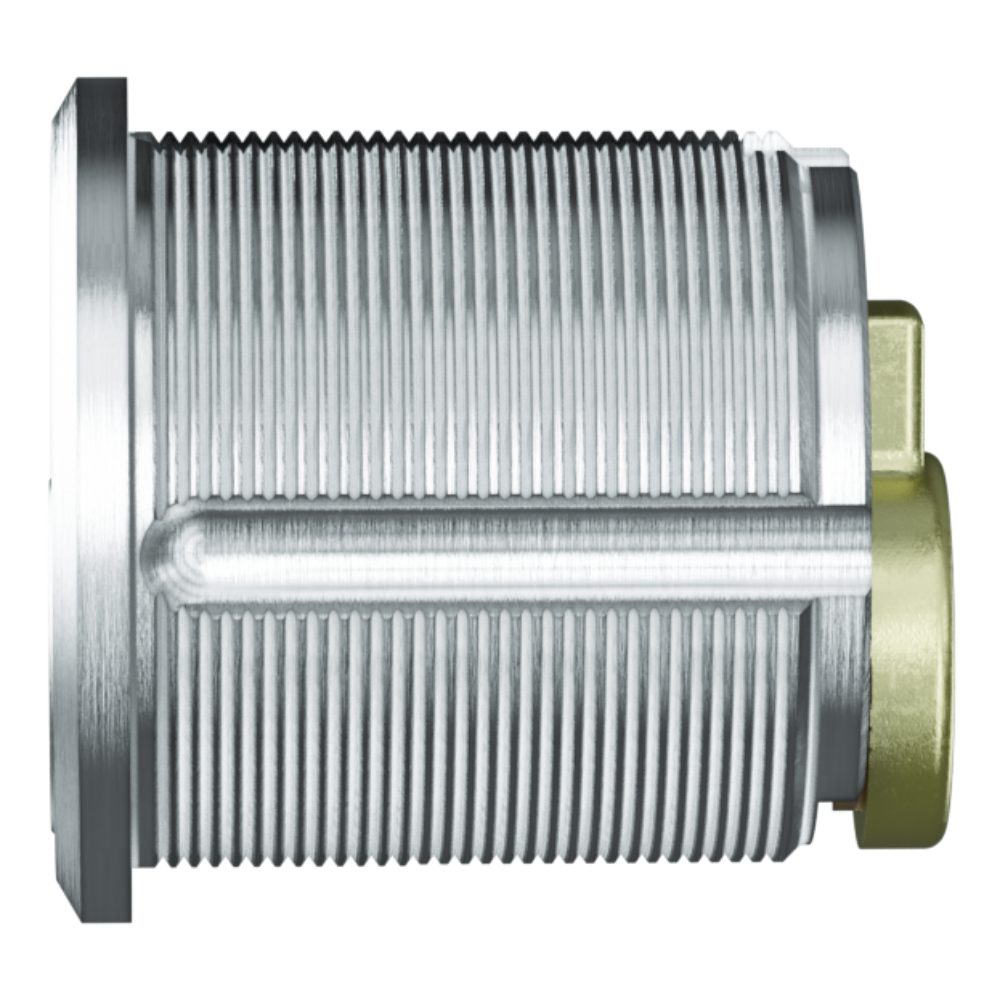

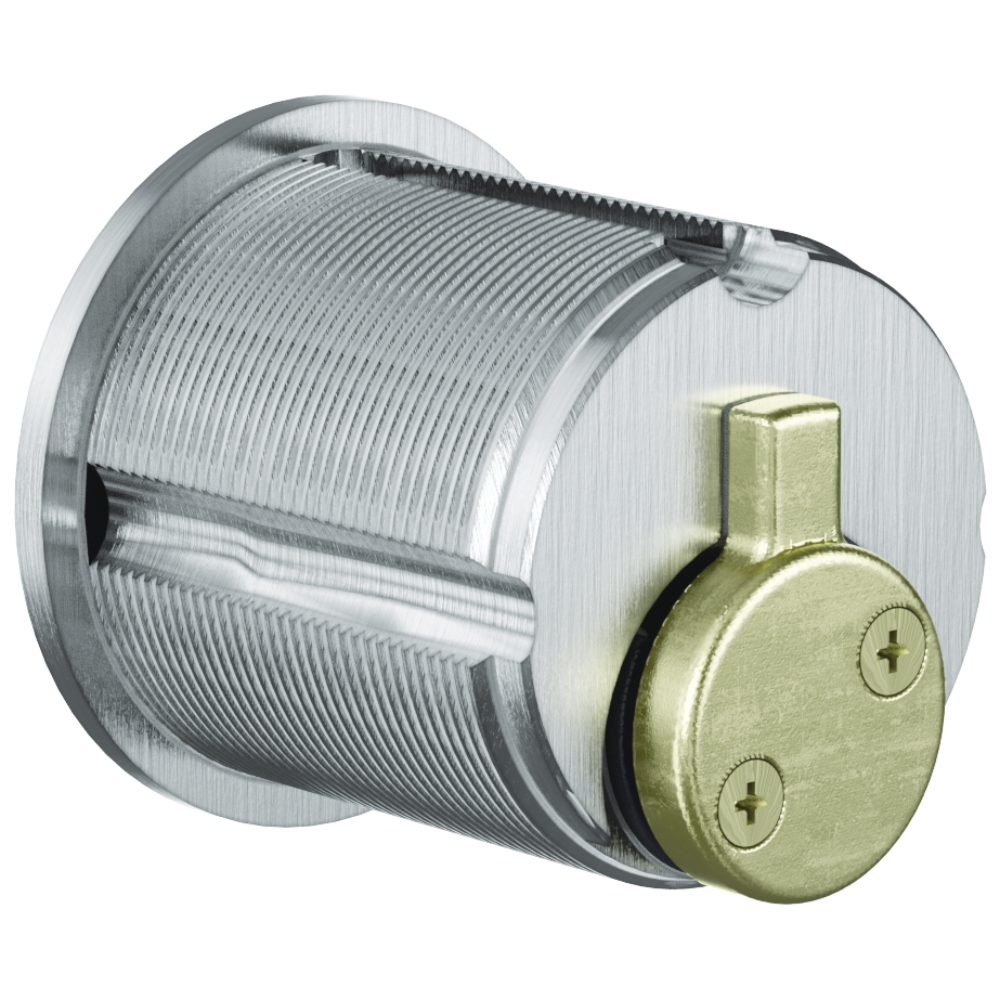

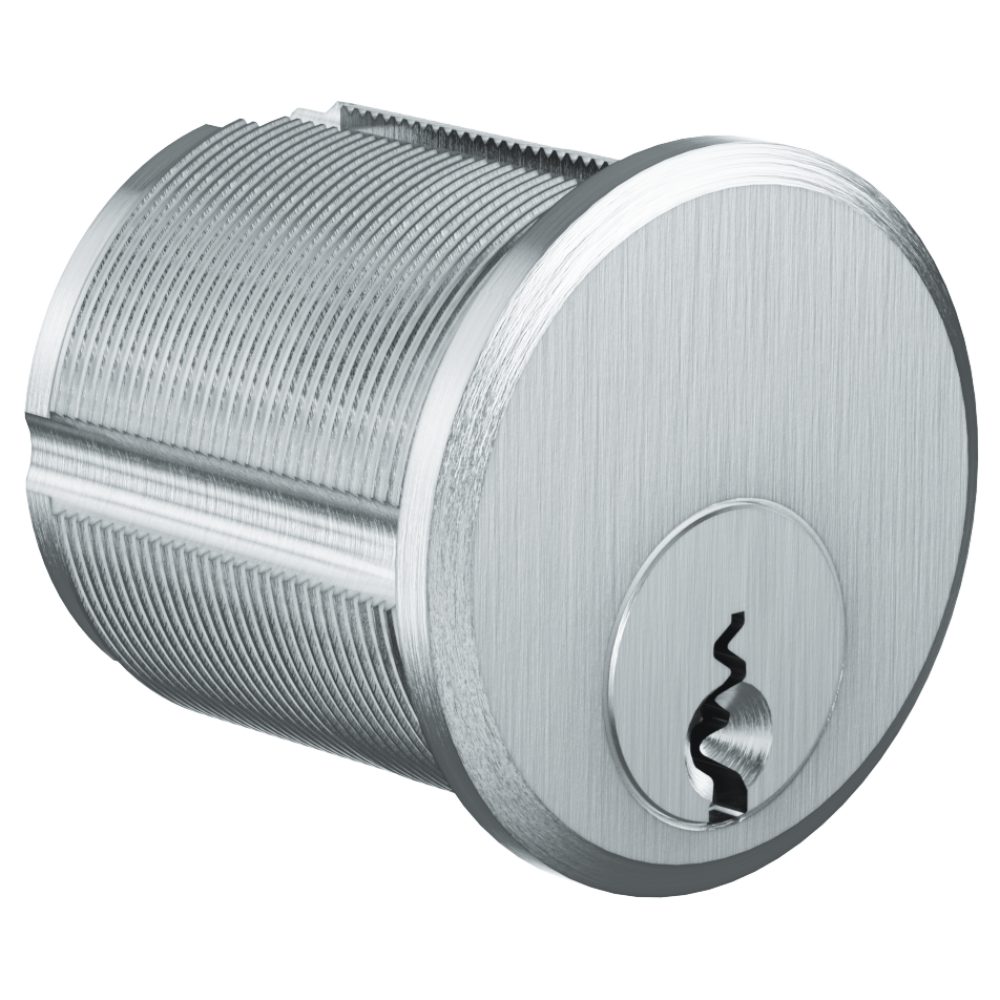

EVVA EPSnp RM3 Screw-In Cylinder Keyed To Differ

The EVVA EPSnp RM3 Screw-In Cylinder is a highly secure, economical mechanical locking solution designed to fit standard screw-in mortice lock cases, commonly found on commercial aluminium and steel doors. Supplied as a keyed to differ set on our in-house section, this cylinder is patent-protected until 2041, ensuring legal and technical protection against unauthorised key duplication.

Engineered for durability and high-performance security, the EPS (Extended Profile System) features a robust 6-pin mechanism with integrated wear and drill resistance. It achieves the highest possible ratings under BS EN 1303:2005, including Grade 6 for lock security and Grade 2 for attack resistance.

Each cylinder is supplied complete with 3 keys. A range of optional special features - such as construction keying (CMK), sea water protection (SEW), bump resistance (SG-A), and plug pulling protection (ARS/KZS) - are available upon request. Please contact our team for more information on custom configurations.

Technical Specifications

• Brand: EVVA
• Cylinder System: EPS (Extended Profile System)
• Cylinder Type: Screw-In

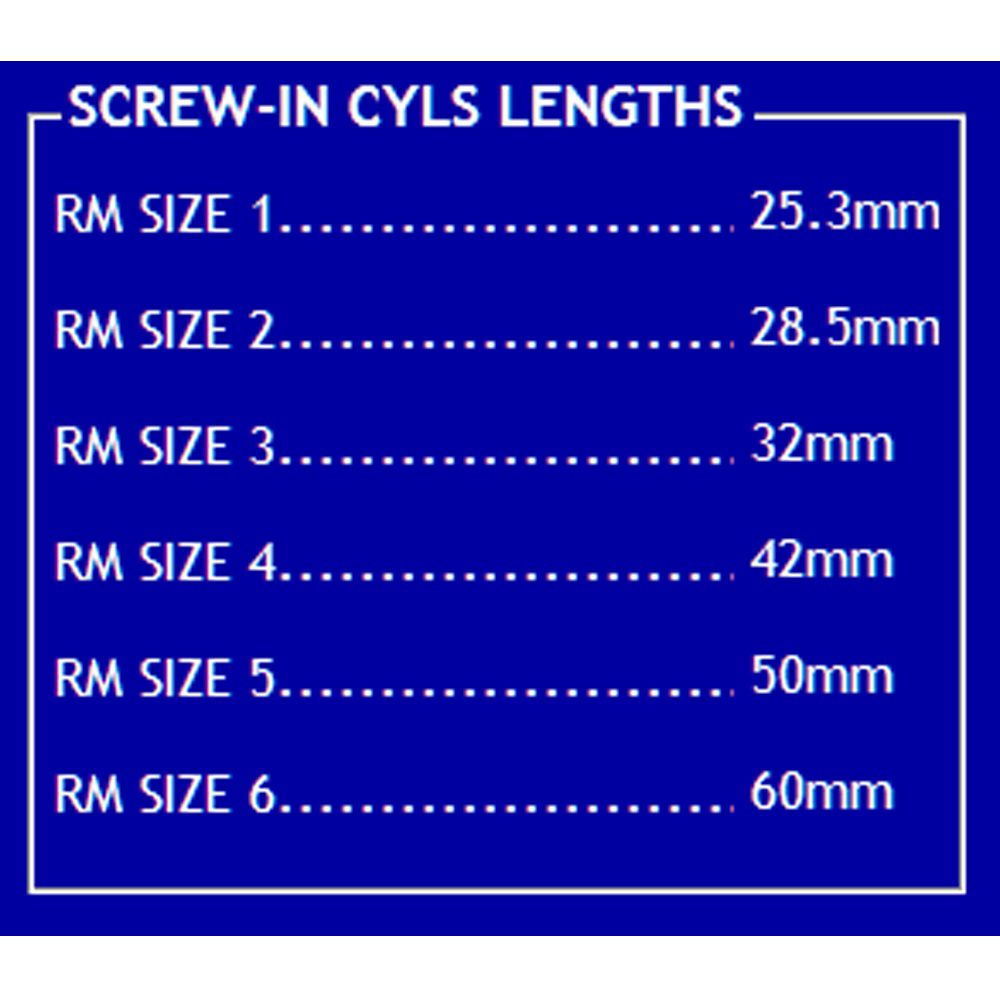

• Body Length: 35mm
• Finish: Nickel Plated
• Mechanism: 6 Pin
• Keying: Keyed To Differ
• Keys Supplied: 3
• Standards: BS EN 1303:2005, BS EN 1634 (Fire Tested Grade B)
• Weight: 262g

Key Features

• Patent Protected: Long-term patent protection until 2041 prevents unauthorised key copying.
• High Security Ratings: Complies with BS EN 1303:2005 Attack Resistance Grade 2 and Lock Security Grade 6 (the highest grades).
• Robust Protection: Features built-in wear and drill resistance for enhanced physical security.
• Fire Tested: Grade B fire-tested in accordance with BS EN 1634.

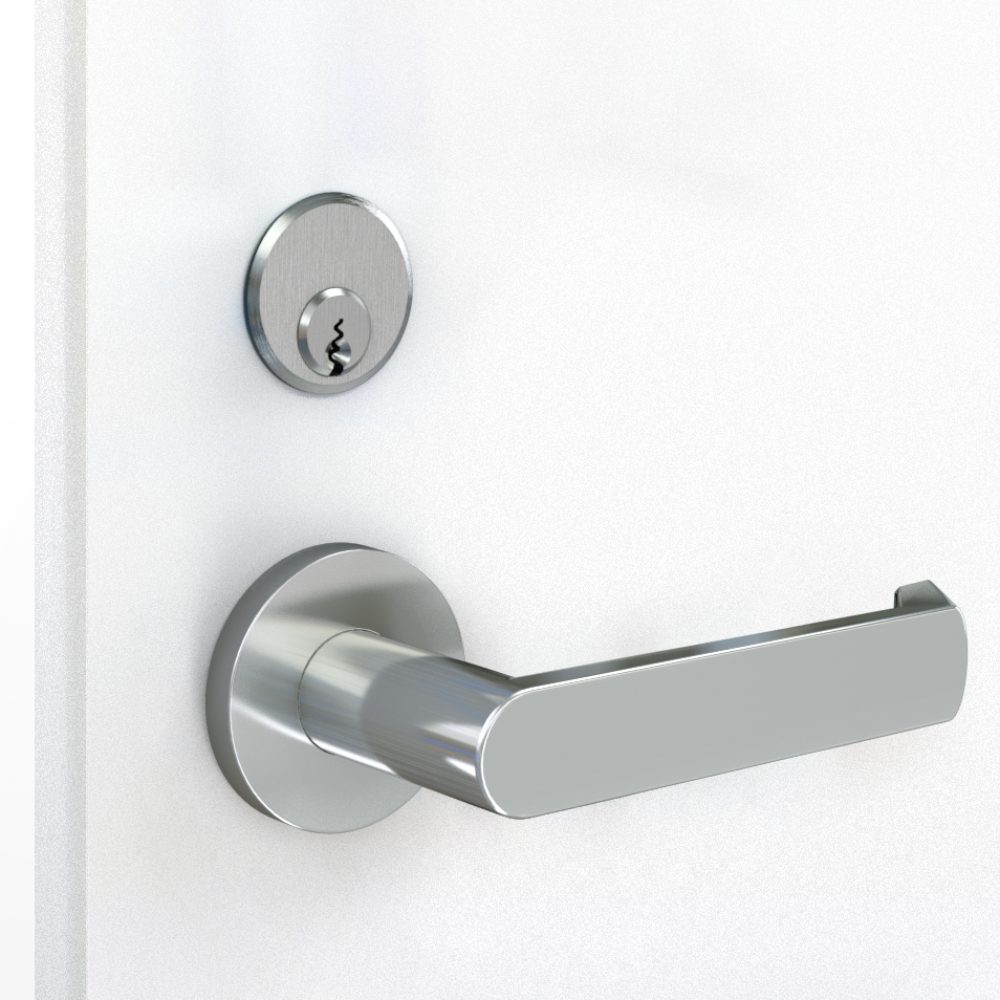

• Versatile Applications: Ideal for standard screw-in mortice lock cases on commercial steel and aluminium doors.
• Customisable Options: Contact us for optional features including construction keying, sea water protection, and bump resistance.
