EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3*

EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3*

Evva logo Evva More Evva Key & Turn Euro
From
£101.34
Select size, finish, and quantity from the variant table.
View options

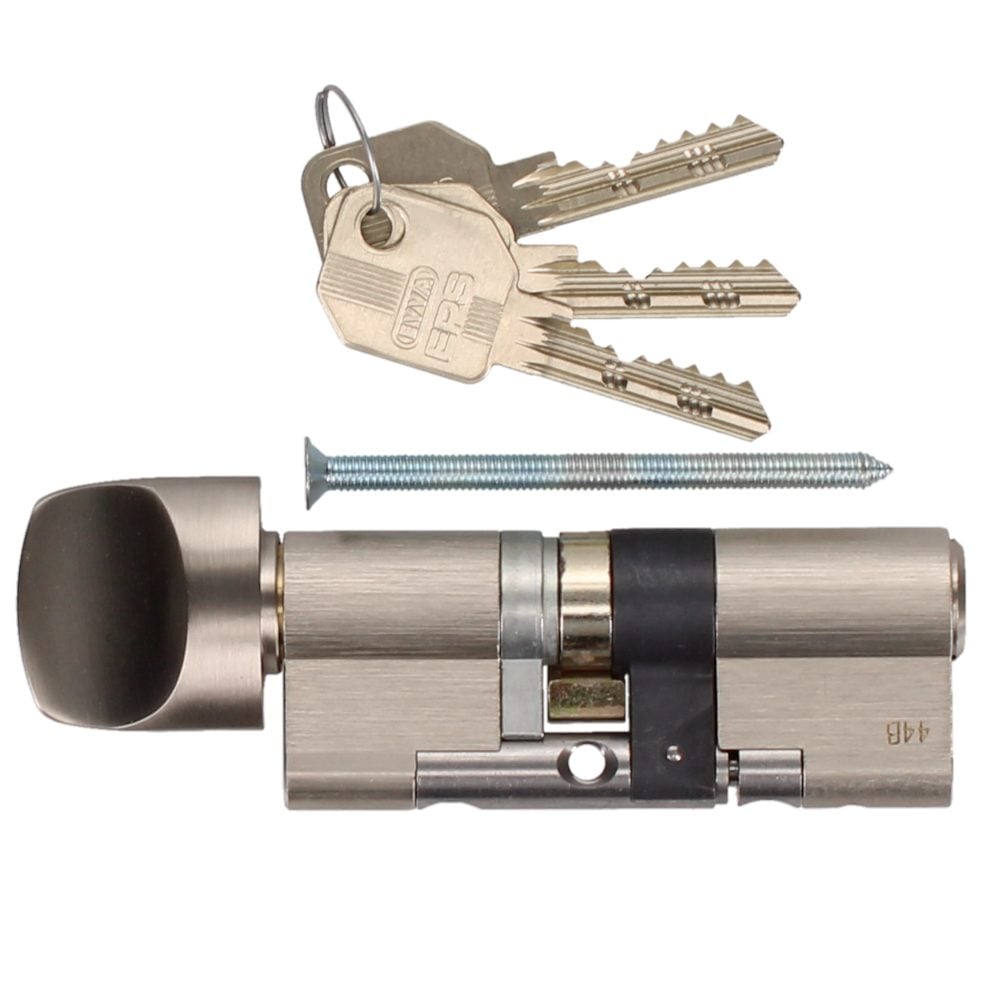

The EVVA EPSnp KDZ Key & Turn Euro Cylinder is a high-security mechanical locking solution offering exceptional protection and convenience. This cylinder is TS007 3-star rated, providing robust resistance against common forced entry methods including bumping, drilling, and picking. It is supplied keyed to differ on our secure in-house section and comes complete with three keys.

Patent protected until 2041, the EVVA EPSnp system features legal and technical key protection mechanisms to prevent unauthorised key duplication. It is an economical and highly reliable choice for residential and commercial doors alike, and is fire tested to Grade B (BS EN 1634).

This cylinder is available in a variety of sizes and weights to suit different door thicknesses. The overall body length ranges from 77mm to 102mm (overall sizes from 41/T36 to 51/T51), with the 'A' side available from 41mm to 51mm, and the 'B' side (turn) from 36mm to 51mm. Weights range from 282g to 399g. Please choose your required cylinder size, overall length, and cam specifications from the options below.

Optional special features such as clutch cams (SOS), cog wheel cams, classroom functions, and all-weather covers are also available upon request. Please contact us for more information.

Technical Specifications

  • Brand: EVVA
  • Cylinder Profile: Euro
  • Cylinder Type: Key & Turn Euro
  • Finish: Nickel Plated
  • Mechanism: 6 Pin
  • Keying: Keyed To Differ (supplied with 3 keys)
  • Standards: TS 007:2015 - 3 Star, BS EN 1303:2005, BS EN 1634
  • Fire Tested: Grade B
  • Patent Protection: Until 2041
  • A Side Length: 41mm to 51mm (please select from the options below)
  • B Side (Turn) Length: 36mm to 51mm (please select from the options below)
  • Overall Body Length: 77mm to 102mm (please select from the options below)

Key Features

  • TS007 3-Star Rated: High-security rating meeting BS EN 1303:2005 and TS007 standards for maximum protection.
  • Patent Protected: Legal and technical key protection until 2041 to prevent unauthorised key copying.
  • Attack Resistant: High resistance to bumping, drilling, and picking.
  • Convenient Operation: Key entry on the outside with a thumbturn on the inside for easy locking and unlocking.
  • Fire Tested: Grade B certified to BS EN 1634 for use on fire and smoke doors.
  • Supplied with 3 Keys: Keyed to differ on our secure in-house section.
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
Trustpilot
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3* - L35973M - 41/T36 - Nickel Plated - 3* 77MM EPS KDZ 41AS-K36 NP 44BE1 KD 3K
L35973M Ref: 3* 77MM EPS KDZ 41AS-K36 NP 44BE1 KD 3K
Cylinder Size Overall: 41/T36 (More)
£ 101.34

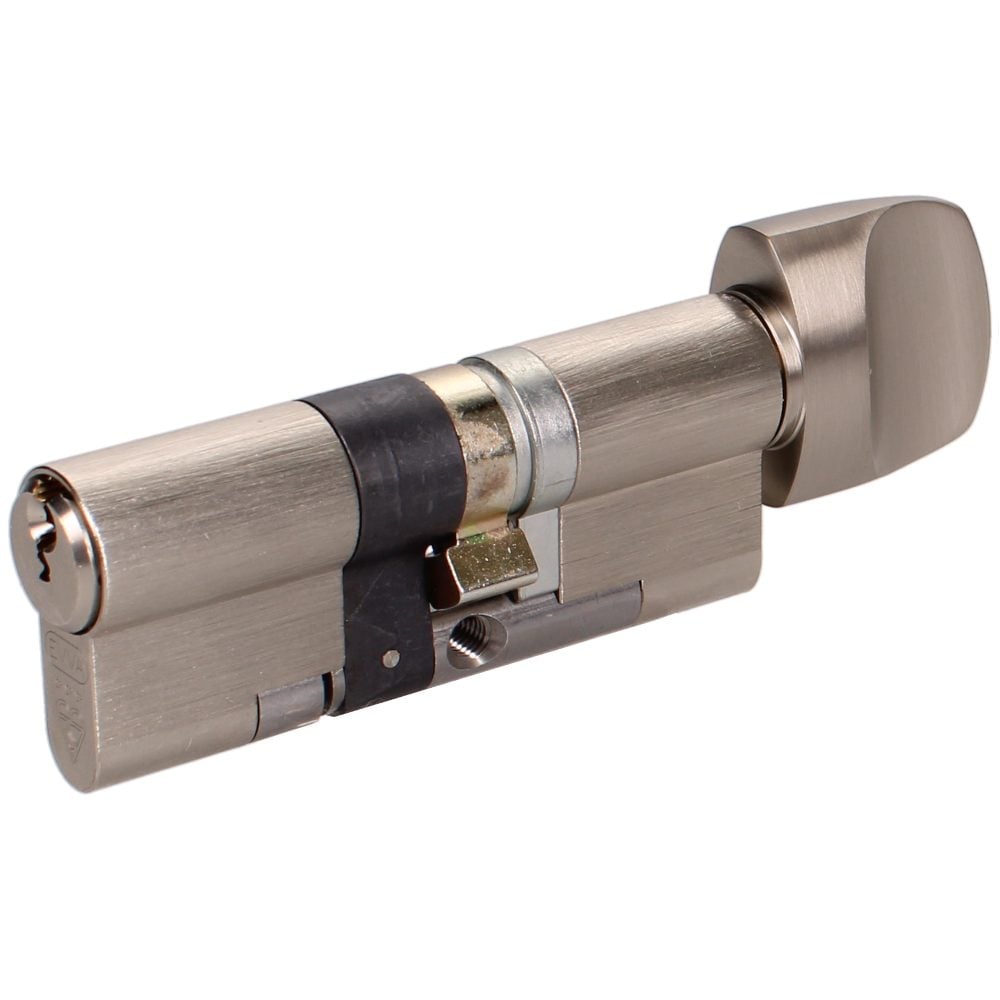

EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3* - L35975M - 41/T41 - Nickel Plated - 3* 82MM EPS KDZ 41AS-K41 NP 44BE1 KD 3K
L35975M Ref: 3* 82MM EPS KDZ 41AS-K41 NP 44BE1 KD 3K
Cylinder Size Overall: 41/T41 (More)
£ 102.47
EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3* - L35977M - 46/T46 - Nickel Plated - 3* 92MM EPS KDZ 46AS-K46 NP 44BE1 KD 3K
L35977M Ref: 3* 92MM EPS KDZ 46AS-K46 NP 44BE1 KD 3K
Cylinder Size Overall: 46/T46 (More)
£ 104.71
EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3* - L35979M - 51/T51 - Nickel Plated - 3* 102MM EPS KDZ 51AS-K51 NP 44BE1 KD 3K
L35979M Ref: 3* 102MM EPS KDZ 51AS-K51 NP 44BE1 KD 3K
Cylinder Size Overall: 51/T51 (More)
£ 106.92

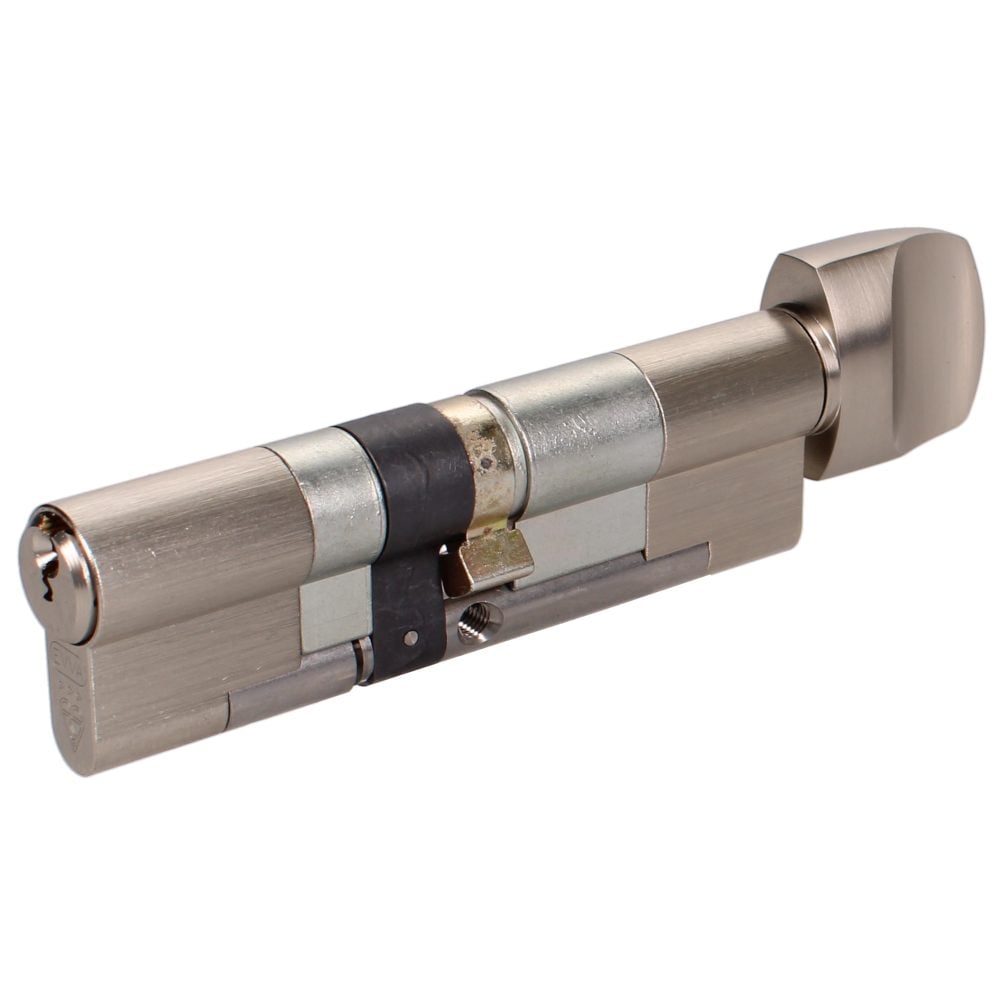

EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ 3 Keys TS007 3* - L35981M - 41/T51 - Nickel Plated - 3* 92MM EPS KDZ 41AS-K51 NP 44BE1 KD 3K
L35981M Ref: 3* 92MM EPS KDZ 41AS-K51 NP 44BE1 KD 3K
Cylinder Size Overall: 41/T51 (More)
£ 104.71
