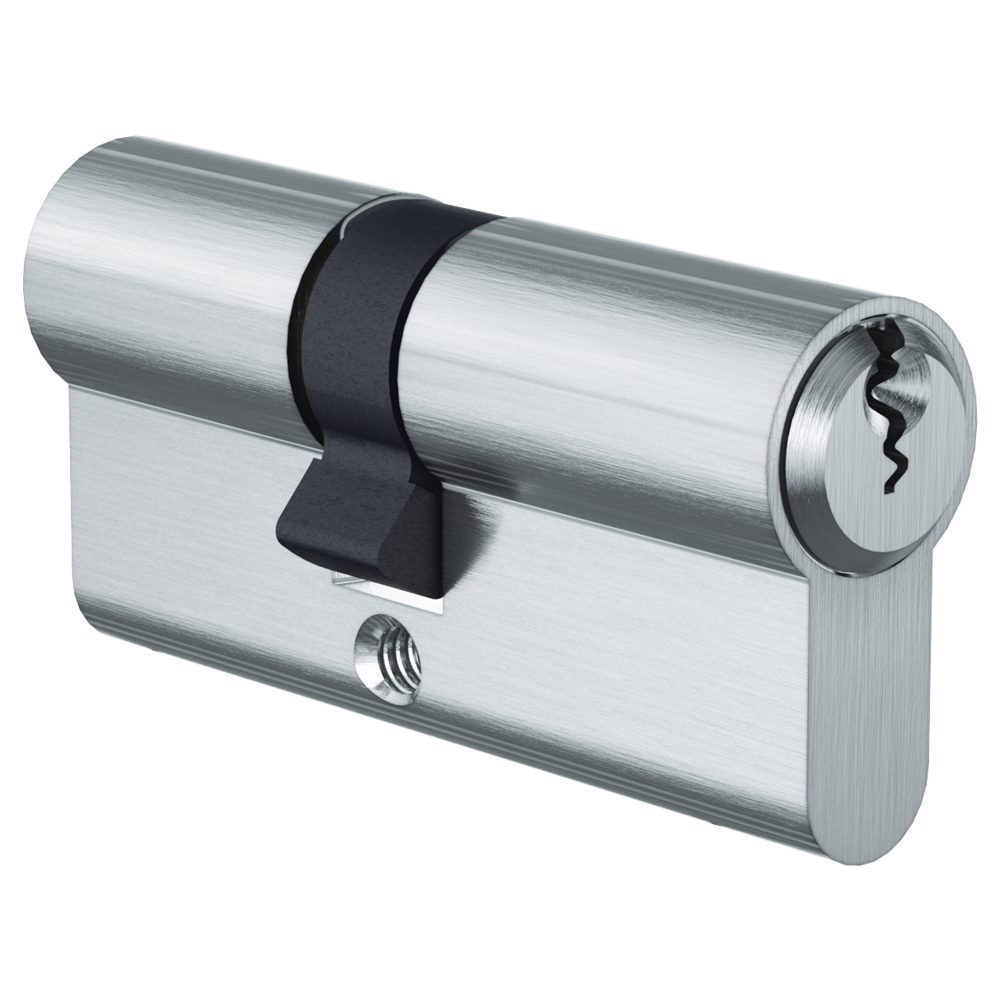

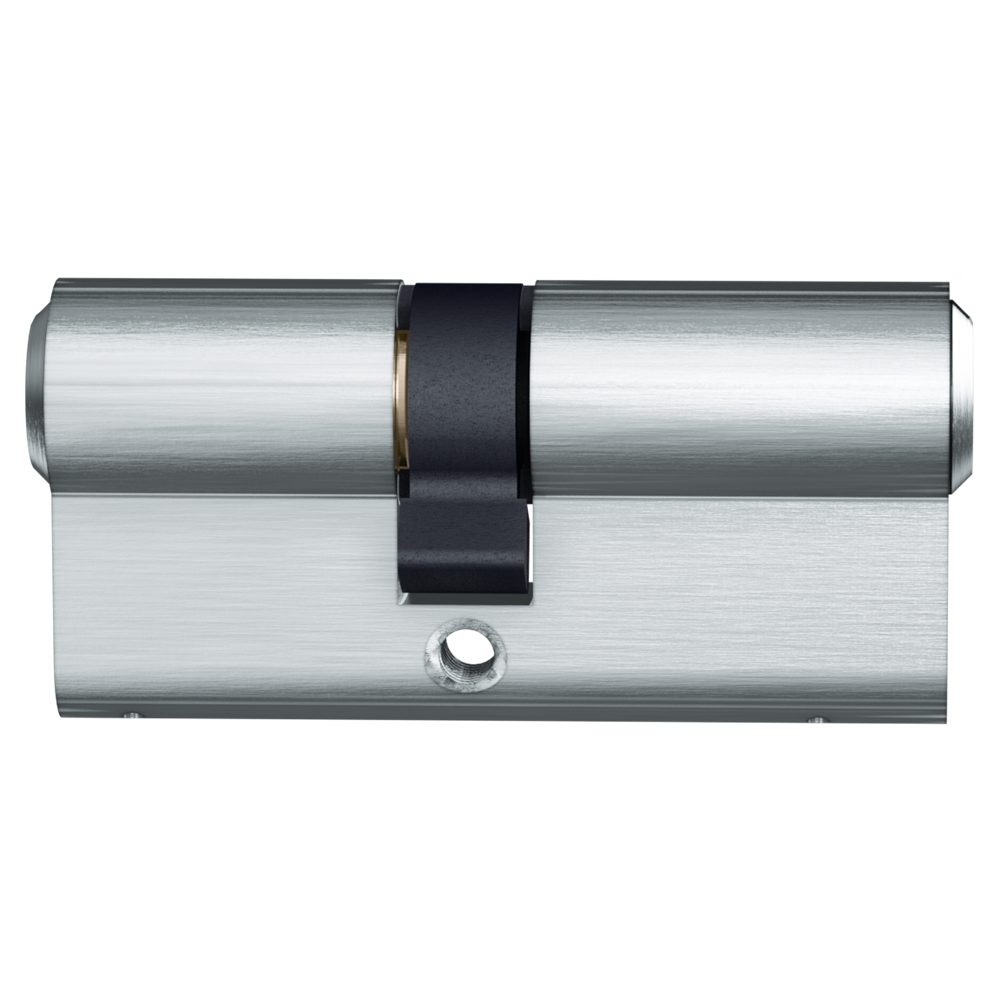

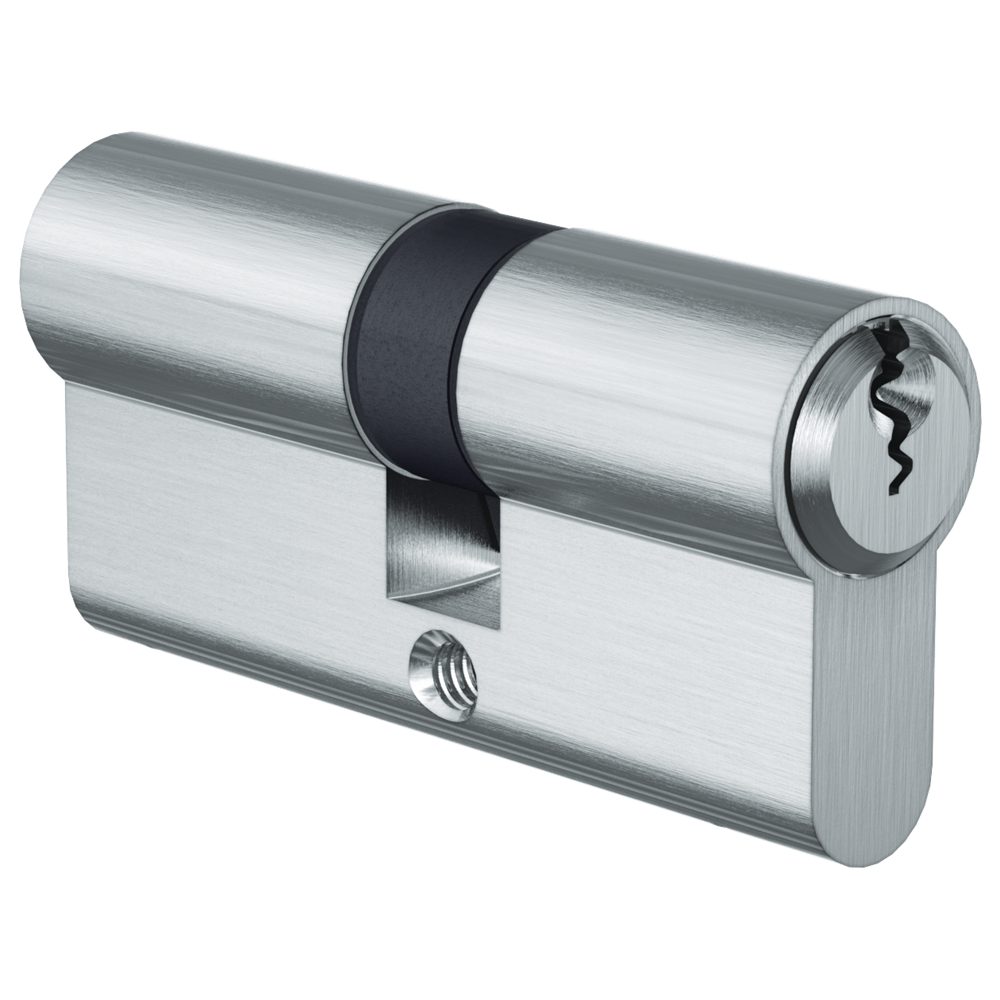

EVVA EPSnp DZ Double Euro Cylinder Keyed To Differ

The EVVA EPSnp DZ Double Euro Cylinder is a high-security, patent-protected mechanical locking system designed to offer an economical yet highly secure solution for residential and commercial properties. Patent protected until 2041, this 6-pin cylinder features legal and technical key protection mechanisms to prevent unauthorised key copying, ensuring your property remains secure.

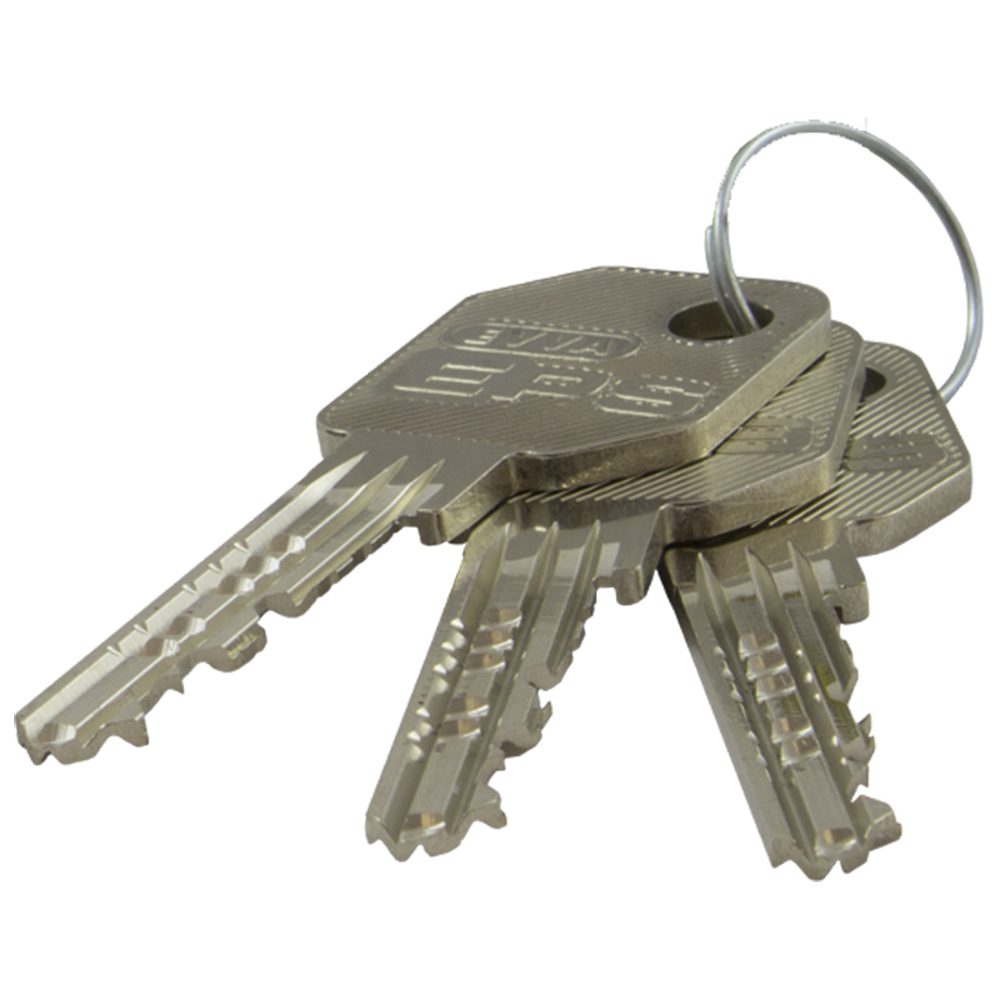

Supplied keyed to differ on our secure in-house section, each cylinder comes complete with three keys. It is built to withstand physical attacks, achieving the highest possible classifications under EN 1303:2005, including Grade 6 lock security and Grade 2 attack resistance. The cylinder is also wear, drill, and fire-resistant.

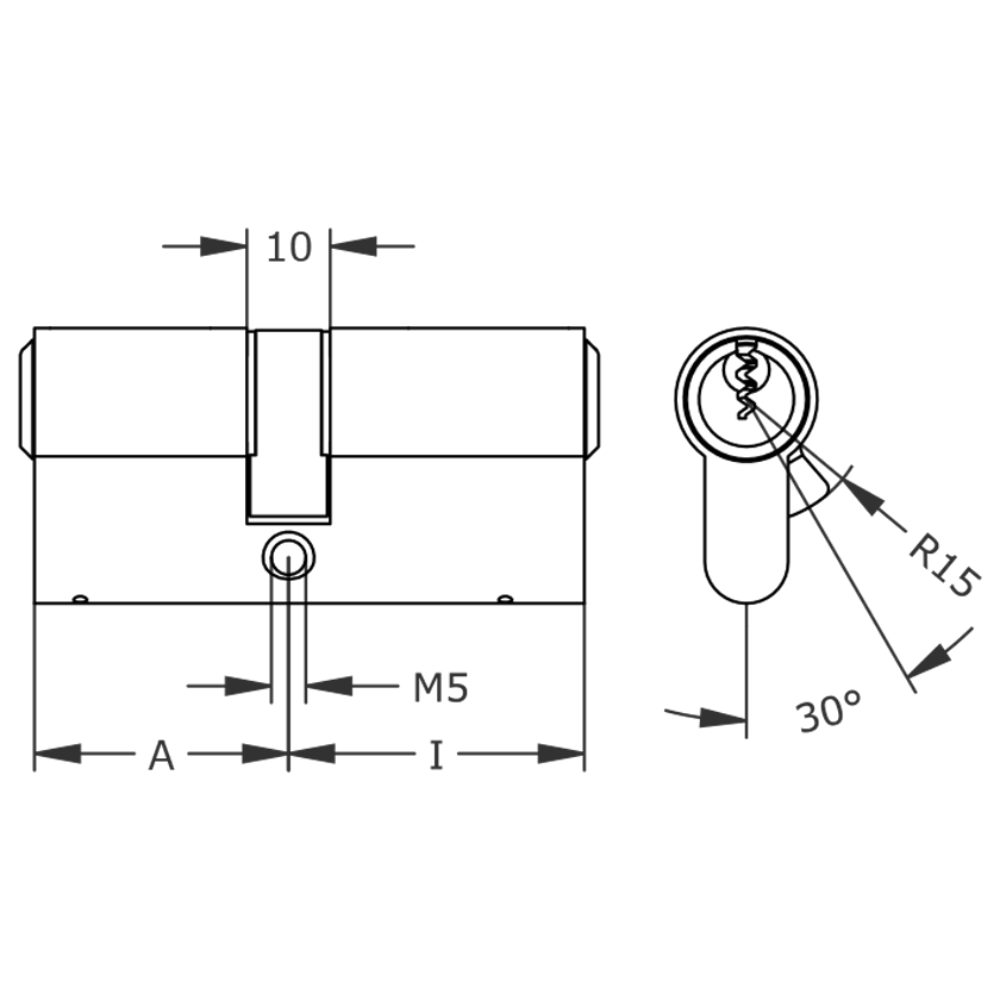

This double euro cylinder is available in a range of overall lengths from 62mm to 82mm, with A Side and B Side measurements ranging from 31mm to 41mm. Please select your required cylinder size and offset from the options below.

Additionally, a variety of optional special features can be configured to suit specific applications, including external key override (BSZ), cog wheel cams (Z), and sea water protection (SEW).

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: Double Euro Cylinder
• Keying: Keyed to Differ (supplied on secure in-house section)
• Keys Supplied: 3 keys
• Mechanism: 6-pin
• Patent Protection: Until 2041
• Standards & Certifications: BS EN 1303:2005 (Lock Security Grade 6, Attack Resistance Grade 2), BS EN 1634 (Fire Tested Grade B)
• Finish: Nickel Plated
• Sizes Available: Overall lengths from 62mm to 82mm (A Side and B Side options from 31mm to 41mm)

Key Features

• Long-Term Patent Protection: Patented until 2041 to prevent unauthorised key duplication and copying.
• Exceptional Attack Resistance: Achieves the highest security and attack resistance grades under BS EN 1303:2005.
• Robust Construction: Features wear and drill-resistant components for long-lasting durability.
• Fire Tested: Certified to Grade B under BS EN 1634, making it suitable for fire and smoke doors.
• Flexible Sizing: Available in multiple overall lengths and offsets to fit a wide range of door thicknesses - please select your required size below.
• Customisable Options: Can be configured with optional special features such as external key override, cog wheel cams, and weather protection.
