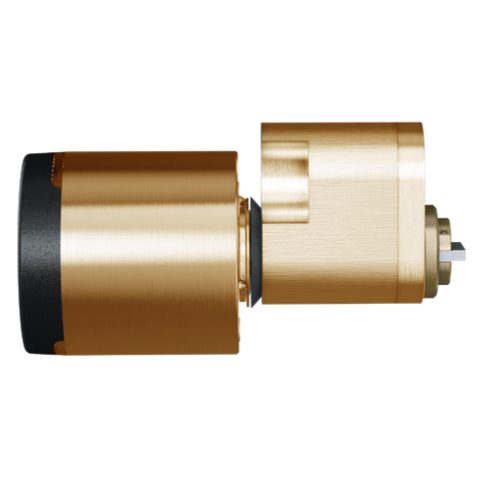

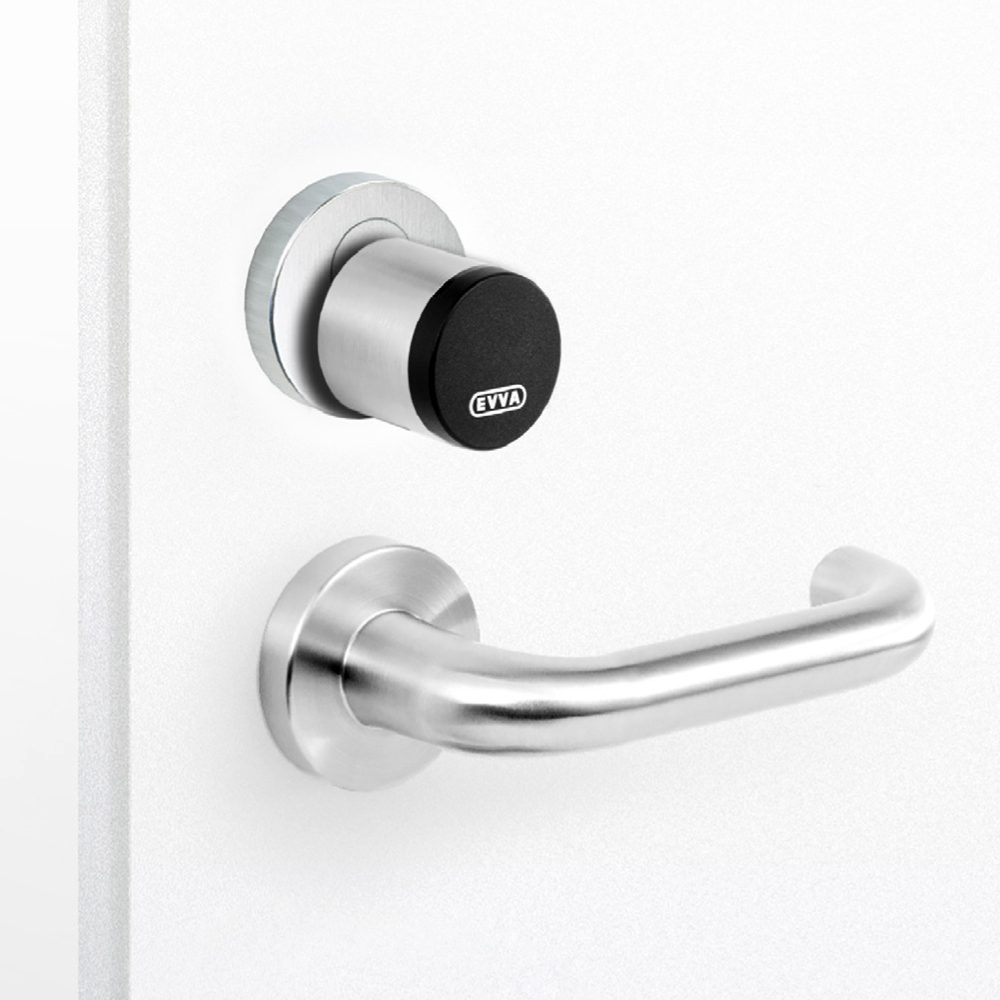

EVVA AirKey Scandinavian Proximity Security Cylinder

The EVVA AirKey Scandinavian Proximity Security Cylinder is an advanced, flexible access control solution designed for doors fitted with a Scandinavian lock (supplied separately). It is ideal for applications requiring one-sided authorisation, allowing you to manage access permissions with ease.

With the EVVA AirKey system, your smartphone becomes the key. Access can be granted using an NFC-compatible smartphone (Android or iPhone) or via Bluetooth. Permissions can be sent remotely via SMS text messages with push notifications, and the system is also compatible with EVVA AirKey key cards.

This modular cylinder is designed for easy installation and future adaptation. It is rated to IP65, ensuring it is highly weatherproof and suitable for both indoor and outdoor environments, with an operating temperature range of -20°C to +55°C. The unit is CE certified and is supplied with two CR2 batteries, providing a long life of up to 30,000 cycles.

This product is available in multiple finishes, including Nickel Plated and Polished Brass, and is offered in both Internal and External application versions to suit your specific security and environmental needs. Please select your preferred finish, application type, barcode, and manufacturer reference from the options below.

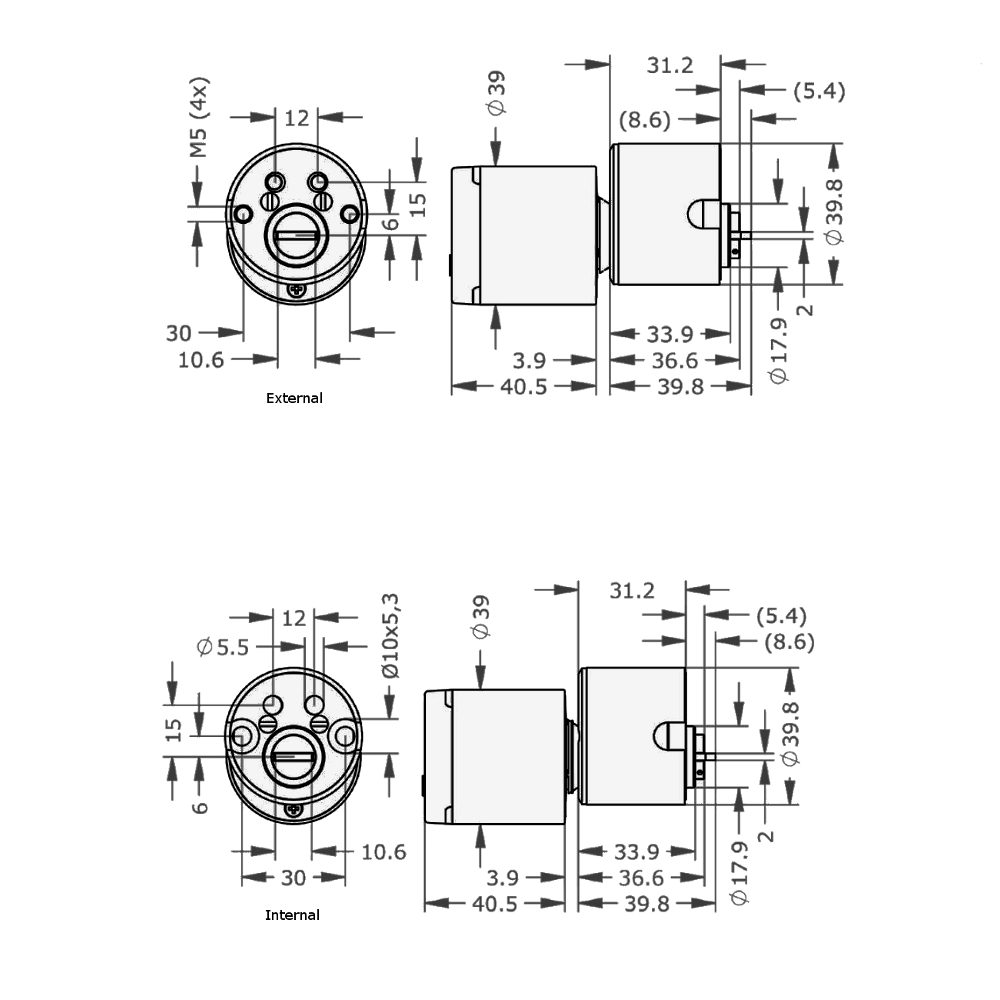

Technical Specifications

• Brand: EVVA
• Cylinder Profile: Scandinavian Oval
• Cylinder System: EVVA AirKey
• Mechanism: Proximity
• Finishes Available: Nickel Plated, Polished Brass (please choose from the options below)
• Application Options: Internal, External (please choose from the options below)
• IP Rating: IP65
• Operating Temperature: -20°C to +55°C
• Battery: 2 x CR2 (included)
• Battery Life: Up to 30,000 operations
• Audit Trail: Stores the last 1,000 events
• Standards: CE Marked
• Keys Supplied: 0
• Knob Diameter: 39mm
• Knob Projection: 45mm
• Manufacturer References: E.A.AI.AZ37-S.SEC.MP, E.A.AI.AZ37-S.SEC.NI, E.A.AI.IZ37-S.SEC.MP, E.A.AI.IZ37-S.SEC.NI (please choose from the options below)
• Barcodes: 5056240120522, 5056240120539, 5056240120546, 5056240120553 (please choose from the options below)

Key Features

• Smartphone Access: Unlock doors using NFC-compatible smartphones (Android/iPhone) or Bluetooth.
• Remote Key Sharing: Send access permissions instantly via SMS text messages with push notifications.
• One-Sided Authorisation: Ideal for doors requiring authorisation requests on one side only.
• Weatherproof Design: IP65 rated for reliable indoor and outdoor use.
• Modular Construction: Allows for easy installation and future adaptation.
• Plug Pulling Resistant: Built with enhanced security features to resist physical manipulation.
• Long Battery Life: Powered by 2 x CR2 batteries (included) for up to 30,000 cycles.
