EVVA AirKey Euro Double Proximity - Turn Cylinder

The EVVA AirKey Euro Double Proximity - Turn Cylinder is an advanced, battery-operated electronic access control solution designed to replace standard Euro profile cylinders. It features a proximity reader knob on the outside and a standard mechanical thumbturn on the inside, ensuring that exit is always possible.

This smart locking cylinder allows you to open doors using an NFC-compatible smartphone (Android or iPhone), Bluetooth, or Evva AirKey key cards and fobs. With the AirKey online administration system, you can easily send keys remotely via SMS text messages, schedule access times, and view an audit trail of the last 1,000 events.

Built to withstand the elements, the cylinder is IP65 rated and operates in temperatures ranging from -20°C to +55°C, making it suitable for both internal and external doors. It is powered by two CR2 batteries, offering up to 30,000 operations, and features a modular design that allows for future length adjustments.

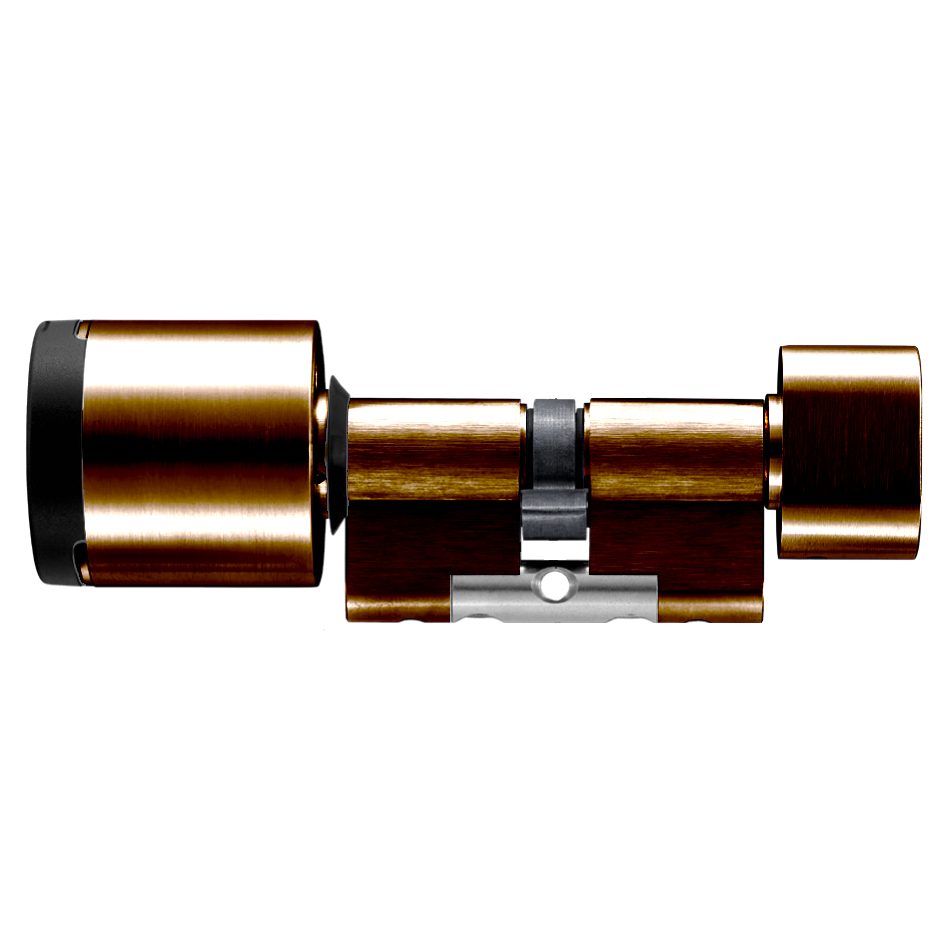

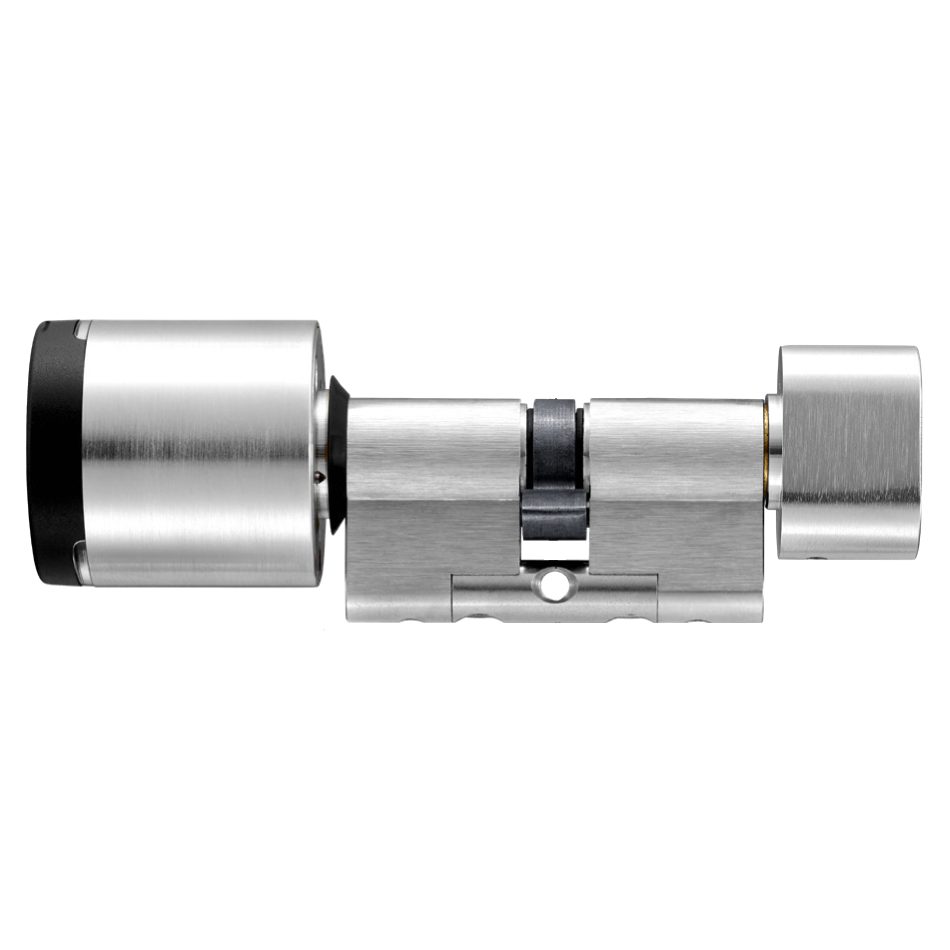

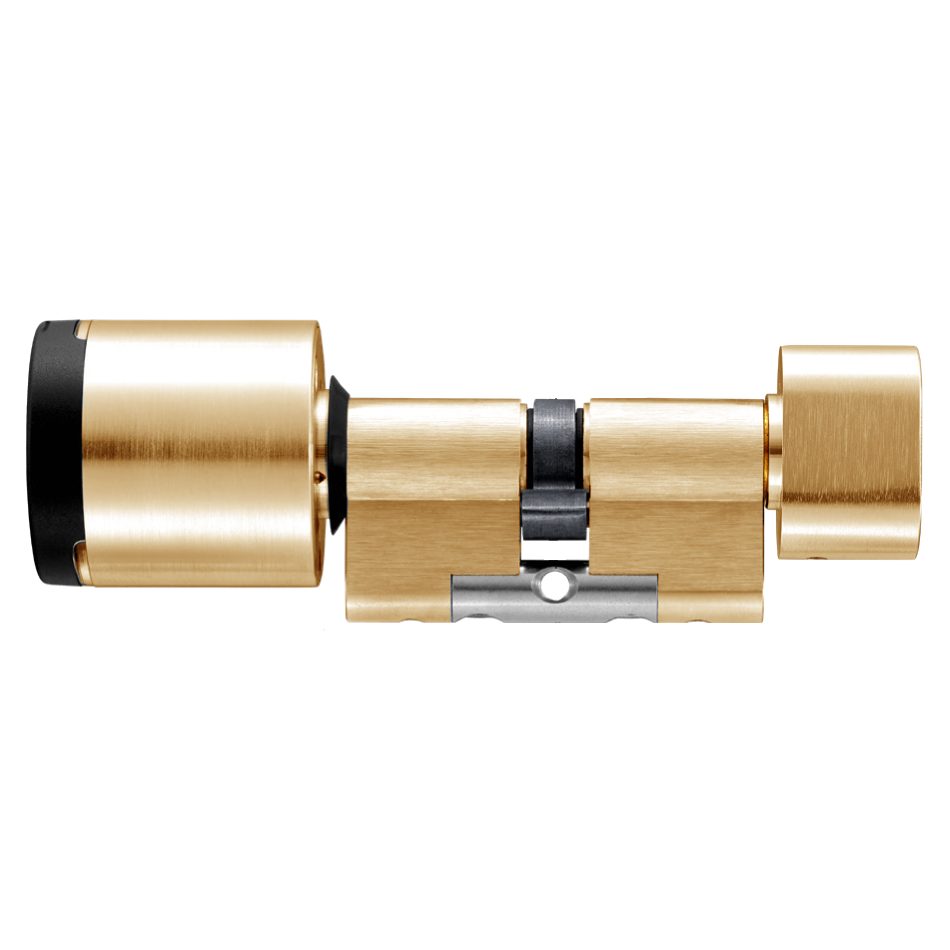

This cylinder is available in multiple finishes, including Nickel Plated, Patina Brown (Bronze), and Polished Brass, and in overall length ranges of 62mm to 92mm or 97mm to 122mm. Please choose your preferred finish and size from the options below.

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: Proximity & Turn Euro
• Cylinder System: Evva AirKey
• Mechanism: Proximity
• IP Rating: IP65
• Battery: 2 x CR2
• Battery Life: 30,000 operations
• Audit Trail: Last 1,000 events
• Operating Temperature: -20°C to 55°C
• Humidity: < 90 %, non-condensing
• Knob Diameter: 39mm
• Knob Projection: 45mm
• Key Override: No
• Keys Supplied: 0
• Handed: Reversible
• Standards: BS EN 1634-1, CE Marked, Certifire
• Fire Tested: Grade 0
• Visual Indication: Yes
• Weight: 356g

Key Features

• Smart Access Control: Open doors using NFC-compatible smartphones, Bluetooth, or AirKey cards/fobs.
• Easy Management: Send virtual keys remotely via SMS and manage access permissions online.
• Convenient Exit: Features a standard thumbturn on the inside for unrestricted egress.
• Weatherproof Design: IP65 rated for reliable outdoor and indoor use.
• Anti-Tamper Protection: Outside thumbturn rotates freely when disengaged to prevent forced entry.
• Modular Construction: Allows for future length adjustments to suit different door thicknesses.
• Multiple Options: Available in Nickel Plated, Patina Brown (Bronze), and Polished Brass finishes, and in length ranges of 62mm to 92mm or 97mm to 122mm (please select from the options below).
