EVVA AirKey Control Unit To Suit EVVA AirKey Wall Reader

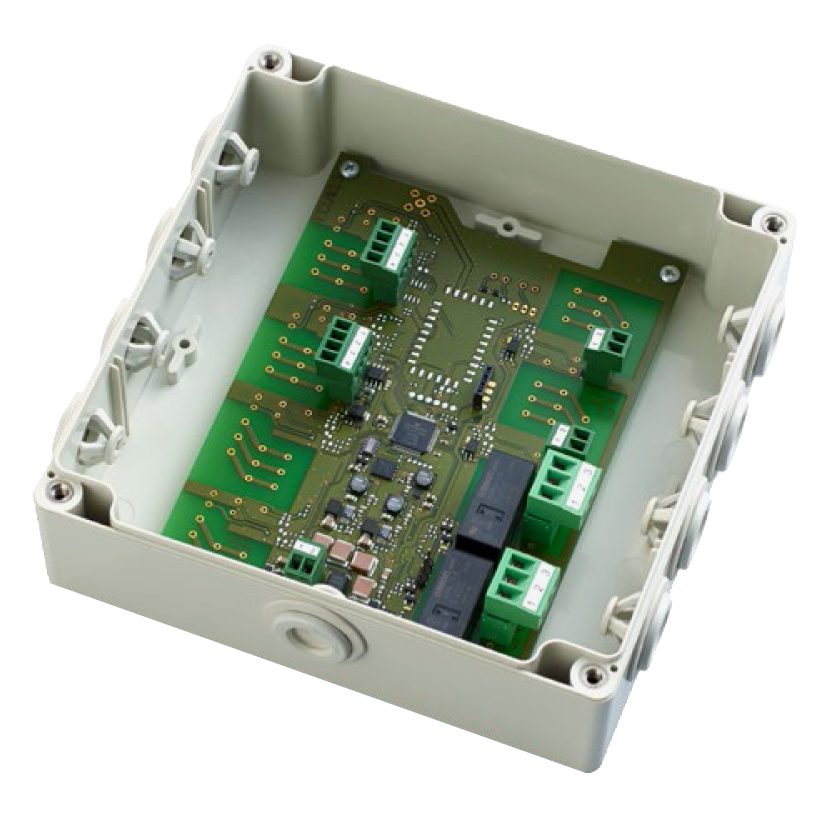

The EVVA AirKey Control Unit is designed to manage and control a single EVVA AirKey Wall Reader, activating electronic locking elements in the door. Thanks to its compact design, it is easy to install in a wide range of applications. It features high switching performance with two relays, each supporting a maximum switching performance of 250V AC.

Housed in a durable IP54-rated cream plastic enclosure, this control unit ensures reliable operation. In the event of a power cut, data is buffered for up to 72 hours, maintaining system integrity. Security is further enhanced by fully encrypted data transfer between the wall reader and the control unit, protecting against tampering and unauthorised access.

Technical Specifications

• Brand: EVVA
• Manufacturer Reference: E.A.WL.CUS
• Input Voltage: 12V DC
• IP Rating: IP54
• Max Readers Supported: 1
• Max Doors Supported: 1
• Max Switching: 250V AC (max 16A briefly, max 10A permanently)
• Audit Trail: Last 1,000 events
• Operating Temperature: 10°C to 50°C
• Humidity: < 90%, non-condensing

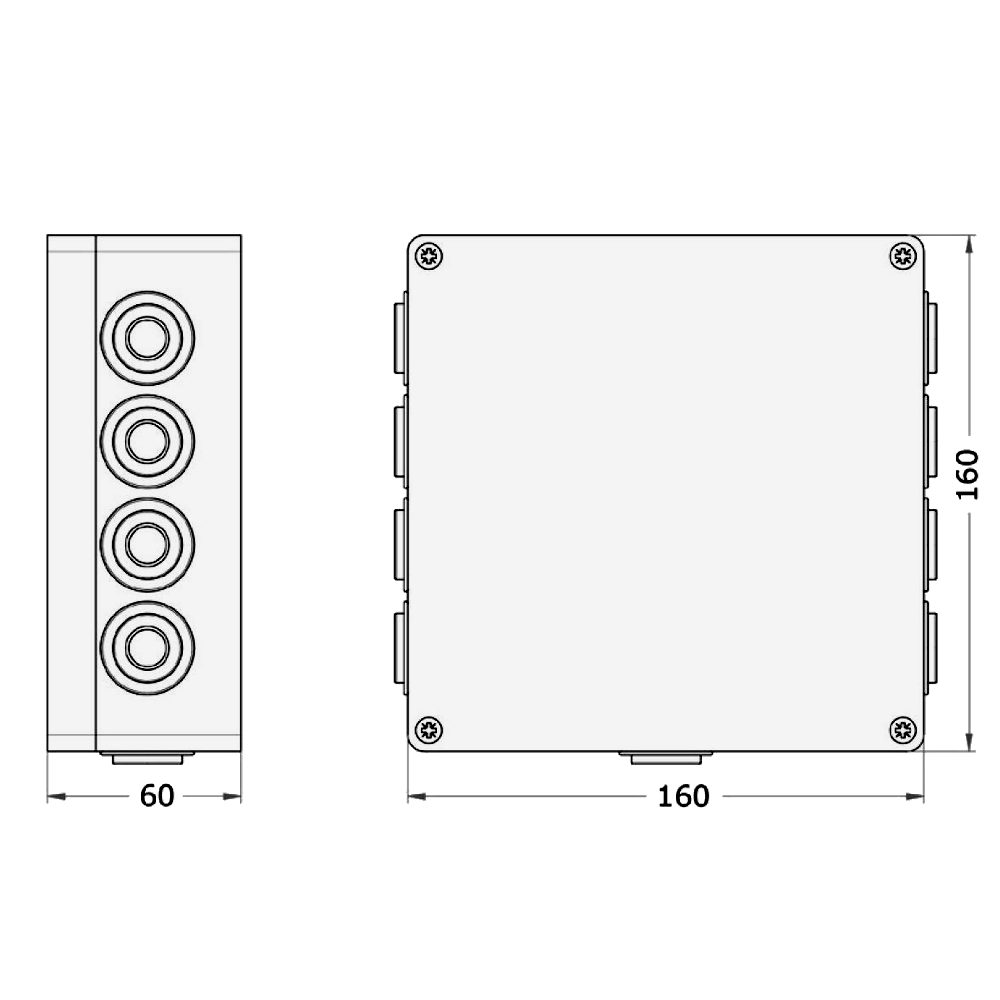

• Width: 160mm
• Depth: 60mm
• Weight: 356g
• Finish: Cream
• Standards: CE Marked

Key Features

• Secure Encrypted Transfer: Features fully encrypted data communication between the wall reader and the control unit to prevent tampering.
• Power Failure Protection: Data is buffered for up to 72 hours during power cuts to maintain system security.

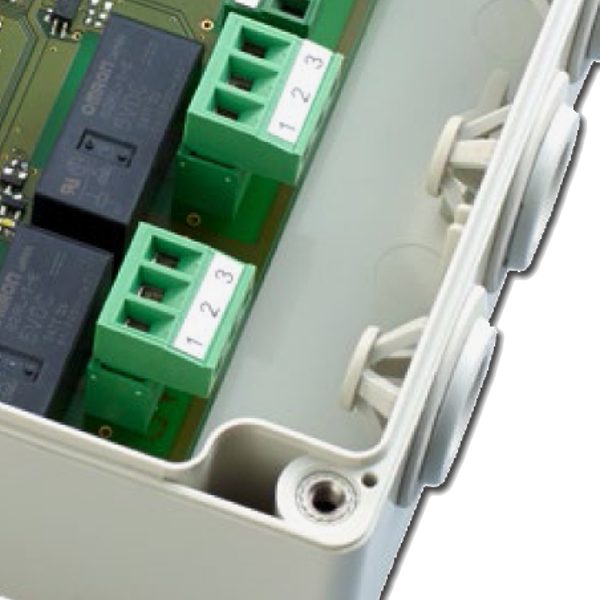

• High Switching Performance: Equipped with two relays supporting up to 250V AC switching.
• Compact & Easy Installation: Space-saving design allows for simple installation in most environments.
• Weather Protection: Housed in a cream plastic enclosure rated to IP54.
• Audit Trail: Stores the last 1,000 events for comprehensive access tracking.
