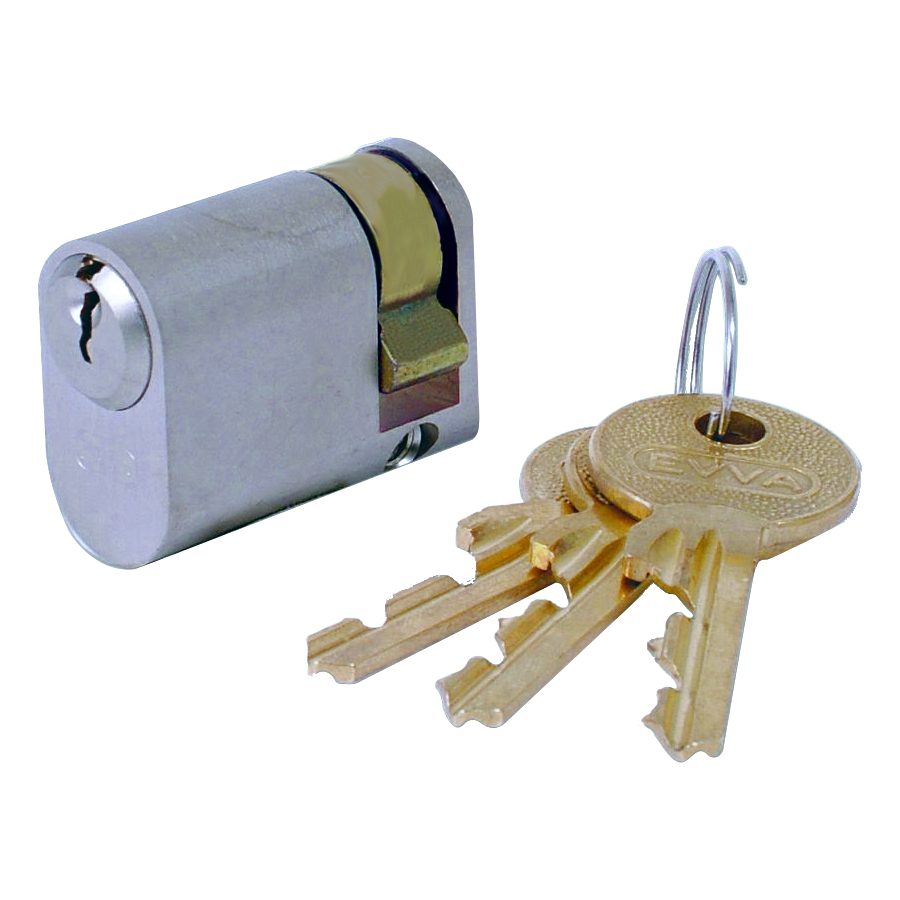

EVVA A5 OHZ Oval Half Cylinder KA A67670

The EVVA A5 OHZ Oval Half Cylinder is a robust and reliable 5-pin locking solution designed with a standard UK oval profile. This cylinder is supplied Keyed Alike (KA) to pass key reference A67670, making it ideal for installations requiring multiple locks to operate under the same key. It comes complete with a connecting screw and features an adjustable cam as standard for flexible installation.

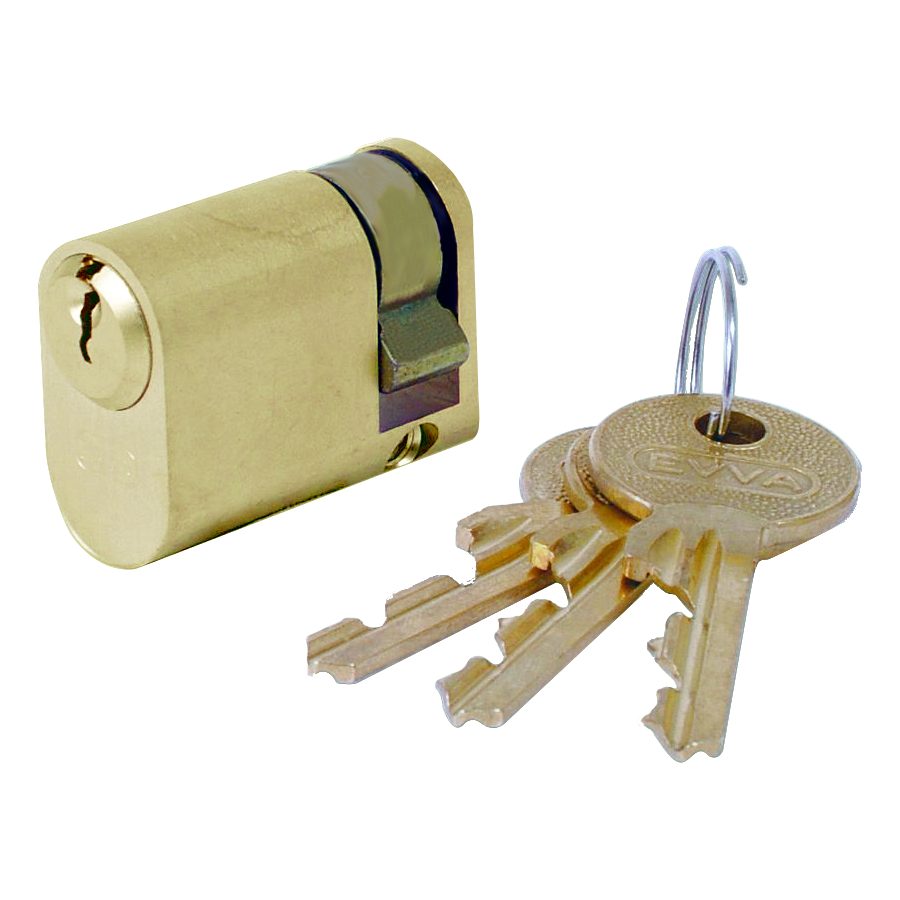

This cylinder is available in multiple finishes, including Polished Brass and Nickel Plated. Please choose your preferred finish from the options below.

A wide range of optional special features - such as cog wheel cams, sea water protection, construction keying, and plug pulling protection - are also available to order. Please contact our team for more information on bespoke configurations.

Technical Specifications

• Cylinder Profile: Oval
• Cylinder Type: Half Cylinder (Single)
• Mechanism: 5-Pin
• Keying: Keyed Alike (KA) to pass key A67670
• Cylinder Size: 32/9 (41mm overall length)
• Size to Centre of Cam: 32mm
• Fire Resistance: 30 minutes to 821°C
• Key Section: Unrestricted 'A' section (F section available to special order)
• Keys Supplied: 3

Key Features

• Robust 5-pin locking system providing reliable security.
• Supplied Keyed Alike to pass key A67670 for convenient multi-lock access.
• Adjustable cam design for straightforward installation.
• Available in Polished Brass and Nickel Plated finishes to match your existing hardware.
• Supplied complete with a connecting screw and 3 keys as standard.
• 30-minute fire resistance to 821°C.
