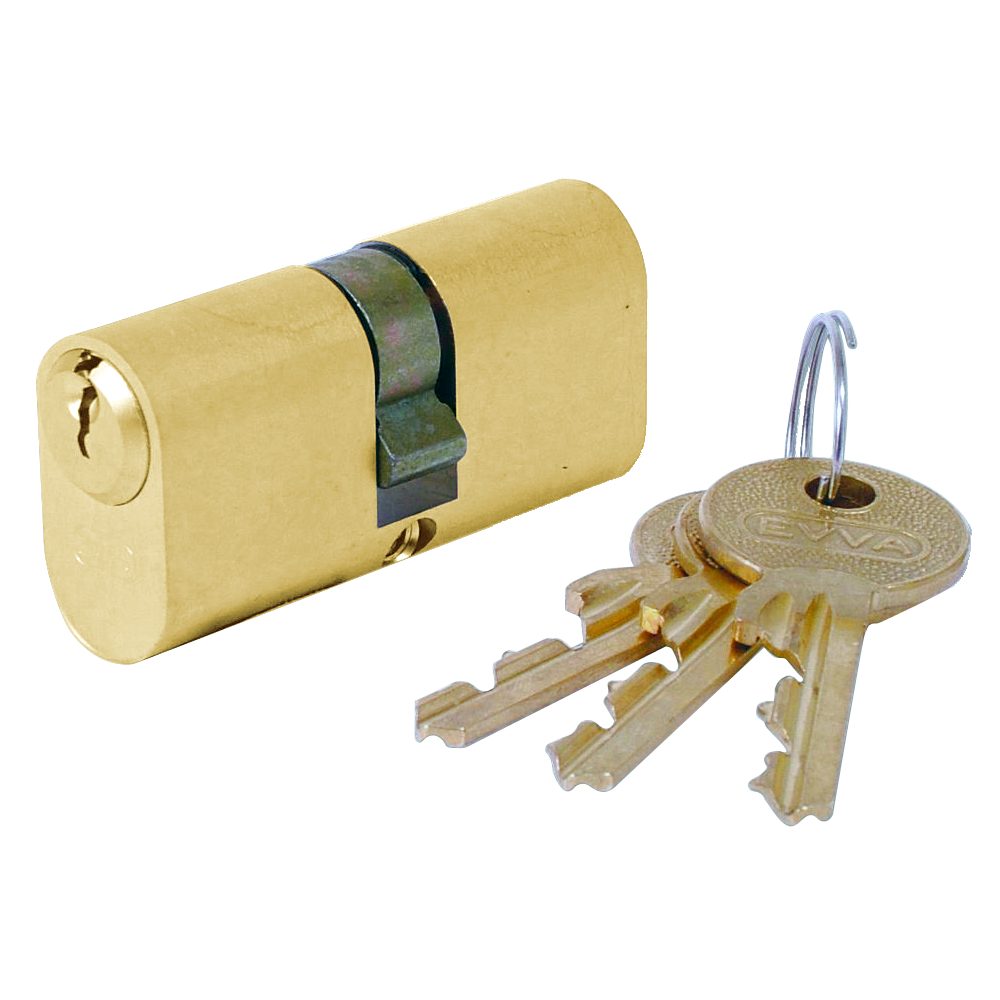

EVVA A5 ODZ Double Oval Cylinder KD

The EVVA A5 ODZ Keyed to Differ (KD) Double Oval Cylinder is a robust and reliable 5-pin locking solution designed to suit standard UK oval profile locks. Supplied complete with a connecting screw, this double cylinder can be operated with a key from either side, making it ideal for a wide range of residential and commercial applications.

The EVVA A5 system features an unrestricted key profile with an 'A' section (with 'F' section available to special order), offering a highly dependable and straightforward locking mechanism. It also boasts a 30-minute fire resistance rating up to 821°C, providing peace of mind in the event of an emergency.

This cylinder is available in multiple overall lengths, including 62mm, 72mm, and 82mm, with corresponding side measurements (A/B) ranging from 31mm to 41mm. It is also offered in two high-quality finishes: Nickel Plated and Polished Brass. Please select your required size and finish from the options below.

A variety of optional special features can be ordered for this cylinder, including external key override (BSZ), cog wheel cams (Z), and sea water protection (SEW). Please contact us for more information on custom configurations.

Technical Specifications

• Cylinder Profile: Oval
• Cylinder Type: Double Oval
• Cylinder System: EVVA A5
• Mechanism: 5-pin
• Keying: Keyed to Differ (KD)
• Keys Supplied: 3 keys as standard
• Fire Resistance: 30 minutes to 821°C
• Overall Length: 62mm, 72mm, or 82mm (please choose from the options below)
• Side A / Side B Sizes: 31mm, 36mm, or 41mm (please choose from the options below)

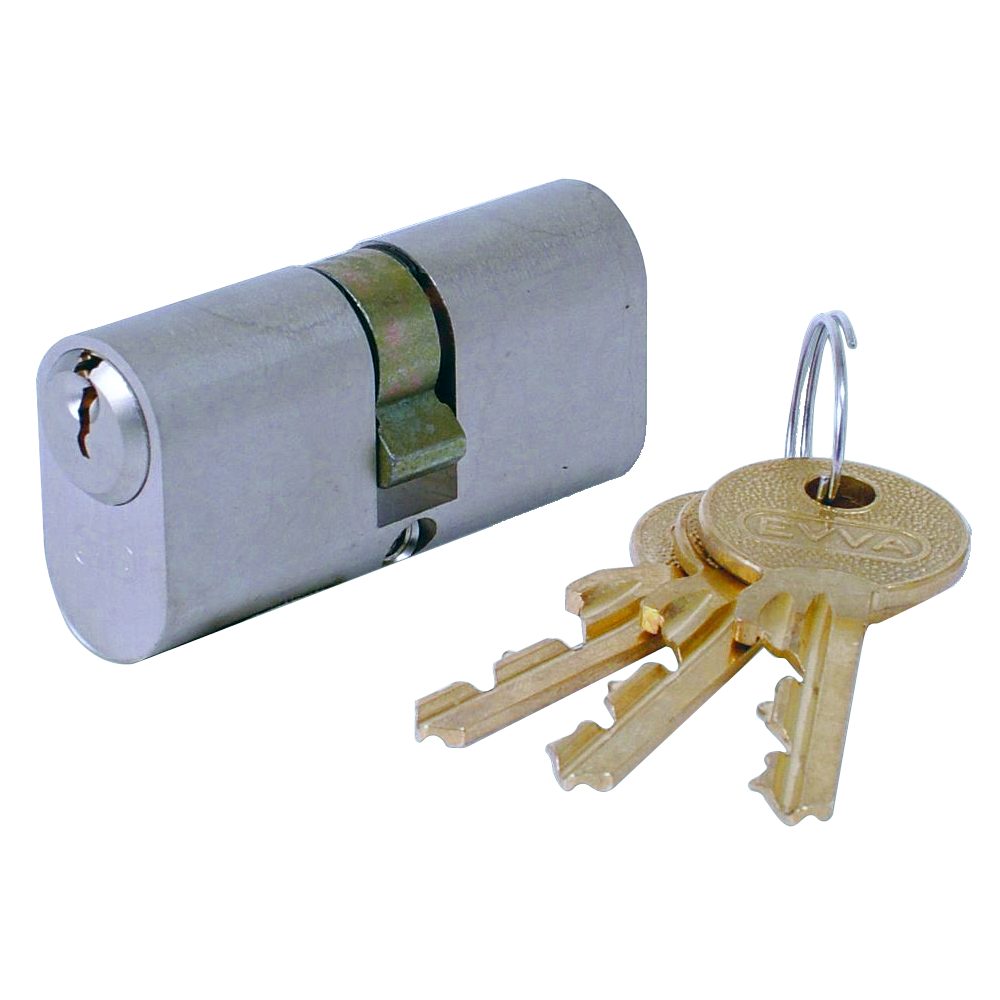

• Finish: Nickel Plated or Polished Brass (please choose from the options below)

Key Features

• Robust 5-Pin Mechanism: Features a dependable 5-pin locking system with an unrestricted key profile.
• Double-Sided Key Operation: Allows convenient locking and unlocking with a key from either side of the door.
• Fire Tested: Offers 30-minute fire resistance up to 821°C for enhanced safety.
• Complete Kit: Supplied complete with a connecting screw for straightforward installation.
• Customisable Options: Compatible with a wide range of optional special features upon request, including external key override and sea water protection.
