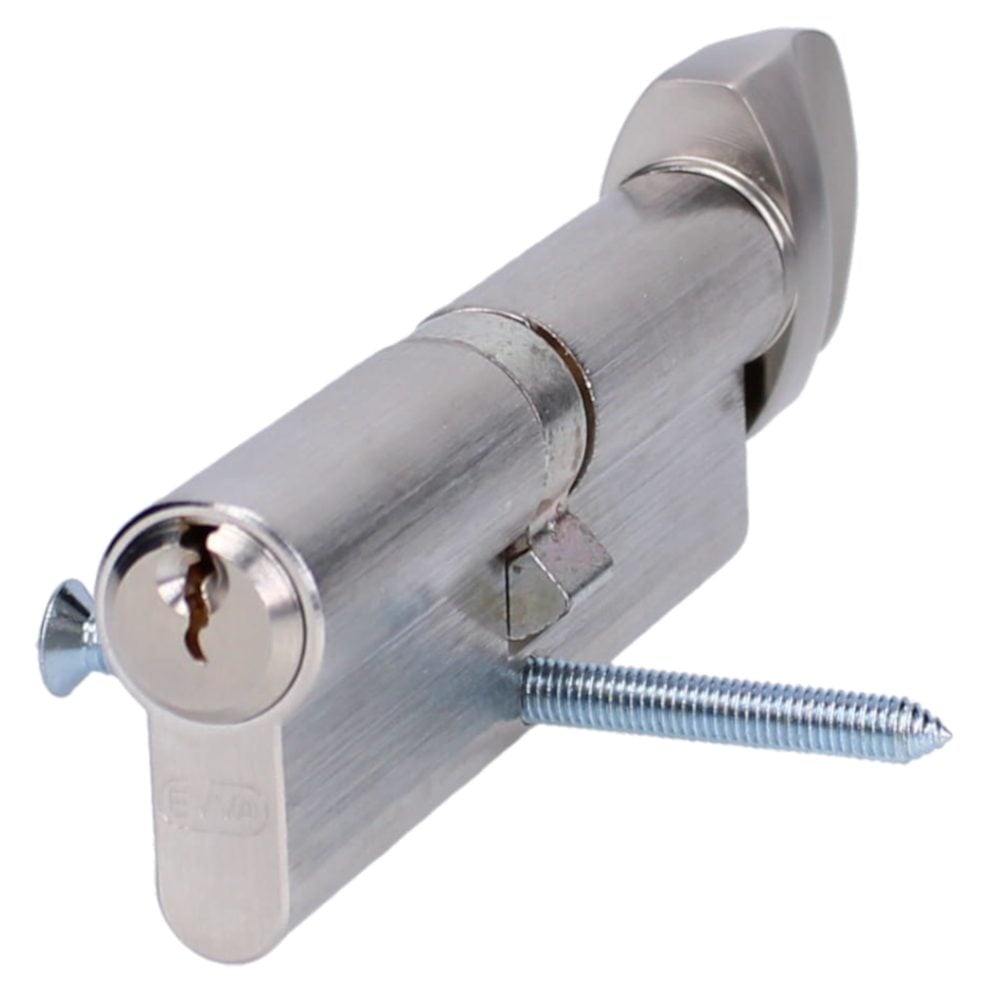

EVVA A5 KDZ Euro Key & Turn Cylinder KD

The EVVA A5 KDZ Keyed to Differ (KD) Euro Key & Turn Cylinder is a reliable, robust 5-pin locking solution designed to suit standard Euro profile doors. Combining a secure key-operated exterior with a convenient interior thumbturn, this cylinder offers both security and ease of use for everyday access.

Built on the dependable EVVA A5 system, this cylinder features an unrestricted 'A' section key profile (with 'F' section available to special order) and is supplied with three keys as standard. It is fire-tested to provide 30-minute fire resistance up to 821°C, making it suitable for a variety of domestic and commercial applications.

This cylinder is available in a wide selection of overall body lengths ranging from 54mm to 122mm, with various offset configurations (A Side and B Side measurements from 27mm to 61mm). It can also be selected in either a Nickel Plated or Polished Brass finish to match your existing door hardware. Please choose your preferred size, offset, and finish from the options below.

For bespoke requirements, a range of optional special features can be supplied to order, including clutch cams (anti-barricade), cog wheel cams, and sea water protection. Please contact us for more information on these custom options.

Technical Specifications

• Cylinder Profile: Euro
• Locking Mechanism: 5-pin
• Keying: Keyed to Differ (KD)
• Body Length: Available from 54mm to 122mm (please choose from the options below)
• A Side (Key Side) Options: 27mm, 31mm, 36mm, 41mm, 46mm, 51mm, 56mm, 61mm
• B Side (Turn Side) Options: 27mm, 31mm, 36mm, 41mm, 46mm, 51mm, 56mm, 61mm

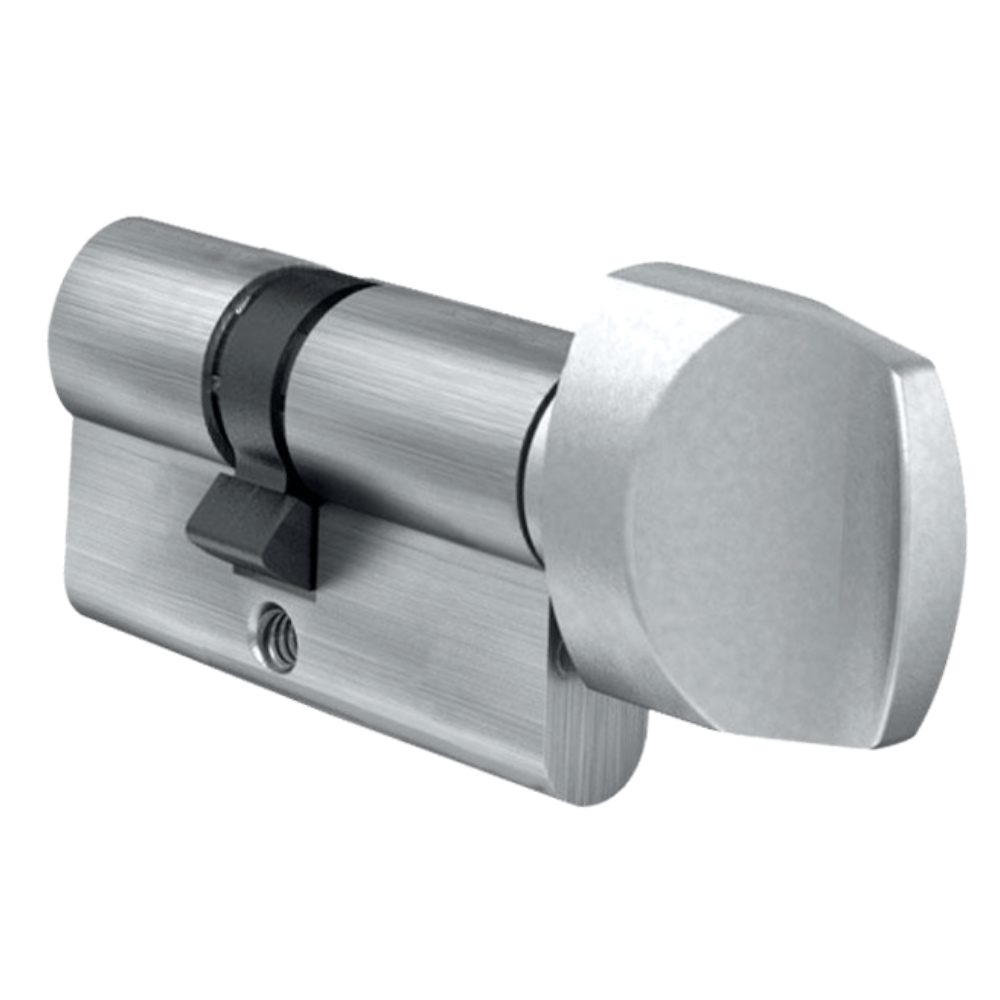

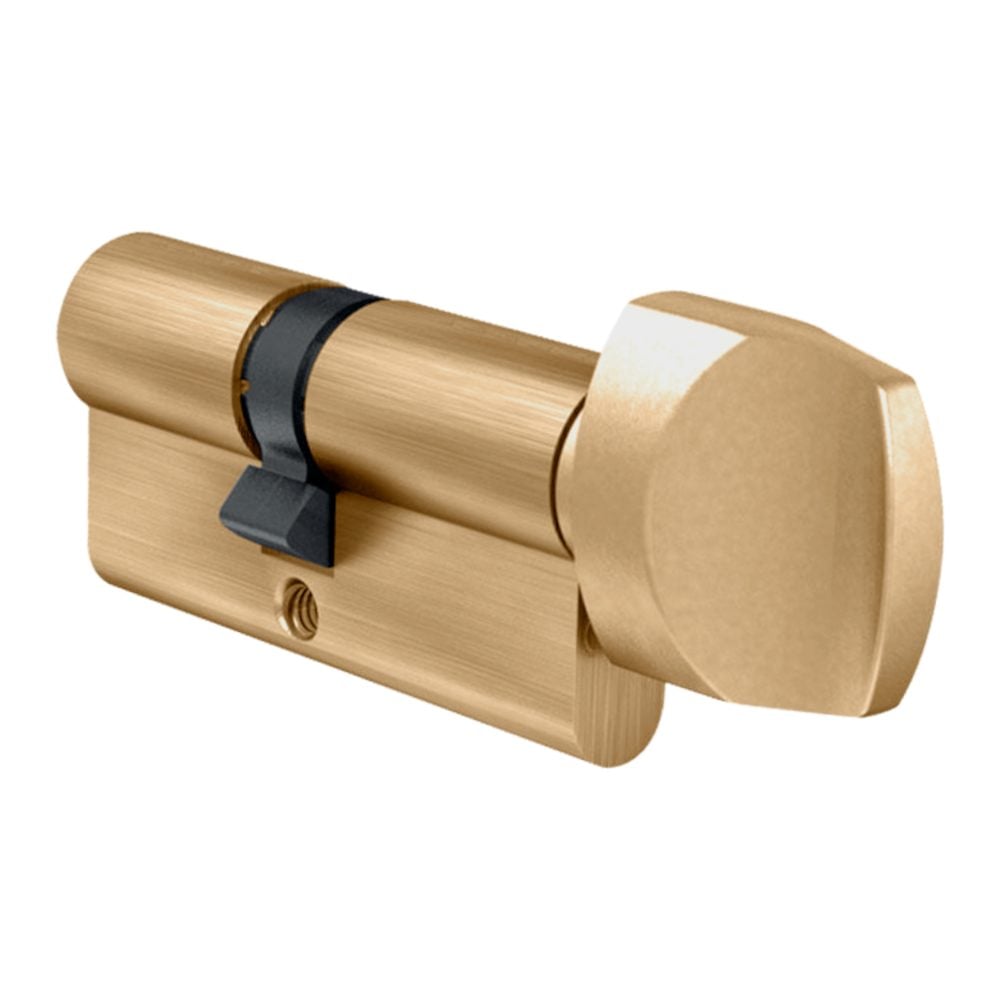

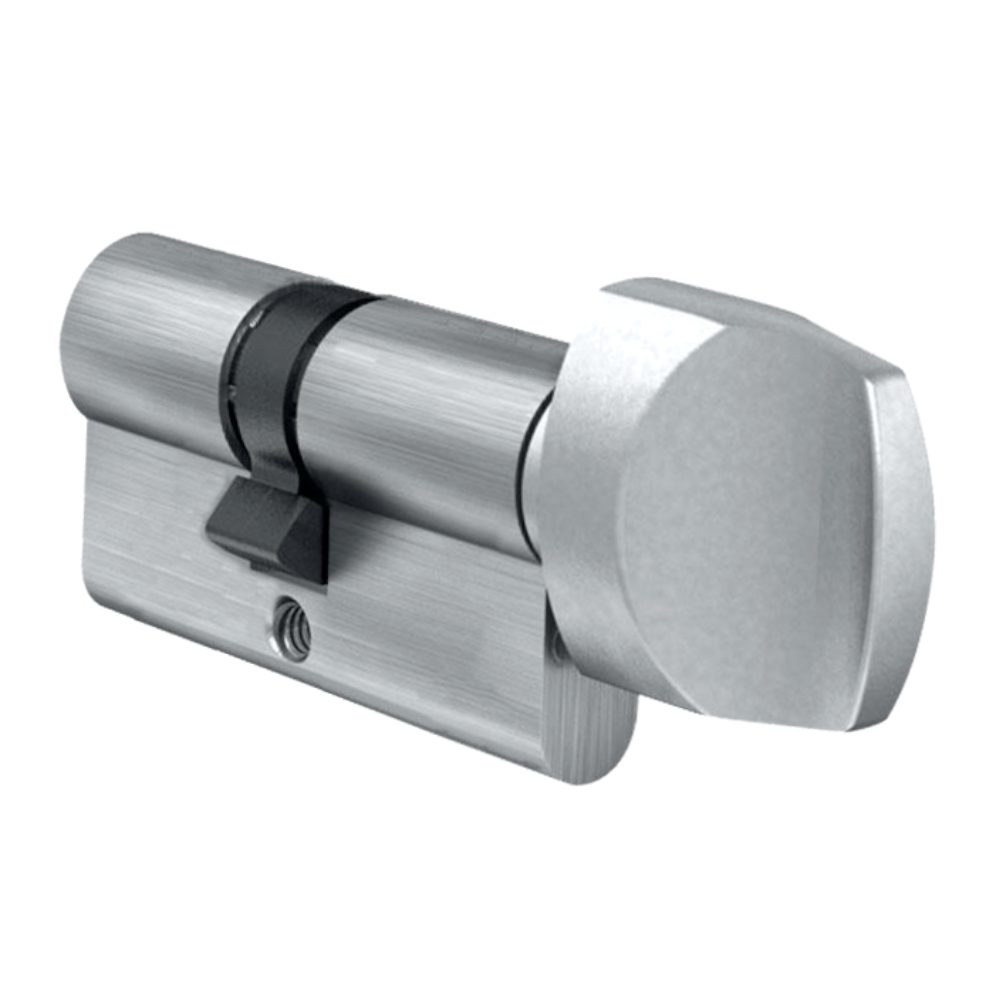

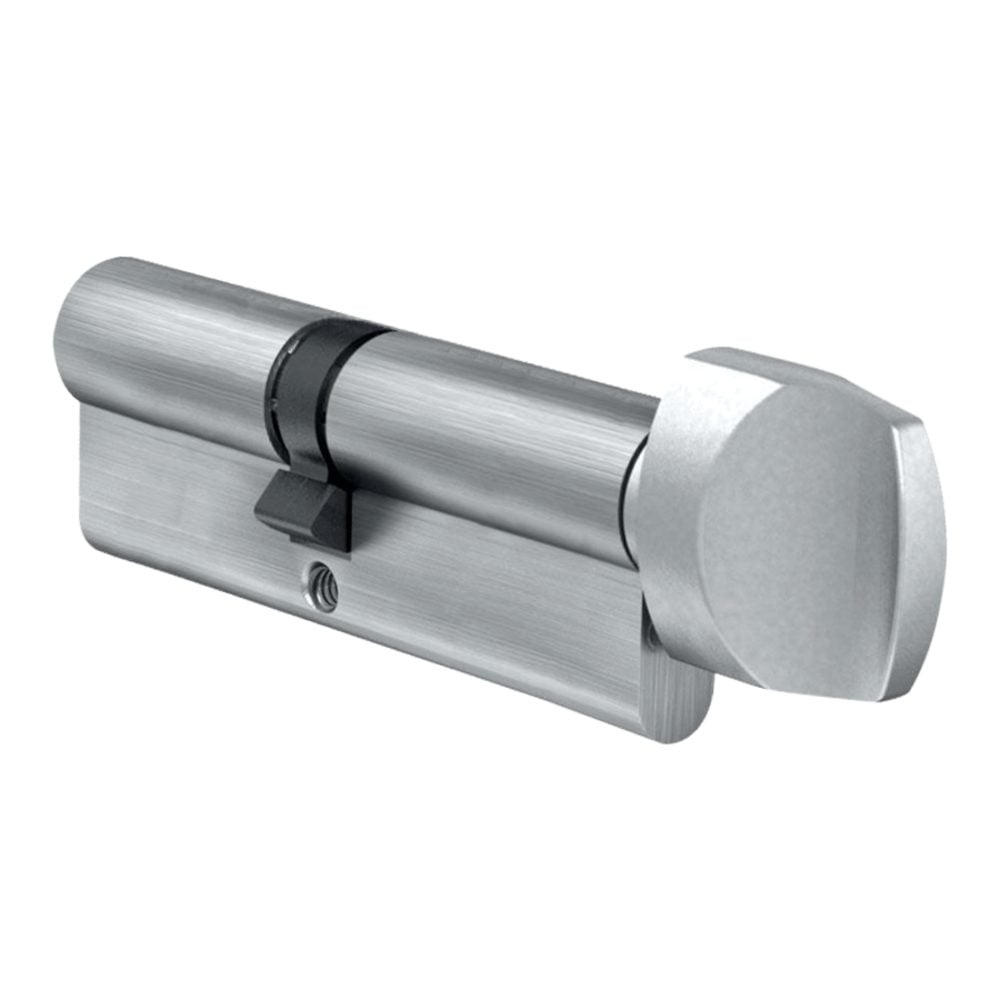

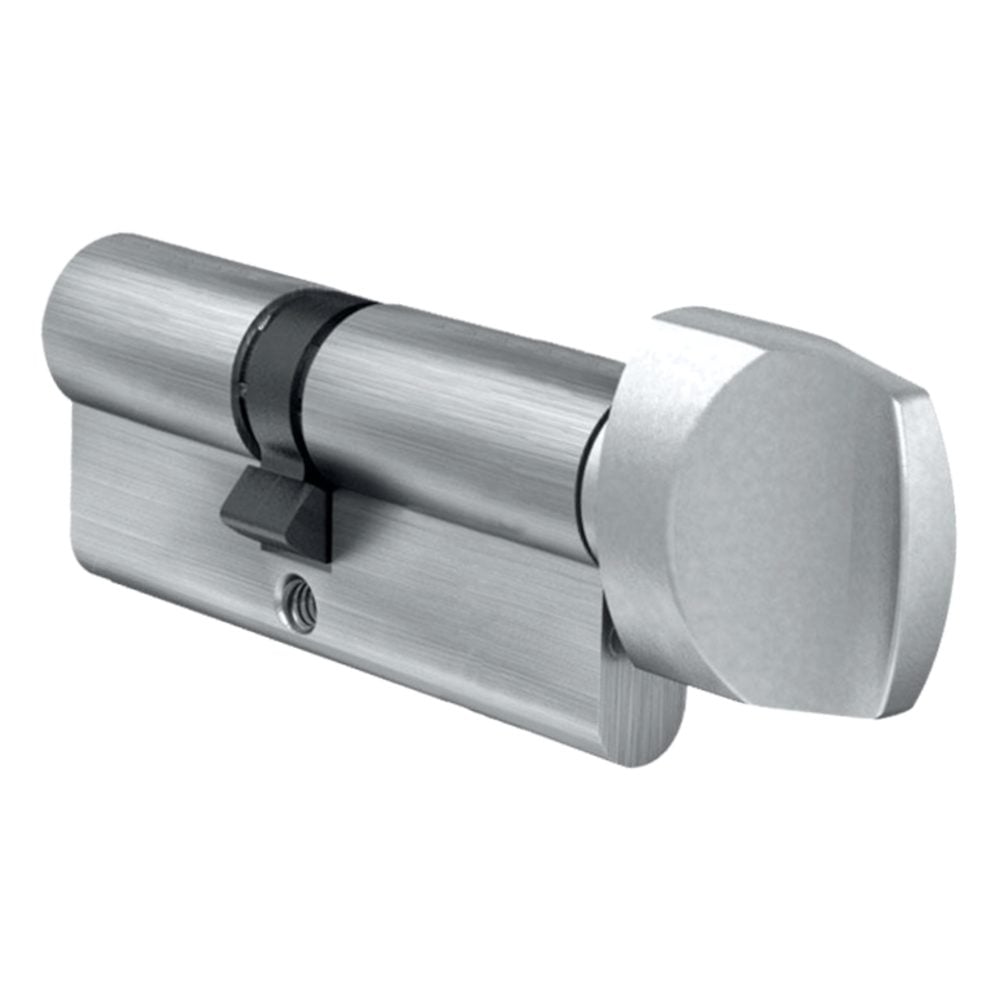

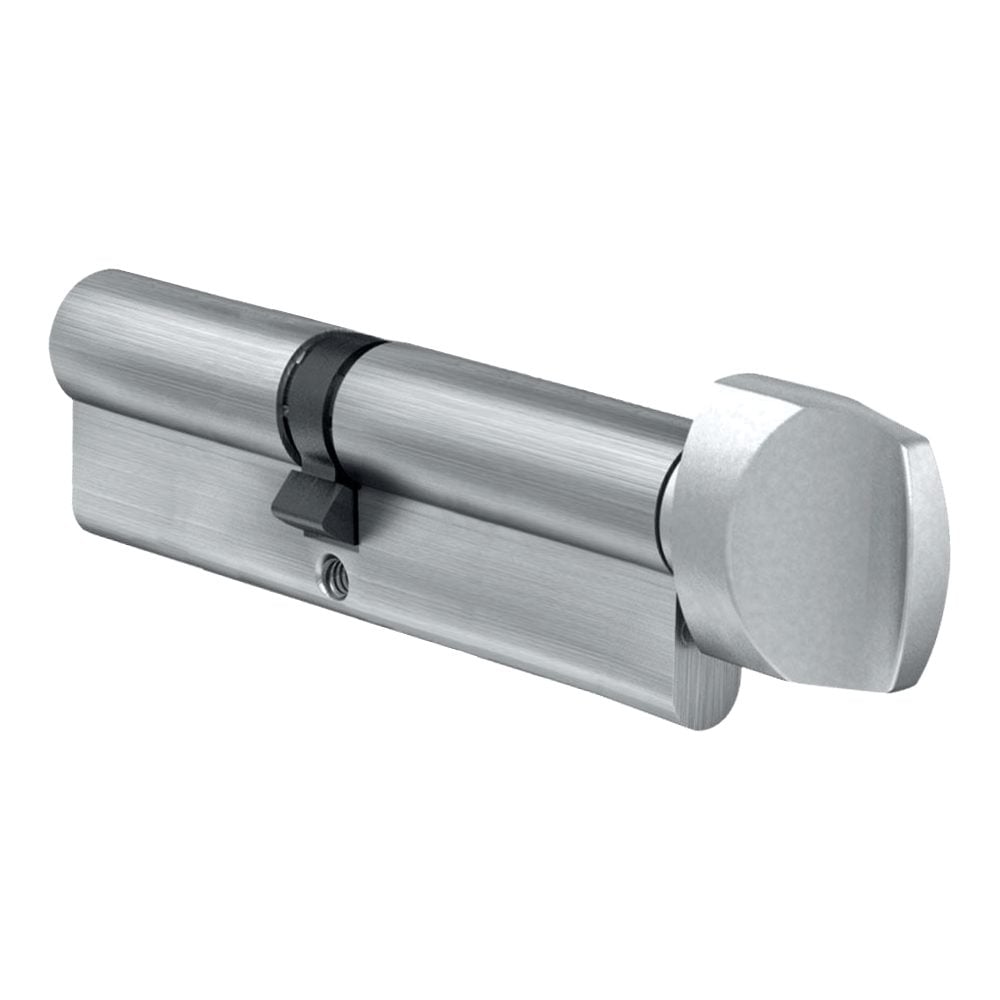

• Finishes: Nickel Plated or Polished Brass (please choose from the options below)
• Fire Resistance: 30-minute fire resistance to 821°C (Grade 0)
• Keys Supplied: 3 keys as standard
• Key Profile: Unrestricted 'A' section ('F' section to special order)

Key Features

• Convenient Key & Turn Operation: Secure key entry from the outside with a quick-release thumbturn on the inside.
• Robust 5-Pin Security: Built on the reliable EVVA A5 system for dependable daily performance.
• Versatile Sizing & Finishes: Available in multiple lengths, offsets, and finishes to perfectly match your door and hardware.
• Fire Rated: Tested to provide 30 minutes of fire resistance up to 821°C.
• Supplied Complete: Comes ready for installation with a connecting screw and three keys.
