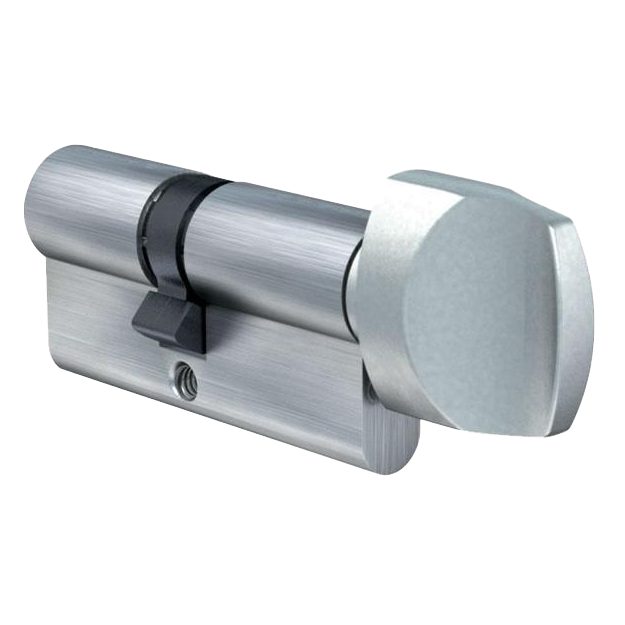

EVVA A5 KDZ Euro Key & Turn Cylinder KA A67670

The EVVA A5 KDZ Euro Key & Turn Cylinder is a standard euro profile cylinder designed to offer a basic yet robust security solution. Built on the reliable EVVA A5 5-pin locking system, this cylinder is supplied complete with a connecting screw and is stocked Keyed Alike (KA) to pass key A67670, allowing multiple cylinders to be operated by the same key.

This cylinder features an unrestricted 'A' section key profile (with 'F' section available to special order) and is fire-tested to offer 30-minute fire resistance up to 821°C. It is available in multiple finishes, including Polished Brass and Nickel Plated. Please choose your preferred finish from the options below to match your door hardware.

Whether you are replacing an existing lock or installing a new one, the EVVA A5 KDZ provides dependable performance and convenient key-and-turn operation, allowing quick locking and unlocking from the inside without a key.

Technical Specifications

• Cylinder Profile: Euro profile
• Cylinder Type: Key & Turn (Thumbturn)
• Cylinder System: EVVA A5
• Mechanism: 5-pin
• Overall Length: 72mm (36mm / T36mm)
• Cylinder Size with Cam: 31mm / 10mm / T31mm
• Fire Resistance: 30 minutes to 821°C (Grade 0)
• Keying: Keyed Alike (KA) to pass key A67670
• Keys Supplied: 3 keys as standard
• Finishes Available: Polished Brass or Nickel Plated (please select from the options below)

Key Features

• Keyed Alike Convenience: Stocked to pass key A67670, allowing multiple locks to be operated with a single key.
• Robust 5-Pin Security: Utilises the reliable EVVA A5 mechanism for standard security applications.
• Fire Tested: Certified for 30-minute fire resistance up to 821°C.
• Unrestricted Profile: Supplied with an 'A' section key profile as standard.
• Easy Operation: Key entry from the outside with a convenient thumbturn on the inside for quick, keyless egress.
• Complete Package: Supplied with 3 keys and a connecting screw for straightforward installation.
