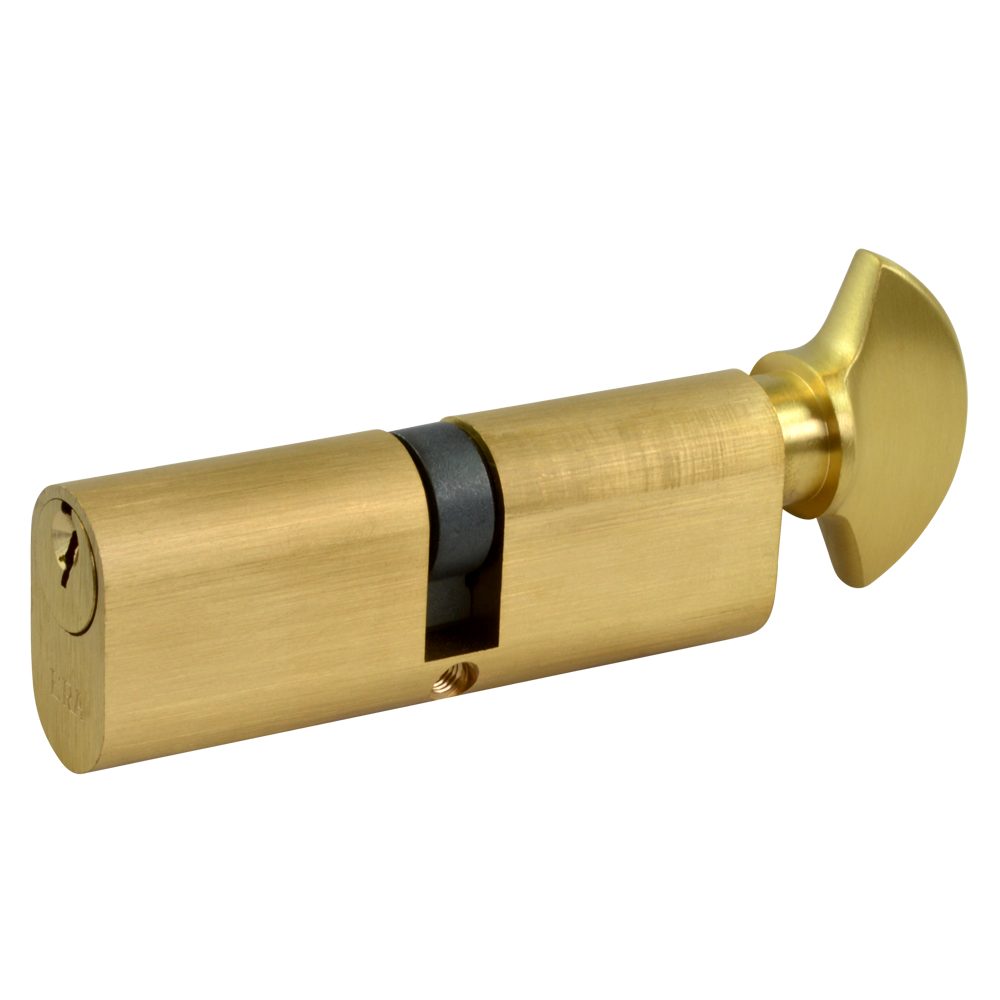

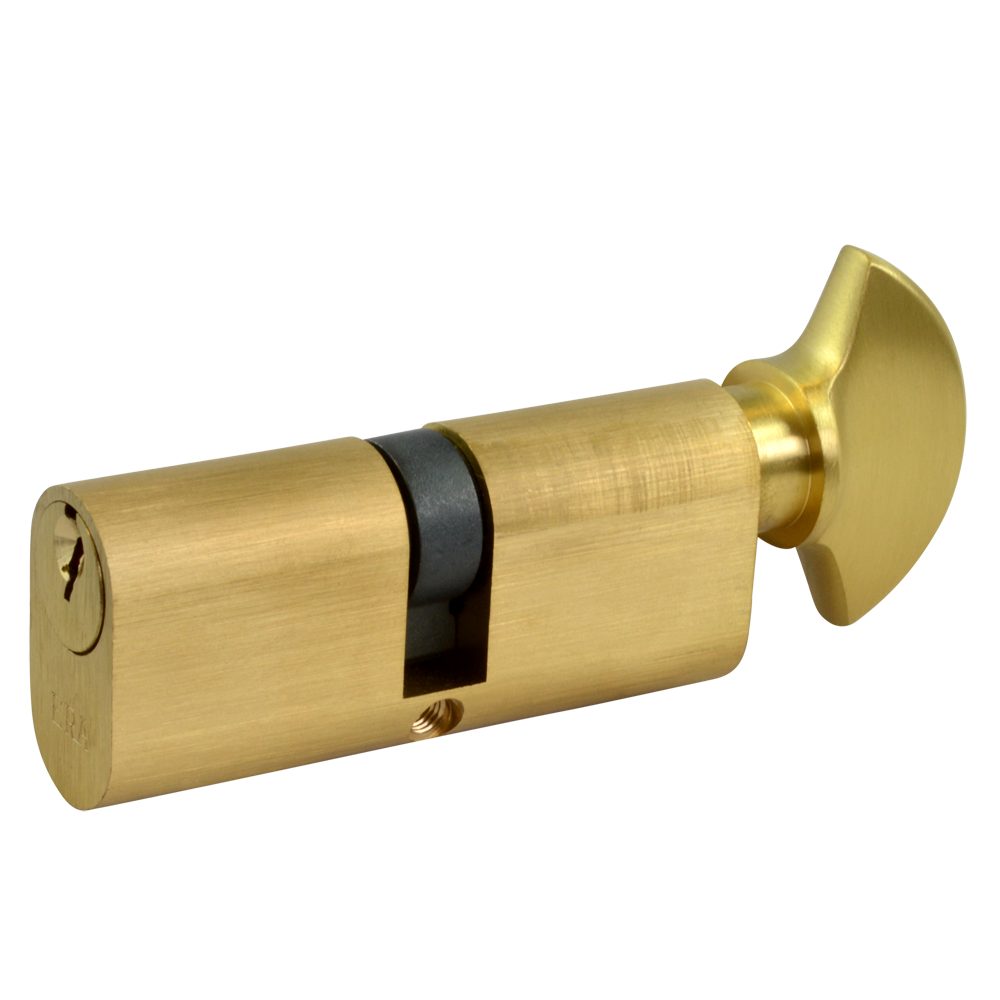

ERA 6-Pin Oval Key & Turn Cylinder

The ERA 6-Pin Oval Key & Turn Cylinder is designed to complement cylinder-operated mortice locks and multi-point locks. This high-quality oval profile cylinder is ideal for locations requiring controlled key access from the outside and easy, keyless exit from the inside via an ergonomic thumbturn. It is a perfect choice for replacing existing door locks with minimal modification to your current door fittings.

Manufactured from solid brass, this cylinder features a reliable 6-pin mechanism that provides enhanced security. It is supplied with three cut keys as standard and is suitable for both domestic and commercial applications.

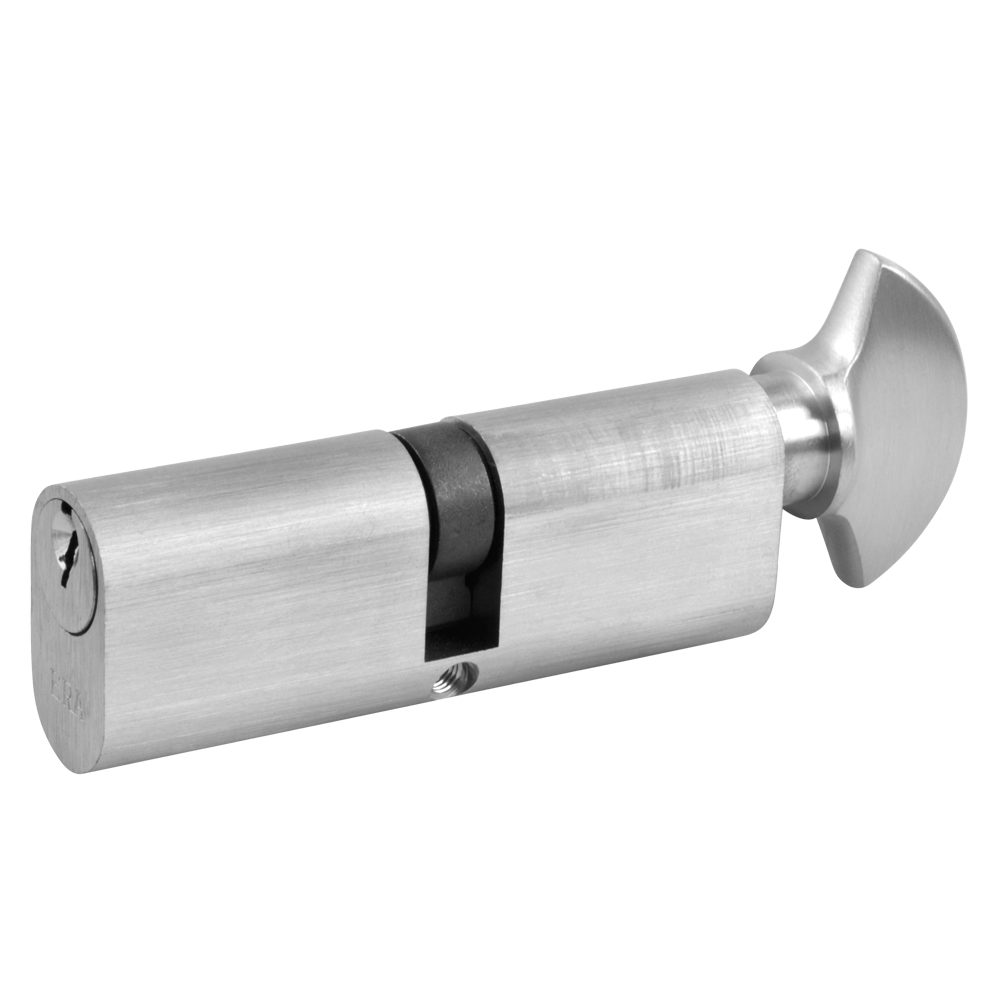

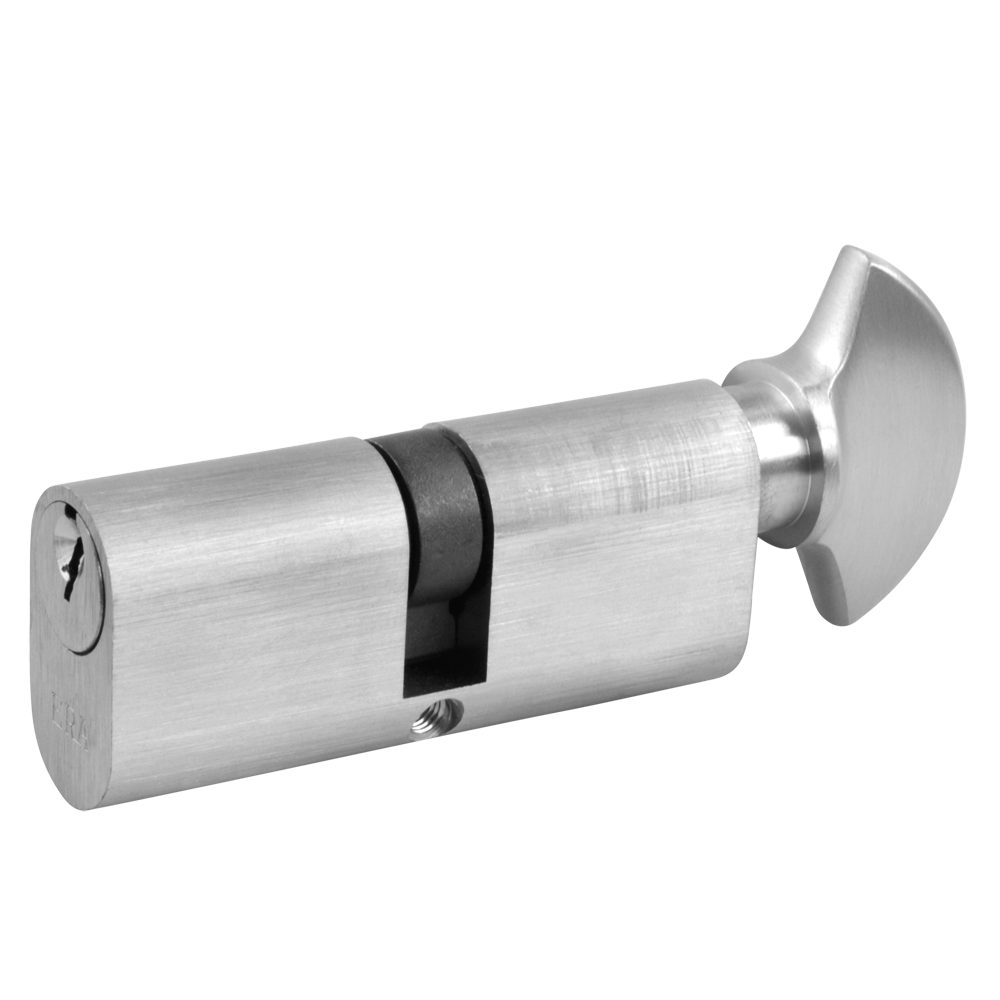

This cylinder is available in multiple overall lengths and finishes, including Polished Brass and Satin Chrome. Please select your preferred size, side measurements, and finish from the options below to find the perfect fit for your door.

Technical Specifications

• Brand: ERA
• Cylinder Profile: Oval
• Cylinder Type: Key & Turn (Thumbturn)
• Mechanism: 6-Pin
• Overall Length: 70mm or 80mm (please select from the options below)
• A Side / B Side (Turn) Sizes: 35mm/35mm or 40mm/40mm (please select from the options below)
• Finishes Available: Polished Brass or Satin Chrome (please select from the options below)
• Keys Supplied: 3 keys
• Keying: Keyed to differ
• Fire Tested: Grade 0
• Packaging: Boxed

Key Features

• Controlled Access: Ideal for doors requiring secure key entry from the outside and easy, keyless exit from the inside.
• Versatile Compatibility: Suits all oval-type mortice locks and multi-point locking systems.
• Easy Replacement: Designed to replace most existing oval cylinders with minimal change to existing door fittings.
• Enhanced Security: Features a 6-pin mechanism for reliable protection and smooth operation.
• Ergonomic Design: The thumbturn is designed for optimum comfort and ease of use.
• Multiple Options: Available in a range of sizes and finishes to suit your specific door requirements - please select from the options below.
