ERA 6-Pin Euro Half Cylinder

ERA 6-Pin Euro Half Cylinder

ERA logo ERA More ERA Half Euro
From
£21.19
Select size, finish, and quantity from the variant table.
View options

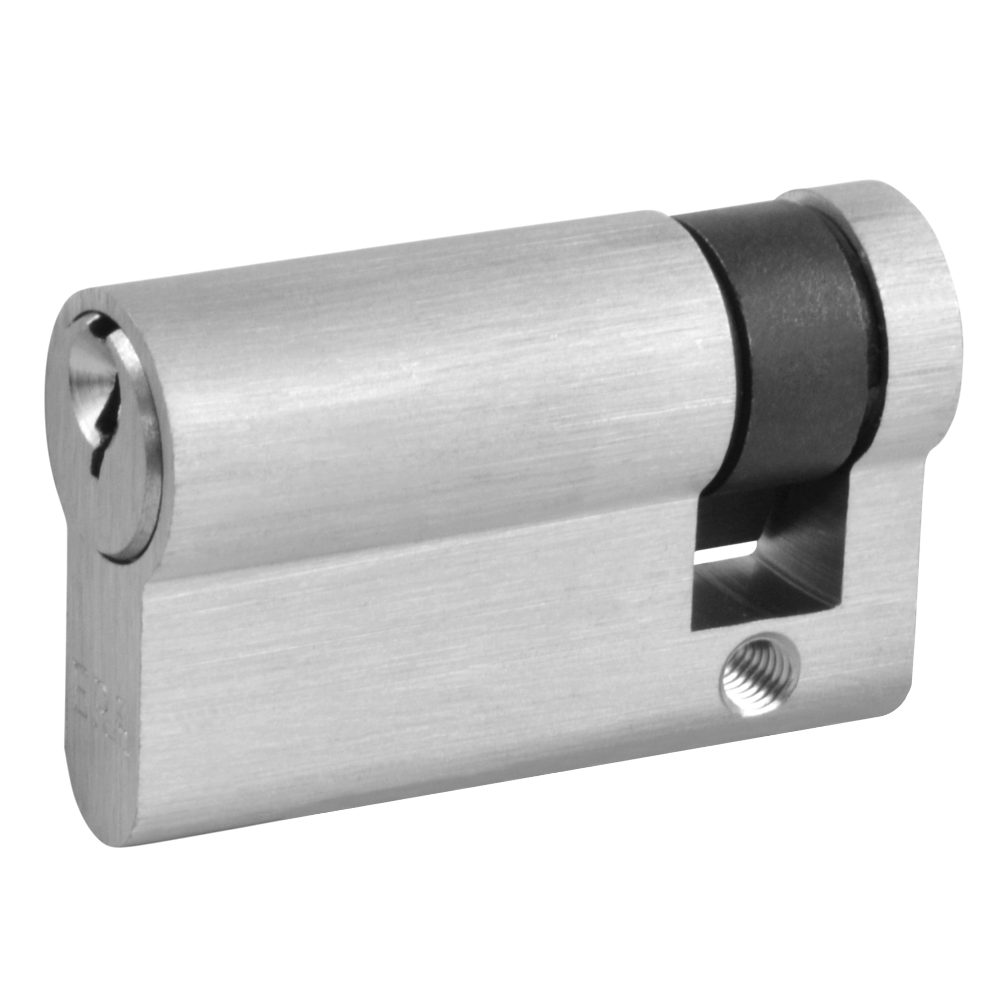

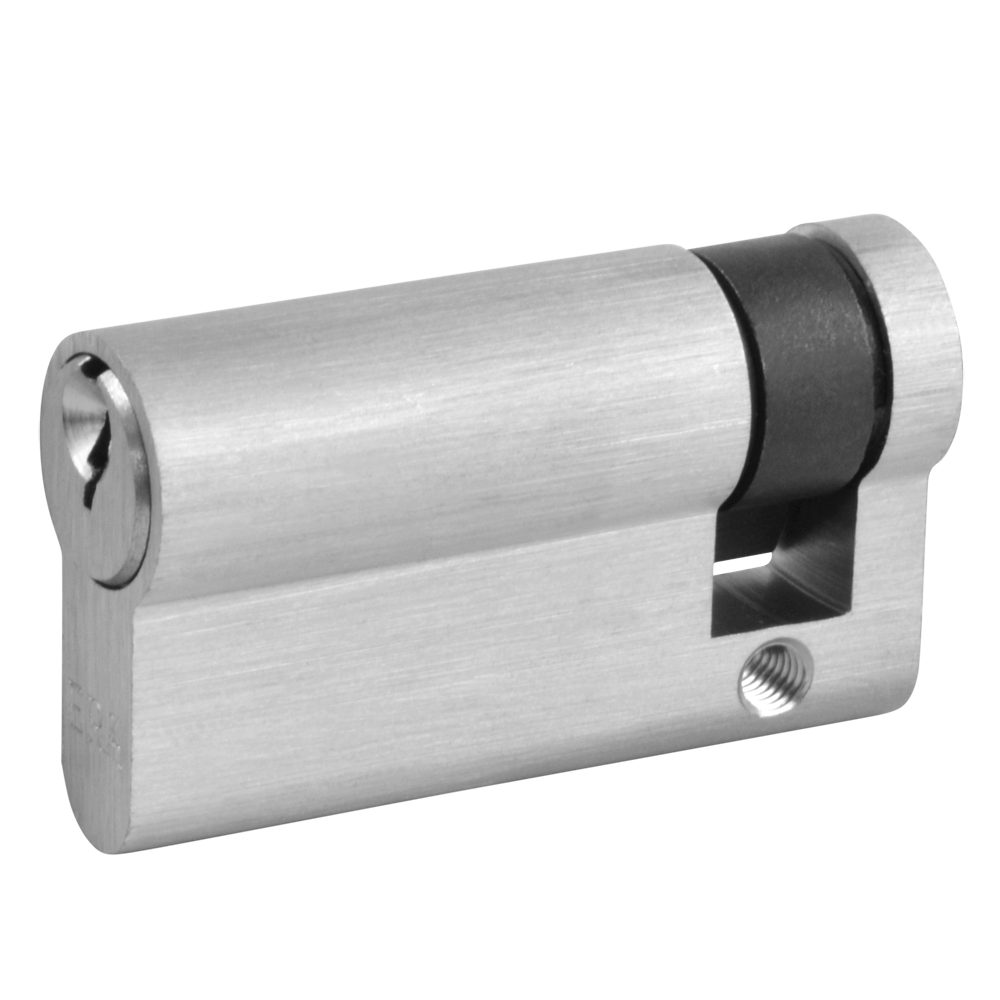

The ERA 6-Pin Euro Half Cylinder offers a reliable, high-quality locking solution for applications where access is only required from one side, such as garage doors, key switches, and specific patio doors. Designed to complement cylinder-operated mortice locks and multi-point locking systems, this half cylinder provides robust security with its 6-pin mechanism.

It is an ideal choice for replacing existing door locks with minimal fuss or alteration to your current door fittings. Each cylinder is supplied with three keys as standard, and we offer professional in-house key cutting and keyed-alike services if you require multiple locks to operate on the same key.

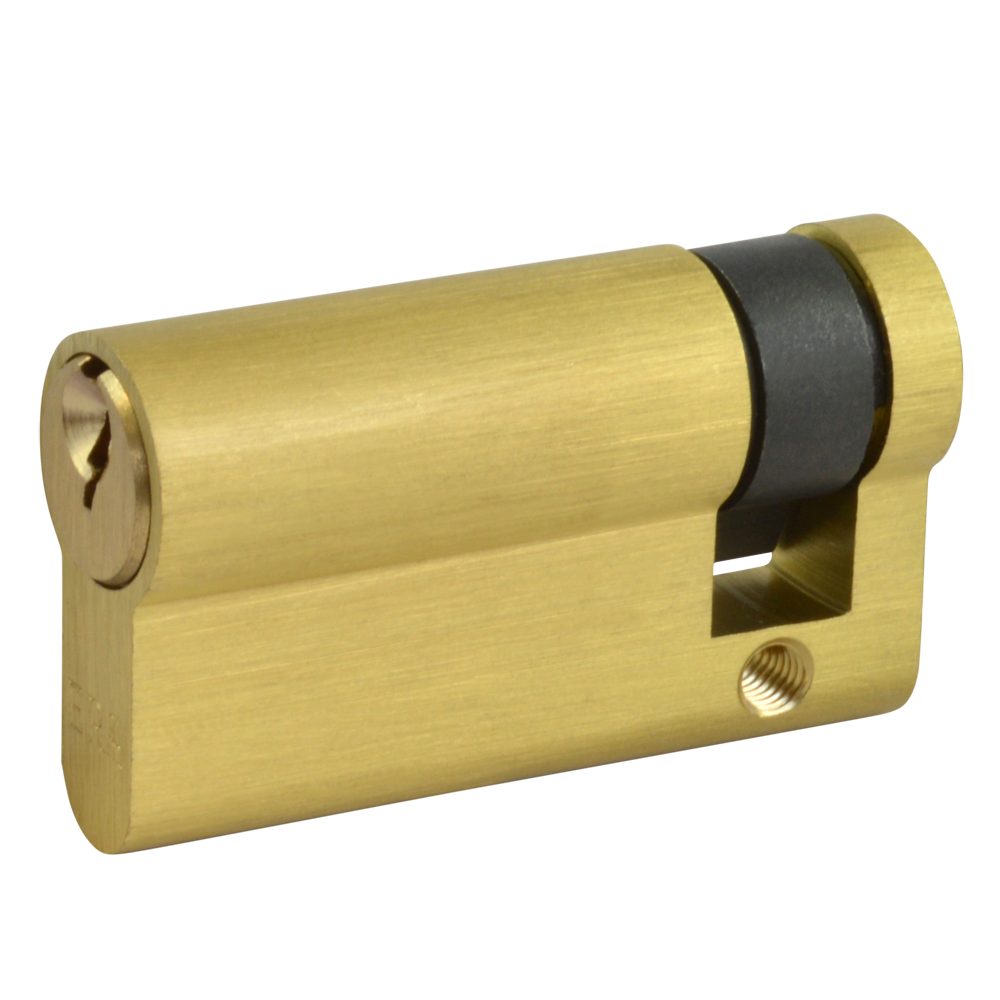

This cylinder is available in a range of overall lengths from 45mm to 55mm (with sizes including 35/10, 40/10, and 45/10) and is finished in either Satin Chrome or Polished Brass. Please select your required size, finish, and keying options from the dropdown menus below.

Technical Specifications

  • Cylinder Profile: Euro
  • Cylinder Type: Half Euro (single-sided)
  • Mechanism: 6-Pin
  • Overall Length: 45mm, 50mm, or 55mm (please choose from the options below)
  • Size to Centre of Cam: 35mm, 40mm, or 45mm (please choose from the options below)
  • Finishes Available: Satin Chrome or Polished Brass (please choose from the options below)
  • Keys Supplied: 3 keys
  • Keying: Keyed to Differ (In-house Keyed Alike options available)
  • Fire Tested: Grade 0
  • Weight: 167g - 194g (depending on size)

Key Features

  • Single-sided access: Ideal for locations requiring secure key entry from one side only with no access from the other.
  • Universal compatibility: Fits all standard Euro-type mortice locks and multi-point locking systems.
  • Easy replacement: Designed to replace most existing euro cylinders with minimal change to existing door fittings.
  • 6-Pin security: High-quality 6-pin mechanism offers reliable protection and smooth operation.
  • Multiple options: Available in a selection of sizes and finishes to suit your door's hardware - please select from the options below.
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
Trustpilot
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

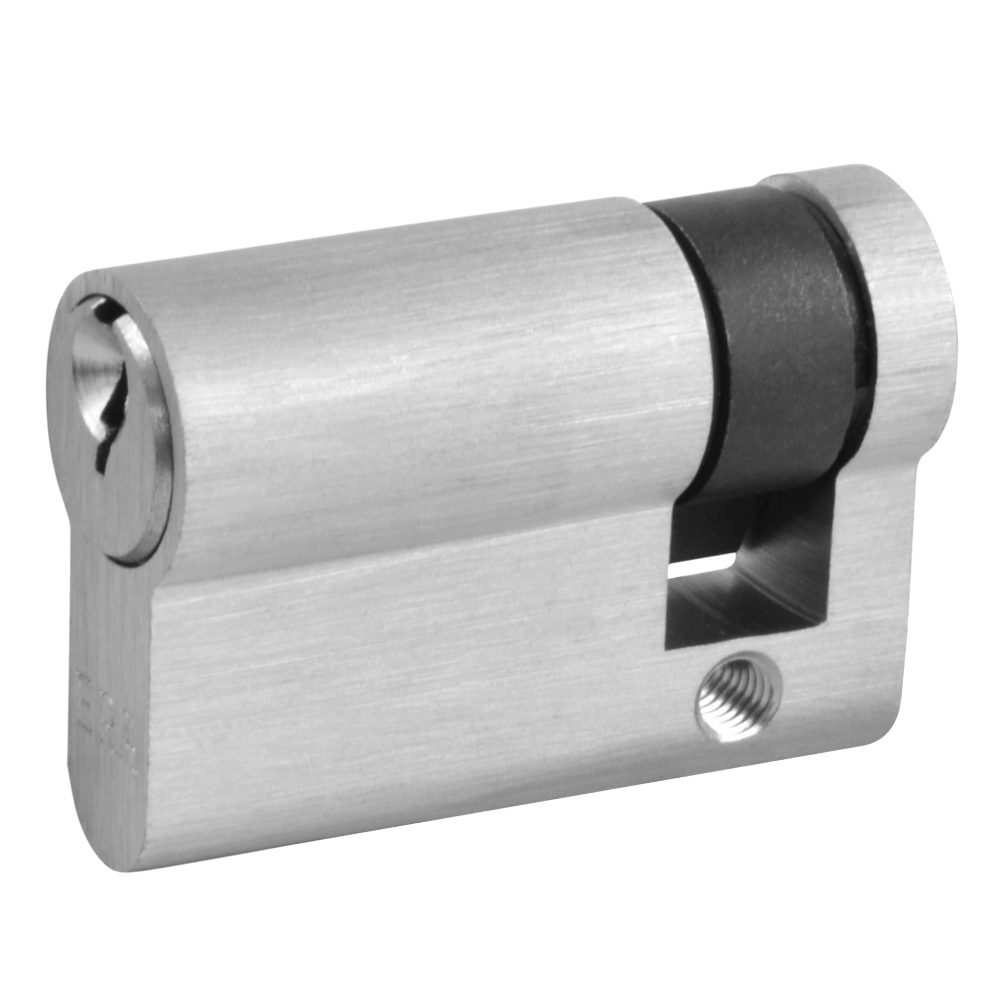

ERA 6-Pin Euro Half Cylinder - L14096 - 45mm - Satin Chrome - 4027 51
L14096 Ref: 4027 51
Cylinder Size Overall: 45mm (More)
£ 21.19
ERA 6-Pin Euro Half Cylinder - L14101 - 50mm - Satin Chrome - 4032 51
L14101 Ref: 4032 51
Cylinder Size Overall: 50mm (More)
£ 26.16
ERA 6-Pin Euro Half Cylinder - L14102 - 55mm - Satin Chrome - 4033 51
L14102 Ref: 4033 51
Cylinder Size Overall: 55mm (More)
£ 27.22
ERA 6-Pin Euro Half Cylinder - L14103 - 55mm - Polished Brass - 4034 31
L14103 Ref: 4034 31
Cylinder Size Overall: 55mm (More)
£ 27.22
Review variants and add to basket when ready.
