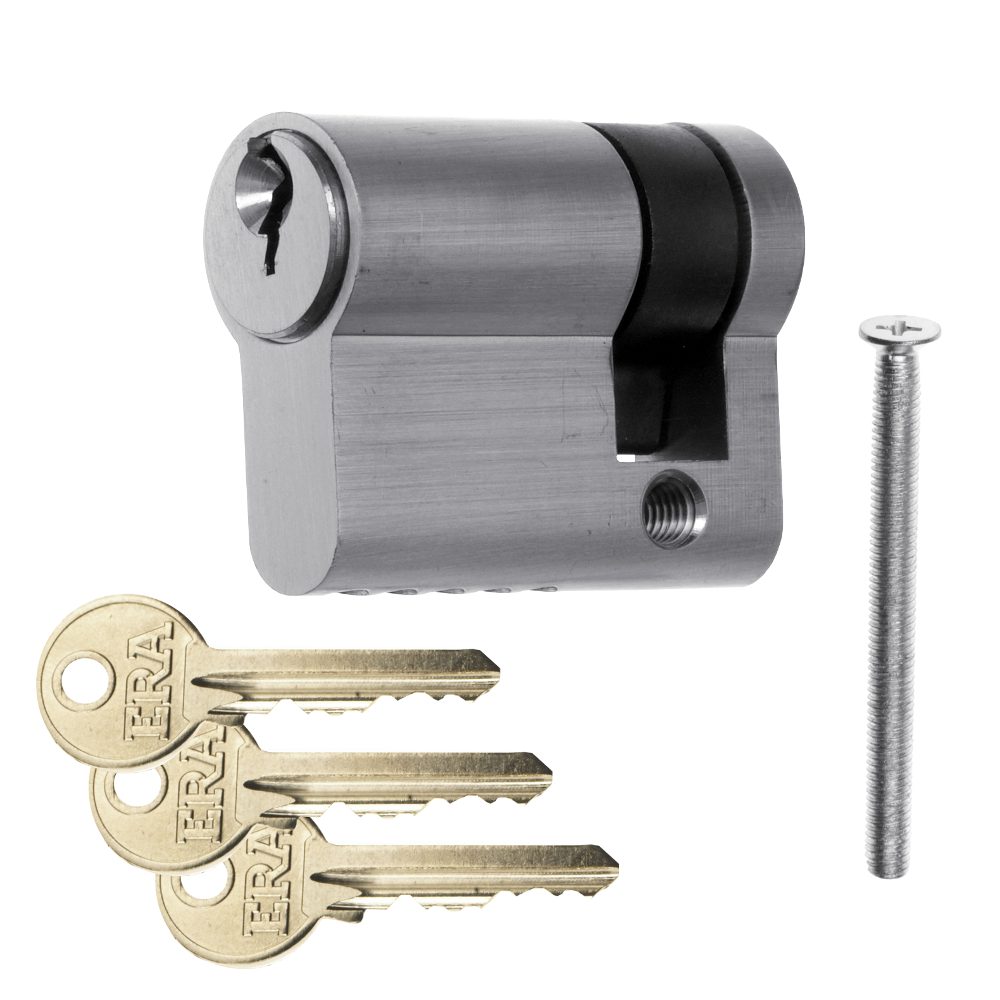

ERA 5-Pin Euro Half Cylinder

The ERA 5-Pin Euro Half Cylinder is a reliable, standard-security locking solution designed for doors requiring key access from one side only. It is ideal for applications such as garages, communal doors, and utility rooms where external security is needed without the need for internal key or thumbturn operation.

This half cylinder is designed to suit all Euro-profile multi-point and mortice locks. It is a perfect choice for replacing existing door locks with minimal fuss and no need for major modifications to your door's current fittings.

This product is available in two high-quality finishes: Polished Brass and Satin Chrome. Please choose your preferred finish from the options below to match your existing door hardware. Each cylinder features a robust 5-pin mechanism and is supplied with 3 keys as standard.

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: Half Euro
• Overall Length: 40mm (30/10)
• Size to Centre of Cam: 30mm
• Mechanism: 5-Pin

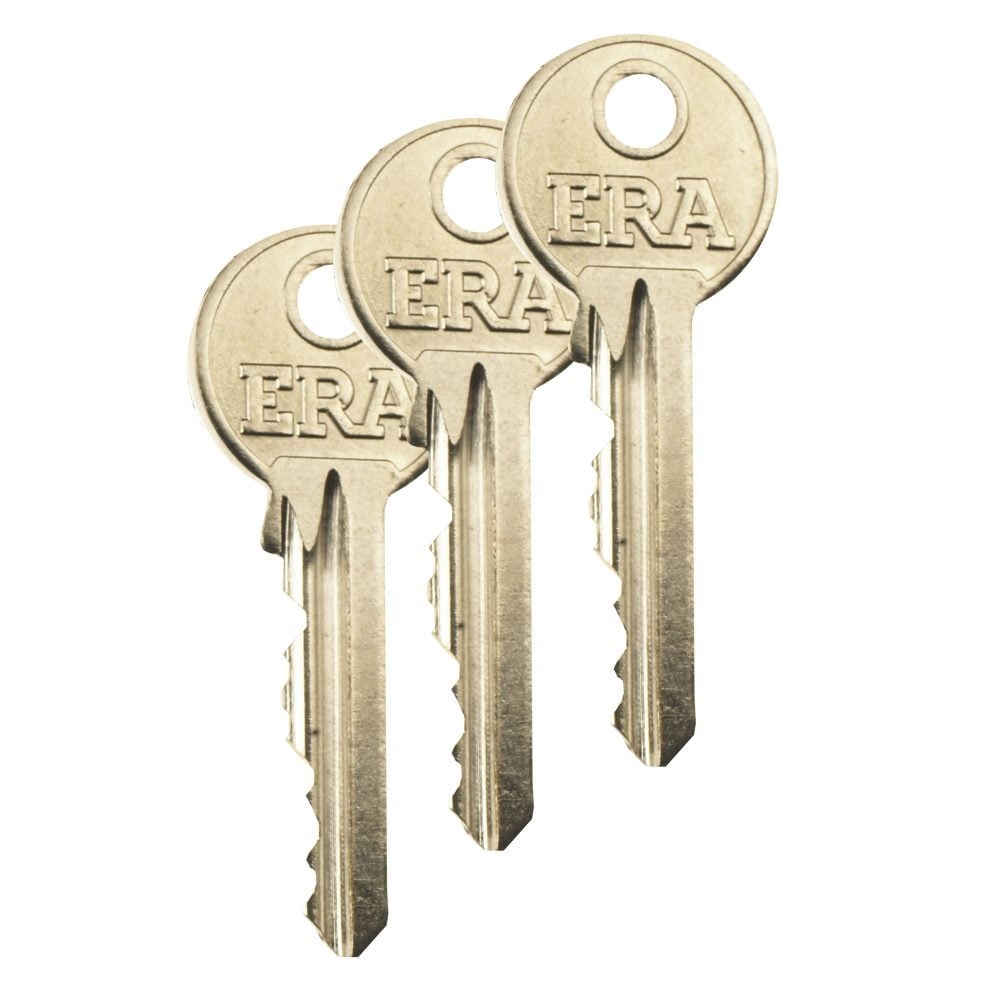

• Keys Supplied: 3

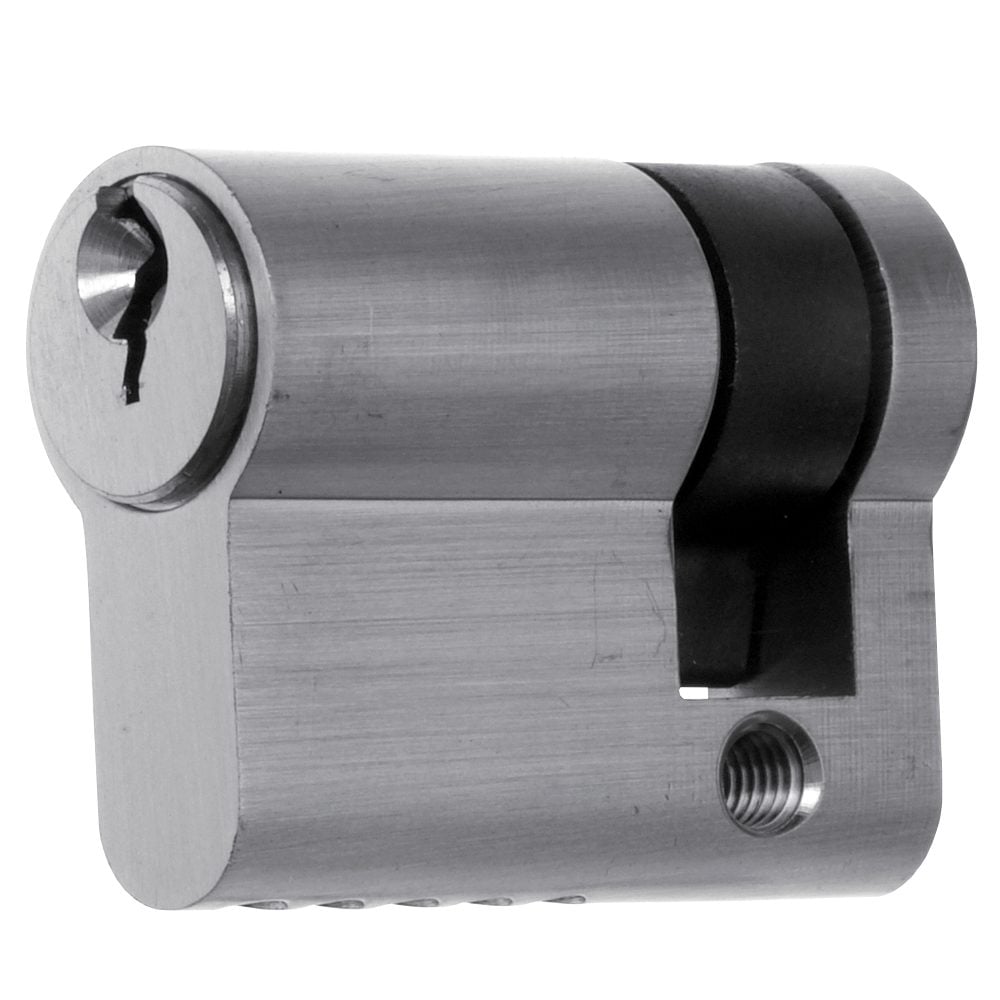

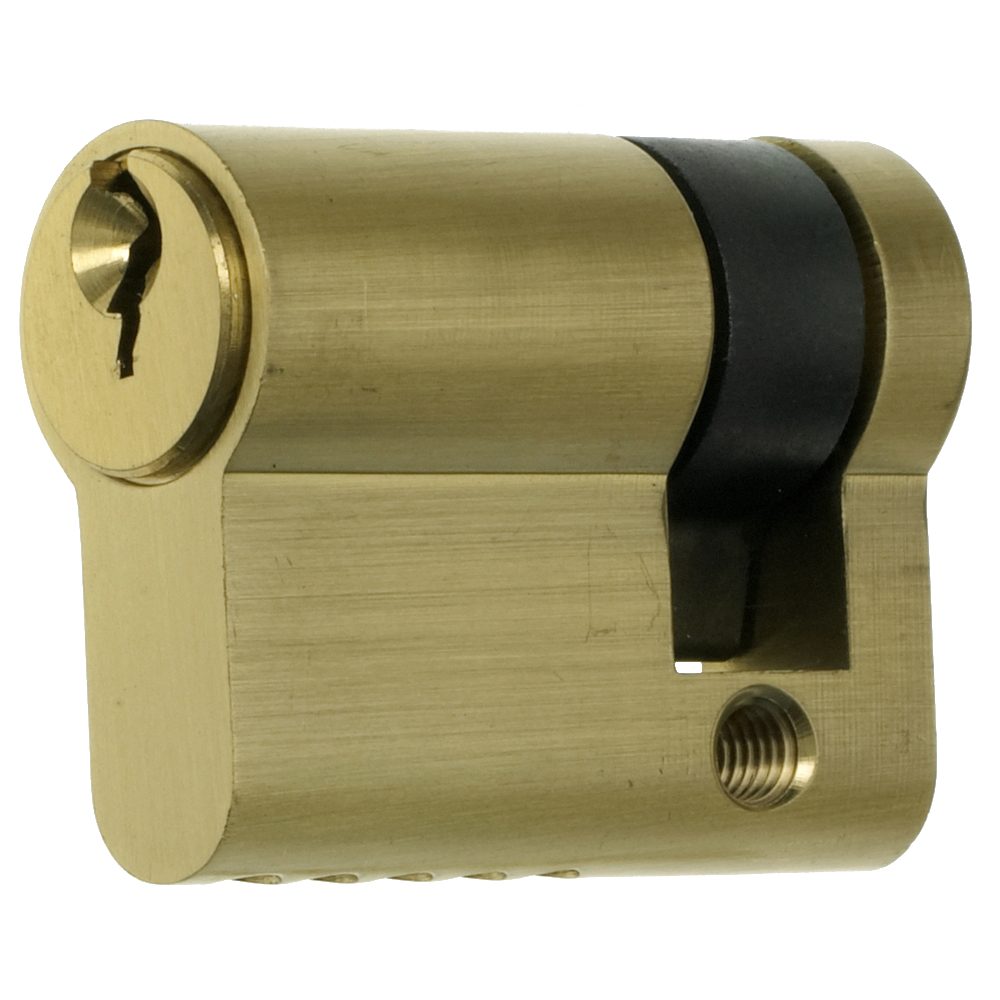

• Finishes: Polished Brass or Satin Chrome (please select below)
• Manufacturer Reference: 4030 51 or 4031 31 (please select below)
• Weight: 150g to 181g (depending on finish)
• Fire Tested: Grade 0
• Barcode: 5011988000895 or 5011988020053 (please select below)

Key Features

• One-Sided Security: Perfect for areas requiring key access from one side only, with no access or operation from the other.
• Universal Compatibility: Suits all standard Euro-profile multi-point and mortice locks.
• Easy Retrofitting: Ideal for replacing most existing door cylinders with minimal change to existing fittings.
• Choice of Finishes: Available in Polished Brass or Satin Chrome to match your door furniture (please select below).
• In-House Services: Key cutting and keyed-alike options are available in-house.
