ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder

ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder

ERA logo ERA More ERA Cylinder - BS04
Price
£90.60
Select size, finish, and quantity from the variant table.
View options

The ERA 264 & 364 Fortress BS Euro Sashlock with Cylinder is a high-security mortice lock designed to meet the rigorous demands of insurance companies and the police. Certified to BS 3621:2004, this robust sashlock provides exceptional protection for external timber doors.

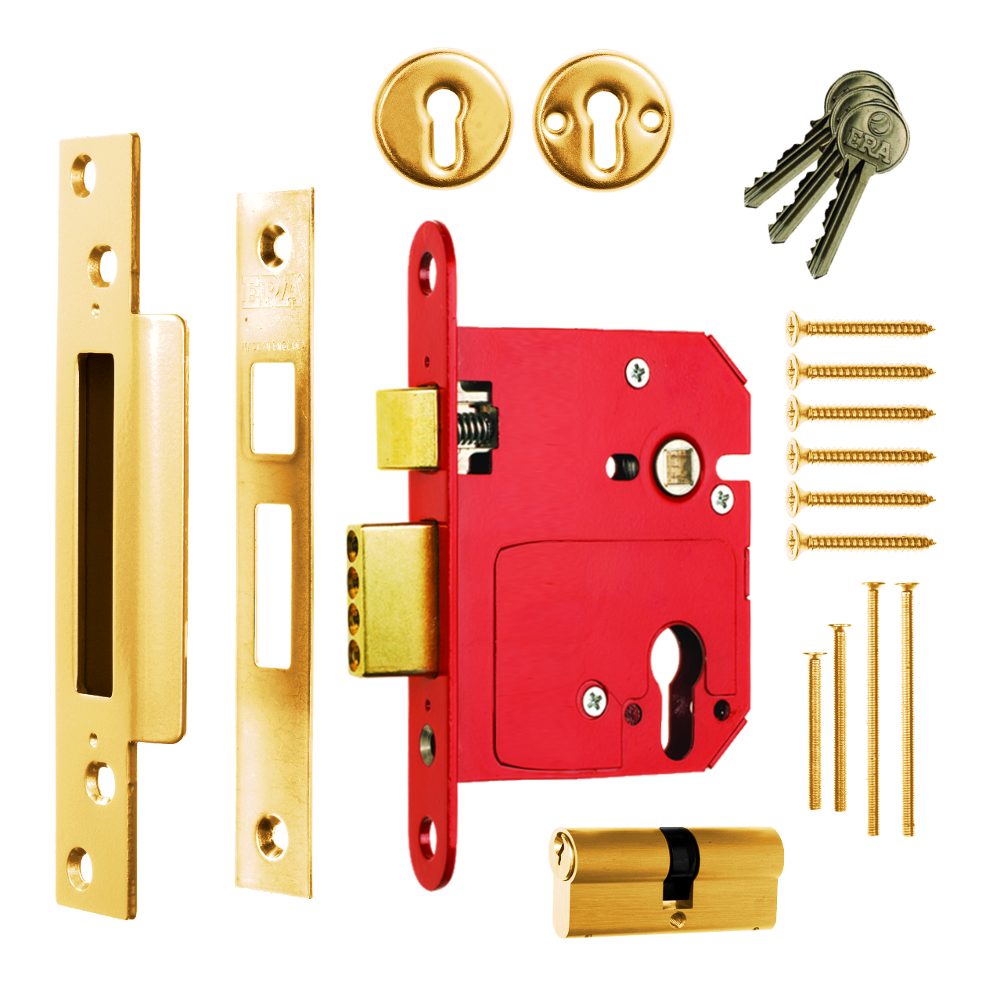

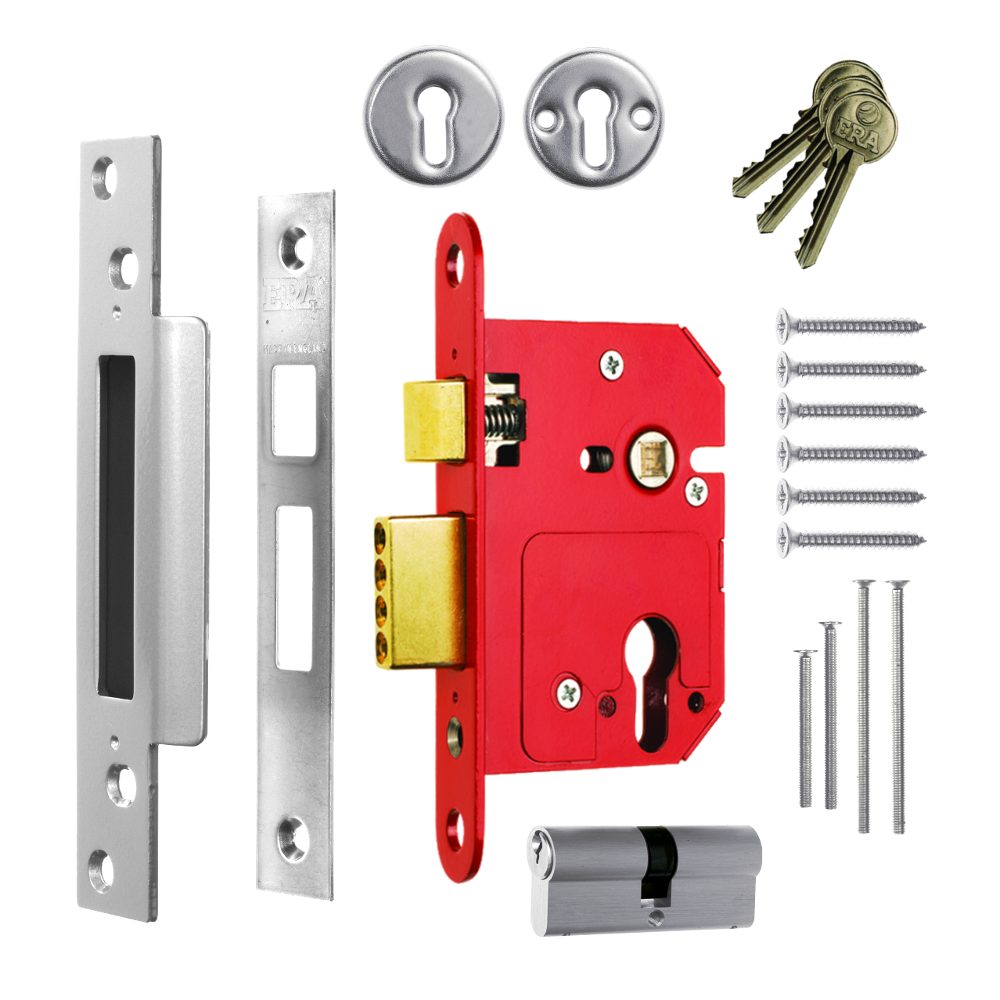

This complete lockset is supplied with a high-security 6-pin Euro double cylinder and three keys. It features hardened steel plates on the lock case to resist drilling, alongside laminated hardened steel plates within the bolt to defend against physical attacks. The lock delivers superior security with a substantial 20mm bolt throw on every model.

To suit your specific door installation and aesthetic preferences, this lock is available in multiple configurations. Please choose from the options below to select your preferred backset (44mm or 56mm), case depth (64mm or 76mm), and finish (Polished Brass, Polished Chrome, or Satin Chrome).

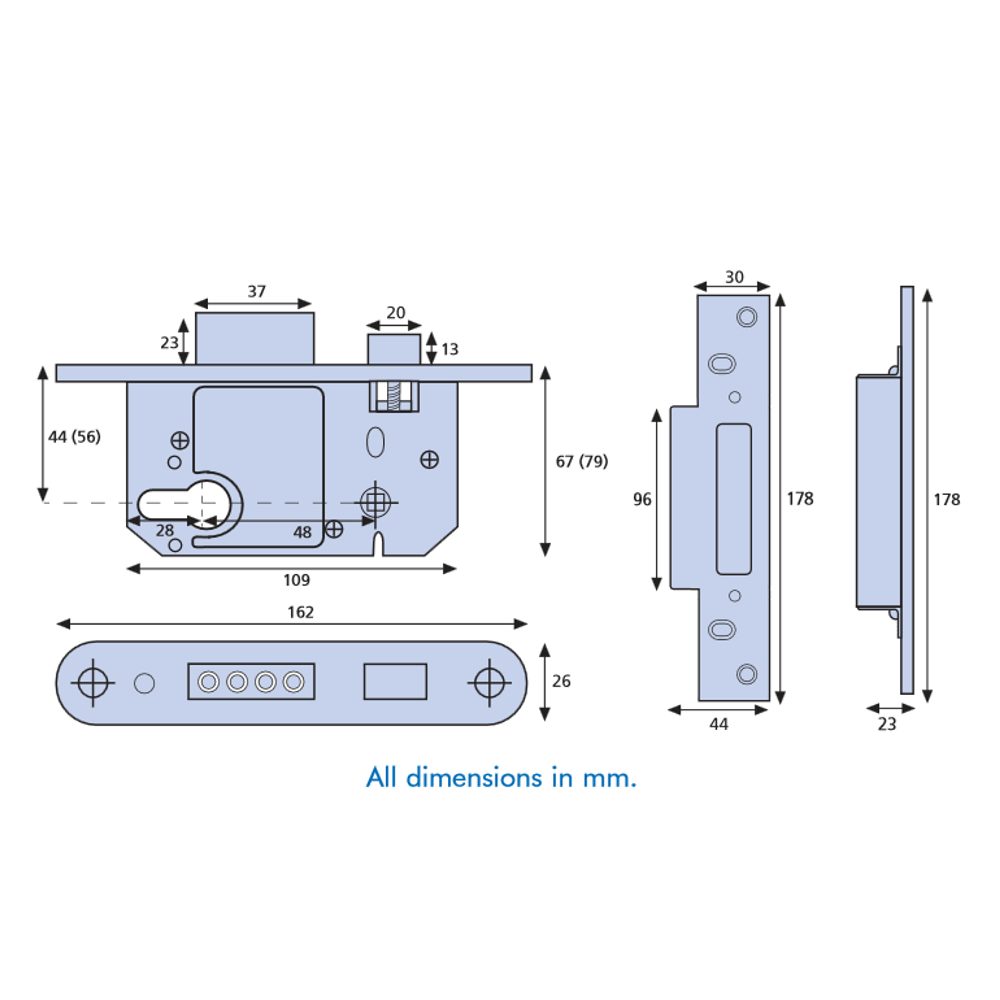

Technical Specifications

  • Brand: ERA
  • Standard: BS 3621:2004
  • Backset: 44mm or 56mm (please choose from the options below)
  • Case Depth: 64mm or 76mm (please choose from the options below)
  • Case Height: 109mm
  • Centres: 48mm
  • Forend Dimensions: 162mm (Length) x 26mm (Width)
  • Spindle Size: 8mm
  • Bolt Throw: 20mm
  • Cylinder System: ERA 6-pin Euro double cylinder
  • Keying: Keyed to differ (with 3 keys supplied)
  • Finish Options: Polished Brass, Polished Chrome, or Satin Chrome (please choose from the options below)
  • Security Rating: Secured by Design approved

Key Features

  • British Standard Certified: Meets BS 3621:2004 standards to satisfy police and insurance requirements.
  • Drill Resistant: Hardened steel plates on the lock case protect against drilling attacks.
  • Hacksaw Resistant: Laminated hardened steel plates in the bolt provide robust defense.
  • High Security Cylinder: Supplied complete with a 6-pin Euro double cylinder and 3 keys.
  • Enhanced Security Throw: Features a 20mm bolt throw for maximum frame engagement and strength.
  • Versatile Options: Available in multiple backsets, case depths, and finishes to suit your door - please select your option below.
Downloads
Datasheets and product documents
Datasheet.pdf
PDF Generated datasheet
Download
Trustpilot
Master Locksmiths Association BSI Kitemark

Master locksmiths with BSI accreditation

MLA approved locksmiths, BSI certified key systems, and independently audited security standards.

ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder - L16244 - Polished Brass - 264 31
L16244 Ref: 264 31
£ 90.60
ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder - L16245 - Satin Chrome - 264 51
L16245 Ref: 264 51
£ 90.60

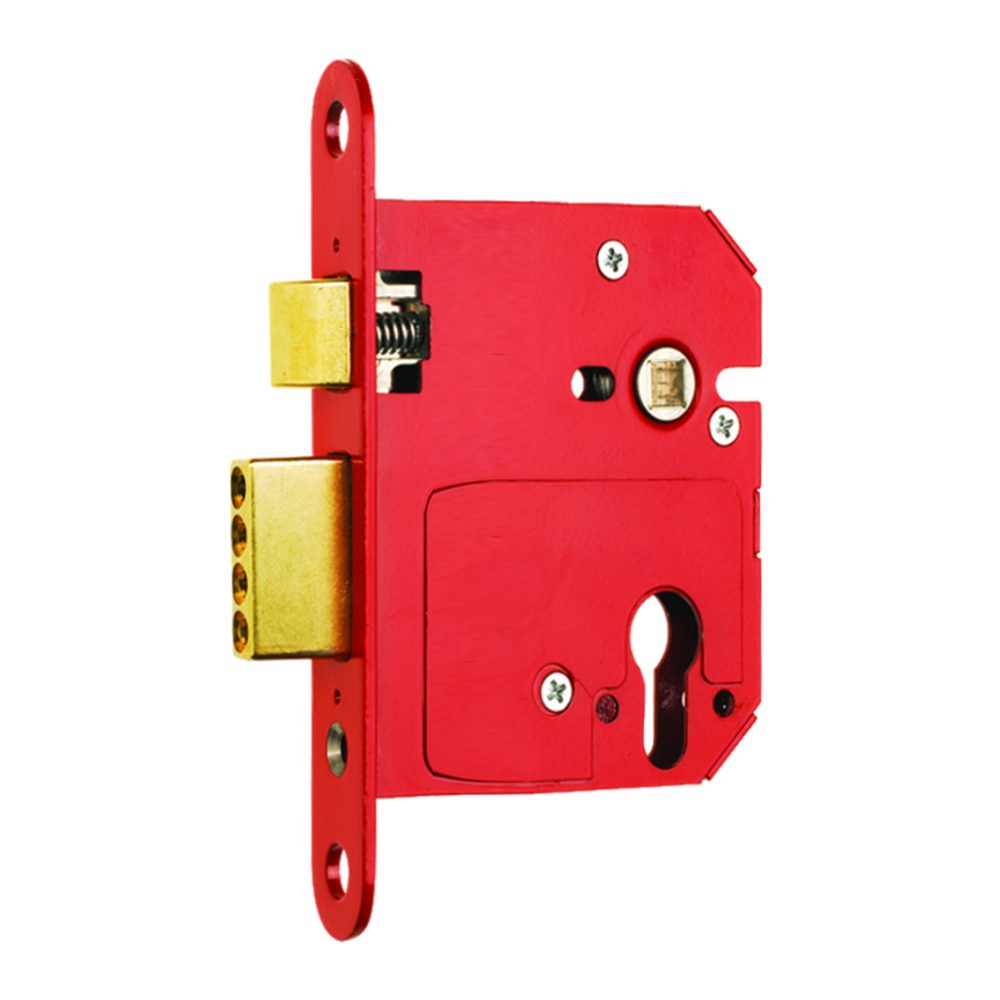

ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder - L16246 - Polished Brass - 364 31
L16246 Ref: 364 31
£ 90.60
ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder - L16247 - Satin Chrome - 364 51
L16247 Ref: 364 51
£ 90.60

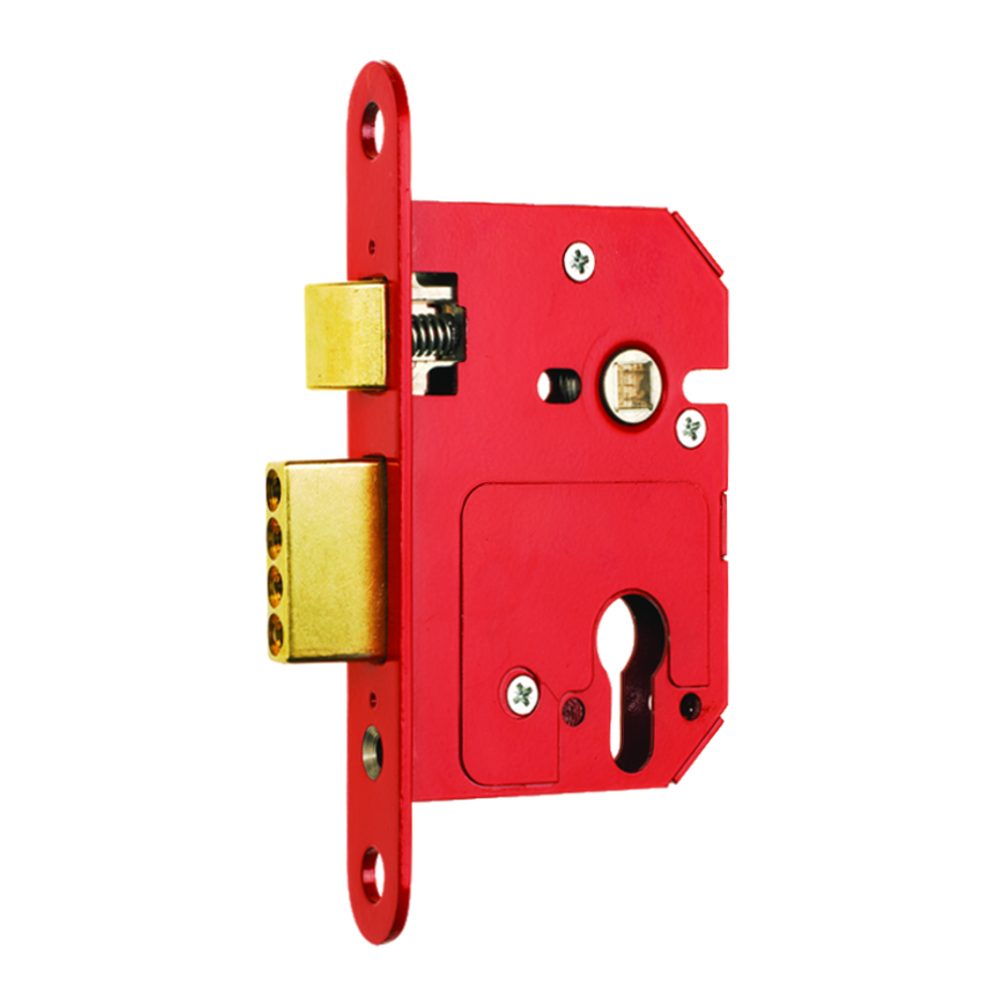

ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder - L31960 - Polished Chrome - 264-61
L31960 Ref: 264-61
£ 90.60
ERA 264 & 364 Fortress BS Euro Sashlock With Cylinder - L31961 - Polished Chrome - 364-61
L31961 Ref: 364-61
£ 90.60
Review variants and add to basket when ready.
