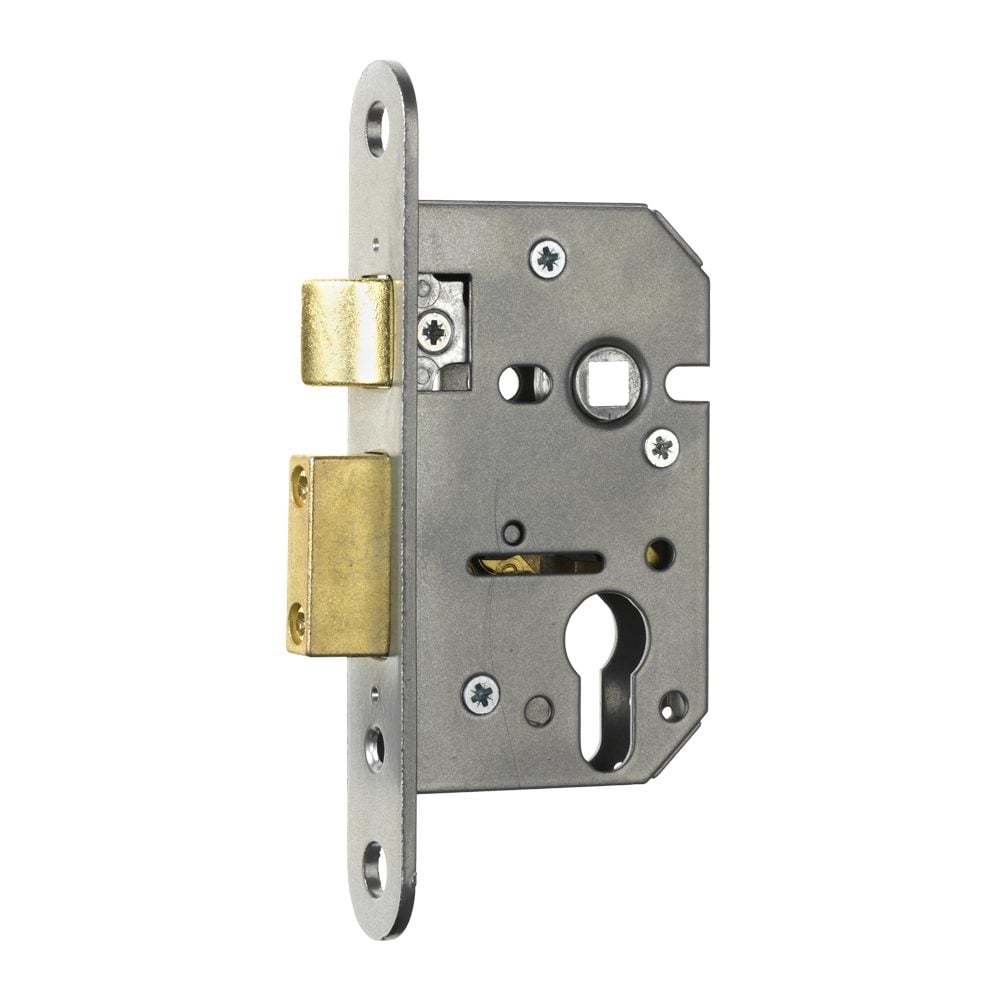

ERA 226 & 326 Euro Sashcase

The ERA 226 & 326 Euro Sashcase (also known as the ERA Viscount) is a highly versatile mortice sashlock case designed for use with standard Euro profile cylinders. It is an ideal choice for both new installations and retrofitting, allowing you to replace most existing door locks with minimal changes to your current door fittings.

For enhanced security, the deadbolt is equipped with hardened steel rollers to resist hacksawing. The latch bolt is fully reversible, making the lockcase suitable for both left and right-hand hinged doors.

This lockcase is available in multiple configurations. You can choose between a 44mm or 56mm backset (with 65mm or 77mm case depths) and either a Polished Brass or Satin Chrome finish. Please select your required backset, case depth, and finish from the options below.

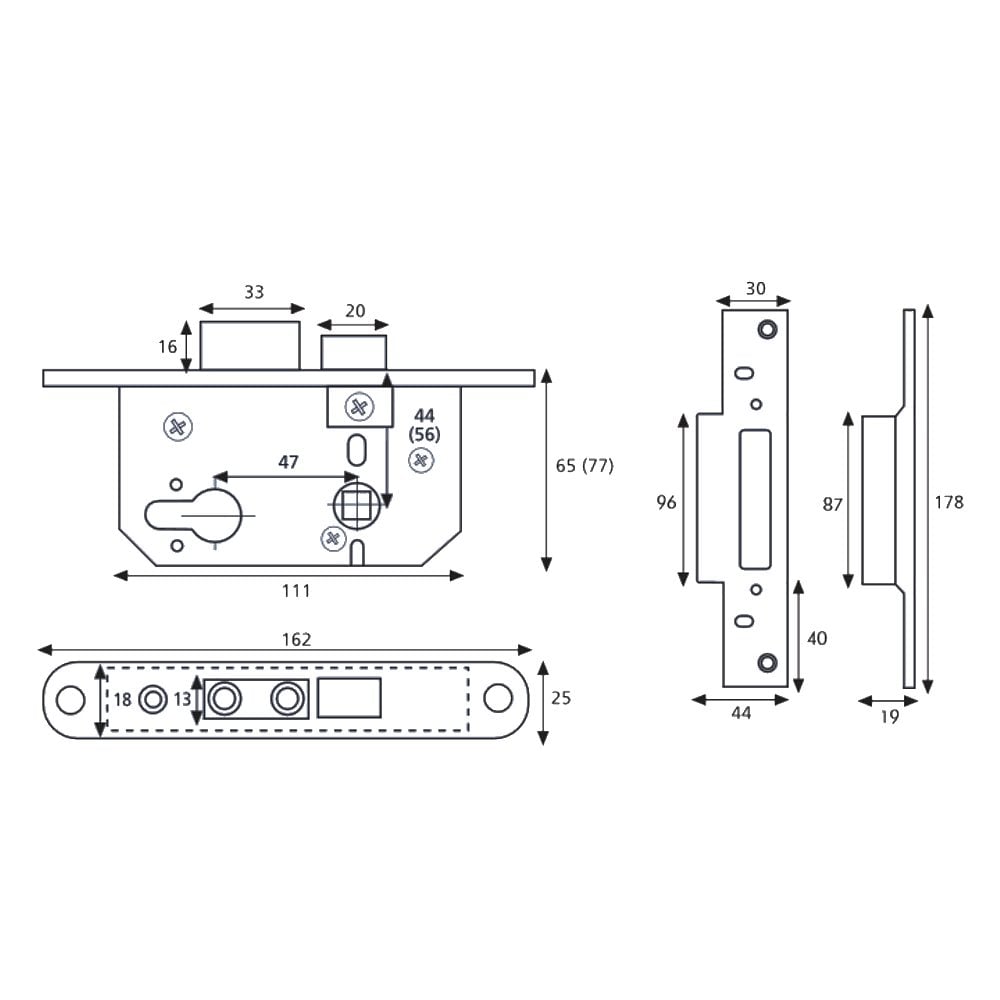

Technical Specifications

• Brand: ERA
• Mechanism: Euro Cylinder (sold separately)
• Backset: 44mm or 56mm (please select from the options below)
• Case Depth: 65mm or 77mm (please select from the options below)
• Case Height: 111mm
• Centres: 47mm
• Bolt Throw: 16mm
• Forend Length: 162mm
• Forend Width: 25mm
• Spindle Size: 8mm
• Handing: Reversible
• Finish: Polished Brass or Satin Chrome (please select from the options below)
• Pack Quantity: 1

Key Features

• High Versatility: Designed for use with standard Euro profile cylinders.
• Hacksaw Resistant: Deadbolt features hardened steel rollers to resist forced entry.
• Reversible Latch: Easily reversible latch bolt makes it suitable for both left and right-handed doors.
• Easy Replacement: Ideal for replacing existing door locks with minimal modification to existing fittings.
• Multiple Options: Available in a choice of backsets, case depths, and finishes to suit your door.
