ERA 224 & 324 Dual Profile Sashcase

The ERA 224 & 324 Dual Profile Sashcase (also known as the Viscount) offers exceptional versatility by accommodating both Euro and Oval profile locking cylinders. Supplied complete with removable 'shoulders' to fit Euro cylinders, this sashcase is an ideal choice for retrofitting, allowing you to replace most existing cylinder door locks with minimal modification to your door or existing fittings.

Designed for durability and security, the lock features a deadbolt with hardened steel rollers to resist hacksaw attacks. It is also fully compatible with bolt-through door furniture and features an easily reversible latch bolt, making it suitable for both left and right-handed doors.

This dual profile sashcase is available in multiple case sizes and finishes to suit your door's requirements. Please select your preferred backset, case depth, finish, and manufacturer reference from the options below.

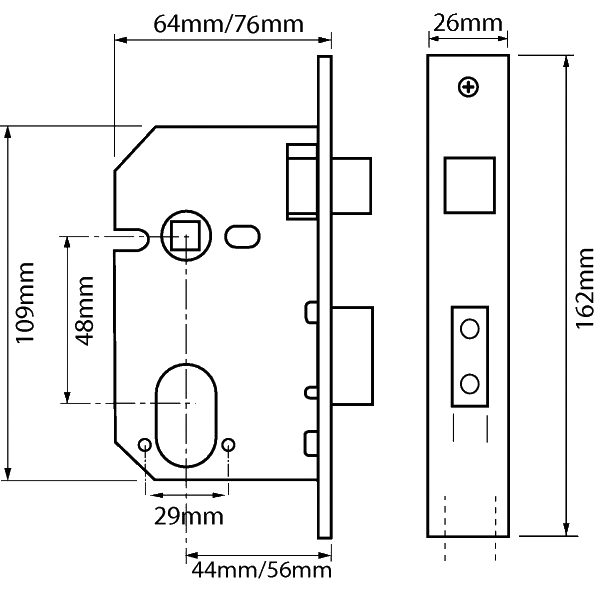

Technical Specifications

• Brand: ERA
• Mechanism: Euro / Oval Cylinder
• Case Height: 109mm
• Centres: 48mm
• Forend Length: 162mm
• Forend Width: 26mm
• Backset: 44mm or 56mm (please choose from the options below)
• Case Depth: 64mm or 76mm (please choose from the options below)
• Finish: Polished Brass or Satin Chrome (please choose from the options below)
• Manufacturer Reference: 224 31, 224 51, 324 31, or 324 51 (please choose from the options below)
• Pack Quantity: 1

Key Features

• Dual Profile Versatility: Accommodates both Euro and Oval profile cylinders using the included removable shoulders.
• Hacksaw Resistant: Deadbolt features hardened steel rollers to resist sawing attacks.
• Reversible Latch: Easily reversible latch bolt makes the lock suitable for both left and right-handed doors.
• Retrofit Friendly: Ideal for replacing most existing cylinder door locks with minimal change to existing fittings.
• Bolt-Through Compatible: Suitable for use with bolt-through door furniture.
