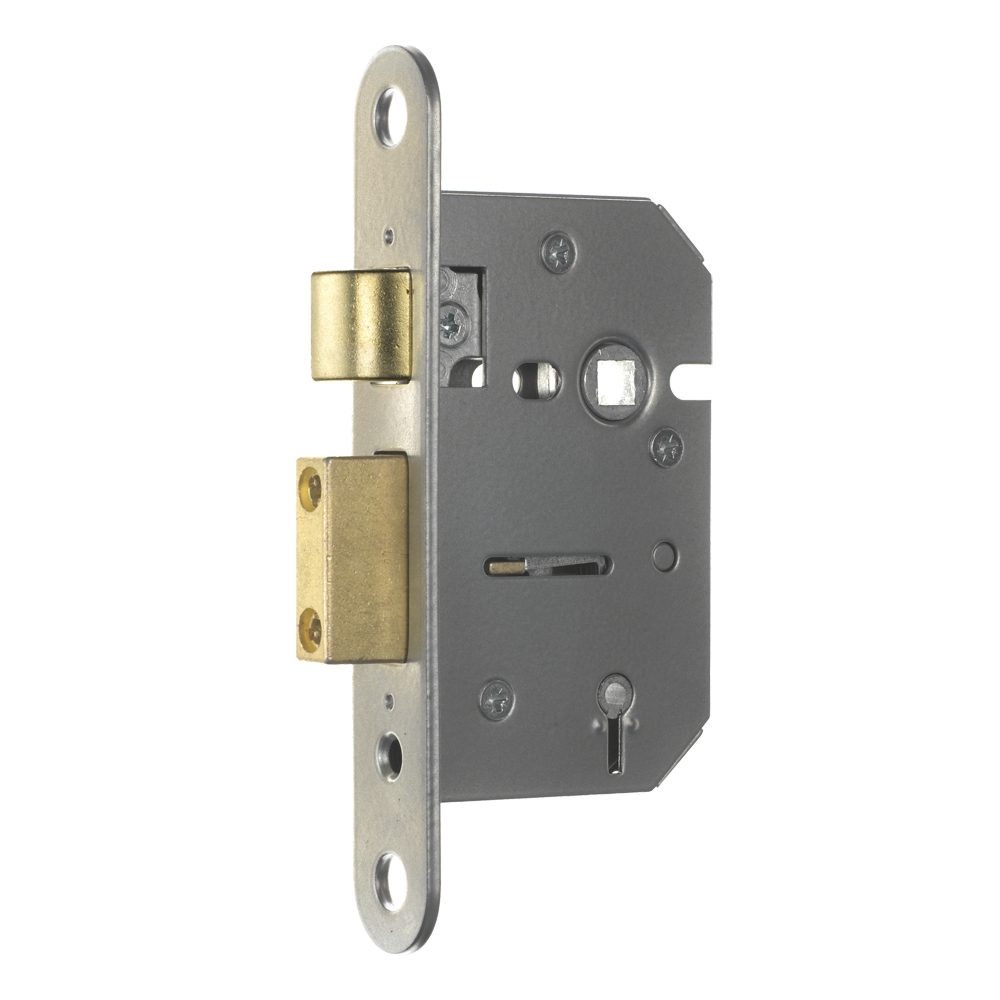

ERA 202 & 302 Viscount 5 Lever Sashlock

The ERA Viscount 5 Lever Sashlock (202 & 302 series) is a reliable contract mortice lock designed for timber doors. It is ideal for volume users, new build projects, or as a straightforward retrofit upgrade to replace existing 2 and 3-lever locks (such as the ERA Profit).

While it is a non-BS3621 lock, it offers robust security for internal doors, stores, or bedrooms where full insurance-rated certification is not required. It features false-notched levers to resist picking and four hardened steel rollers in the bolt to defend against hacksawing. The latch is easily reversible, making it suitable for both left and right-handed doors.

This versatile sashlock is available in multiple case depths, backsets, finishes, and packaging options. Please select your required specifications from the options below.

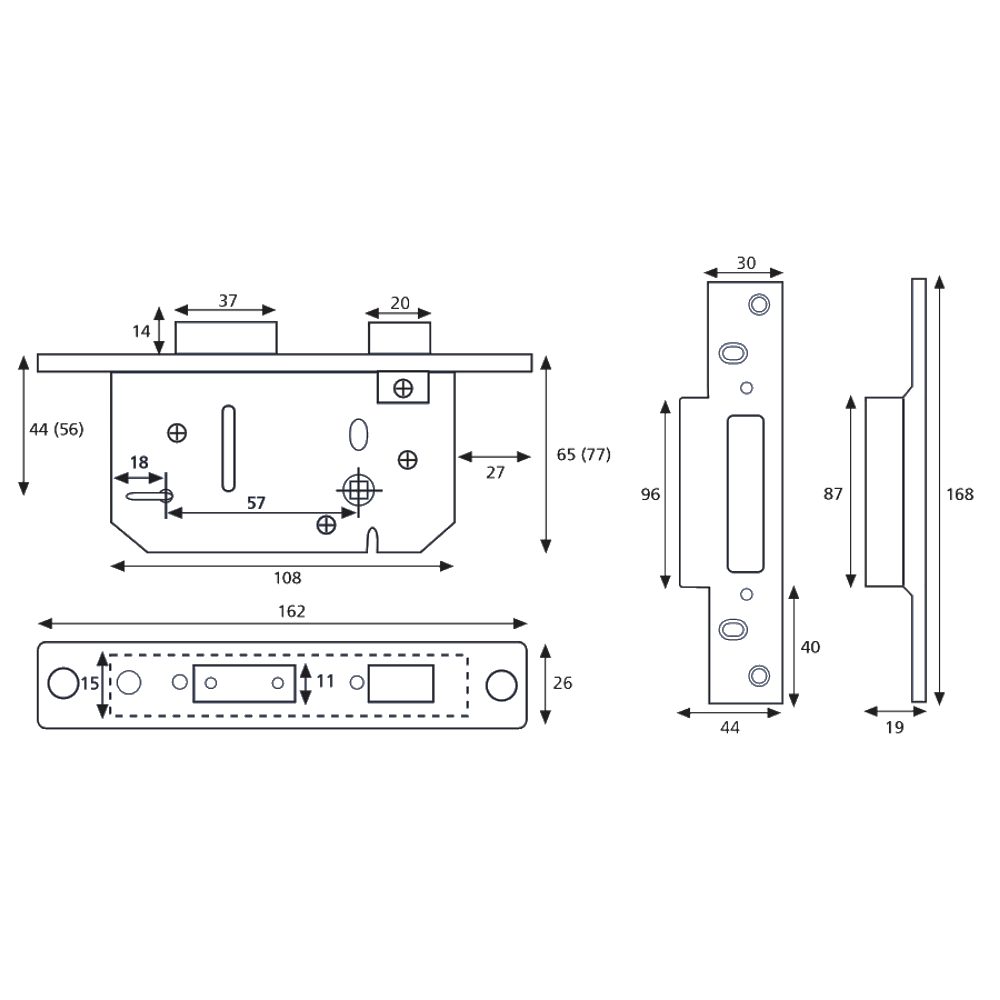

Technical Specifications

• Brand: ERA
• Mechanism: 5 Lever (ERA Viscount)
• Backset: 44mm or 56mm (please choose from the options below)
• Case Depth: 64mm or 76mm (please choose from the options below)
• Case Height: 108mm
• Centres: 57mm
• Follower: 8mm
• Forend Length: 162mm
• Forend Width: 26mm
• Handing: Reversible

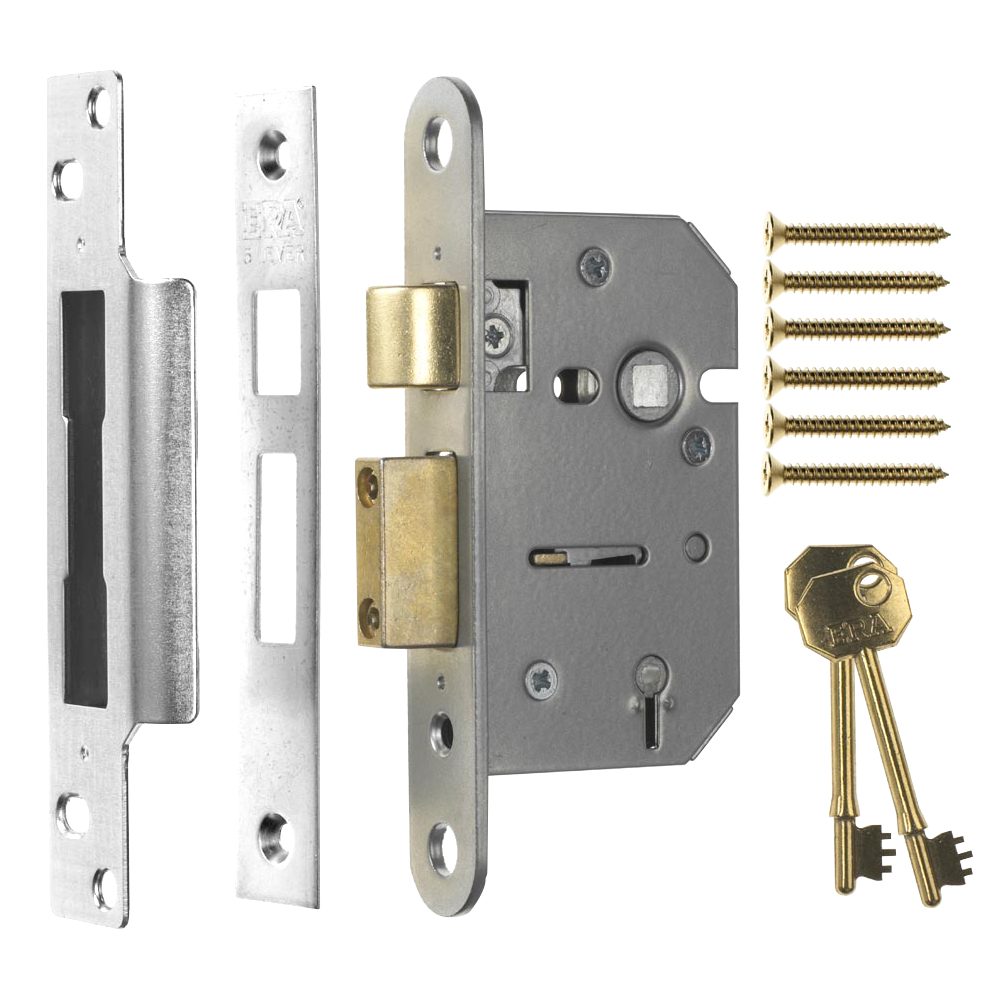

• Keys Supplied: 2
• Keying: Keyed to differ (500 differs)

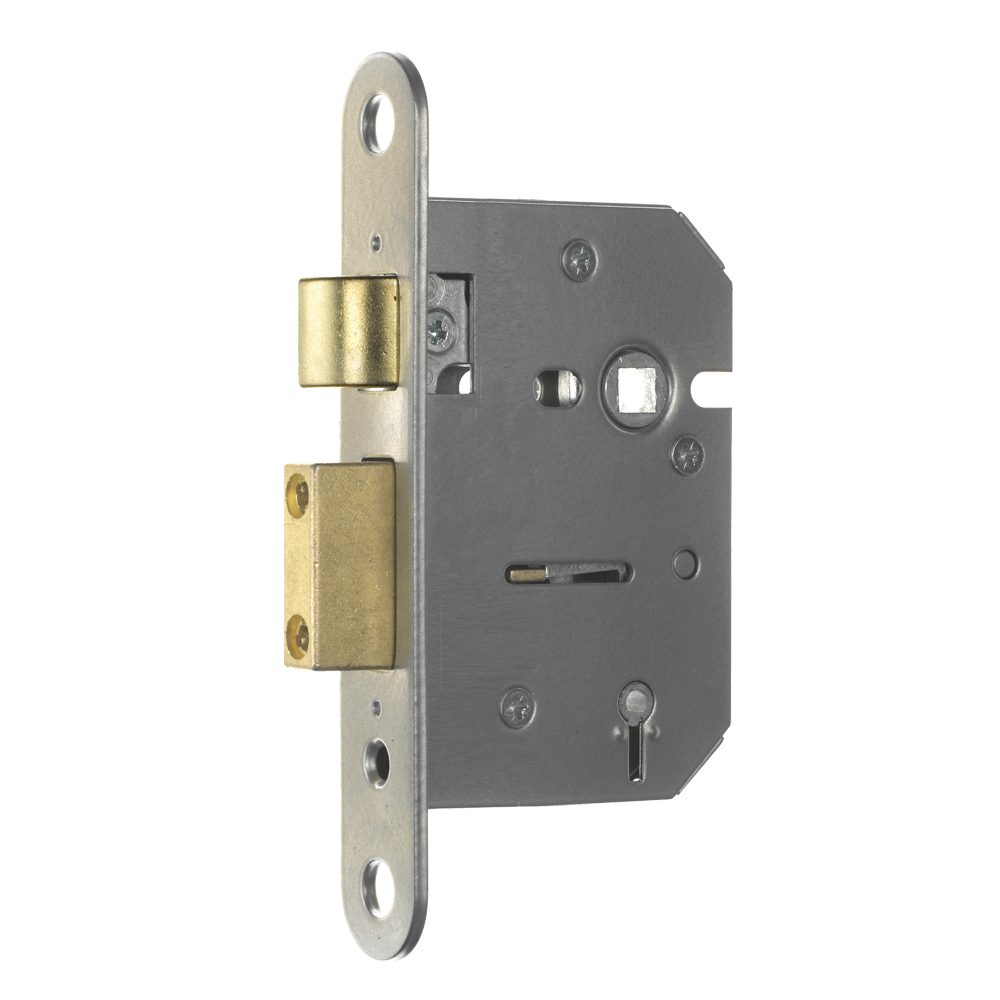

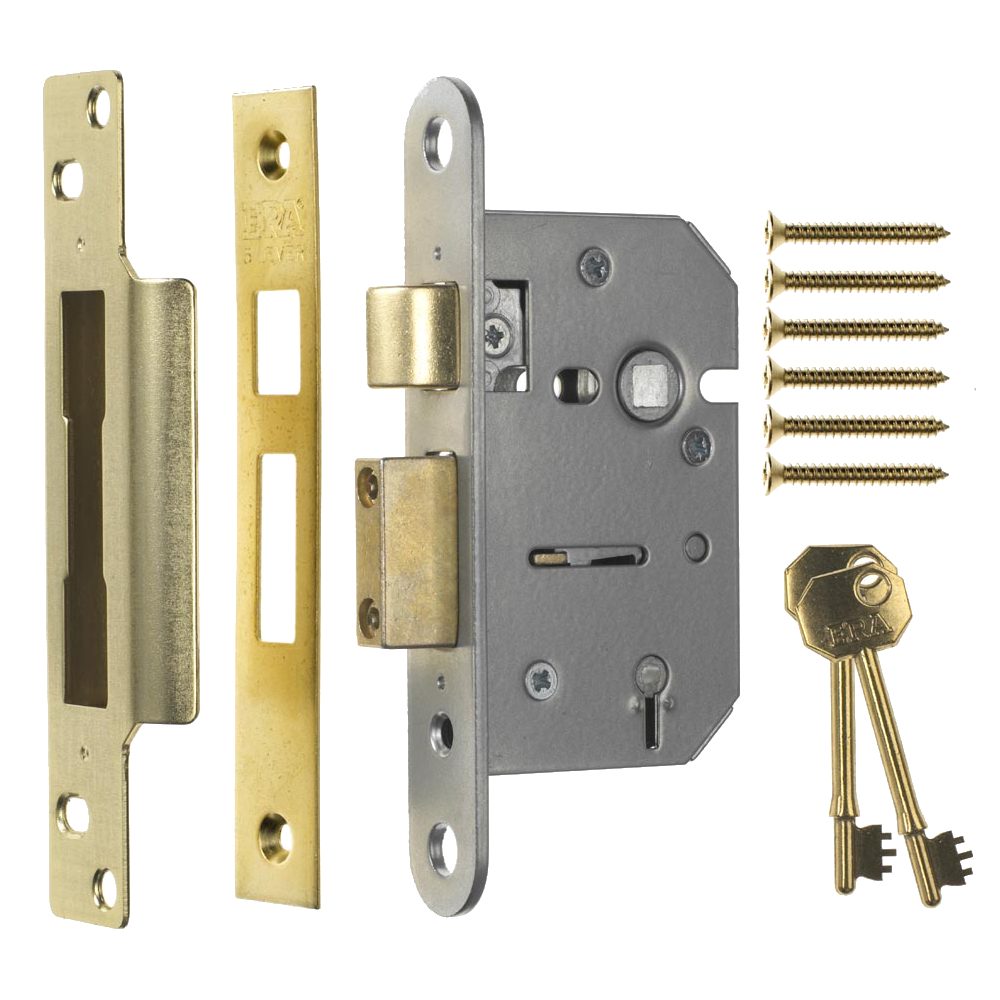

• Finish: Polished Brass or Satin Chrome (please choose from the options below)
• Weight: 660g to 840g (please choose from the options below)
• Packaging: Boxed, Display Box, or Visi (please choose from the options below)
• Manufacturer Reference: Multiple options available (please choose from the options below)

Key Features

• Ideal Retrofit: Perfect for upgrading existing 2 and 3-lever mortice locks like the ERA Profit.
• Anti-Pick Protection: False-notched levers help resist professional lock picking attempts.
• Anti-Saw Security: Features 4 hardened steel rollers in the bolt to resist hacksawing.
• Reversible Latch: Easily handed to suit both left and right-opening doors.
• Versatile Range: Available in multiple sizes, finishes, and packaging types to suit your project needs (please choose from the options below).
