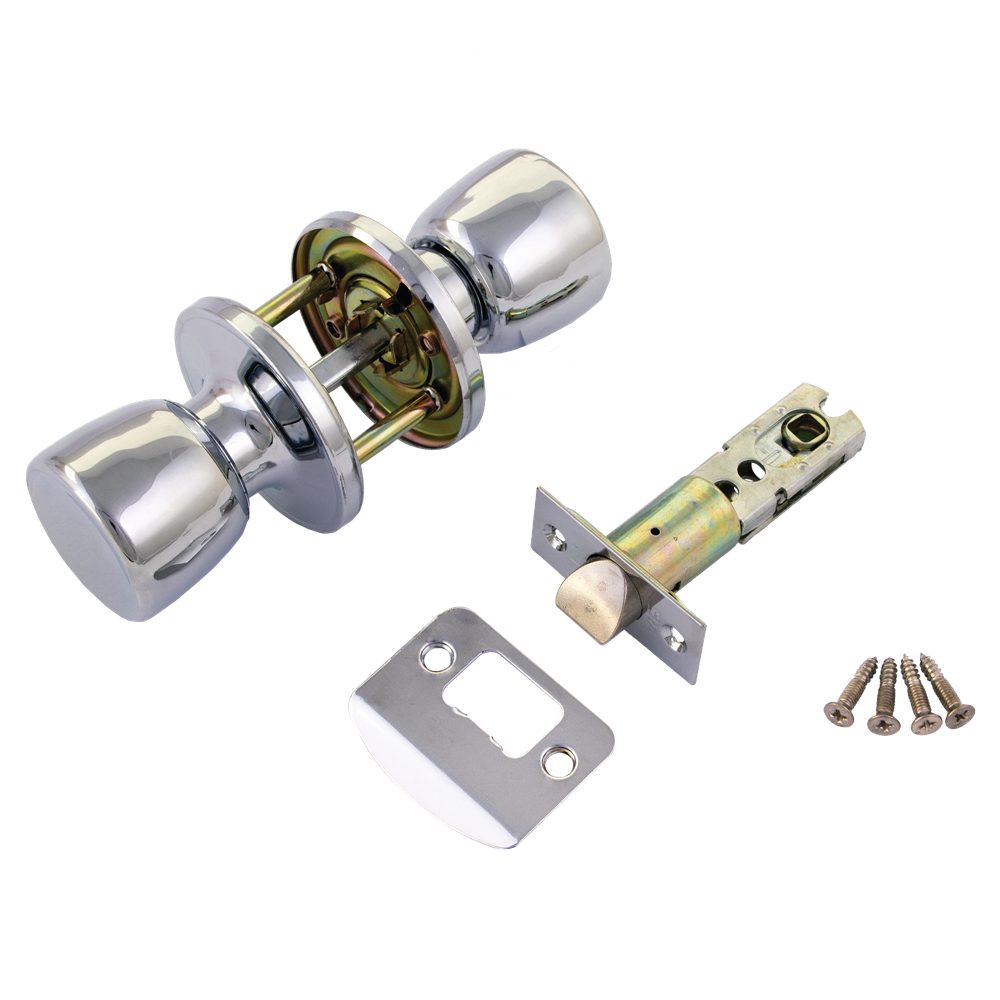

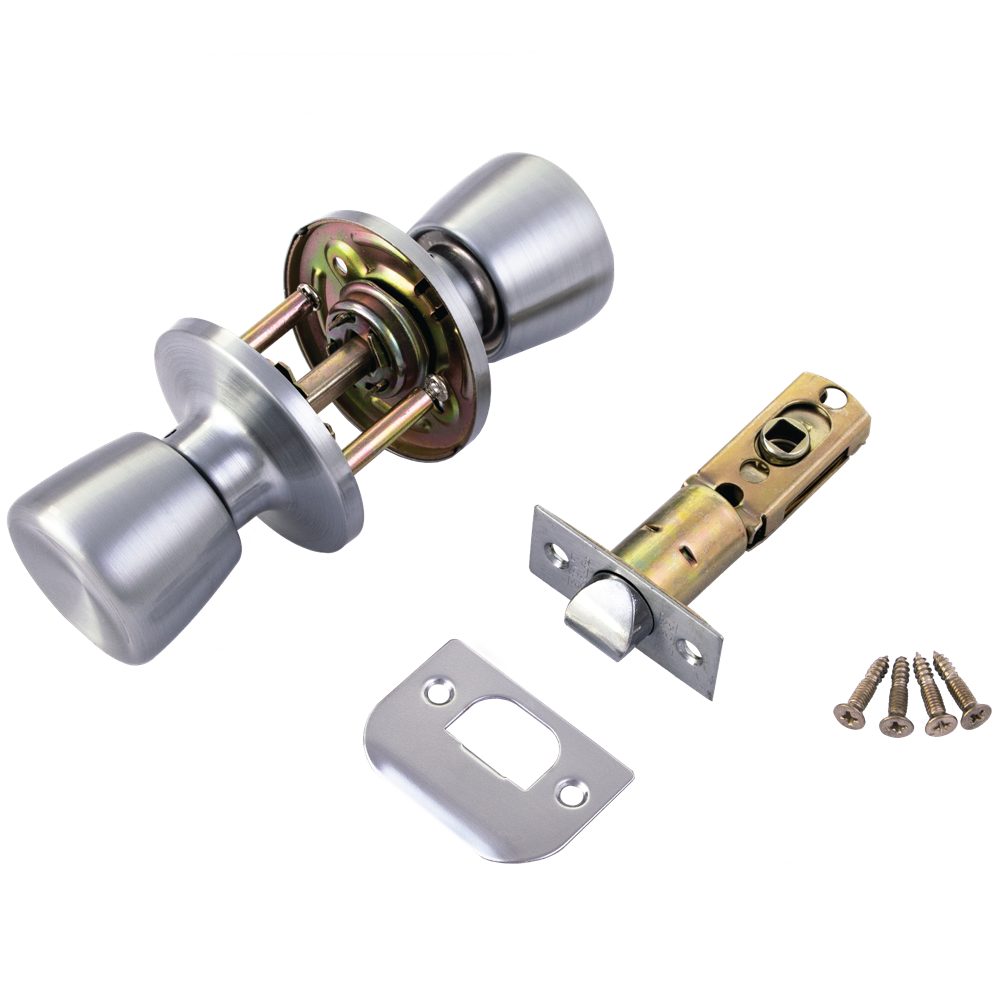

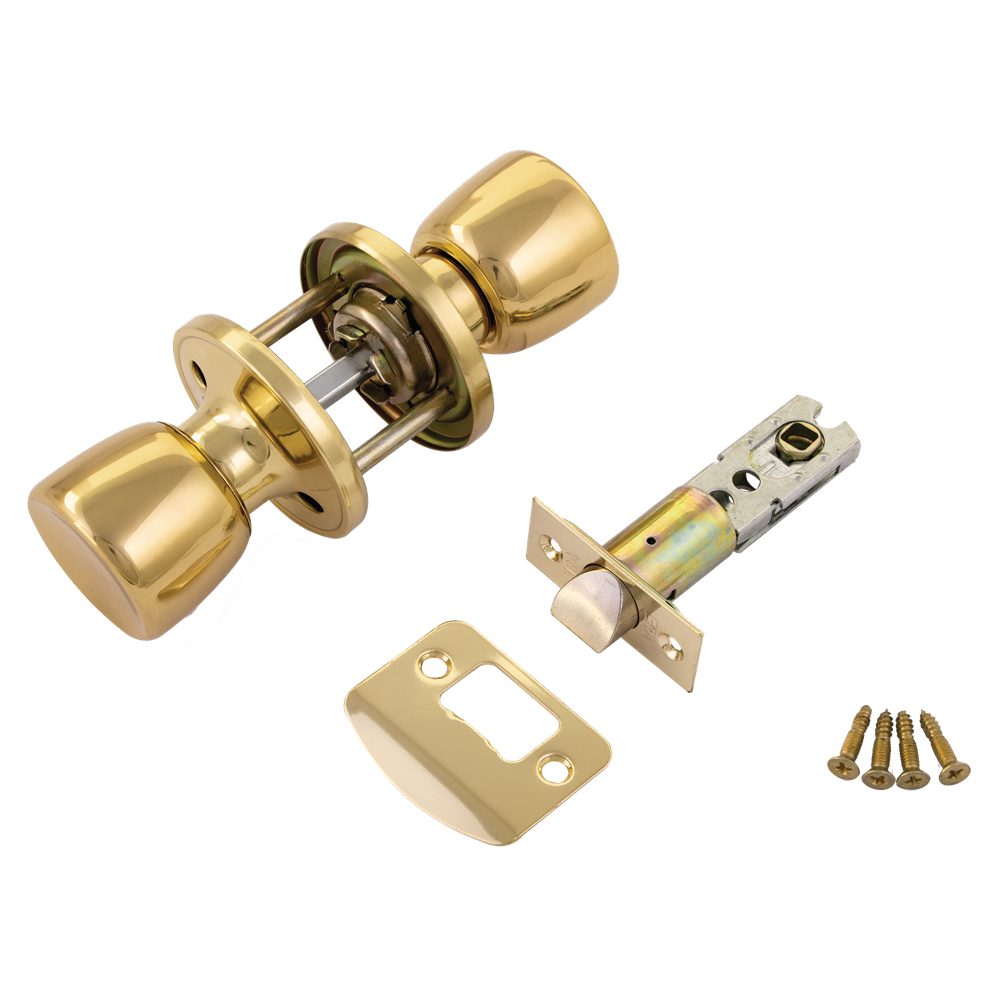

ERA 170 Passage Knobset

The ERA 170 Passage Knobset is a high-quality, non-locking door knob set designed specifically for internal doors where privacy locking is not required. Ideal for both domestic and commercial interior spaces, this knobset allows free, unrestricted access at all times, making it perfect for hallways, kitchens, and communal areas.

Engineered for straightforward installation, it features an adjustable tubular latch that can be set to either a 60mm or 70mm backset, ensuring compatibility with most standard door preparations.

This versatile knobset is available in a choice of three attractive finishes to complement your interior decor: Chrome Plated, Electro Brass, and Satin Chrome. Please select your preferred finish, manufacturer reference, and barcode from the options below.

Technical Specifications

• Brand: ERA
• Knob Function: Passage (non-locking)
• Backset: 60mm to 70mm (Adjustable)
• Knob Diameter: 50mm
• Knob Projection: 71mm
• Rose Diameter: 67mm
• Forend Length: 57mm
• Forend Width: 25mm
• Weight: 512g
• Finishes: Chrome Plated, Electro Brass, Satin Chrome (please choose from the options below)
• Manufacturer References: 170-37, 170-57, 170-67 (please choose from the options below)
• Barcodes: 5054040159568, 5054040159667, 5054040352785 (please choose from the options below)

Key Features

• Unrestricted Access: Non-locking design allows free passage through internal doors at all times.
• Adjustable Latch: Features an adjustable tubular latch (60mm or 70mm backset) to fit most standard doors.
• Choice of Finishes: Available in Chrome Plated, Electro Brass, or Satin Chrome to complement your home decor.
• Easy to Install: Designed for quick and straightforward fitting on internal timber doors.
• Eco-Friendly Packaging: Supplied in environmentally friendly display box packaging.
