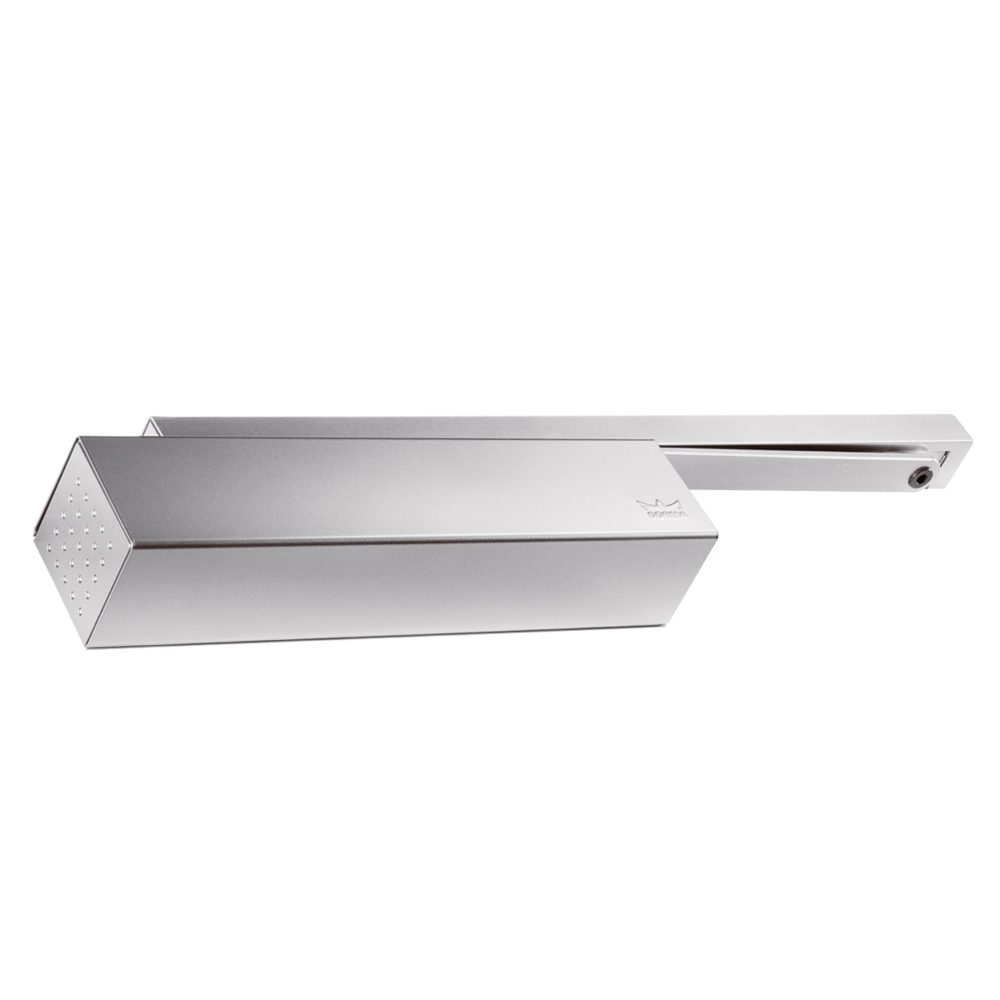

DORMAKABA TS92 Size 1-4 Side Channel Overhead Door Closer

dormakaba More dormakaba Overhead

Price

£294.97

Select size, finish, and quantity from the variant table.

View options

The dormakaba TS92 Slide Channel Overhead Door Closer is a high-quality, reliable cam-action door closer designed specifically for interior doors. Featuring a sleek Contur design, it utilizes a linear drive mechanism with a heart-shaped cam to ensure exceptionally low opening forces. This makes it highly accessible and easy to operate for all users, including children and those with limited strength, while still providing a secure and controlled close.

This door closer is CERTIFIRE approved (CF119) for use on fire doors and has been successfully tested to BS EN 1154 and ISO 9001 standards. It features fully adjustable closing speed and latch action, allowing for precise control over the door's movement.

The dormakaba TS92 is available in multiple handed configurations (Pull or Push) and manufacturer references (TS92B - 40922410301 or TS92G - 40922420301). Please select your required options from the selection below.

Technical Specifications

Brand: dormakaba
Strength Size: EN 1 to 4
Handing: Pull or Push (please choose from the options below)
Manufacturer Reference: TS92B - 40922410301 or TS92G - 40922420301 (please choose from the options below)
Barcode: Multiple options available (please choose from the options below)
Finish: Silver Enamelled

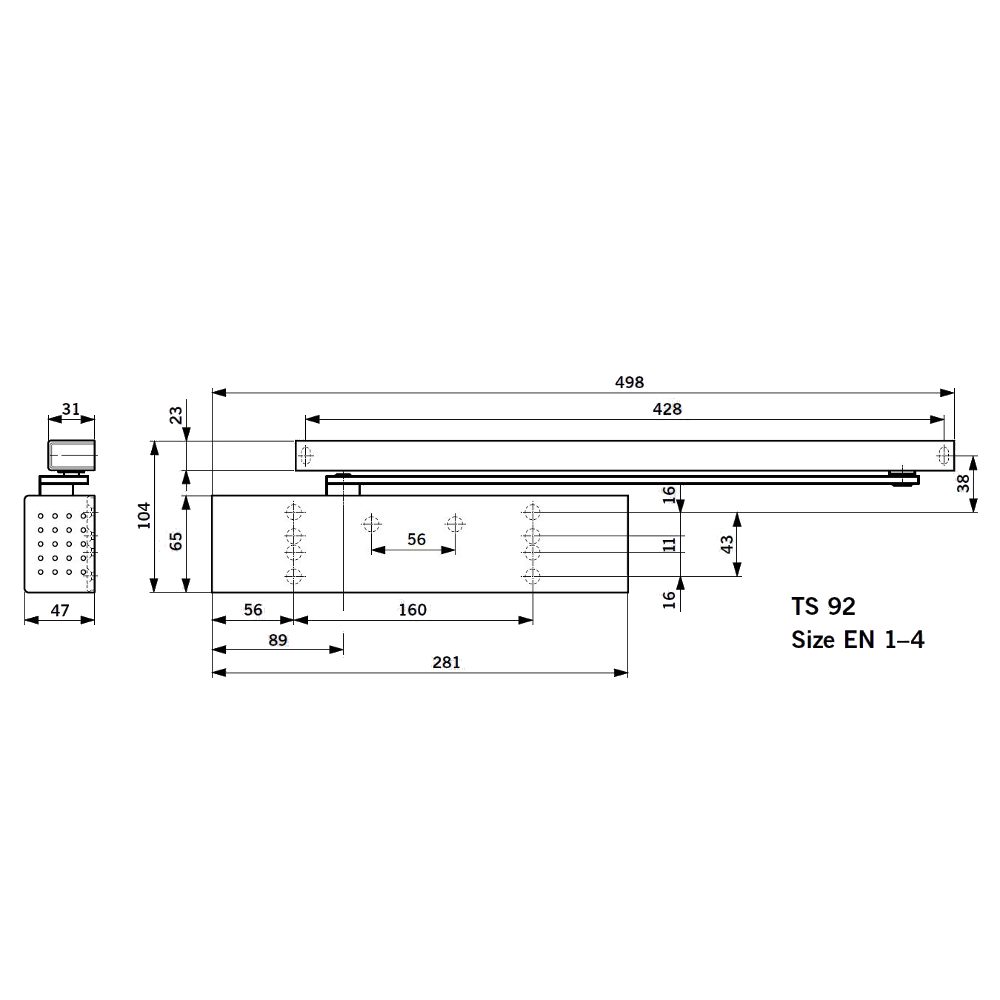

Length: 28.1cm
Depth: 65mm
Weight: 2.1kg
Standards: BS EN 1154, ISO 9001:2015
Fire Tested: CERTIFIRE approved (CF119) for fire doors
Adjustable Closing Speed: Yes
Adjustable Latch Action: Yes
Pack Quantity: 1

Key Features

Low Opening Forces: Linear drive mechanism with a heart-shaped cam ensures exceptionally easy opening for all users.
Sleek Contur Design: Modern aesthetic that complements contemporary interior spaces.
Fully Adjustable: Features independent adjustments for both closing speed and latch action.
Fire Safety Approved: CERTIFIRE CF119 certified and tested to BS EN 1154 for peace of mind.
Flexible Handing Options: Available in both push-side and pull-side configurations to suit your specific door setup.
