DORMAKABA TS92 Size 1-4 Contur Cam Action Door Closer Body Only

dormakaba More dormakaba Overhead

From

£226.03

Select size, finish, and quantity from the variant table.

View options

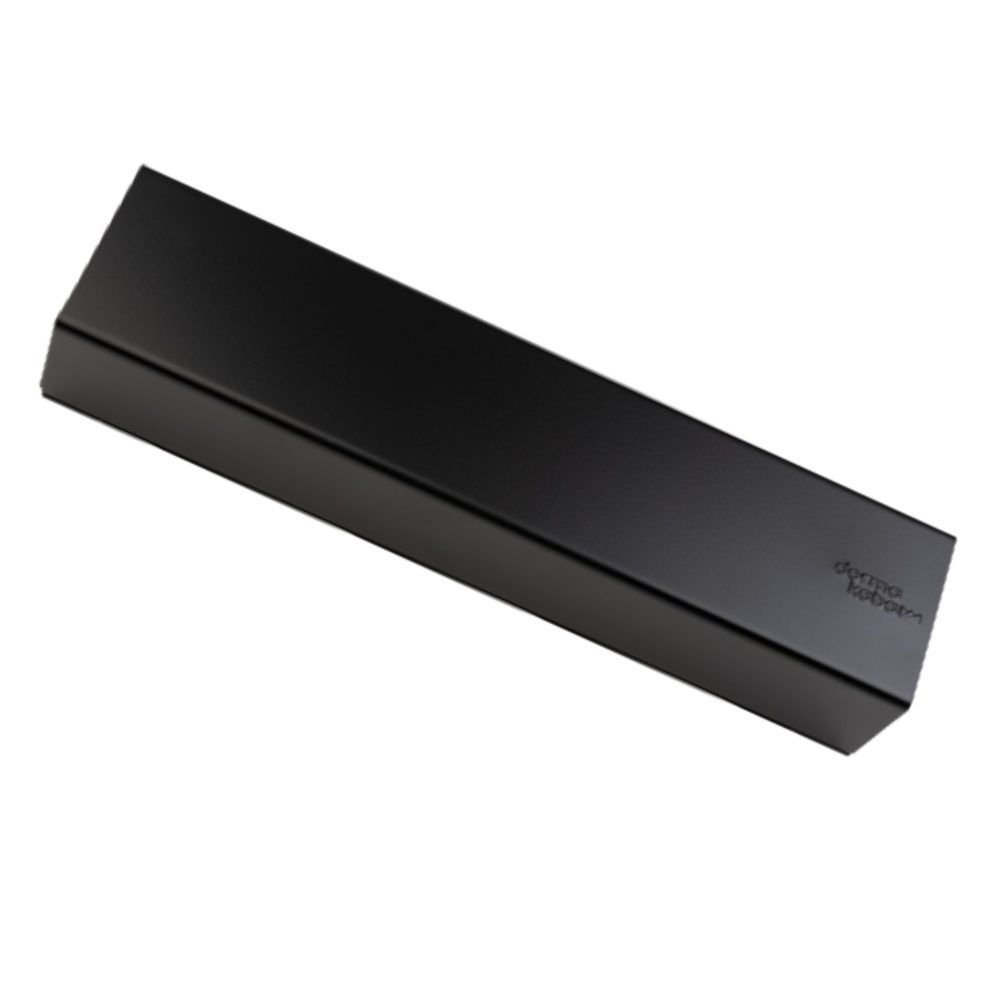

The dormakaba TS92 Size 1-4 Contur Cam Action Door Closer (Body Only) is designed specifically for interior applications, combining high-performance cam action technology with the award-winning Contur design for enhanced aesthetics. This overhead door closer provides exceptionally smooth operation with rapidly decreasing opening resistance, making it ideal for a wide range of commercial and residential interior projects.

Please note that this product is supplied as the body only with a Contur cover and end caps. It requires a separate slide channel and arm to complete the installation.

Depending on your installation requirements, this door closer is available in multiple finishes, handed options (Pull or Push side), and weights. Please choose your preferred options from the selection below.

To meet the requirements of Approved Document M and BS 8300 (for ease of access), a minimum fire door width of 733mm is required. The TS92 is fully CE marked to BS EN 1154 and Certifire approved (CF119), making it suitable for use on fire and smoke compartmentation doors.

Technical Specifications

Brand: dormakaba
Power Size: EN 1 to 4 (adjustable closing force)
Maximum Door Width: 1100mm
Minimum Fire Door Width (for BS 8300 / Doc M): 733mm
Standards: CE Marked, BS EN 1154, Certifire Approved (CF119)
Fire Tested: Suitable for fire doors (Certifire approved)
Handing: Pull or Push options available (please choose from the options below)

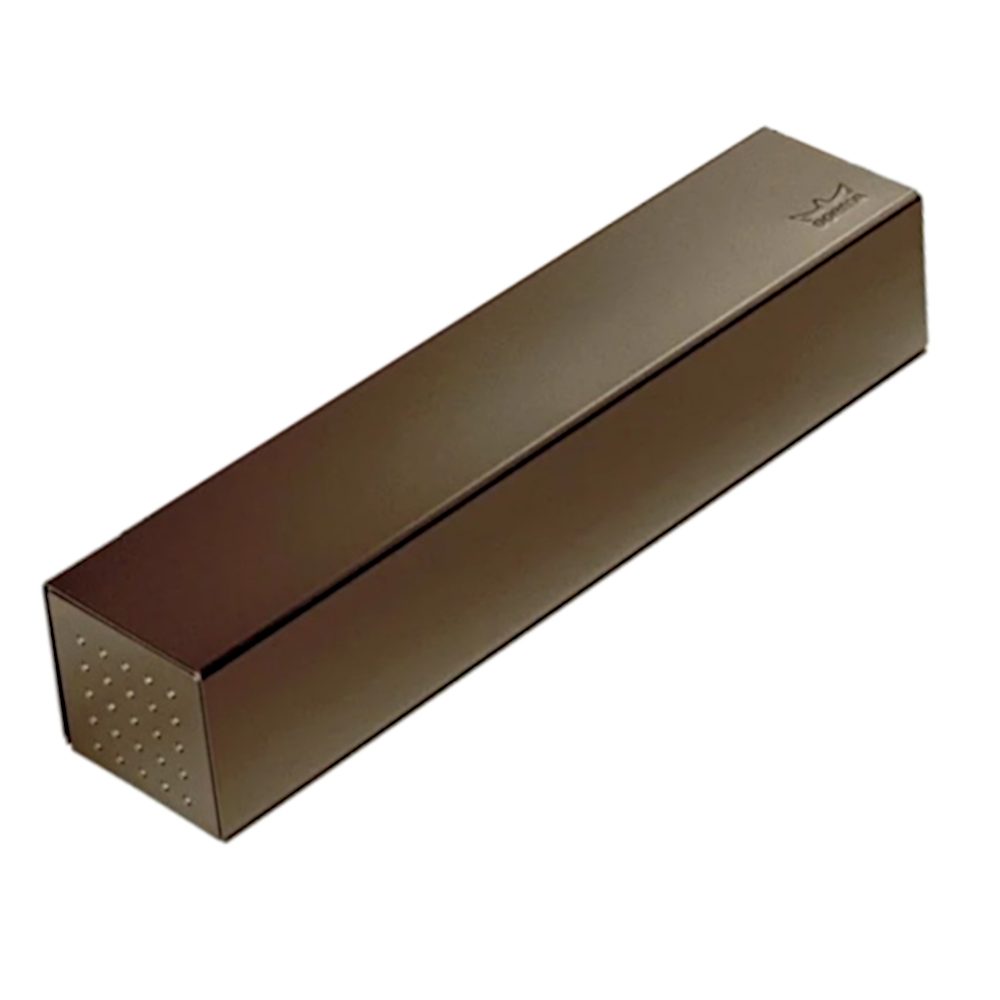

Finish: Black or Dark Brown options available (please choose from the options below)
Weight: 2.05kg or 3.52kg options available (please choose from the options below)
Pack Quantity: 1

Key Features

Cam Action Technology: Features a linear drive mechanism with a heart-shaped cam for low opening forces and smooth, reliable closing.
Contur Design: Award-winning aesthetic design with a sleek cover and matching end caps to complement modern interiors.
Body Only Supply: Supplied as the closer body with Contur cover and end caps (requires separate slide channel and arm).
Adjustable Power: Power size EN 1-4 allows for easy adjustment to suit a variety of internal door sizes up to 1100mm.
Fire Safety Approved: Certifire tested (CF119) and CE marked for peace of mind on fire-rated doors.
Accessibility Compliance: Helps meet the requirements of BS 8300 and Approved Document M when fitted to doors with a minimum width of 733mm.
