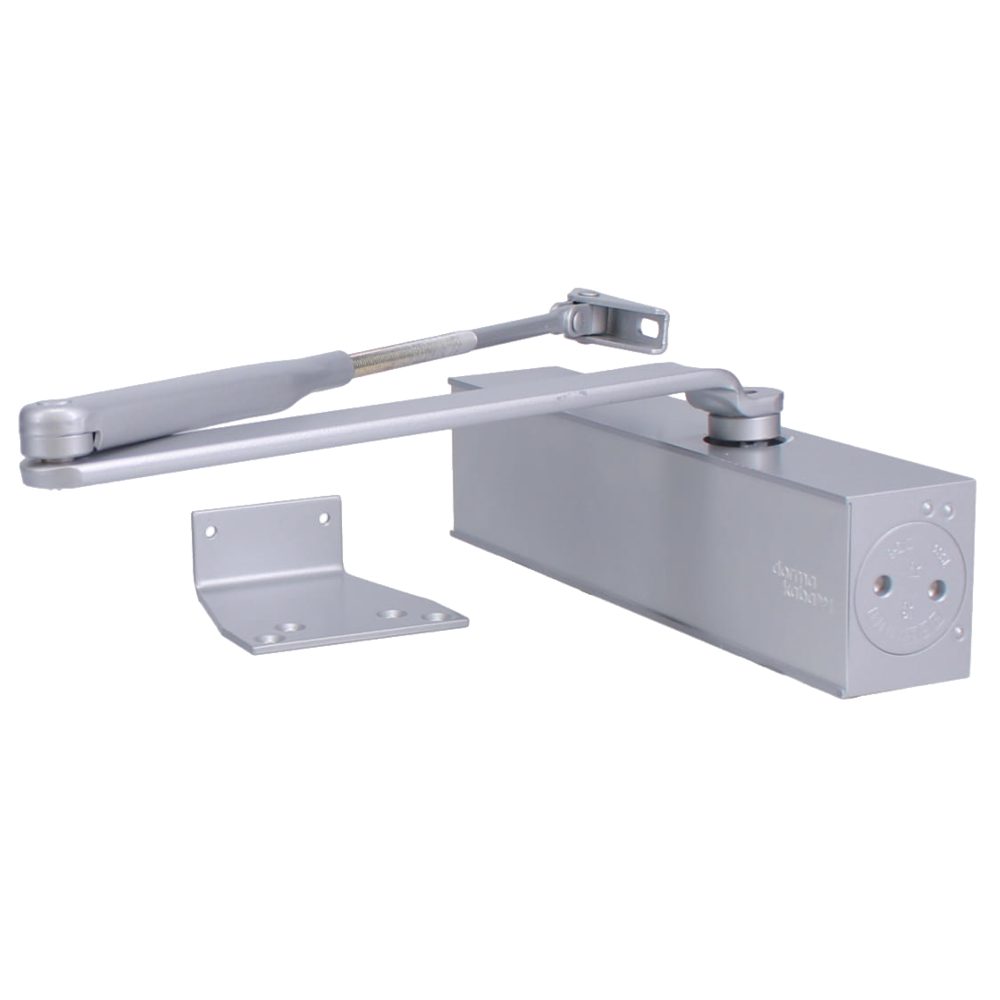

DORMAKABA TS83SE Size 3-6 Overhead Door Closer

The dormakaba TS83SE Size 3-6 Overhead Door Closer represents decades of refinement in door control technology. Engineered by dormakaba (formerly Dorma), this highly versatile scissor arm closer provides exceptional user comfort and outstanding reliability, making it suitable for almost all types of single- and double-leaf doors.

With adjustable power settings ranging from EN size 3 to 6, this closer can be tailored to suit a variety of door widths. It features a 'thinking' backcheck to prevent the door from being flung open violently, protecting both the door and the adjacent wall, as well as delayed action for controlled closing. It is also highly durable, featuring anti-corrosion protection and a fire rating of up to 2 hours on timber doors and 4 hours on metal doors.

This premium overhead door closer is available in multiple configurations. Depending on your requirements, you can choose between the TS83 and TS83SE manufacturer references, Silver or Silver Enamelled finishes, and maximum door widths of either 1250mm or 1400mm. Weights range from 1.951kg to 2.72kg across the different models. Please select your preferred options from the choices below.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: TS83 or TS83SE (please choose from the options below)
• Strength Size: EN 3 to 6 (adjustable)
• Max Door Width: 1250mm or 1400mm (please choose from the options below)
• Max Door Weight: 120kg
• Application: Fig 1, Fig 61, and Fig 66
• Handing: Reversible
• Fire Tested: 2 hours timber & 4 hours metal
• Adjustable Latch Action: Yes
• Backcheck: Yes
• Dimensions: 46mm (Depth) x 46mm (Height) x 60mm (Width)
• Weight: 1.951kg to 2.72kg (please choose from the options below)
• Finish: Silver or Silver Enamelled (please choose from the options below)
• Barcode: Multiple options available (please choose from the options below)
• Packaging: Boxed
• Pack Quantity: 1

Key Features

• Adjustable Power: Easily adjusted between sizes 3 and 6 to suit different door sizes and weights.
• Thinking Backcheck: Protects walls and doors by cushioning sudden or violent opening forces.
• Delayed Action: Offers controlled closing, ideal for areas requiring extra passage time.
• Anti-Corrosion Protection: Designed for long-lasting performance and durability.
• Universal Application: Suitable for single- and double-leaf doors with Fig 1, Fig 61, and Fig 66 installation options.
• Fire Rated: Certified for up to 2 hours on timber doors and 4 hours on metal doors.
