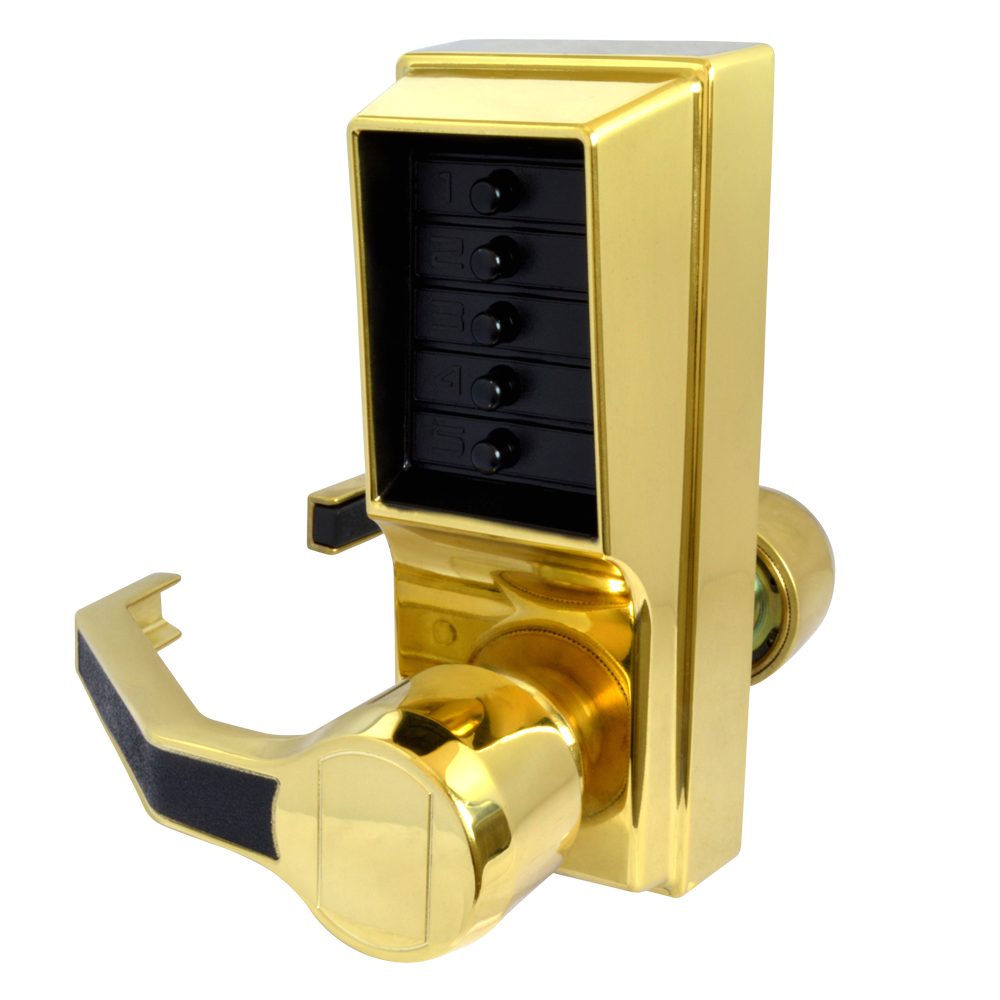

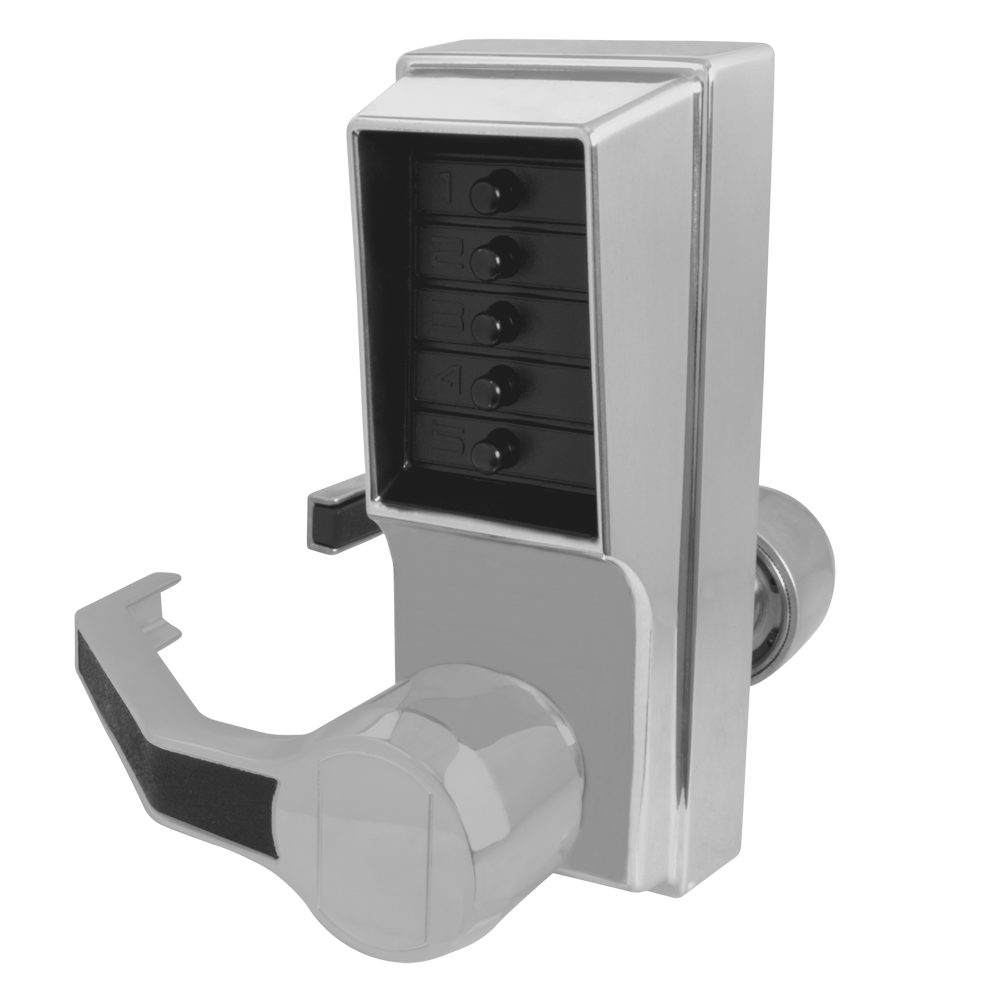

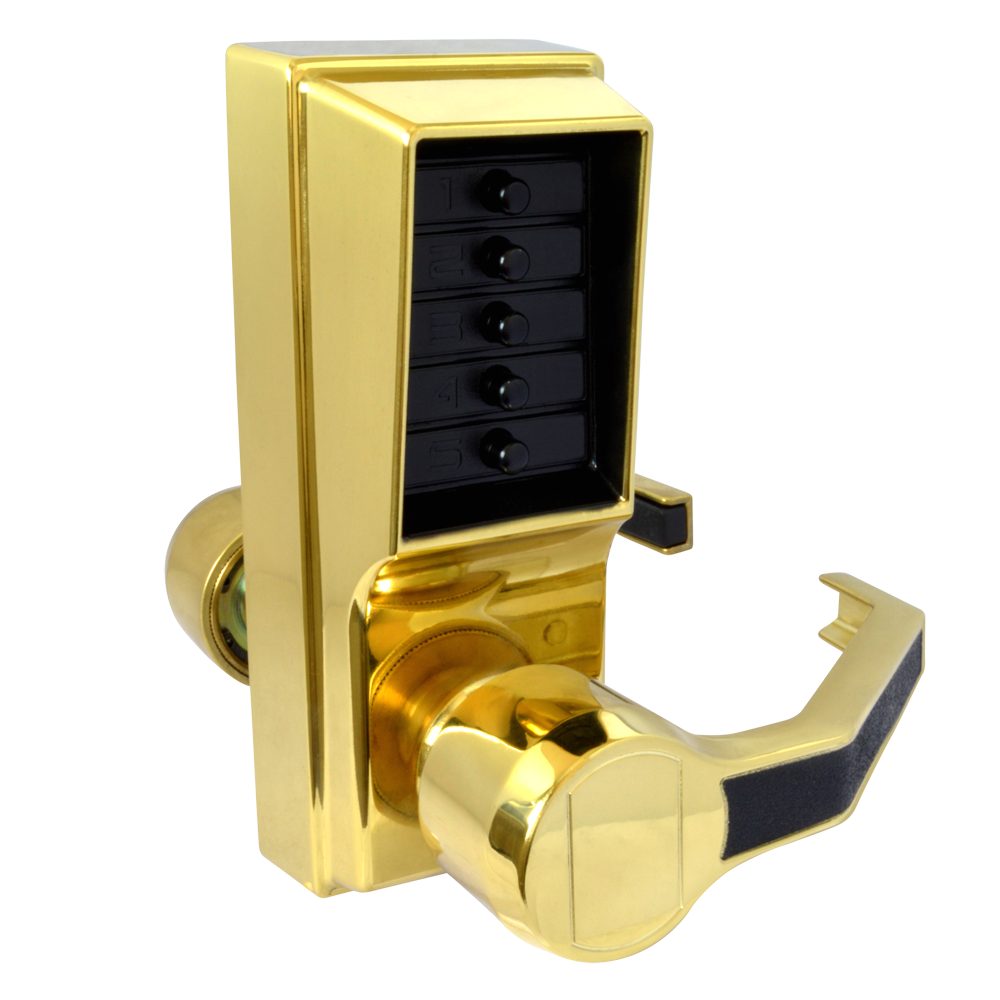

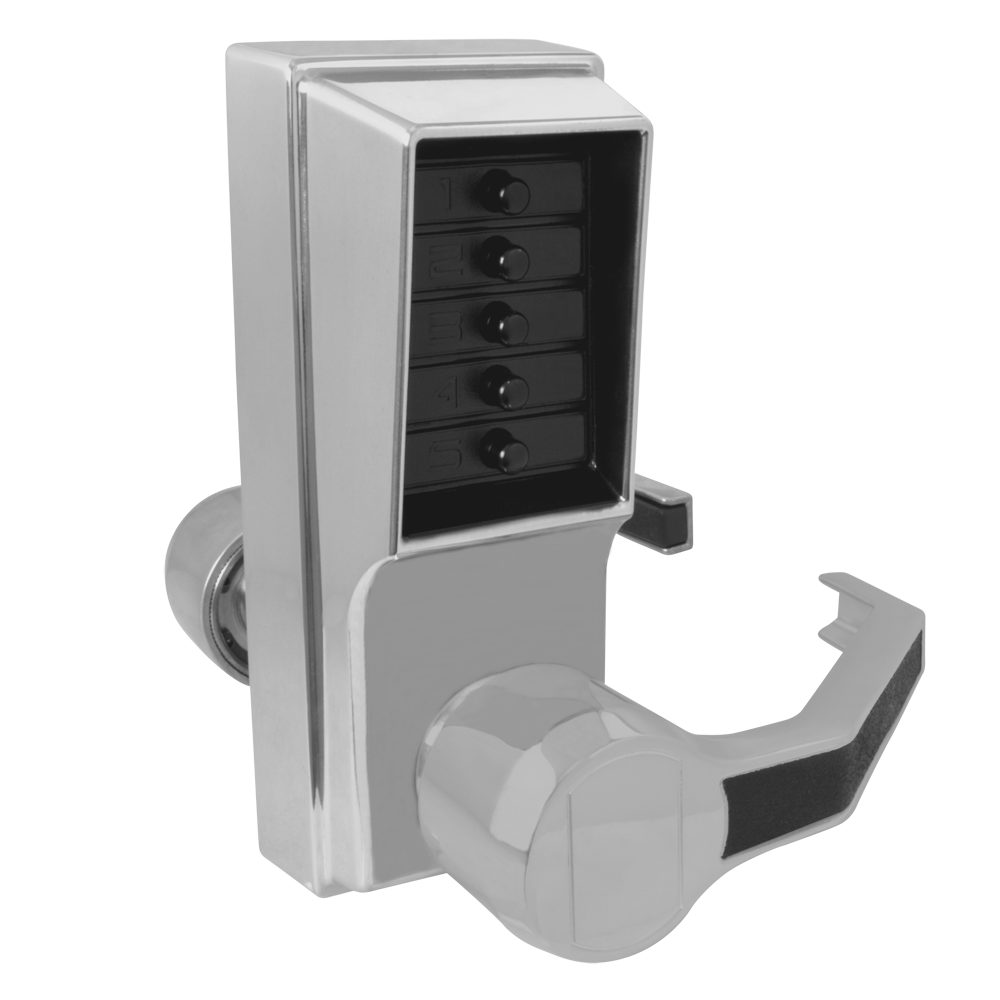

DORMAKABA Simplex L1000 Series L1031 Digital Lock Lever Operated With Passage Set

The dormakaba Simplex L1031 (formerly Kaba) is a heavy-duty, fully mechanical digital lock designed to provide reliable keyless access control without the need for batteries or wiring. Featuring a robust lever-operated design, this weather-resistant lock is ideal for high-traffic commercial and residential environments.

A key feature of the L1031 model is its integrated passage set mode. Activated via an internal thumbturn or key, this function allows free access without entering a code - perfect for periods of high-frequency use, such as deliveries or unloading.

The lock supports a single, easily managed access code of 1 to 5 digits, offering over 1,000 possible combinations. Code changes can be completed quickly by authorised personnel while the unit remains fitted to the door. To prevent damage from forced entry attempts, the lock incorporates a protective clutch mechanism.

This model is available in multiple finishes, including Satin Chrome and Polished Brass, and in both Left Hand and Right Hand configurations. Weights range from 4.33kg to 4.868kg depending on your selection. Please choose your preferred finish, handing, and other options from the selection below.

Technical Specifications

• Brand: dormakaba
• Series: Simplex L1000 (L1031)
• Backset: 70mm
• Case Depth Required: 110mm
• Door Thickness: 35mm to 57mm
• Code Length: 1 to 5 digits (single user code)
• Combinations: 1,000+
• Latch: Heavy-duty deadlocking latch
• Passage Set: Yes (key or thumbturn)
• Key Override: No
• Weather Resistant: Yes
• Finishes: Polished Brass or Satin Chrome (please choose from the options below)

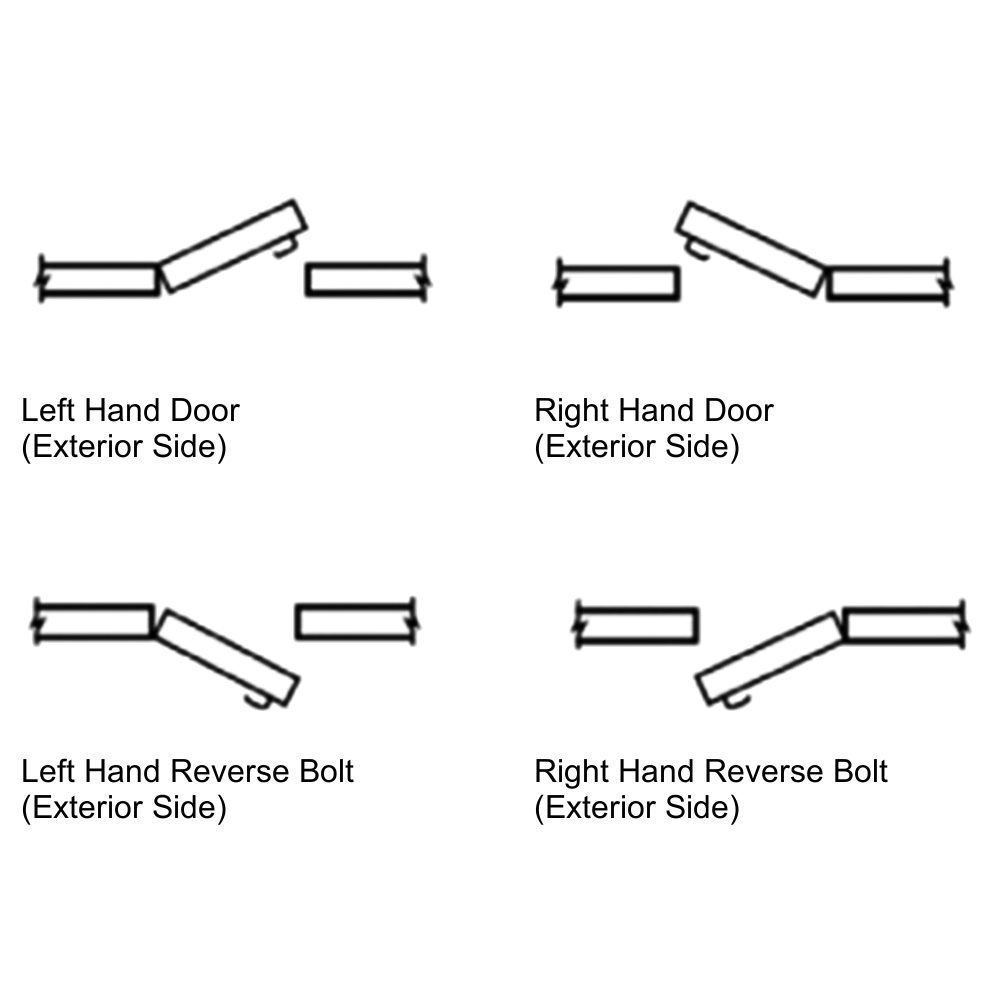

• Handing: Left Hand or Right Hand (please choose from the options below)
• Weight: 4.33kg to 4.868kg (please choose from the options below)
• Width: 79mm
• Guarantee: 3 Years
• Pack Quantity: 1
• Packaging: Boxed

Key Features

• Fully Mechanical Operation: Eliminates the need for batteries, wiring, or electrical connections.
• Passage Set Mode: Allows free access via an internal thumbturn or key, ideal for high-frequency entry periods.
• Vandal-Resistant Keypad: Features solid metal pushbuttons for outstanding durability and weather resistance.
• On-Door Code Changes: Fast and simple code programming by authorised personnel without removing the lock from the door.
• Protective Clutch Mechanism: Safeguards the lock against forced handle rotation and vandalism.
• Free Egress: Lever handle on the inside provides immediate free exit at all times.
