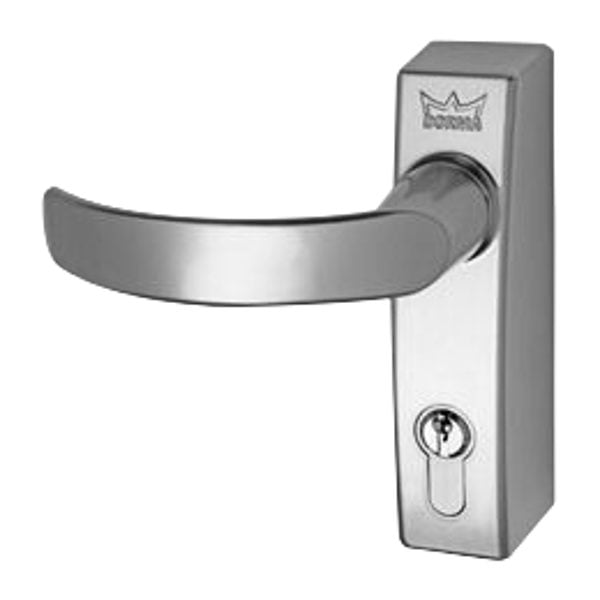

DORMAKABA PHT 01 Lever Operated Outside Access Device

The dormakaba PHT 01 Lever Operated Outside Access Device (formerly known as Dorma) is a high-quality external trim lever handle designed to work seamlessly with the PHA 2000 and Exit Pad series of panic exit hardware. This robust unit provides secure, controlled access from the outside of a building while maintaining emergency egress functionality from the inside.

Engineered for versatility, the PHT 01 features a non-handed, fully reversible design, making it suitable for both left and right-handed doors. It is prepared for a Euro-profile single cylinder (sold separately), allowing you to integrate it into your existing master key system or standard keying setup.

This outside access device is suitable for standard doors with a leaf thickness of up to 60mm. It comes complete with a silver-finished lever handle, spindle, and two fixing bolts for a straightforward installation.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: PHT01
• Finish: Silver
• Mechanism: Euro Cylinder (cylinder not included)
• Handing: Reversible (non-handed)

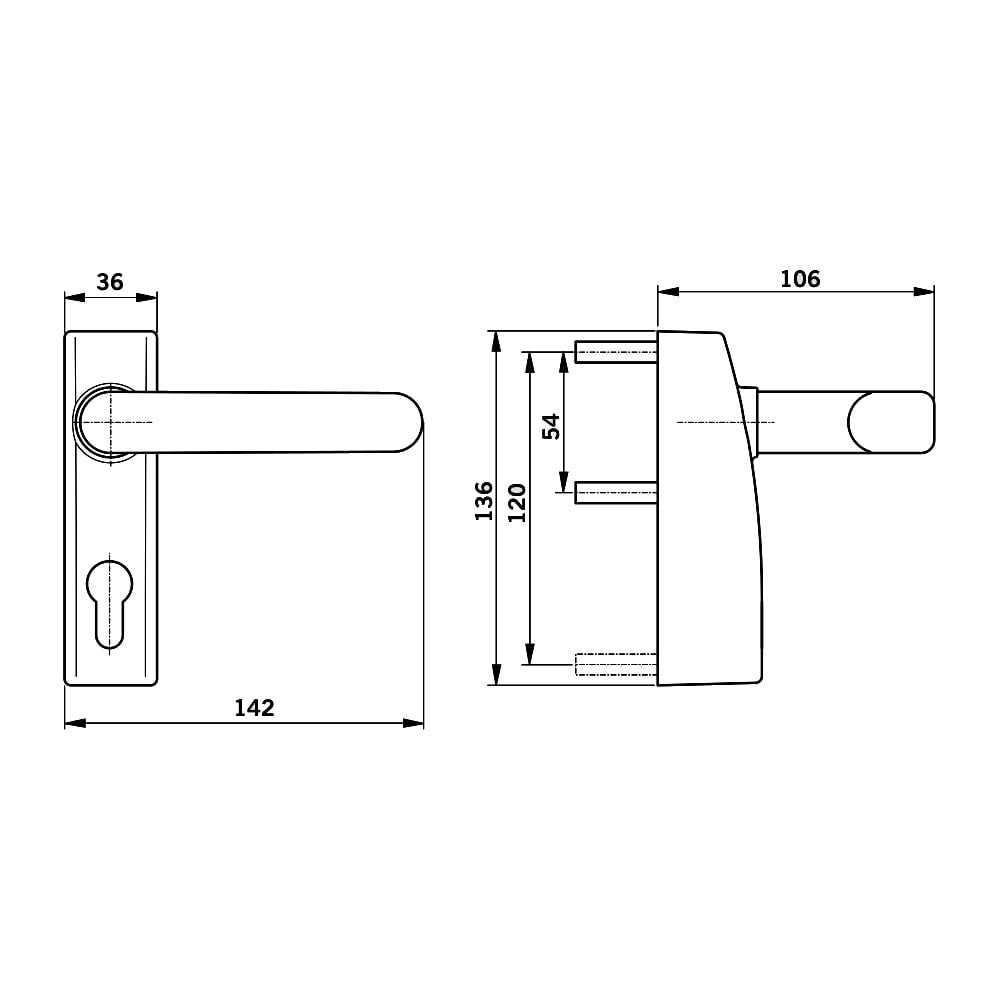

• Body Width: 36mm
• Handle Projection: 106mm
• Screw Centres: 54mm or 120mm
• Maximum Door Thickness: 60mm
• Standards: CE Marked
• Weight: 820g

Key Features

• Compatibility: Designed to suit dormakaba PHA 2000 and Exit Pad series exit hardware
• Flexible Handing: Non-handed, reversible design suitable for left or right-handed doors
• Euro-Profile Prepared: Ready for installation of a standard Euro-profile single cylinder (not included)
• Complete Kit: Supplied with lever handle, spindle, and two fixing bolts for installation
• Durable Construction: High-quality silver finish designed to withstand external conditions
