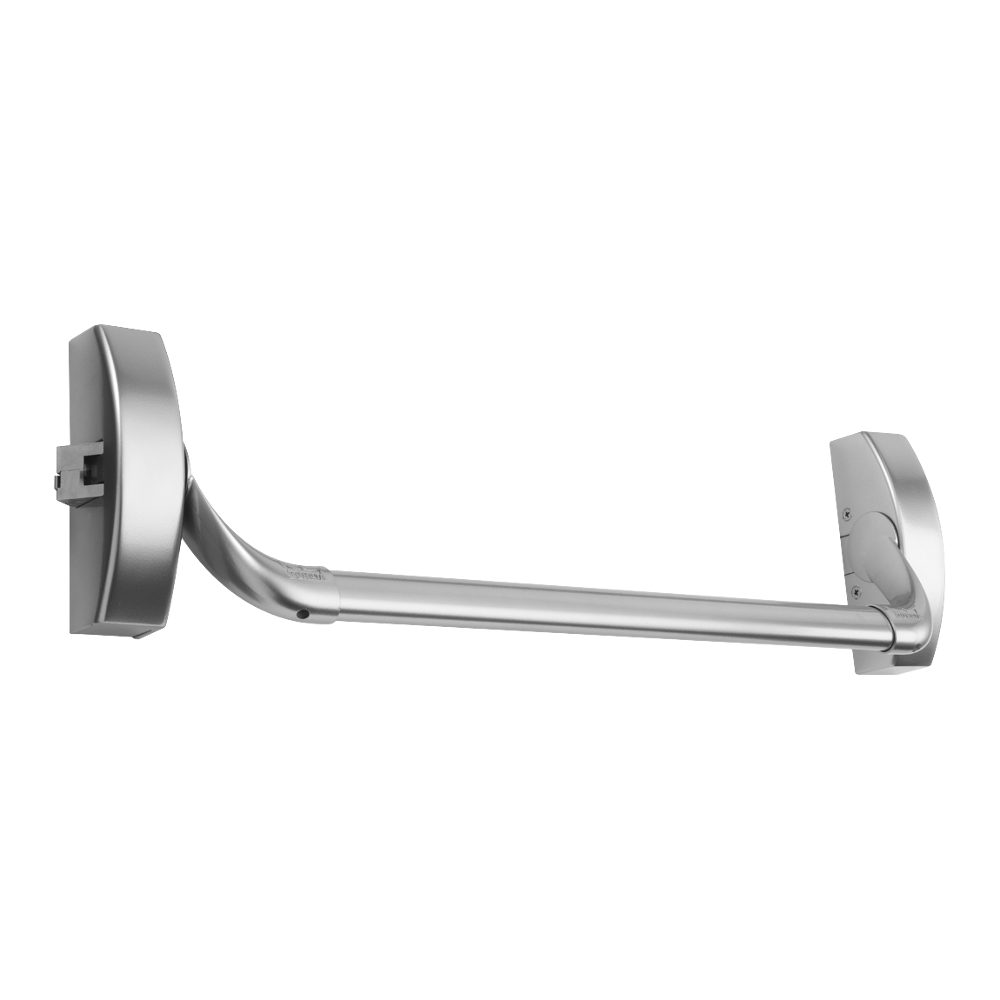

DORMAKABA PHA2221 Standard Panic Latch

The dormakaba (formerly Dorma) PHA 2221 Standard Panic Latch is designed for use on the active leaf of over-rebated double doors. Part of the reliable PHA 2000 range, this high-quality panic hardware is ideal for emergency exits and escape routes. It is fully tested to BS EN 1125 and carries the CE mark.

This single-point locking unit is suitable for fire and smoke check doors. It features an integrated dogging device, which can hold the latch in a retracted position to allow free access when required. The non-handed, fully reversible design ensures straightforward installation on both left and right-hung doors.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: PHA2221
• Standards: BS EN 1125, CE Marked

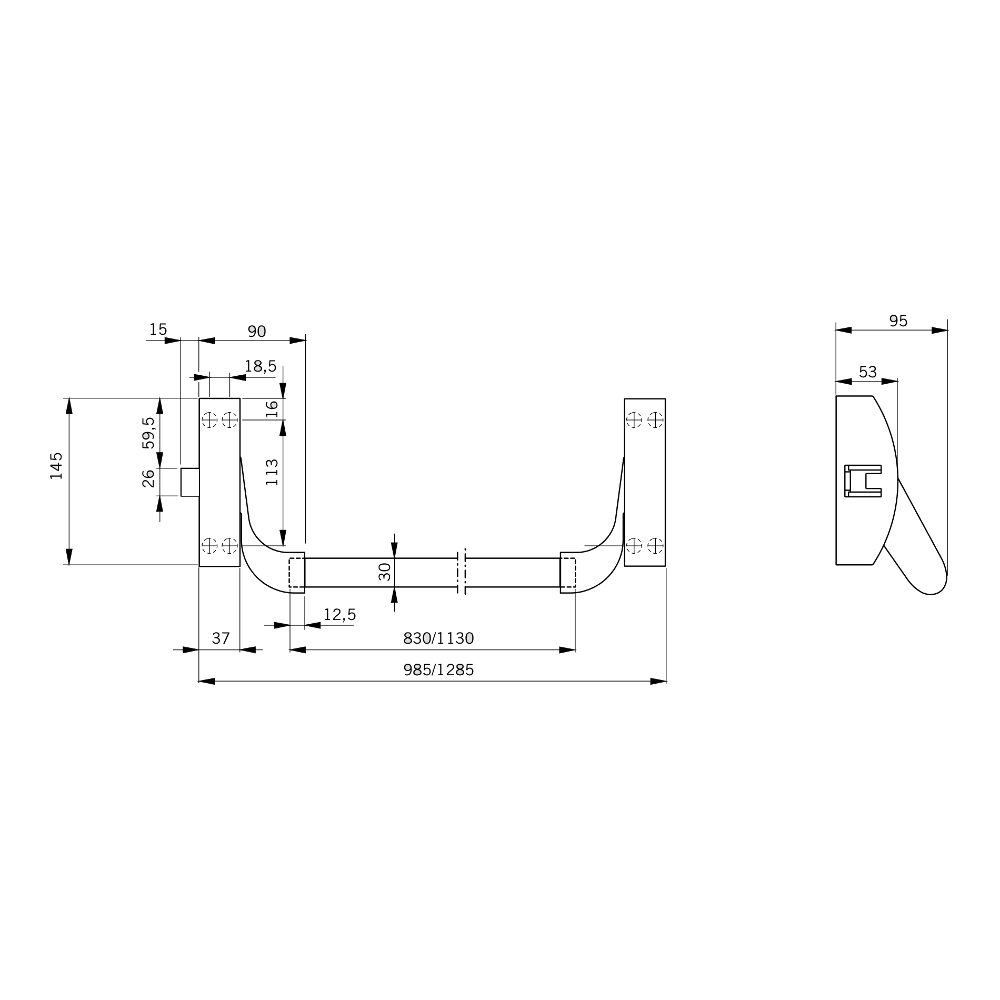

• Body Height: 145mm
• Depth: 95mm
• Width: 1.285m (985mm to 1285mm)
• Handle Projection: 42mm
• Screw Centres: 113mm
• Max Door Height: 2270mm
• Max Door Width: 1000mm
• Max Door Weight: 200kg
• Finish: Silver
• Handing: Reversible (Non-handed)
• Weight: 2.77kg

Key Features

• Over-Rebated Double Doors: Specifically designed to suit the active leaf of over-rebated double doors.
• Fire Door Rated: Suitable for use on fire and smoke check doors.
• Dogging Device: Allows the latch to be held in a retracted position for free access when needed.
• Single-Point Locking: Provides secure single-point latching.
• Reversible Handing: Non-handed design suitable for both left and right-hung doors.
• Certified Safety: Tested to BS EN 1125 and CE marked for peace of mind.
