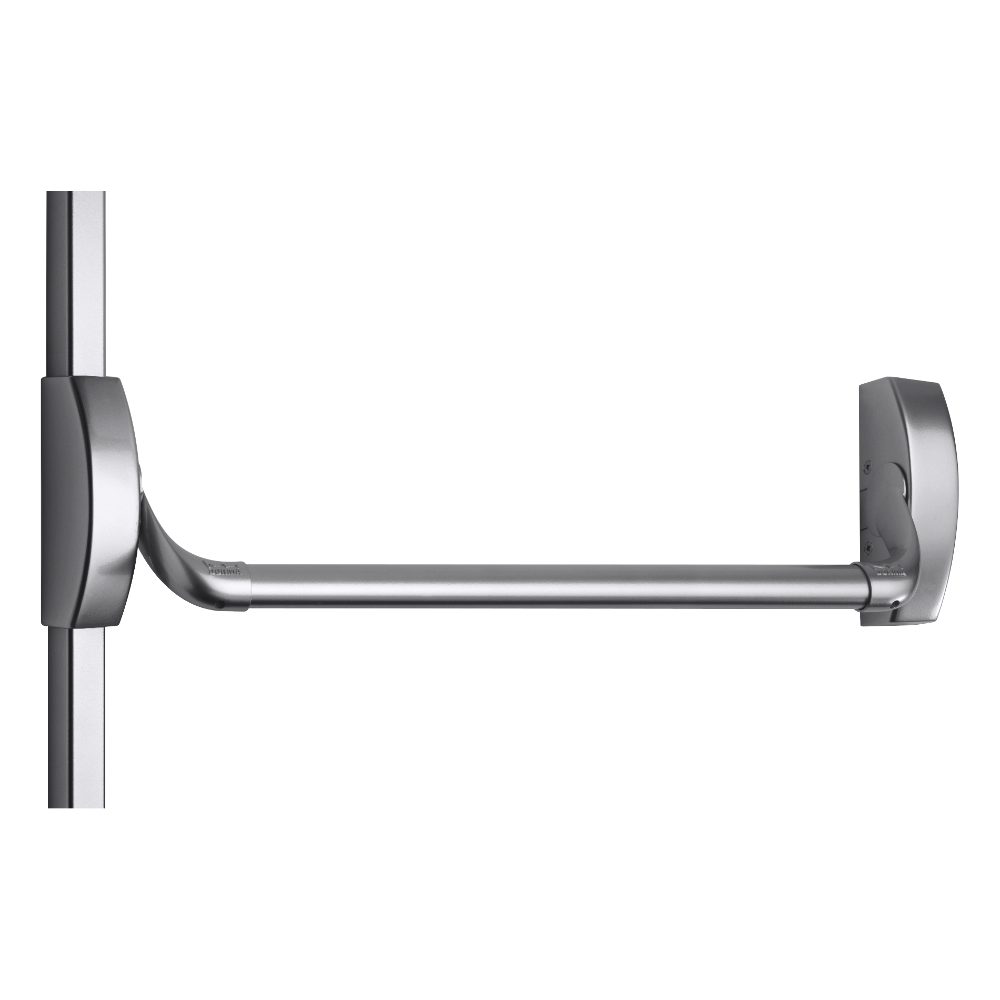

DORMAKABA PHA2220 Standard Panic Bolt

The dormakaba (formerly known as Dorma) PHA 2220 Standard Panic Bolt is a high-performance, two-point locking panic device designed for public buildings and commercial properties. Engineered for safety and reliability, this surface-mounted unit features steel top and bottom shoot bolts to provide secure double-point locking.

Tested in accordance with BS EN 1125 and carrying the CE mark, the PHA 2220 is fully certified for use on fire and smoke check doors. It is equipped with a practical dogging device, allowing the latch to be held in a retracted position to facilitate free access during standard operating hours.

This non-handed, fully reversible panic bolt is easy to install and adjust. It is supplied with a connecting rod set featuring metal covers, making it suitable for doors up to 2270mm high and up to 1000mm wide.

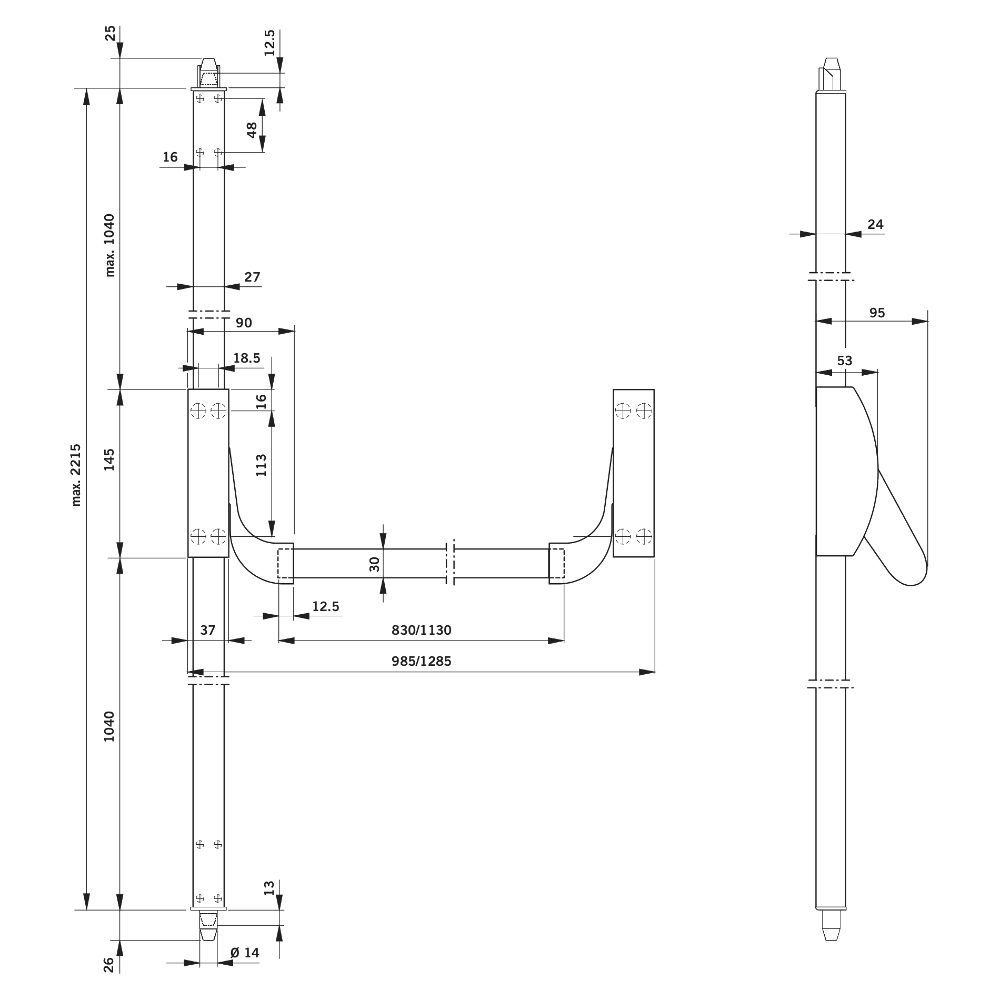

Technical Specifications

• Brand: dormakaba
• Standards: BS EN 1125, CE Marked
• Maximum Door Width: 1000mm
• Maximum Door Height: 2270mm
• Maximum Door Weight: 200kg
• Finish: Silver
• Handing: Reversible (Non-handed)
• Locking Points: 2-point (top and bottom shoot bolts)
• Body Height: 145mm
• Depth: 95mm
• Handle Projection: 42mm
• Weight: 4.26kg

Key Features

• Certified Safety: Fully tested to BS EN 1125 and CE marked, making it suitable for use in public areas and emergency exits.
• Fire Door Approved: Suitable for installation on fire and smoke check doors.
• Integrated Dogging Device: Allows the latch to be held in a retracted position for free access when required.
• Robust Construction: Features steel top and bottom shoot bolts for reliable two-point locking security.
• Universal Handing: Fully reversible design ensures suitability for both left and right-handed doors.
• Complete Kit: Supplied with a connecting rod set and metal covers for a clean, professional finish.
