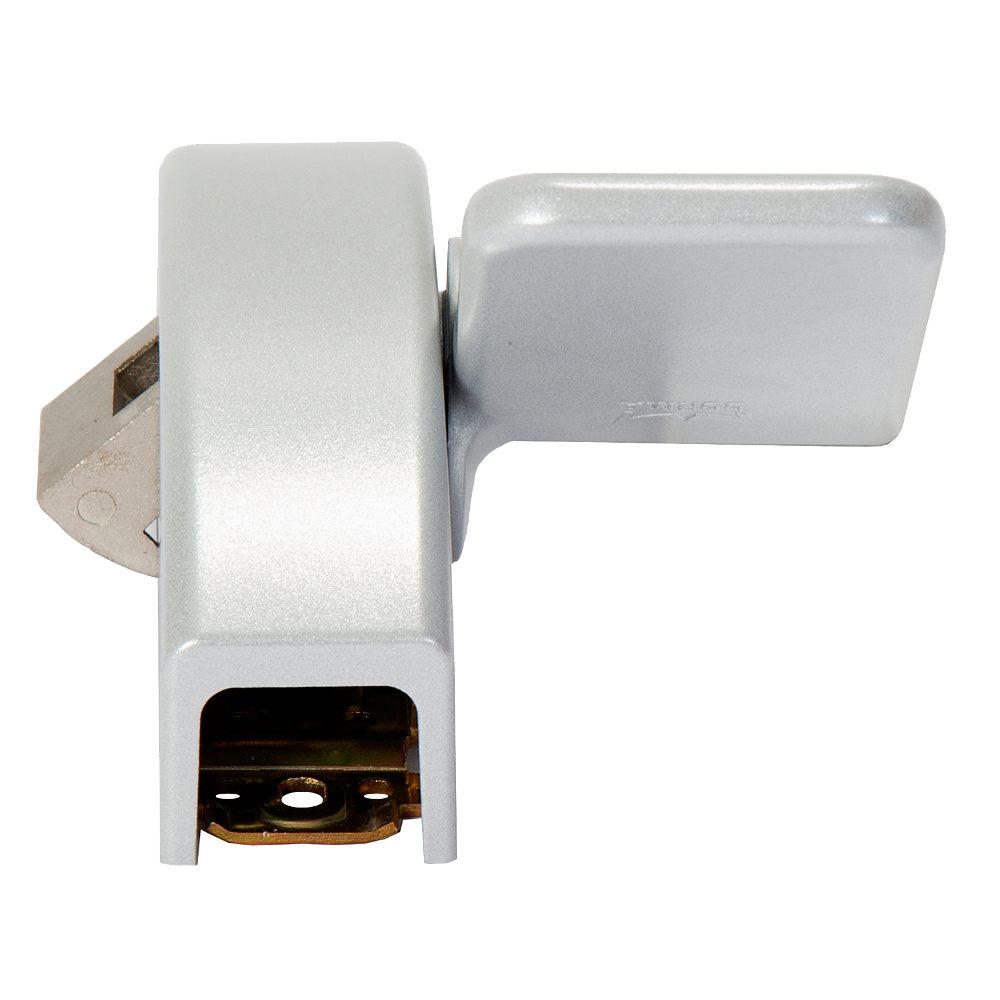

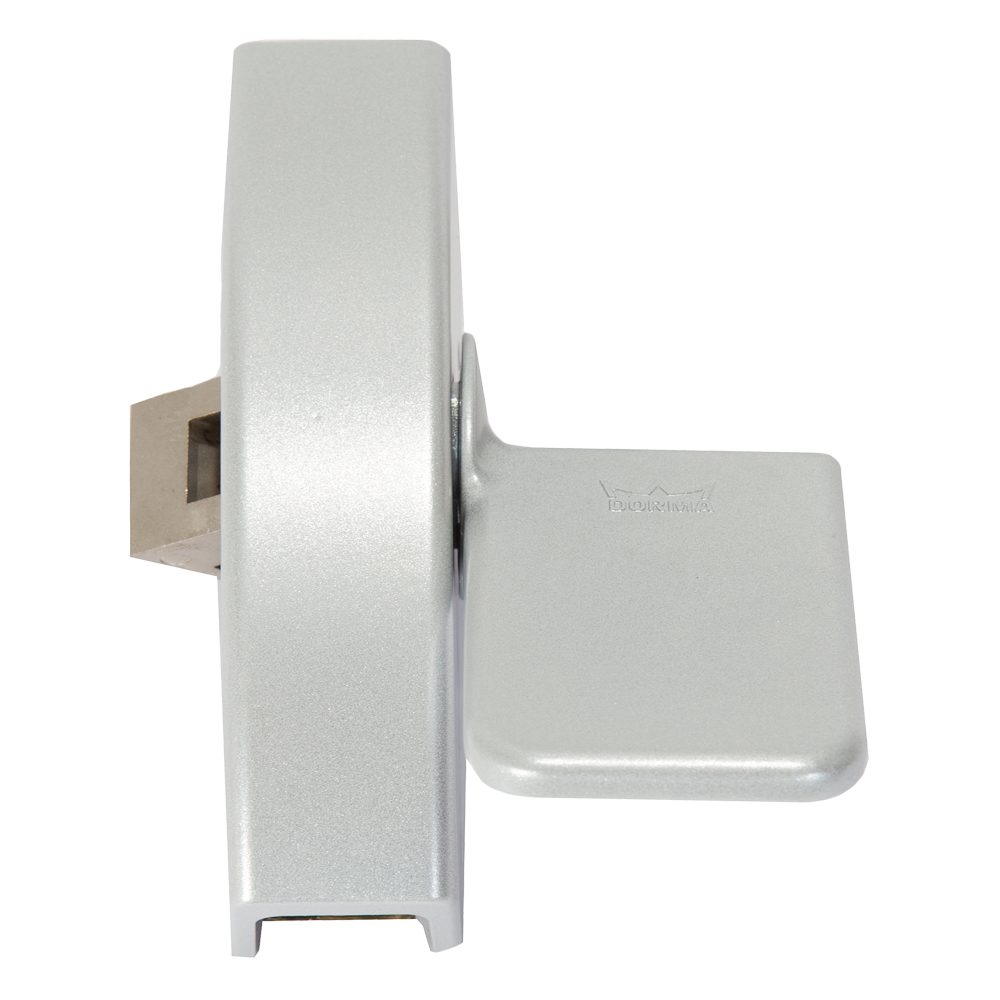

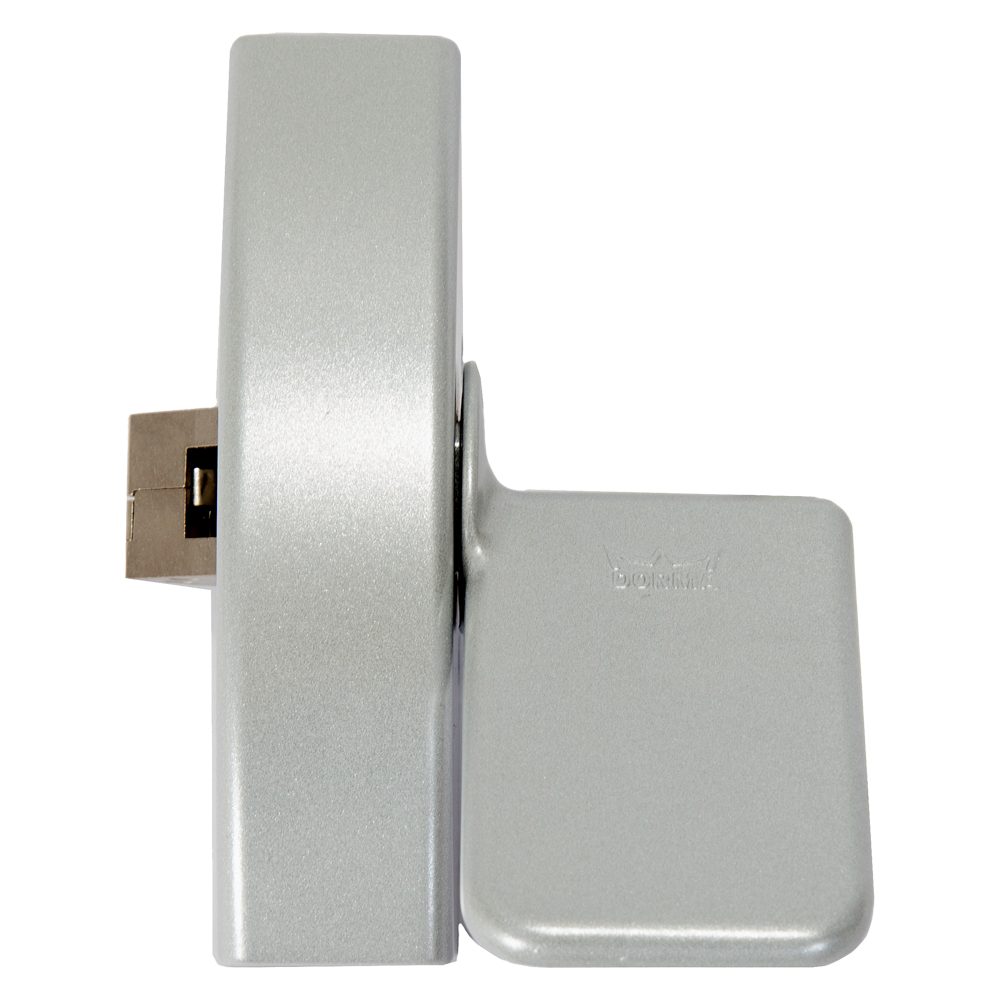

DORMAKABA PHA2111 Modular Push Pad

The dormakaba PHA 2111 Modular Push Pad is a high-quality, single-point locking panic latch designed for emergency escape doors. Fully certified to BS EN 179 standards, this push pad is ideal for buildings where occupants are familiar with the exit routes, such as offices and private work environments, helping to ensure safe evacuation without the risk of panic. It is also fully approved for use on fire and smoke check doors.

This highly versatile, modular unit can be seamlessly integrated with components from the dormakaba PHA 2000 and PHA 3000 series. For added convenience, it can also be configured to unlock via an electric strike if fitted. Featuring a robust zinc die-cast latch and a fully reversible design, it offers flexible installation on both left and right-handed doors.

Technical Specifications

• Standards: CE Marked, BS EN 179
• Handing: Reversible
• Max Door Width: 1300mm
• Max Door Height: 2270mm
• Max Door Weight: 200kg

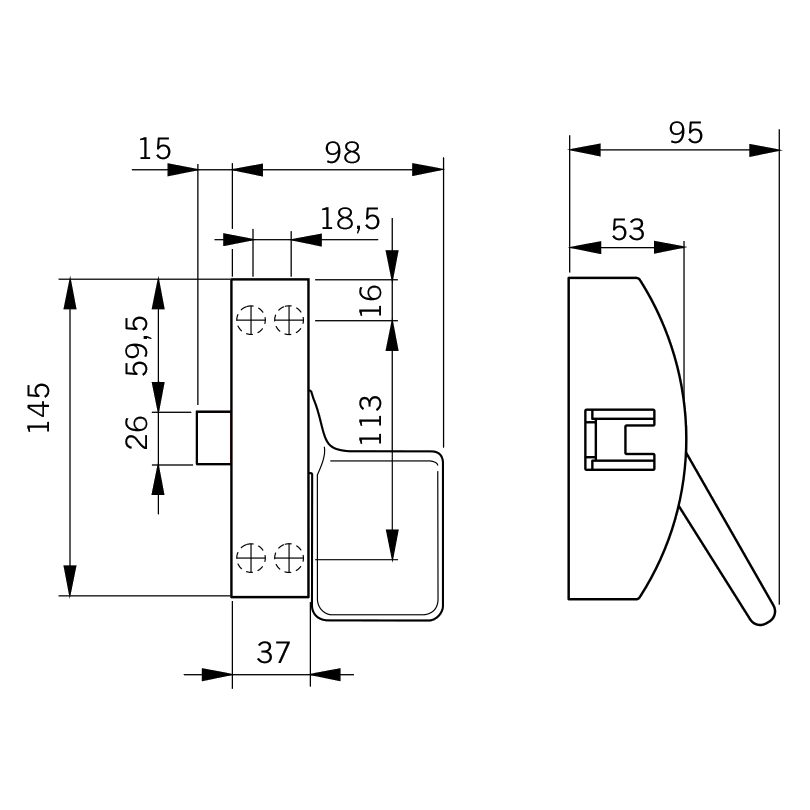

• Body Height: 145mm
• Body Width: 37mm
• Depth: 95mm
• Handle Projection: 42mm
• Screw Centres: 113mm
• Finish: Silver
• Weight: 1.22kg

Key Features

• Certified Safety: Fully compliant with BS EN 179 for emergency escape routes where occupants are familiar with the exit layout
• Fire Rated: Suitable for use on fire and smoke check doors
• Modular Design: Compatible with components from the dormakaba PHA 2000 and PHA 3000 series
• Electric Strike Integration: Can be unlocked remotely via an electric strike if fitted
• Durable Construction: Features a robust zinc die-cast latch, a zinc latch keep with spacer plates, and a plastic mounting bracket
• Reversible Handing: Non-handed design allows for easy installation on both left and right-handed doors
