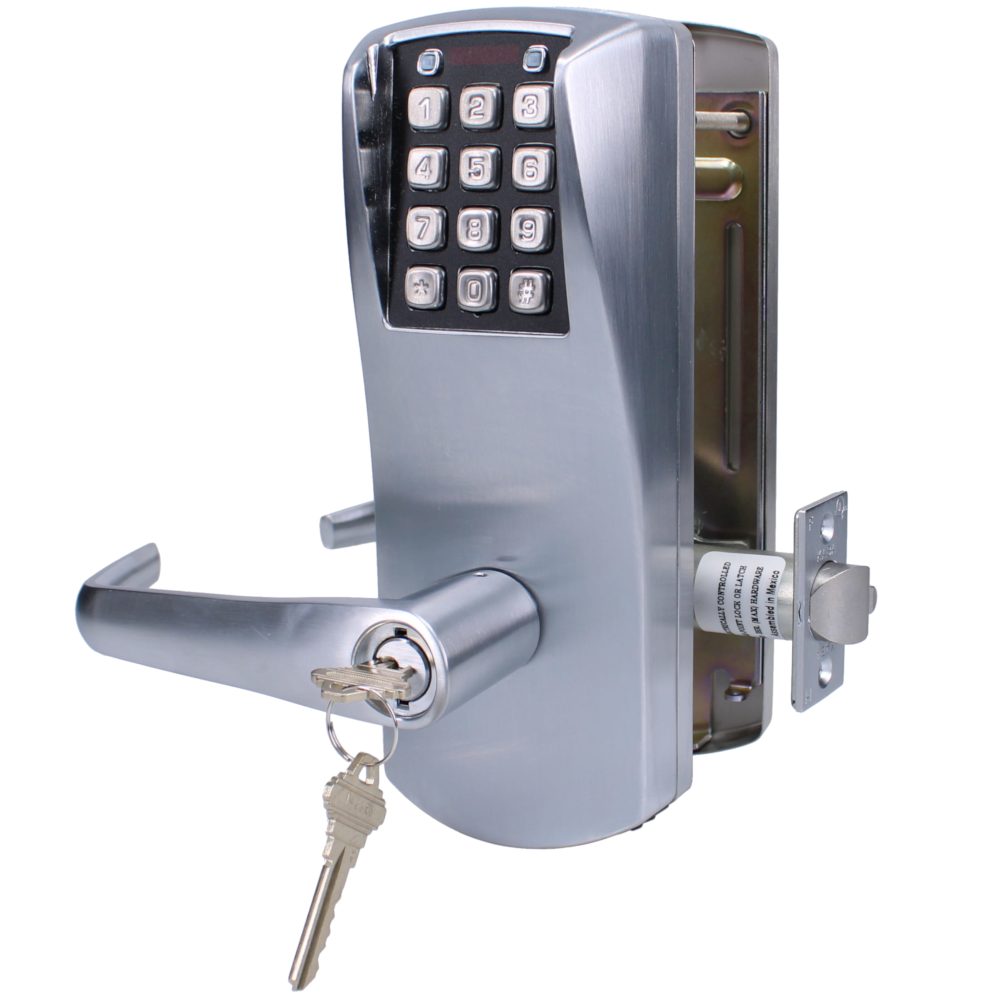

DORMAKABA E-Plex 2000 Powerstar Digital Lock

The DORMAKABA E-Plex 2000 Powerstar Digital Lock is a highly efficient, self-powered electronic lock designed to eliminate the maintenance costs and hassle of battery replacements. Utilizing dormakaba's patented PowerStar™ technology, the lock generates its own power with every turn of the lever. Its built-in super capacitors can hold a full charge for up to 10 weeks with zero activity, making it the perfect security solution for remote, infrequently visited, or rarely used storage facilities.

This robust digital lock requires no wiring through the door, making installation straightforward and reducing the risk of pinched wires. It features a vandal-resistant 12-button keypad and supports up to 100 user codes, ranging from 4 to 8 digits. For added peace of mind, the lock is equipped with a mechanical key override and is supplied with two keys. With a weather-resistant design and a durable satin chrome finish, the E-Plex 2000 is built to withstand demanding environments.

Technical Specifications

• Brand: dormakaba
• Power Source: Self-powered (PowerStar™ technology)
• Backset: 70mm
• Case Depth Required: 127mm
• Door Thickness: 35mm to 64mm
• Finish: Satin Chrome
• Key Override: Yes (2 keys supplied)
• Code Length: 4 to 8 digits
• User Codes: 100
• Handing: Reversible (Non-handed)
• Latch: 70mm Standard
• Operation Outside: Lever handle on entry of code or by key
• Operation Inside: Lever handle free exit
• Weather Resistant: Yes
• Guarantee: 3 Year

Key Features

• Self-Powering Technology: Patented PowerStar™ system generates power with every turn of the lever, eliminating the need for batteries or external power.
• Long-Lasting Charge: Built-in super capacitors hold a charge for up to 10 weeks with no activity, making it ideal for remote or rarely used locations.
• No Wiring Required: Simple installation with no wires running through the door, preventing damage and costly callbacks.
• High Code Capacity: Supports up to 100 user codes (4 to 8 digits) for flexible access control.
• Vandal-Resistant Keypad: Durable 12-button keypad designed to resist tampering and wear.
• Mechanical Override: Includes a key override function with 2 keys supplied for emergency access.
• Reversible Handing: Non-handed design can be easily configured in the field for left or right-handed doors.
• Passage Mode: Features a passage set function to allow free entry when required.
