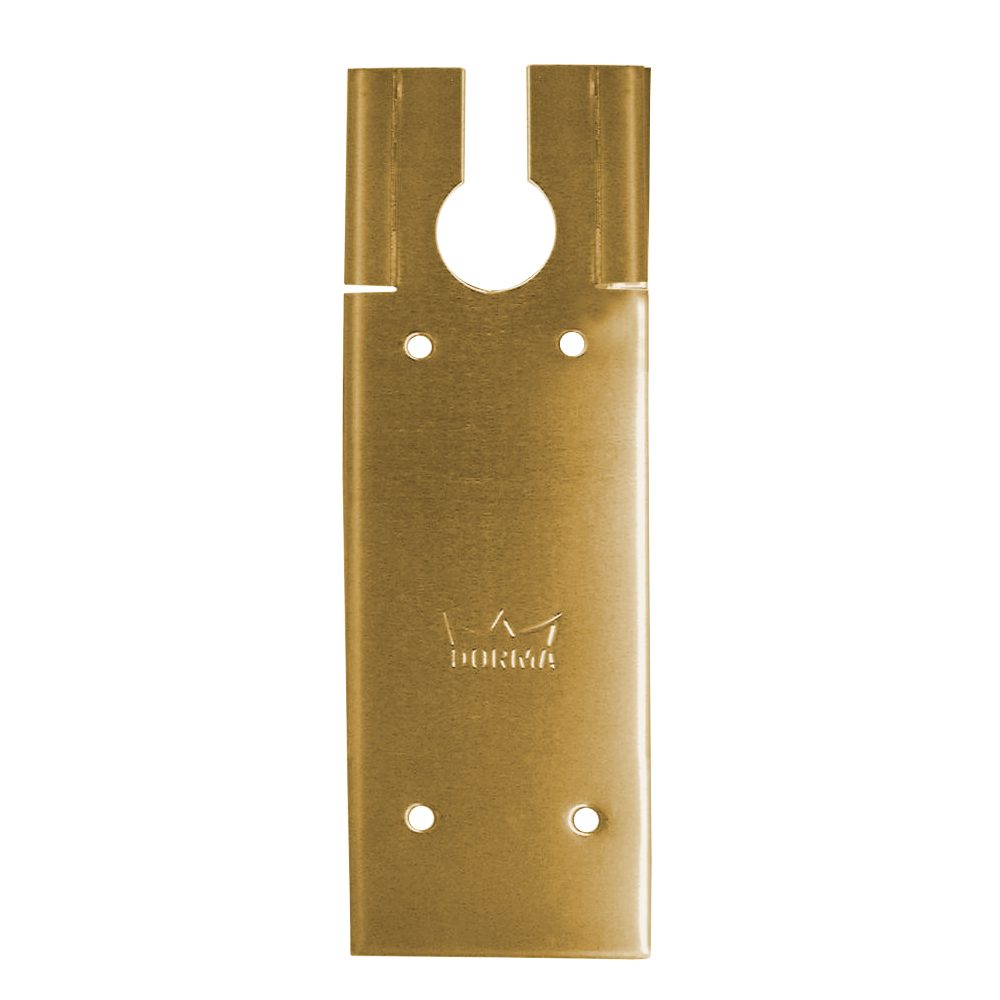

DORMAKABA Cover Plate To Suit BTS75V

The dormakaba (formerly Dorma) Cover Plate is specifically designed to suit the BTS75V floor spring door closer. This high-quality cover plate provides a neat, flush finish to your floor spring installation while protecting the internal mechanism from dust, dirt, and moisture. It also helps prevent unauthorised tampering with the closer’s adjustment valves.

Designed for maximum versatility, this universal cover plate is non-handed and suitable for both single and double-action doors. For single-action applications, the pre-blanked corner sections can easily be snapped off to accommodate the bottom strap, whereas they remain intact for double-action setups. The plate can be installed or replaced with the door in-situ, making maintenance straightforward.

This cover plate is available in a choice of finishes, weights, barcodes, and manufacturer references to match your aesthetic and technical requirements. Please select your preferred options from the choices below.

Technical Specifications

• Compatibility: Designed to suit dormakaba BTS75V floor spring door closers
• Dimensions: 308mm (L) x 105mm (W) x 1.5mm (T)
• Material Thickness: 1.5mm
• Finish: Stainless Steel or Satin Brass (please choose from the options below)
• Manufacturer Reference: 46700059 or 46700159 (please choose from the options below)
• Weight: 40g or 45g (please choose from the options below)
• Barcode: 5055120753072 or 5055120753089 (please choose from the options below)
• Pack Quantity: 1
• Packaging: Boxed

Key Features

• Protective Design: Shields the internal floor spring mechanism and prevents tampering with adjustment valves
• Universal & Non-Handed: Suitable for both single and double-action doors
• Easy Adaptation: Pre-blanked corner sections can be snapped off for single-action doors or left intact for double-action doors
• Simple Installation: Complete with fixing screw pack and can be installed or replaced with the door in-situ
• Premium Finishes: Available in multiple finishes to complement your existing door hardware
