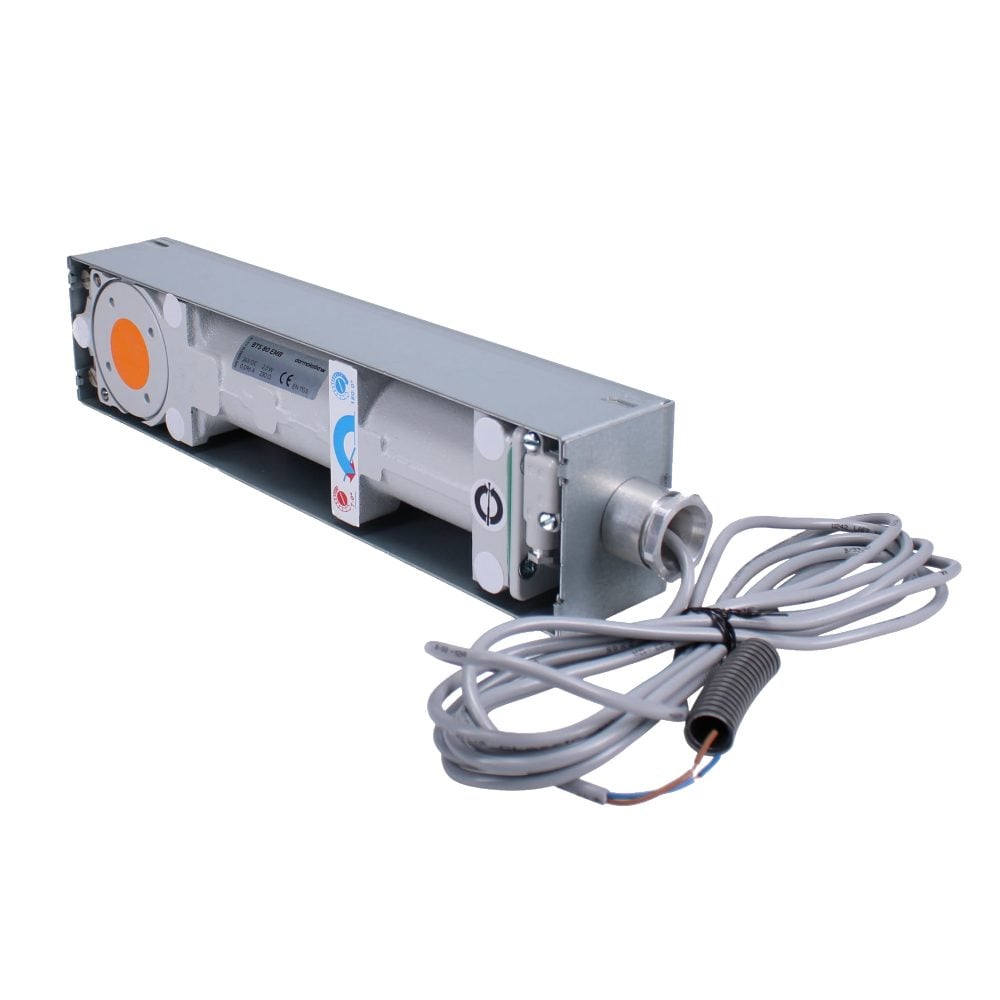

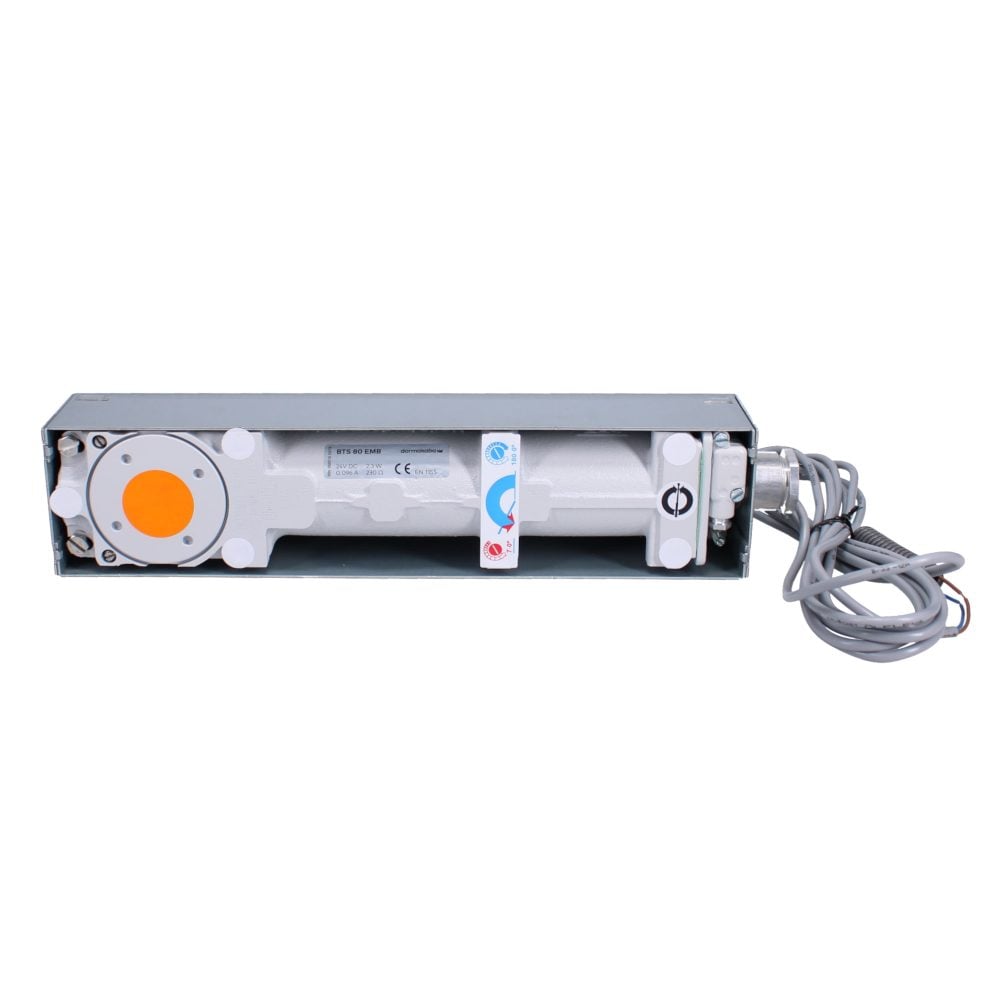

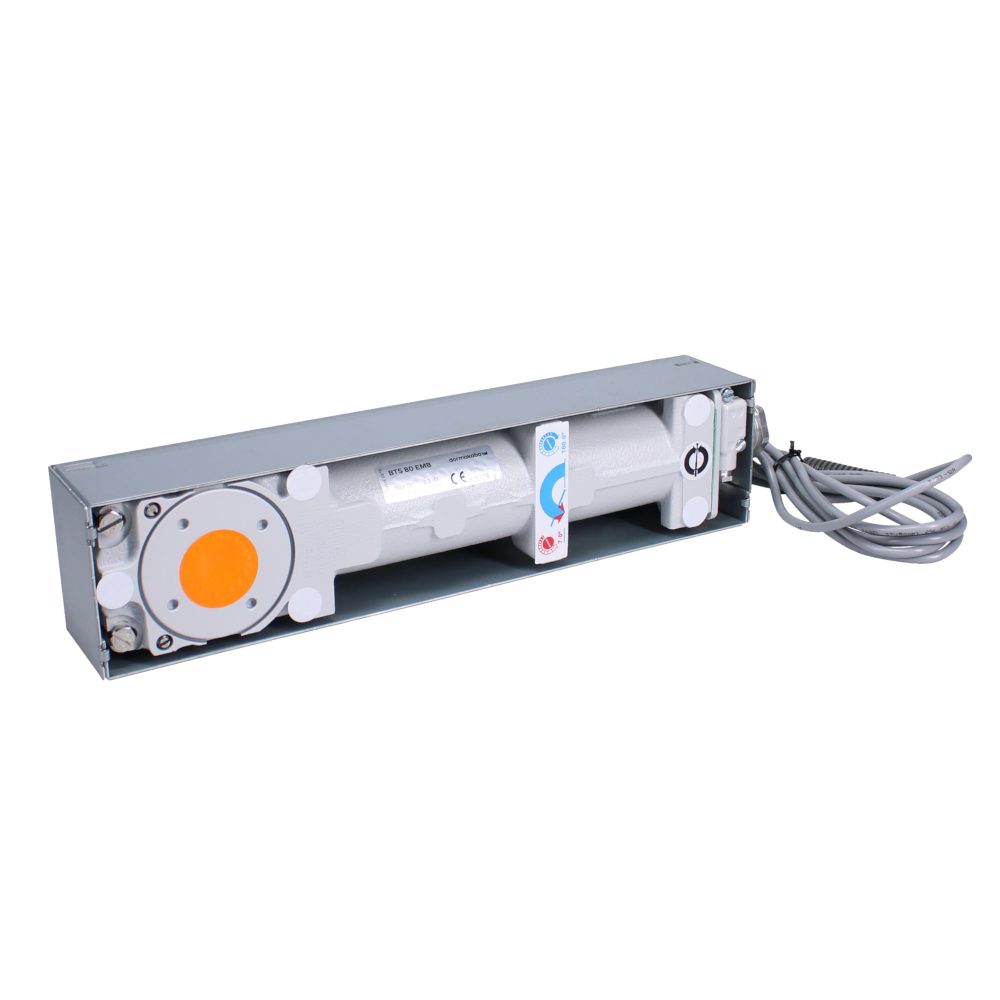

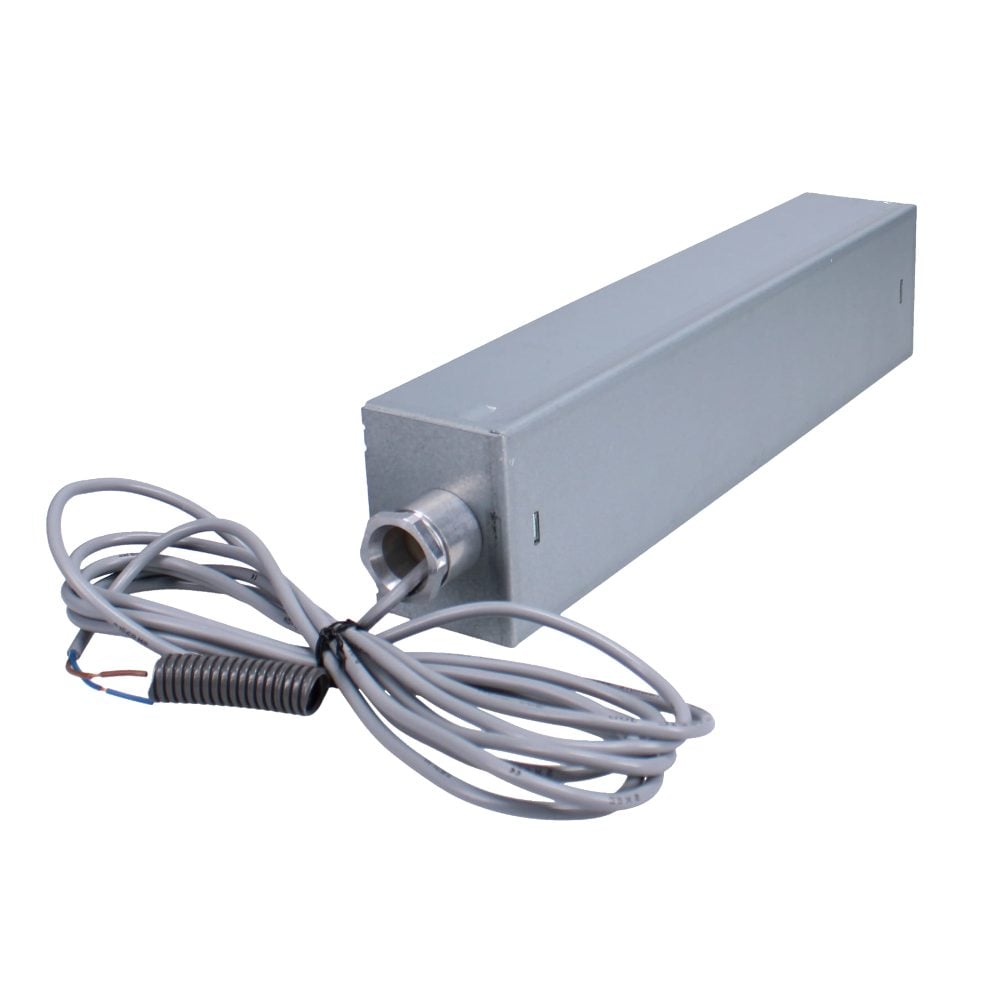

DORMAKABA BTS80 EMB Floor Spring 24V DC

The dormakaba BTS80 EMB is a heavy-duty, floor-concealed door closer designed for applications where surface-mounted life safety products cannot be installed. Featuring a 24V DC electro-magnetic hold-open function, this floor spring is particularly well-suited for fire and smoke check doors, allowing them to remain open during normal use and close automatically in the event of an emergency or power failure.

This versatile floor spring is suitable for both single and double-action doors weighing up to 300kg. It provides exceptional control with fully adjustable closing and latching speeds, alongside a mechanical backcheck to prevent damage from violent opening.

Please note that the cover plate is sold separately.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: 82224001
• Barcode: 4021226216491
• Power Supply: 24V DC
• Strength Size: EN 4 to 6
• Max Door Weight: 300kg

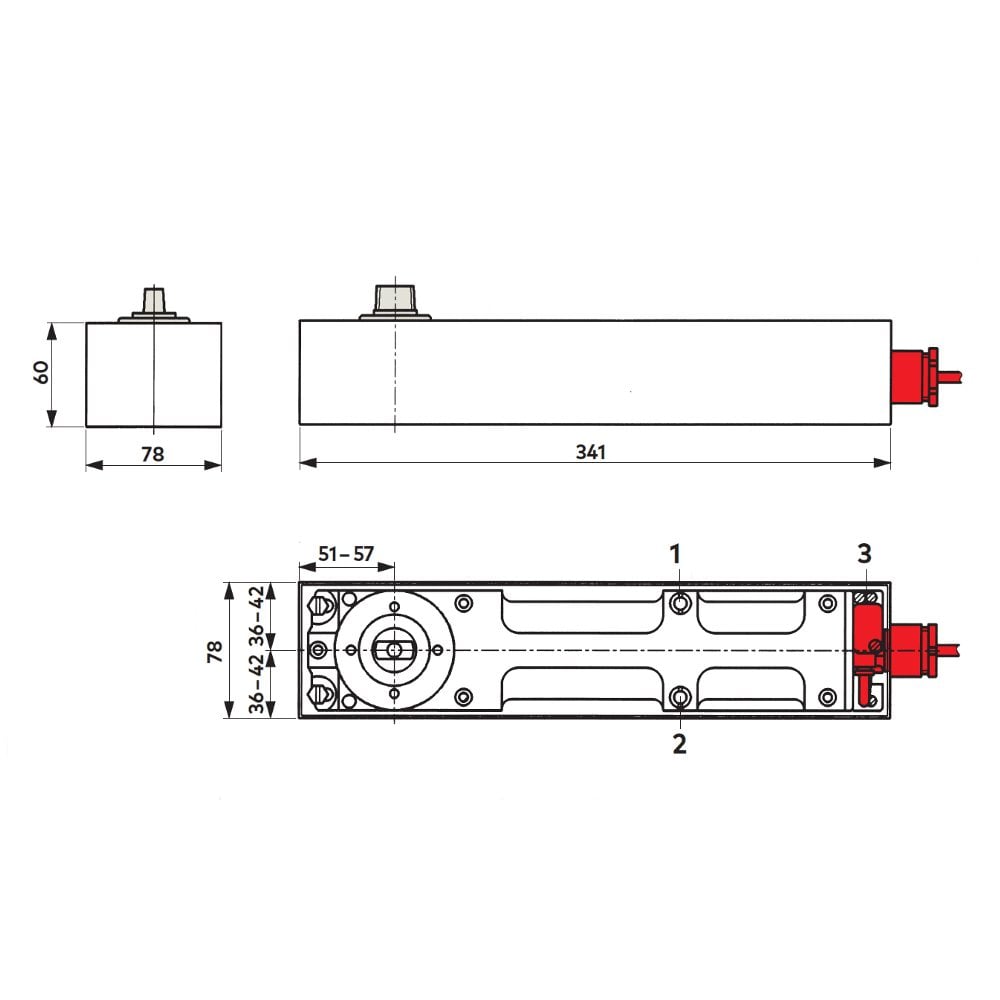

• Length: 34.1cm
• Depth: 78mm
• Weight: 6.68kg
• Standards: BS EN 1154, BS EN 1155:1997
• Certifire Certificate: CF127

Key Features

• Electro-Magnetic Hold-Open: 24V DC electro-magnetic hold-open function, ideal for fire and smoke check doors.
• Fully Controlled Closing: Features adjustable closing speed and latching action.
• Mechanical Backcheck: Built-in backcheck protects the door and wall from damage during forceful opening.
• Versatile Application: Suitable for both single and double-action doors.
• Certifire Approved: Certified for use on fire doors (Cert. No. CF127).
• Concealed Installation: Floor-concealed design provides a clean, minimalist aesthetic.
