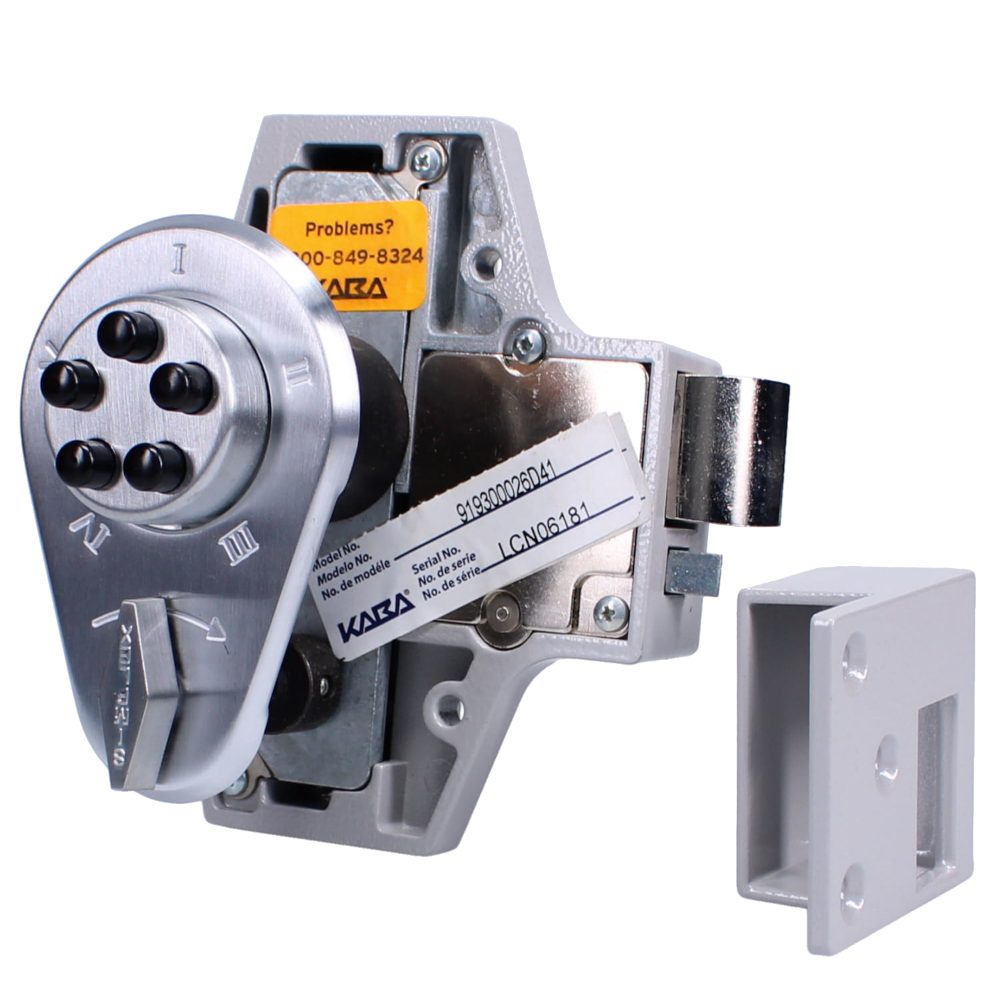

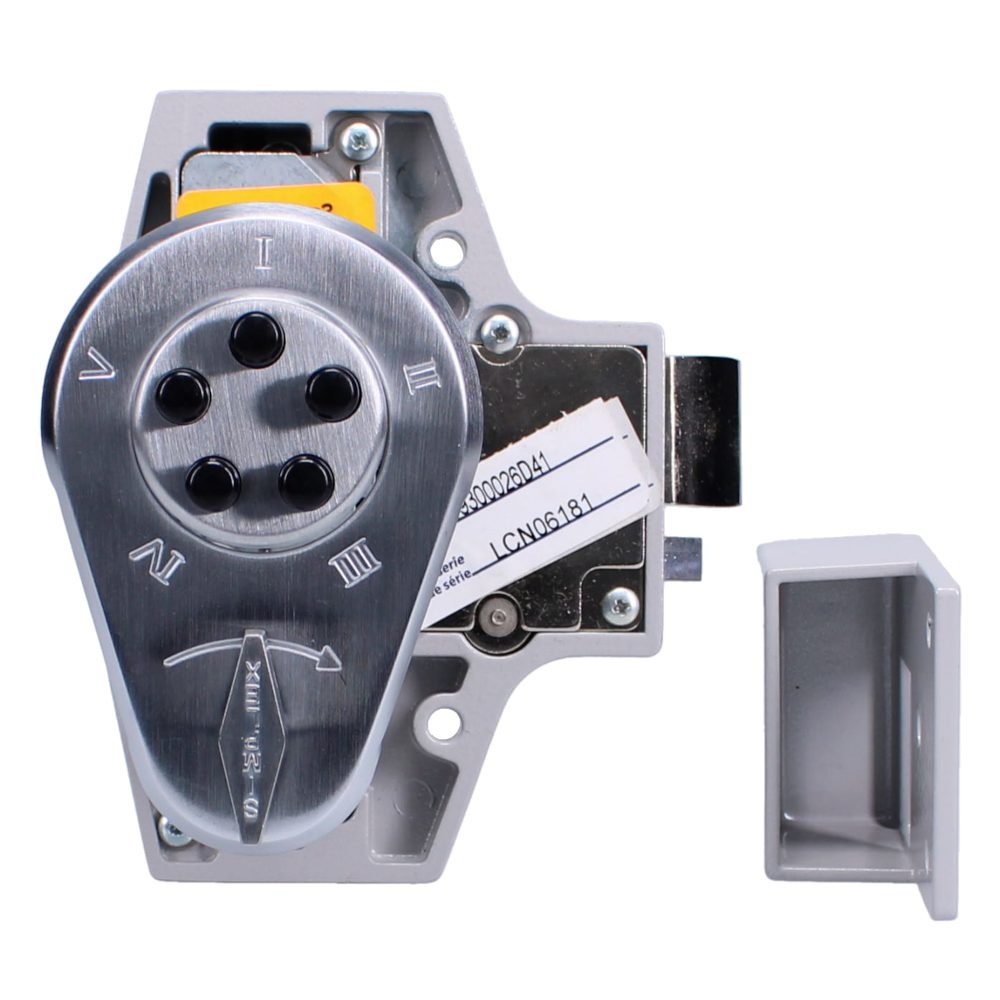

DORMAKABA 900 Series 919-3 Digital Lock With Internal Lever Handle

The dormakaba 900 Series 919-3 (formerly known as the Kaba Simplex) is a robust, fully mechanical digital lock designed to provide secure, keyless access control without the need for batteries or wiring. This weather-resistant lock is ideal for both light commercial and residential doors, offering a reliable security solution for low to medium-traffic areas.

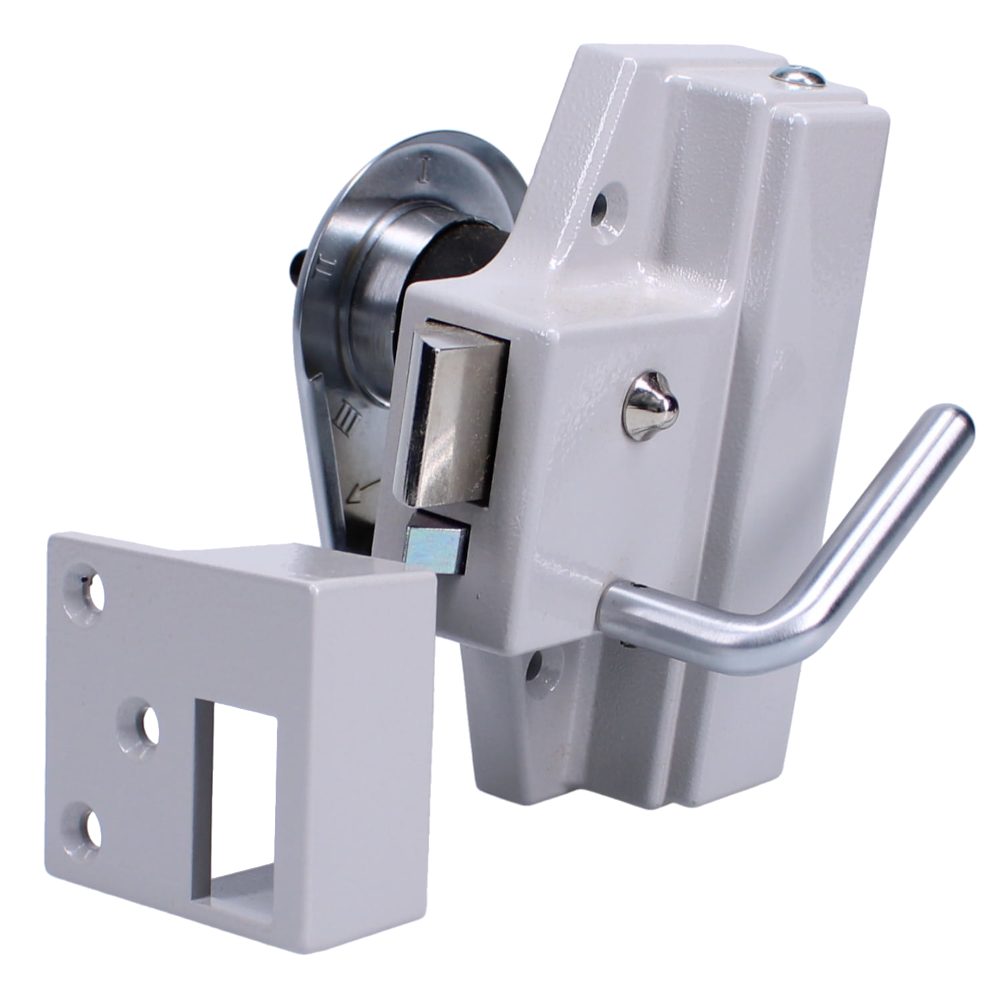

The 919-3 model is specifically designed to suit doors with a thickness of 44mm to 54mm. It comes supplied with a medium-duty rim deadlatch and a convenient internal lever handle, ensuring a quick and easy free exit from the inside. On the outside, entry is gained via a thumbturn after entering the correct code.

With a user-friendly 5-button keypad, you can set a single access code of 1 to 5 digits, choosing from over 1,000 possible combinations. Code changes are fast and straightforward, and can be completed while the unit is still fitted to the door. For added security, the lock features a protective clutch mechanism to prevent damage from forced entry attempts, and a handy latch holdback function to allow free passage when required.

Technical Specifications

• Brand: dormakaba
• Model: 919-3 (9193000-26D-41)
• Lock Type: Mechanical digital rim deadlatch
• Backset: 65mm
• Case Depth Required: 94mm
• Door Thickness: 44mm to 54mm
• Keypad: 5-button
• Code Length: 1 to 5 digits (single code)
• Combinations: 1,000+
• Finish: Satin Chrome
• Handing: Reversible (non-handed)
• Inside Operation: Small lever handle (free exit)
• Outside Operation: Thumbturn on code entry
• Holdback: Yes (latch holdback)
• Key Override: No
• Weather Resistant: Yes
• Weight: 800g
• Width: 65mm

Key Features

• Fully Mechanical Operation: Eliminates the hassle and ongoing cost of battery replacements or wiring.
• Weather Resistant: Durable construction suitable for both indoor and outdoor installations.
• Fast Code Changes: Easily change the access code from the keypad while the unit remains fitted to the door.
• Protective Clutch: Built-in mechanism protects the lock from damage caused by forced entry attempts.
• Free Egress: Internal lever handle allows quick and easy exit from the inside at all times.
• Latch Holdback: Features a holdback function to allow free passage when security is not required.
• Non-Handed Design: Reversible latch and non-handed unit suitable for both left and right-handed doors.
