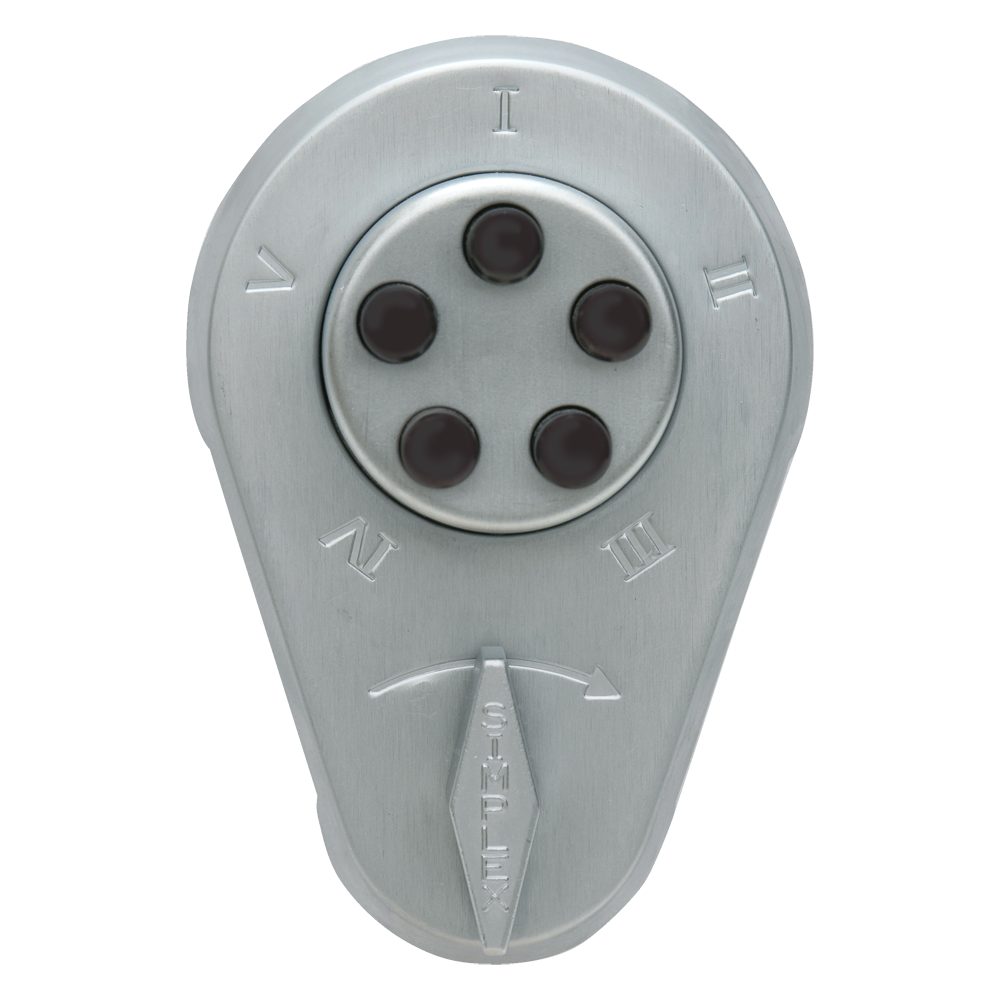

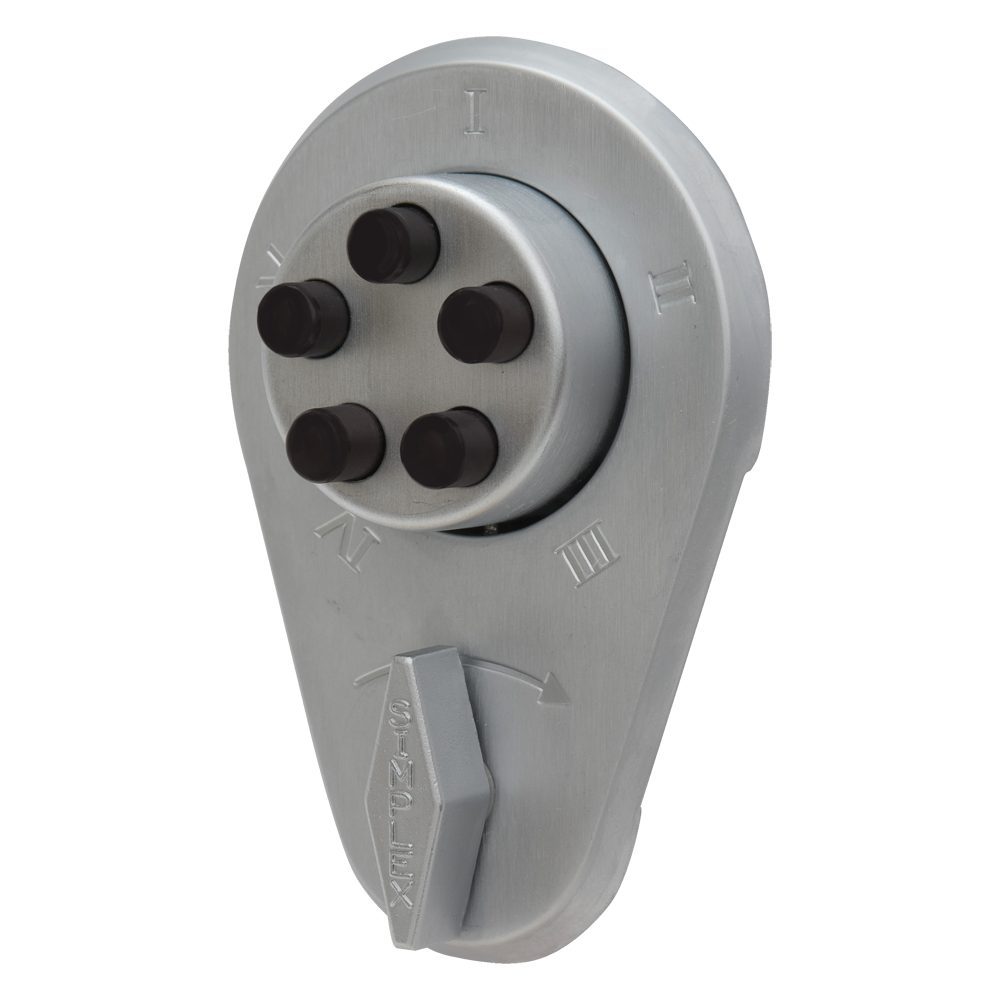

DORMAKABA 900 Series 917 Digital Lock To Suit Doors 35mm - 38mm

The dormakaba Simplex 900 Series 917 is a highly reliable, fully mechanical digital lock designed to provide secure, keyless access control without the need for batteries or wiring. This weather-resistant lock is ideal for light commercial and residential applications, such as offices, utility rooms, and restricted areas.

The 917 model is specifically designed to suit doors with a thickness of 35mm to 38mm. It comes equipped with a medium-duty rim deadlatch (deadlocking spring latch) featuring a convenient latch holdback function, allowing the latch to be retracted for free passage when required.

With a five-button keypad offering over 1,000 possible code combinations, the lock ensures robust security. For ease of maintenance, the single access code can be changed quickly in seconds while the unit remains fitted to the door. It also features a protective clutch mechanism to prevent damage from forced entry attempts, and is fully reversible for both left and right-handed doors.

Technical Specifications

• Brand: dormakaba
• Model: 917 (Simplex 900 Series)
• Door Thickness Suitability: 35mm to 38mm
• Backset: 65mm
• Case Depth Required: 94mm
• Latch: Rim deadlatch with holdback
• Code Length: 1 to 5 digits
• Number of Codes: 1
• Combinations: 1,000+
• Finish: Satin Chrome
• Handing: Reversible
• Key Override: No
• Operation Inside: Thumbturn free exit
• Operation Outside: Thumbturn on code entry
• Weather Resistant: Yes
• Guarantee: 1 Year

Key Features

• Fully Mechanical Operation: Eliminates the need for batteries, wiring, or electrical connections.
• Latch Holdback Function: Allows the latch to be kept retracted for free passage when security is not required.
• Fast Code Changes: The single access code can be changed quickly while the lock remains fitted to the door.
• Protective Clutch Mechanism: Safeguards internal components against damage from forced entry attempts.
• Weather Resistant: Built to withstand outdoor elements, making it suitable for external applications.
• Non-Handed Design: Reversible unit suitable for both left and right-handed doors.
