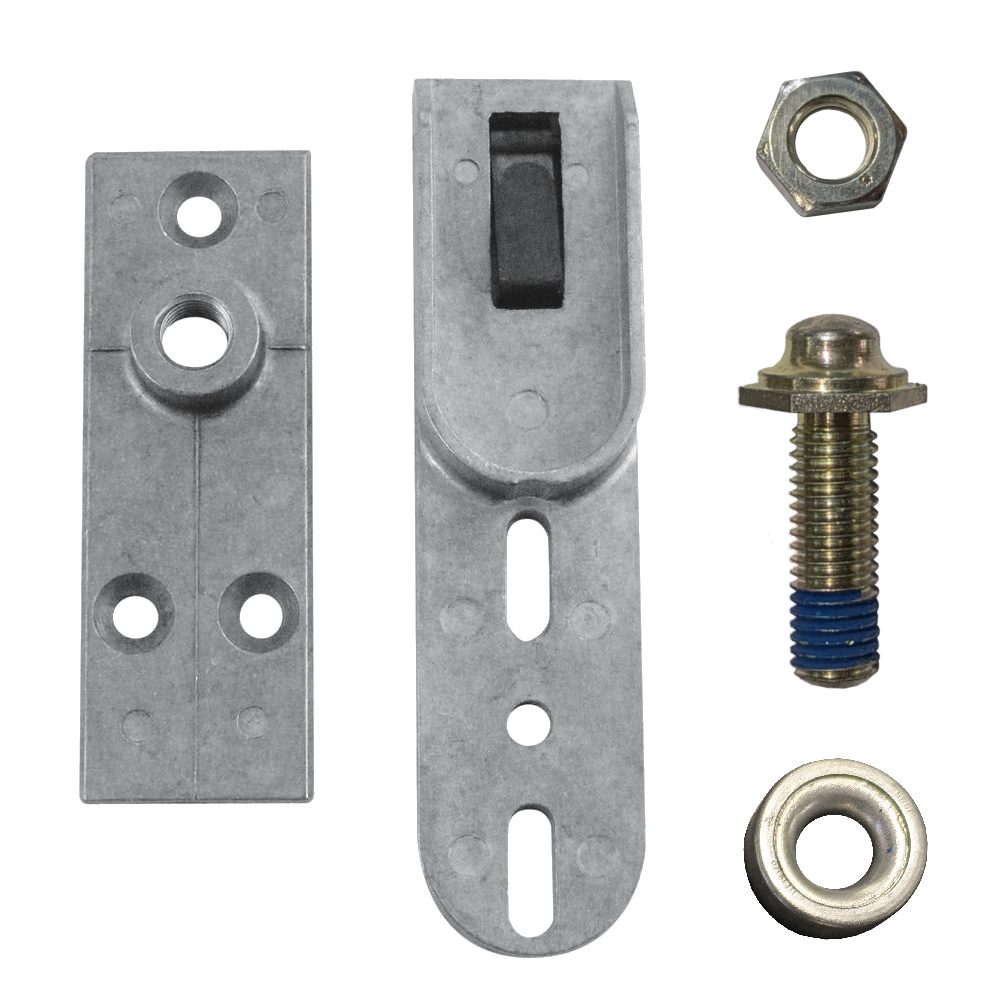

DORMAKABA 8552/3 End Load Floor Pivot

The dormakaba (formerly known as Dorma) 8552/3 End Load Floor Pivot is a high-quality bottom pivot set designed for use with the RTS85 concealed transom door closer system. Engineered specifically for end-load door rail configurations, this pivot set is fixed directly to the floor to provide exceptional rotation stability and smooth, reliable door movement.

This universal pivot is highly versatile, accommodating bottom rails with channel depths ranging from 18mm up to 50mm. It features an adjustable height mechanism to ensure precise alignment and a floor clearance of 5mm. The set comes complete with all necessary fixing screws and plugs, making it a convenient, ready-to-install solution for commercial and architectural door applications.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: 8552/3
• Compatibility: Suitable for dormakaba RTS85 concealed transom door closers
• Installation Type: End-load
• Bottom Rail Channel Depth: 18mm to 50mm
• Floor Clearance: 5mm
• Weight: 244g
• Pack Quantity: 1
• Packaging: Bagged
• Barcode: 4021226015285

Key Features

• End-Load Design: Specifically designed for end-load door rail setups, ensuring secure and stable door rotation.
• Adjustable Height: Allows for precise vertical adjustment to achieve perfect door alignment.
• Versatile Fit: Accommodates a wide range of bottom rail channel depths from 18mm up to 50mm.
• Complete Set: Supplied with all necessary fixing screws and wall plugs for a straightforward installation.
• Direct Floor Mounting: Floor portion of the pivot fits directly to the floor for maximum stability.
