DORMAKABA 8530 Side Load Arm & Channel

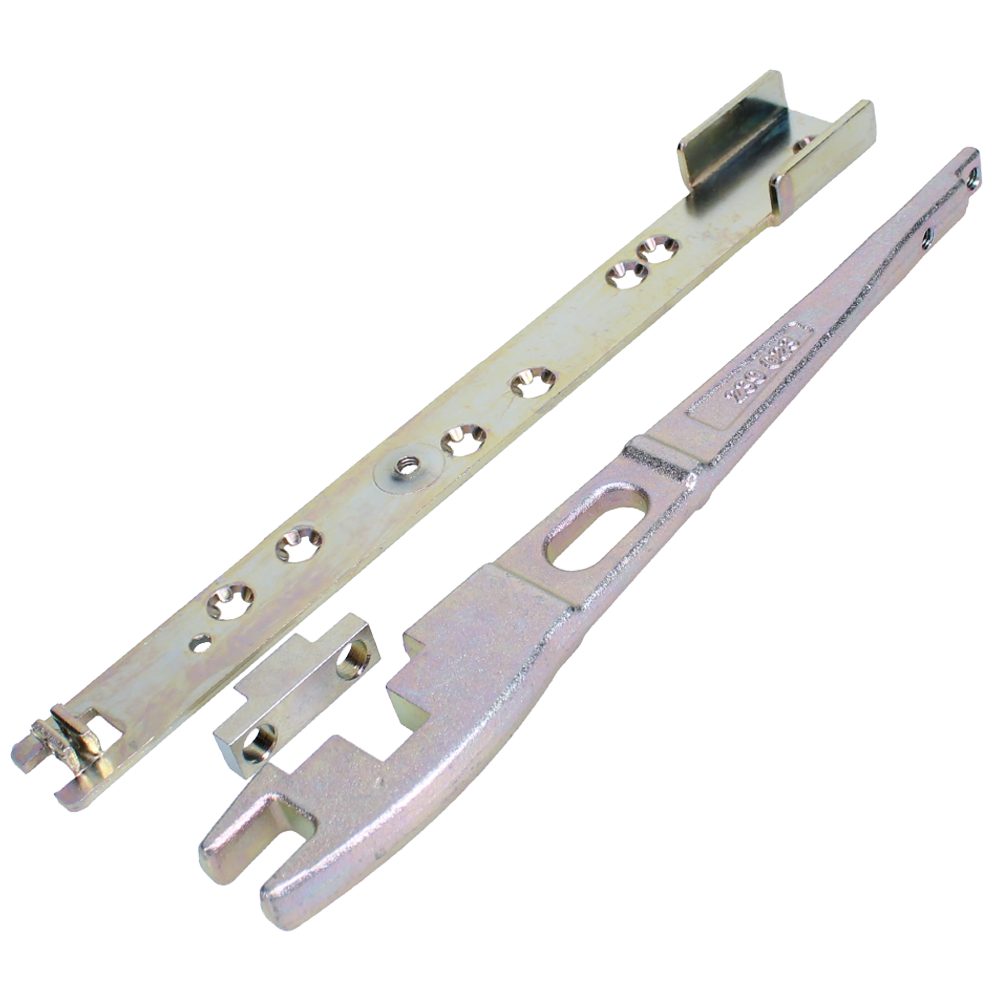

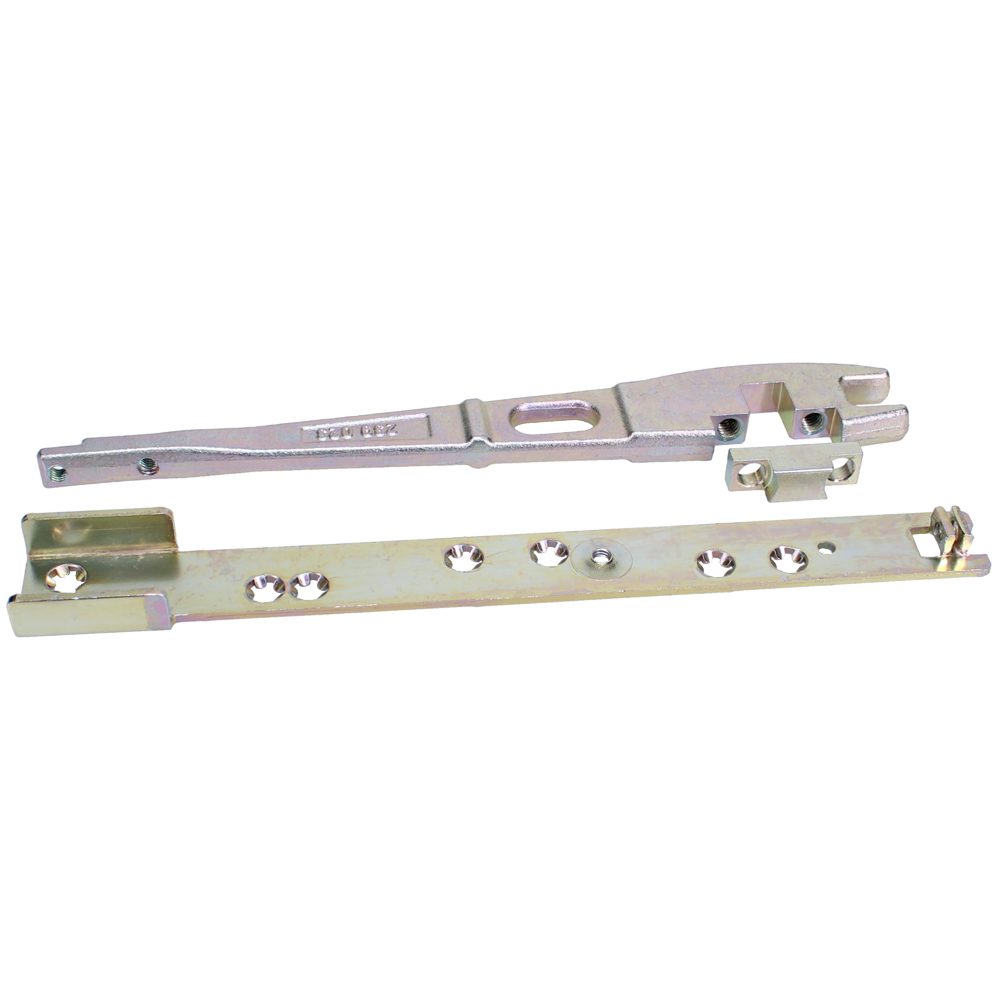

The dormakaba 8530 side load arm and channel (formerly Dorma) is a high-quality accessory designed for use with the RTS85 transom concealed door closer. Engineered for durability and smooth operation on commercial doors, this arm assembly provides a reliable connection between the door and the transom closer spindle.

Side-load installation offers a straightforward fitting process. This is achieved by positioning the door in the closed position onto the floor pivot. The closer arm, which is fitted inside the upper door rail, is then connected directly to the closer spindle and firmly secured using a clamping piece.

This arm and channel set is specifically designed to suit top rails with a minimum channel depth of 15mm and a minimum channel width of 38mm. It is supplied as a complete bagged unit, ready for installation.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: 8530 (Part No. 85210005)
• Compatibility: Suitable for dormakaba RTS85 transom closers
• Minimum Channel Depth: 15mm
• Minimum Channel Width: 38mm
• Weight: 606g
• Barcode: 4021226018521

Key Features

• Easy Side-Load Installation: Allows the door to be fitted in the closed position directly onto the floor pivot.
• Secure Connection: Connects to the spindle and secures tightly with a clamping piece for dependable operation.
• Robust Construction: High-quality materials designed to withstand the demands of commercial environments.
• Complete Assembly: Supplied with both the closer arm and the arm channel.
