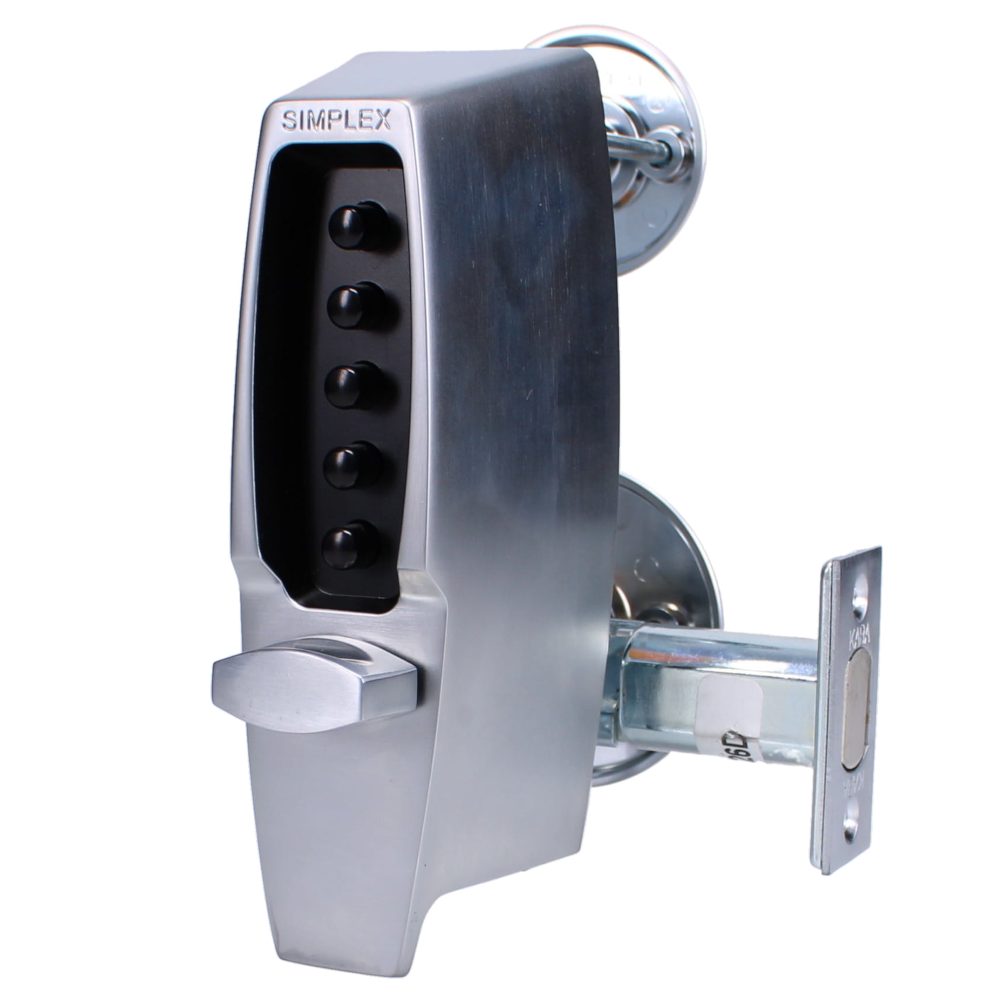

DORMAKABA 7100 Series 7102 Digital Lock Mortice Deadbolt 70mm Backset

The dormakaba Simplex 7102 (formerly known as Kaba) is a robust, fully mechanical digital lock designed to provide reliable keyless access control without the need for batteries or wiring. Ideal for light commercial and residential applications, this weather-resistant lock features a 70mm deadbolt that must be manually relocked, offering a secure auxiliary locking solution.

The lock is easily programmed with a single user code of 1 to 5 digits via the 5-button keypad, and code changes can be completed quickly on-door without removing the unit. It features a force-resistant, clutch-protected exterior thumbturn and vandal-resistant solid metal pushbuttons for exceptional durability. On the inside, a thumbturn provides free egress at all times. The unit is completely non-handed and field-reversible, making it suitable for both left and right-handed doors.

Technical Specifications

• Brand: dormakaba
• Manufacturer Reference: 7102-26D
• Backset: 70mm
• Required Case Depth: 98mm
• Door Thickness: 35mm to 57mm
• Finish: Satin Chrome
• Locking Mechanism: 70mm Deadbolt (manual relock)
• Code Length: 1 to 5 digits (single user code, 1,000+ combinations)
• Handing: Fully reversible (non-handed)
• Key Override: No
• Holdback: No
• Weather Resistant: Yes
• Width: 56mm
• Weight: 1.68kg
• Guarantee: 1 Year

Key Features

• Fully Mechanical Operation: Eliminates the hassle, cost, and maintenance of batteries or electrical wiring.
• Weather-Resistant Construction: Durable all-metal cast front housing suitable for external applications.
• On-Door Programming: Easily change the 1 to 5 digit access code via the keypad without removing the lock from the door.
• Vandal-Resistant Design: Features solid metal pushbuttons and a force-resistant, clutch-protected exterior thumbturn.
• Convenient Egress: Interior thumbturn allows free exit at all times.
• Reversible Handing: Non-handed design can be easily reversed on-site to suit both left and right-handed doors.
