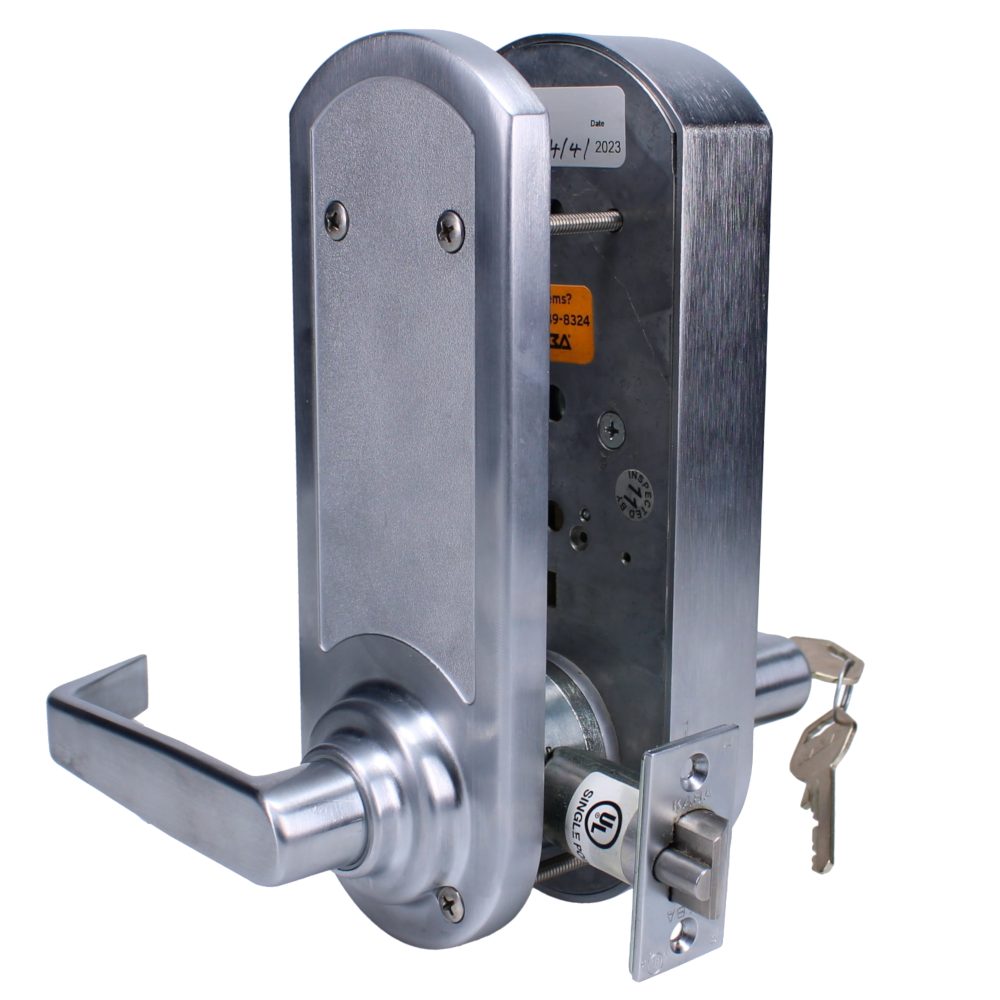

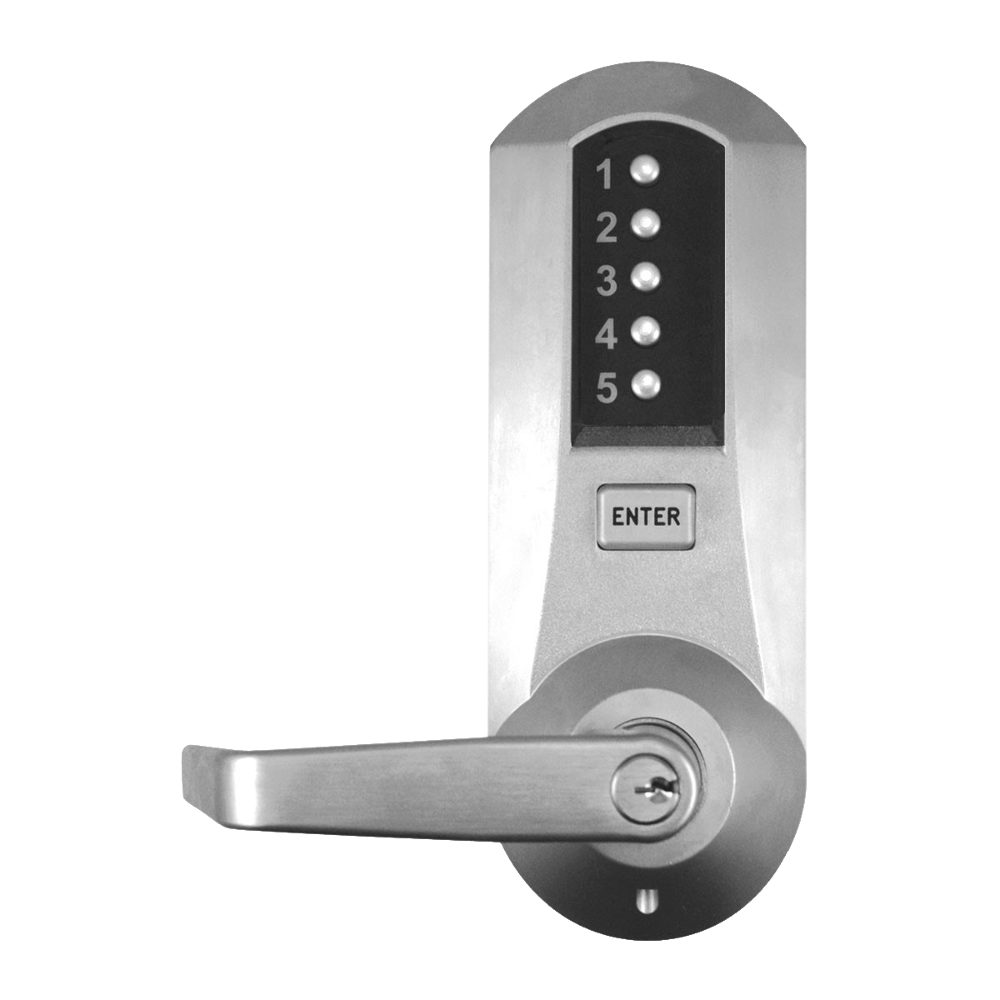

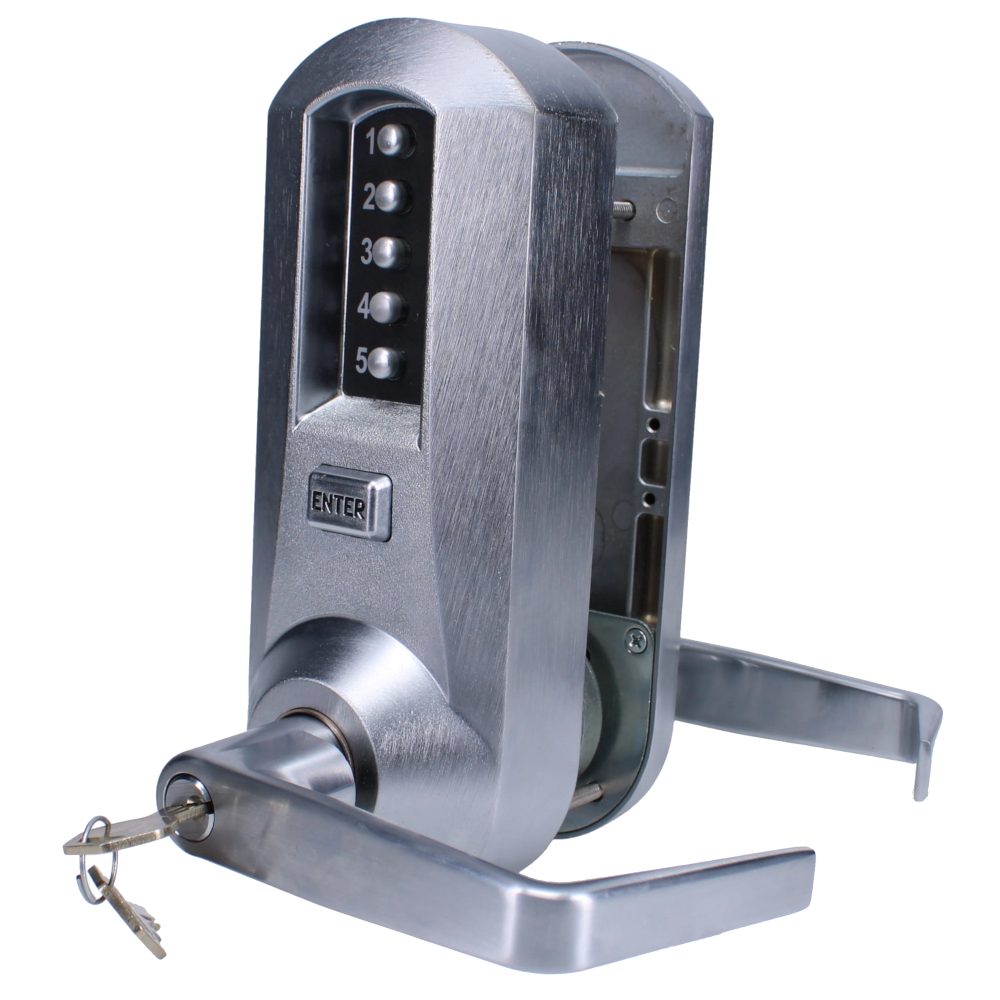

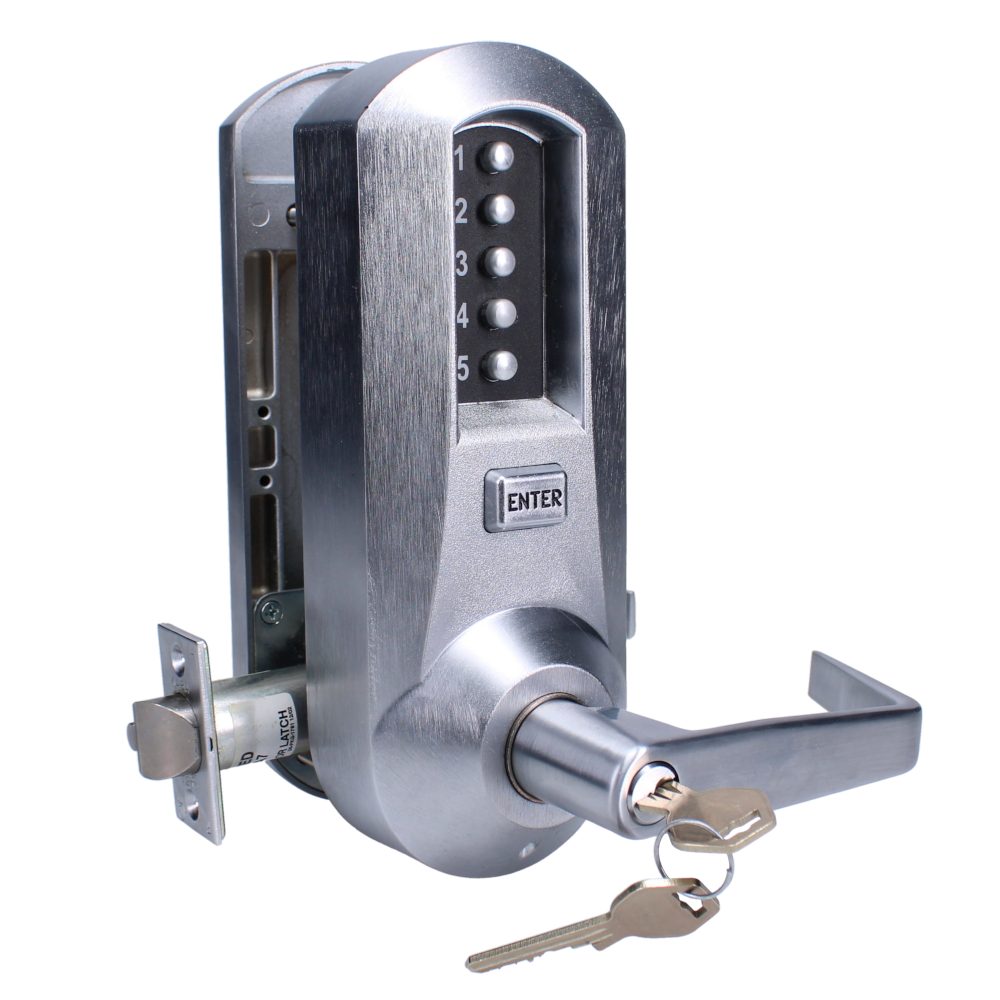

DORMAKABA 5000 Series Digital Lock With Passage Set

The weather-resistant dormakaba Simplex 5000 Series (formerly Kaba) is a robust, fully mechanical digital lock solution designed for high-traffic internal and external doors. Because it is completely mechanical, it eliminates the hassle and ongoing maintenance of battery replacements or electrical wiring.

This model features a convenient thumb-turn activated passage set mode, allowing free access without entering a code. This is particularly useful for busy periods or situations where frequent entry is required, such as unloading vehicles. The lock is operated via a durable 5-pushbutton keypad and supports a single access code (1 to 5 digits) with over 1,000 possible combinations. For added security and peace of mind, it includes a key override function and is supplied with two keys.

Programming is simple and can be completed from the outside without removing the lock from the door. Fully reversible on-site, this non-handed lock is suitable for both left and right-handed wood or metal doors.

Technical Specifications

• Manufacturer Reference: 5041XK (Part Number: L16604)
• Backset: 70mm
• Case Depth Required: 115mm
• Door Thickness: 35mm to 57mm
• Finish: Satin Chrome
• Keypad: 5-button mechanical keypad
• Code Length: 1 to 5 digits (1,000+ combinations)
• Key Override: Yes (supplied with 2 keys)
• Handing: Non-handed (reversible on-site)
• Operation Outside: Lever handle on code entry or by key
• Operation Inside: Lever handle free exit
• Weather Resistant: Yes
• Guarantee: 3 Year

Key Features

• Mechanical Operation: No batteries or wiring required, eliminating power-related maintenance.
• Passage Set Mode: Thumb-turn activated free passage allows unrestricted access when needed.
• Easy Code Changes: Quick and simple combination changes can be performed from the outside without removing the lock from the door.
• High Durability: Weather-resistant construction makes it ideal for high-traffic internal and external applications.
• Key Override: Provides an alternative entry method and emergency access with the two supplied keys.
• Versatile Installation: Suitable for both wood and metal doors.
