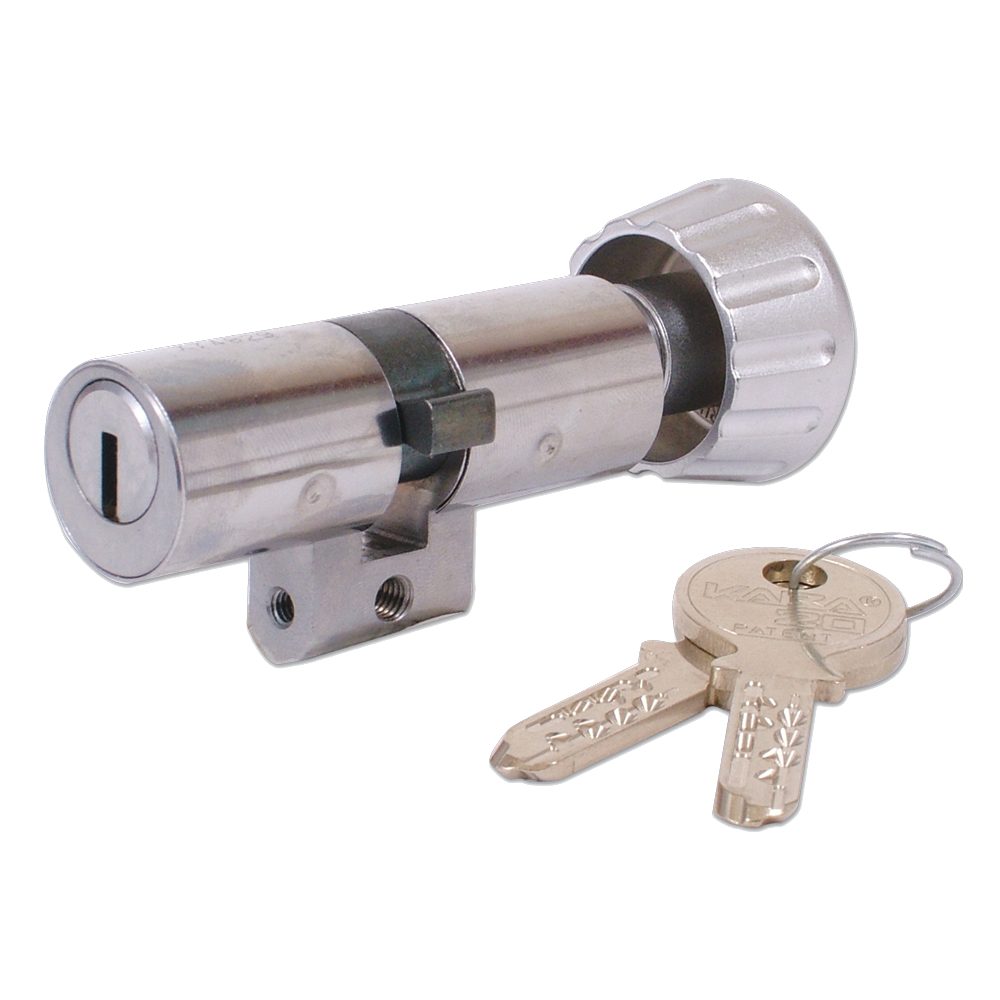

DORMAKABA 20 K519 Key & Turn Cylinder

The dormakaba (formerly Kaba) 20 K519 Key & Turn Euro Cylinder is a high-performance locking solution designed for demanding industrial and commercial applications where durability and high security are paramount.

At the heart of the dormakaba 20 system is a highly sophisticated mechanism featuring four radial pin tumbler rows with up to 22 pins. This intricate design offers exceptional resistance to picking and physical manipulation, making it an ideal choice for securing high-value areas.

To maintain strict access control, the system features a registered special key section with factory-controlled key duplication. Additional or duplicate keys cannot be cut on standard key machines; they must be ordered directly from KABA (UK) Ltd and will only be issued upon receipt of a written order bearing authorised signatures. The cylinder is supplied complete with a registration card, a cylinder retaining screw, and two keys.

Technical Specifications

• Brand: dormakaba
• Cylinder Profile: Euro
• Cylinder Type: Key & Turn (Thumbturn)

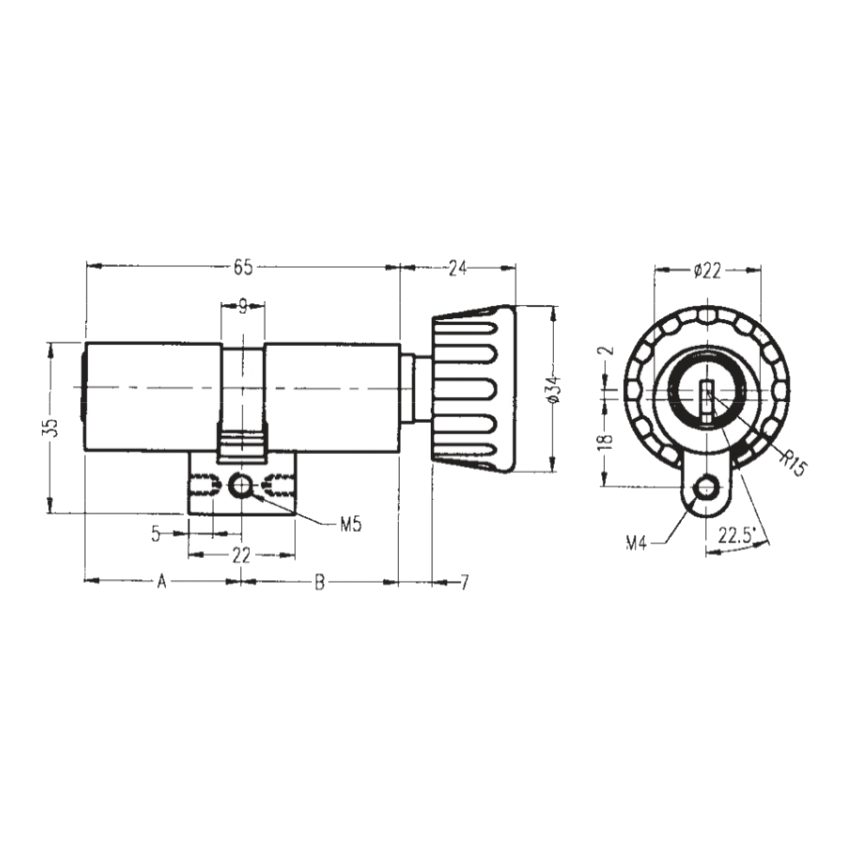

• Overall Size: 35/T35 (70mm overall length)
• Size with Cam: 30/10/T30
• Mechanism: 22-pin (4 radial pin rows)
• Finish: Satin Chrome
• Keying: Keyed to differ
• Keys Supplied: 2
• Fire Tested: Grade 0

Key Features

• High-Security Radial Pin Mechanism: Features up to 22 pins arranged across four radial rows for superior resistance against lock manipulation.
• Strict Key Control: Duplicate keys are factory-controlled and only issued by KABA (UK) Ltd upon receipt of an authorised written order.
• Registered Key Section: Utilises a registered special key section to prevent unauthorised key duplication.
• Complete Package: Supplied with a registration card, cylinder retaining screw, and two keys.
• Industrial Grade Durability: Designed specifically for heavy-duty commercial and industrial environments.
