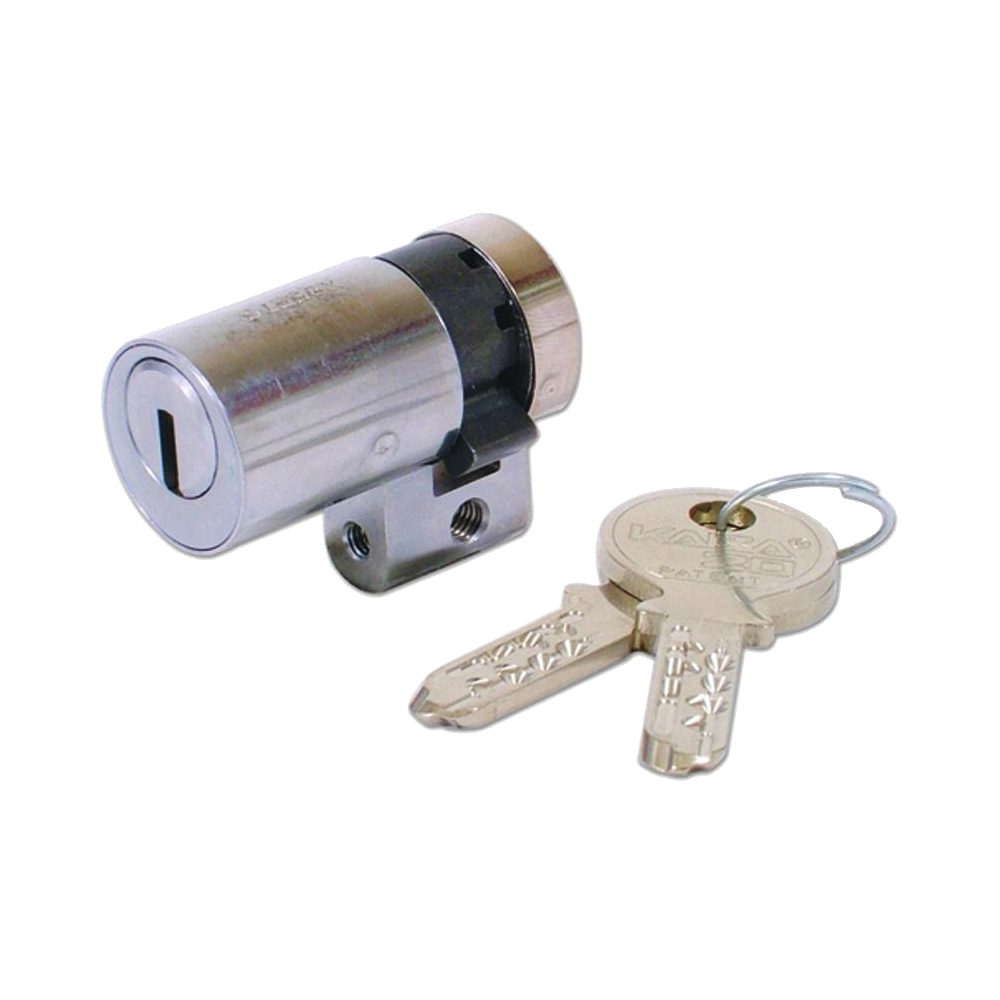

DORMAKABA 20 K514 Half Cylinder

The dormakaba (formerly Kaba) 20 K514 Half Cylinder is a high-performance locking solution designed for demanding commercial and industrial applications where security and durability are paramount. This precision-engineered cylinder features a robust 22-pin mechanism arranged across four radial pin tumbler rows, offering exceptional resistance to manipulation.

A key benefit of the dormakaba 20 system is its strict key control. Duplicate keys are factory-controlled and can only be obtained directly from dormakaba (UK) Ltd upon receipt of a written order with authorised signatures, preventing unauthorised key duplication.

This half cylinder is supplied in a satin chrome finish and comes complete with two keys, a registration card, and a cylinder retaining screw. It features an adjustable cam, making it versatile for various installation requirements.

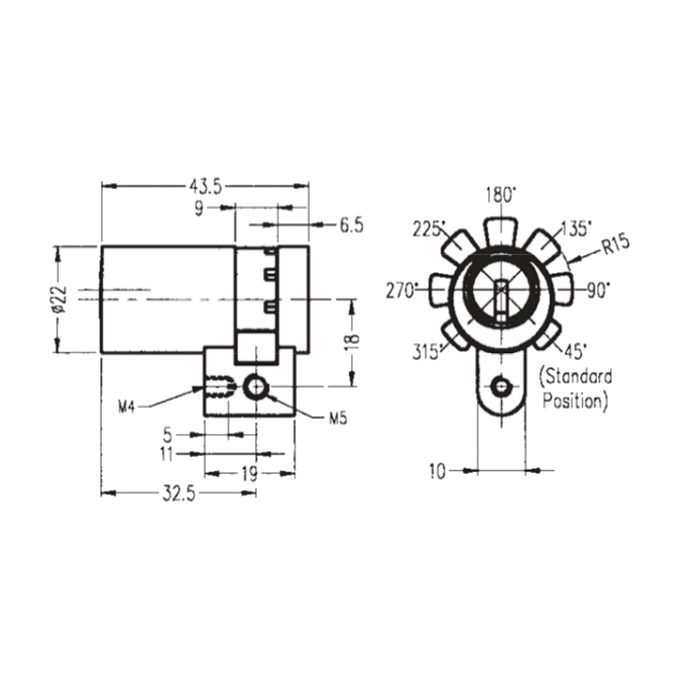

Technical Specifications

• Brand: dormakaba
• Cylinder System: dormakaba Kaba 20
• Overall Length: 44mm
• A Side: 22mm
• B Side: 22mm
• Mechanism: 22 Pin
• Finish: Satin Chrome
• Keys Supplied: 2
• Keying: Keyed To Differ
• Fire Tested: Grade 0

Key Features

• High-performance cylinder lock suitable for industrial and commercial applications
• Fitted with four radial pin tumbler rows comprising up to 22 pins
• Factory-controlled duplicate keys issued only upon authorised written order
• Features an adjustable cam for flexible installation
• Supplied with registration card and cylinder retaining screw
• Registered special key section for enhanced security
